Craftsman Plan 041-00198


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,358
Beds 3
Bath 2
1/2 Baths 1
Car 2
Stories 1
Width 67' 6"
Depth 65' 4"

Floorplan Drawings

Main Floor

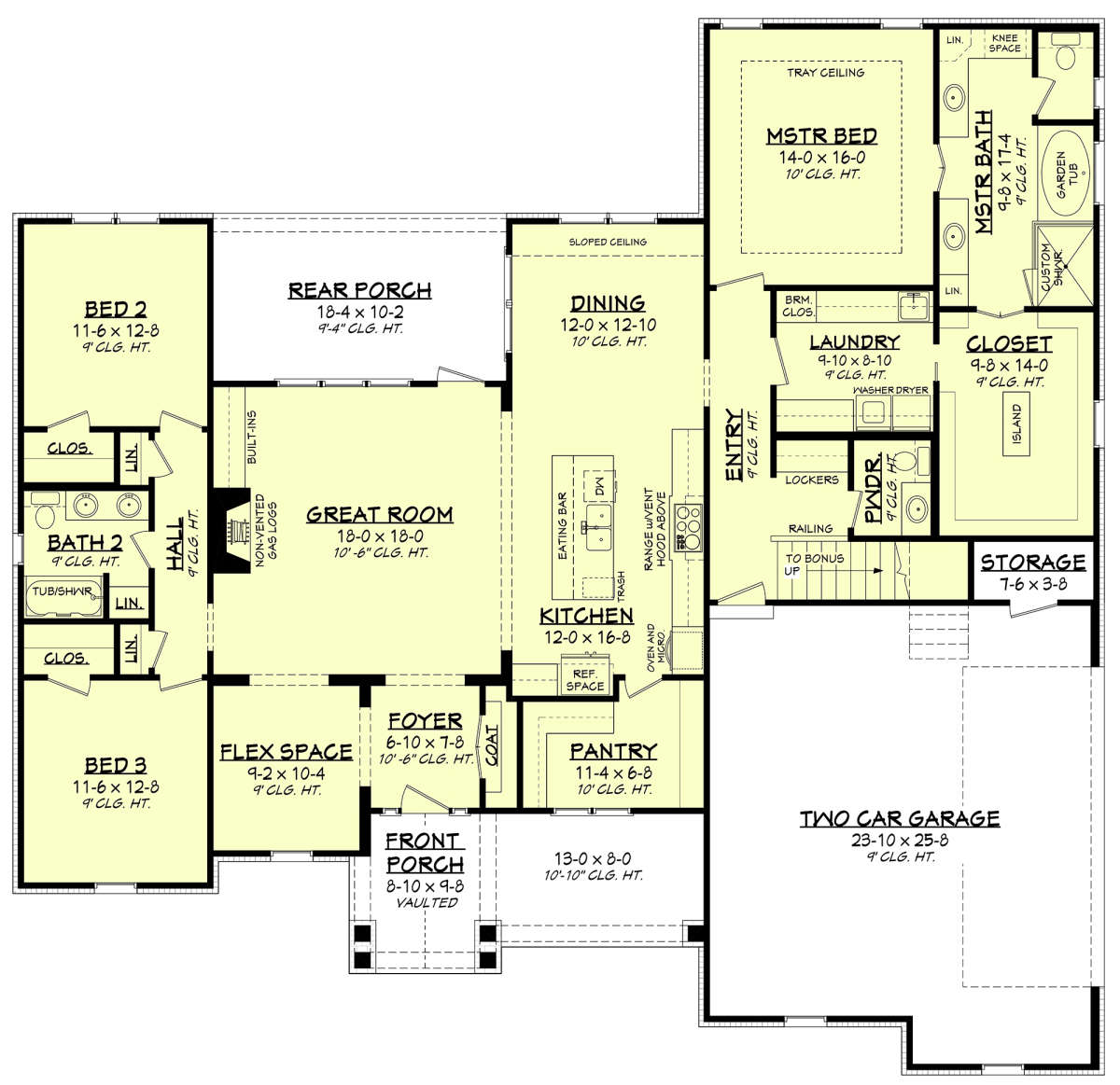

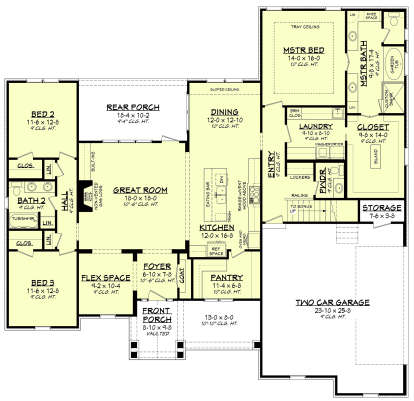

Main Floor for House Plan #041-00198
Bonus Room

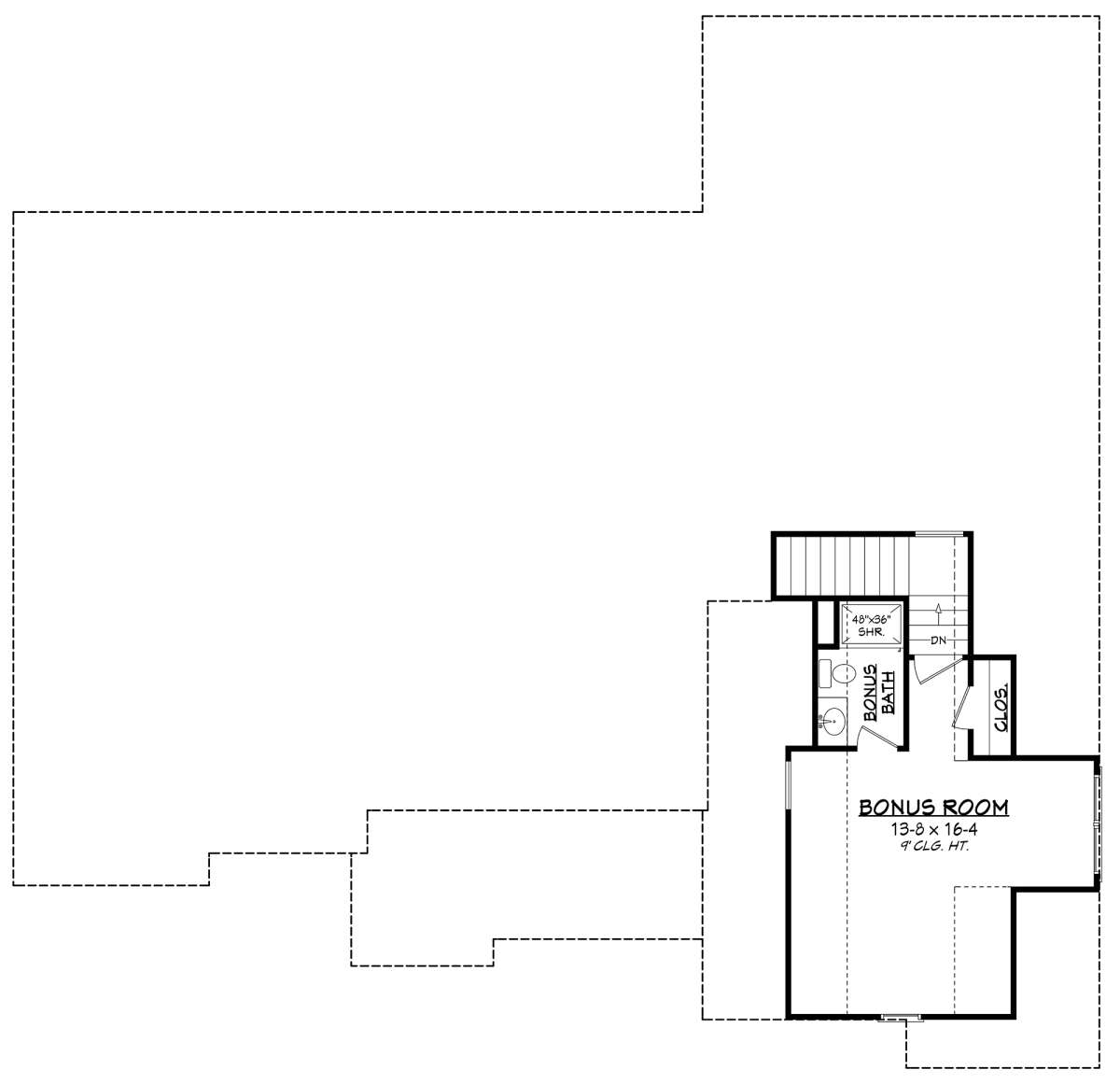

Bonus Room for House Plan #041-00198

What's Included in these plans?

  • Cover Sheet
    Cover sheet typically includes a front view of the plan (may be in color), index of pages included, and other miscellaneous notes and details.
  • Foundation Plan & Details
    Foundation plans describe to the builder, the type of foundation requested by the home owner or the type of foundation required by a certain geographic area. In most cases, the foundation plan will include footing sizes and locations, footing details and other important information needed to properly construct the home. In some specific areas, a structural engineer may be required to review and certify the house plans purchased. These reasons include, but are not limited to the following: seismic (earthquake) considerations, high wind (coastal , mountainous areas, etc.), snow loads, etc.
  • Floor Plans
    The floor plans locate all walls, interior and exterior, of the entire building, denote ceiling heights and treatments, locate all plumbing fixtures, cabinets, door and window locations and sizes, gives square footage measurements, locate water heaters and hvac systems.
  • Exterior Elevations
    The exterior elevations are used to depict the exterior finishes (brick, siding, stucco, etc.), roof styles (hip or gable) and slopes, ridge heights, and window styles, and overhang lengths. The exterior elevations include a front, right, rear, and left elevation.
  • Building Sections
    The building sections describe to the builder how a particular home is to be constructed.  Building sections typically show stud heights, the roof construction, whether stick built or pre engineered, direction of the ceiling joist members, overhang finishes, wall and ceiling finishes, and interior roof support members.
  • Roof Plan
    The roof plan depicts the roof type, plate heights and roof slope of each plane.
  • Interior Cabinet Views
    Cabinet views depict the overall design and layout of the kitchen cabinets.
  • Electrical Plan
    The electrical plan depicts the general location of all interior and exterior electrical devices. This generally includes light switches, electrical outlets, ceiling fixtures, and smoke detectors. The electrical plan will also generally locate the breaker box and power entry.

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

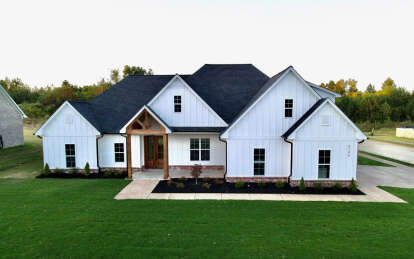

This popular Craftsman house plan details a well mapped out interior hitting all the highly sought after features desired by today’s homeowner in addition to its attractive exterior serving massive curb appeal. The exterior showcases a farmhouse-like countenance comprised of white board and batten intertwined with natural materials to create a lovely contrast in materials. Details such as the window panels and the covered front porch bring together the beautifully crafted design, making it ultra-desirable. The rear of the home mirrors the front and highlights a covered rear porch. There is a side-entry garage holding plenty of vehicle space for two cars and a storage room. An overhead bonus room sits above the garage with a dormer window view and a full bathroom and closet, making it function well as an additional bedroom or guest room.

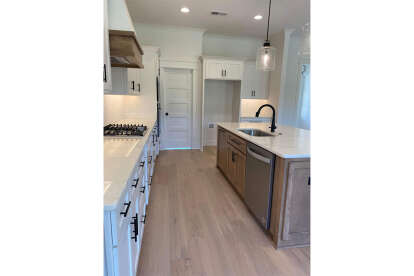

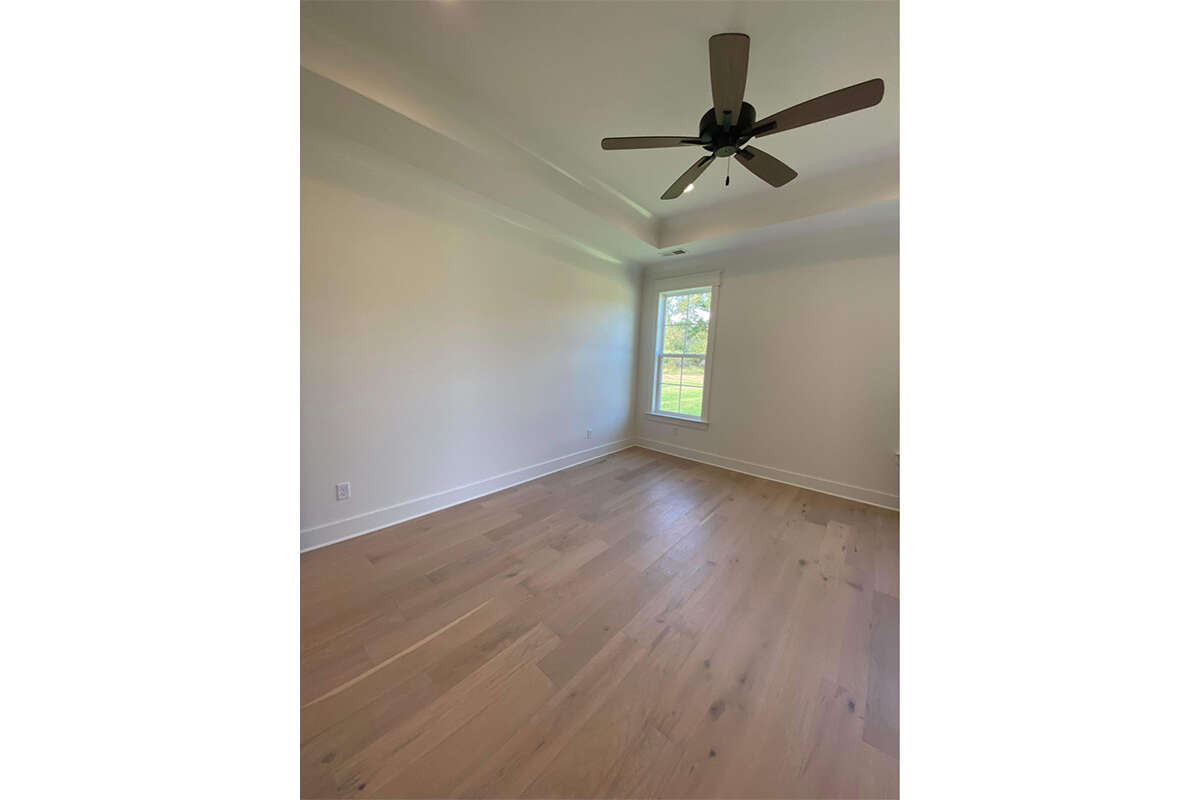

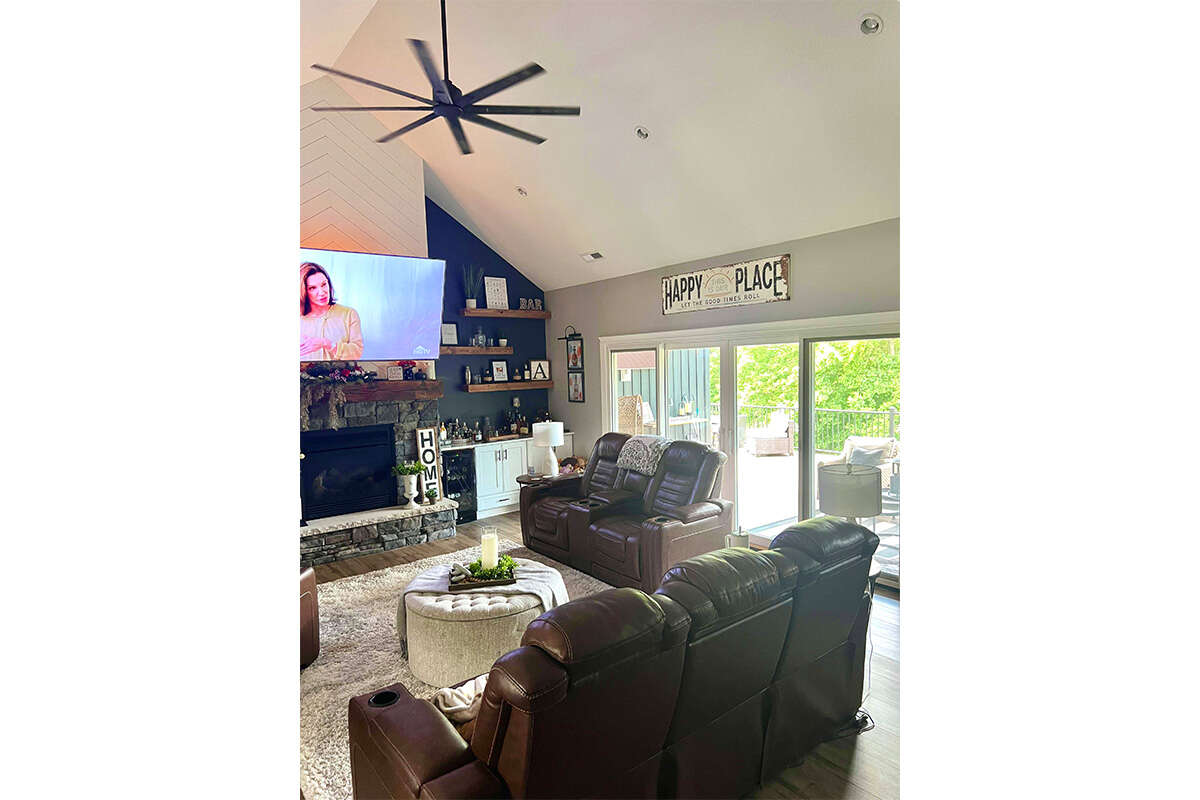

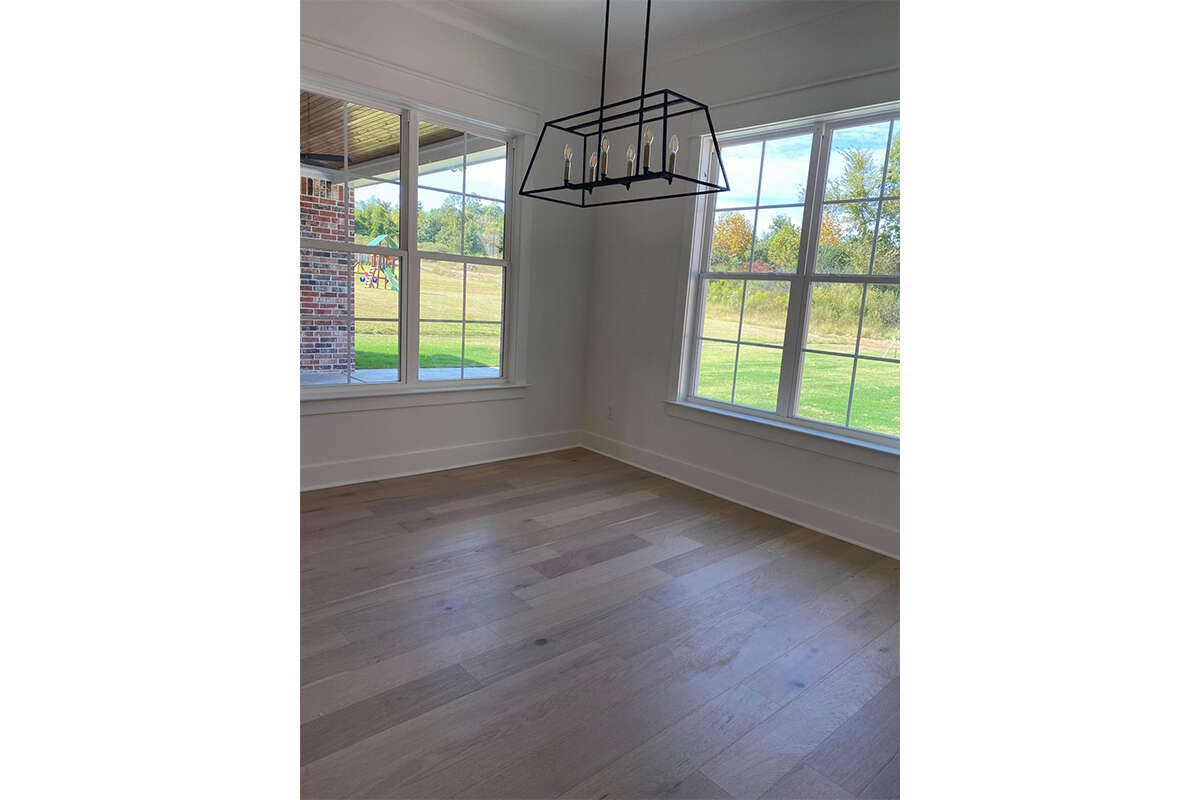

Entry from the vaulted front porch leads to the 10-foot foyer, where there is a coat closet and an open flex space which functions well as a home office. The open floor plan is exposed as soon as you enter the great room, where there is a warming non-vented gas log fireplace adjacent to built-in shelving. The corner kitchen highlights plenty of countertop space with additional space on the center island. There is also plenty of cabinetry with additional storage in the large walk-in pantry. The adjoining dining nook is sunlit in the corner of the room and has a sloped ceiling. The split bedroom layout grants the owner's suite with complete privacy away from the secondary bedrooms. From the garage, there is a mudroom with lockers for easy hang-up of coats and shoes and access to the guest powder room. The entry from here leads to the owner's suite featuring a tray ceiling, a grand bath with incredible space, and a large walk-in closet with convenient sliding door access to the laundry room. The secondary bedrooms are identical in size and share a hall bathroom with dual vanities and extra linen closets. This Craftsman house plan unlocks excellent usage of its 2,358 square foot interior as well as showboats an attractive exterior design.
