Craftsman Plan 041-00196


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,074
Beds 3
Bath 2
1/2 Baths 0
Car 2
Stories 1
Width 58' 8"
Depth 68' 10"

Floorplan Drawings

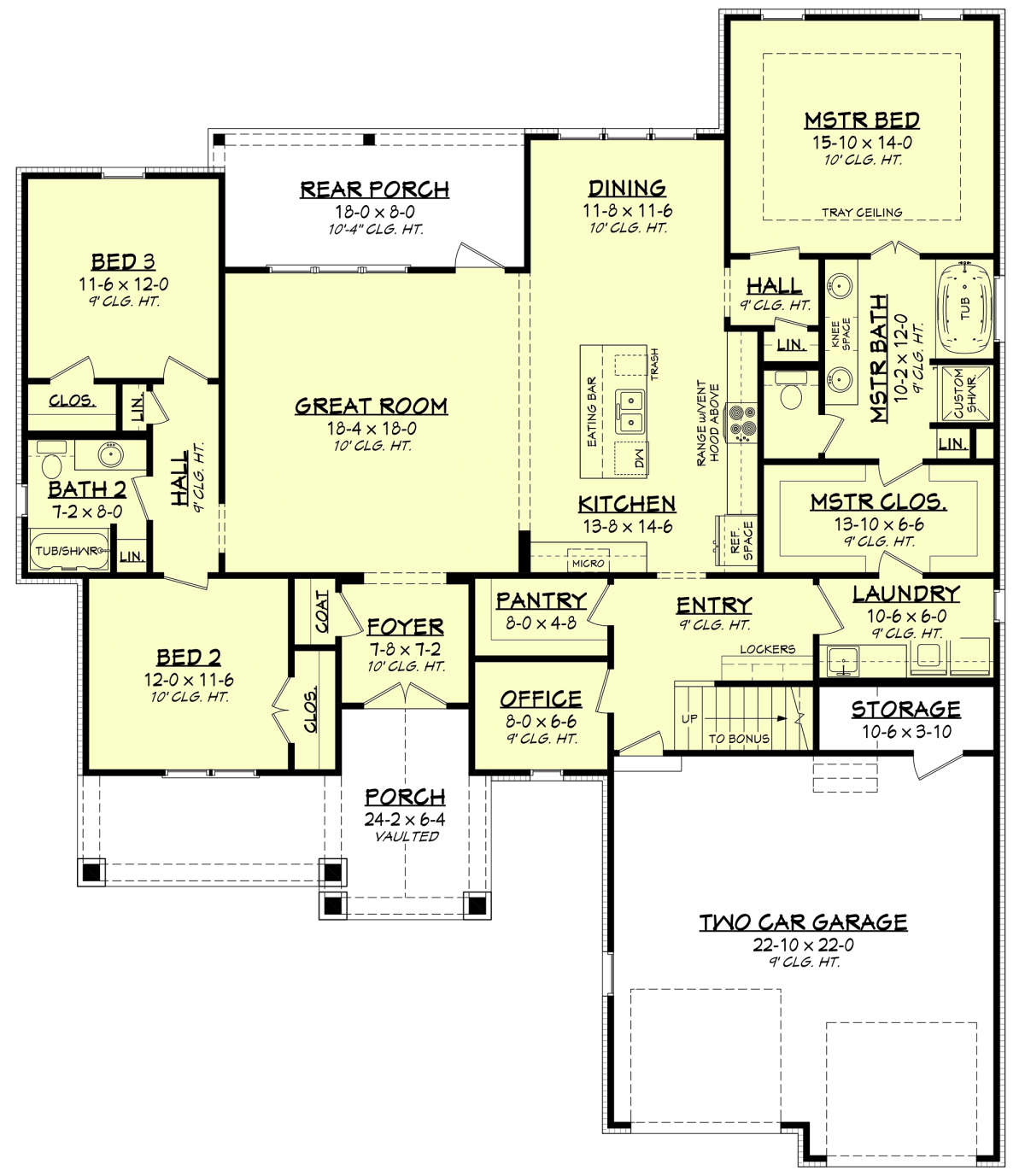

Main Floor

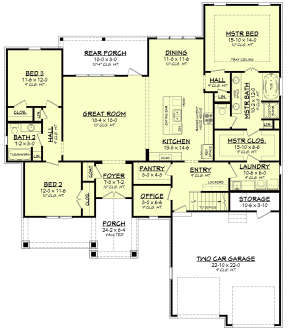

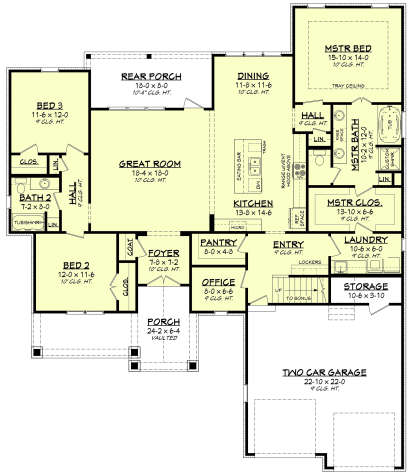

Main Floor for House Plan #041-00196
Bonus Room

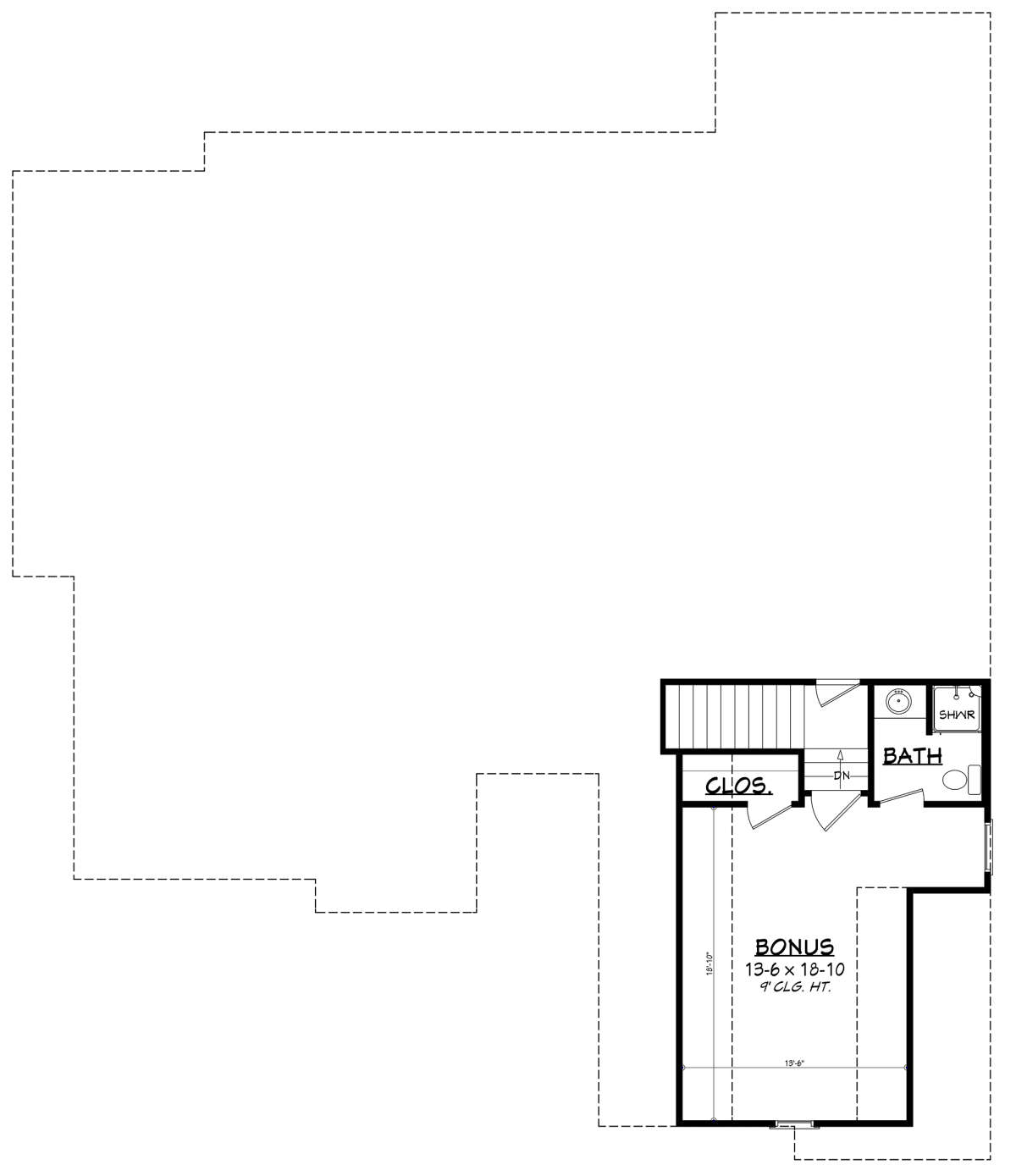

Bonus Room for House Plan #041-00196

What's Included in these plans?

  • Cover Sheet
    Cover sheet typically includes a front view of the plan (may be in color), index of pages included, and other miscellaneous notes and details.
  • Foundation Plan & Details
    Foundation plans describe to the builder, the type of foundation requested by the home owner or the type of foundation required by a certain geographic area. In most cases, the foundation plan will include footing sizes and locations, footing details and other important information needed to properly construct the home. In some specific areas, a structural engineer may be required to review and certify the house plans purchased. These reasons include, but are not limited to the following: seismic (earthquake) considerations, high wind (coastal , mountainous areas, etc.), snow loads, etc.
  • Floor Plans
    The floor plans locate all walls, interior and exterior, of the entire building, denote ceiling heights and treatments, locate all plumbing fixtures, cabinets, door and window locations and sizes, gives square footage measurements, locate water heaters and hvac systems.
  • Exterior Elevations

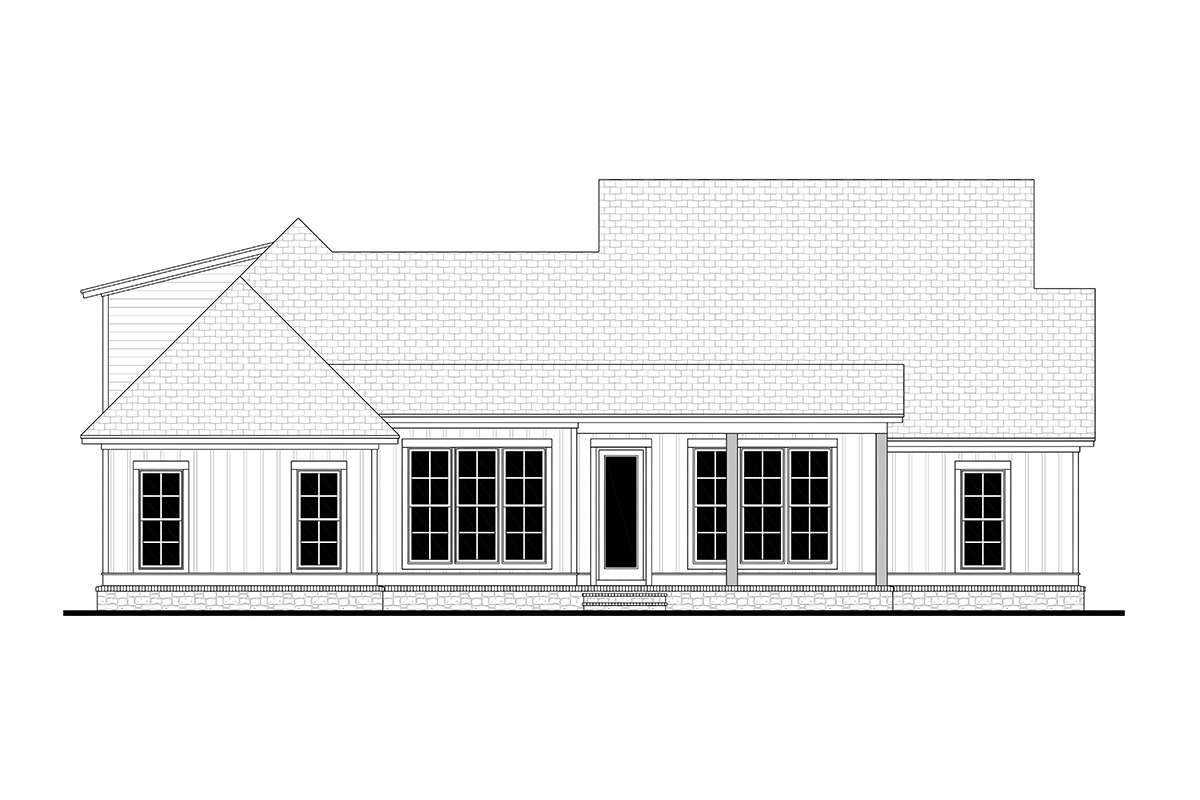

    The exterior elevations are used to depict the exterior finishes (brick, siding, stucco, etc.), roof styles (hip or gable) and slopes, ridge heights, and window styles, and overhang lengths. The exterior elevations include a front, right, rear, and left elevation.
  • Building Sections
    The building sections describe to the builder how a particular home is to be constructed.  Building sections typically show stud heights, the roof construction, whether stick built or pre engineered, direction of the ceiling joist members, overhang finishes, wall and ceiling finishes, and interior roof support members.
  • Roof Plan
    The roof plan depicts the roof type, plate heights and roof slope of each plane.
  • Interior Cabinet Views
    Cabinet views depict the overall design and layout of the kitchen cabinets.
  • Electrical Plan
    The electrical plan depicts the general location of all interior and exterior electrical devices. This generally includes light switches, electrical outlets, ceiling fixtures, and smoke detectors. The electrical plan will also generally locate the breaker box and power entry.

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This Craftsman house plan will have you rolling out the welcome mat as you easily imagine settling in this 2,074 square foot home. The single-story layout delivers a home designed to comfortably start a family and grow old. The exterior is crafted with superior detailings like board and batten, clapboard siding, stacked stone, and timber beams that can easily be customized to fit your color preference. The front porch features a vaulted ceiling while the rear covered porch details a 10-foot ceiling. The entrance into the foyer leads to a coat closet before exposing the roomy great room. With access to the rear covered porch, the great room opens to the kitchen which is a delight to cook and entertain in as it features plenty of countertop space and storage in the walk-in pantry. The center island highlights a hightop eating bar, a dishwasher, trash, and a double sink. The adjoining dining room offers sufficient room for gathering together as a family. Right off the two-car garage, the entry doubles as a mudroom with built-in lockers and provides access to the office and laundry room.

The split bedroom layout grants plenty of privacy between the primary and secondary bedrooms while the hallways grant further privacy between the bedrooms and common area. The owner's suite almost spans the length of the right-wing of the home and offers a tray ceiling in the bedroom, an attached bathroom with dual vanities, a custom shower, separate tub, and there is a large  closet with convenient access to the laundry room as well. The secondary bedrooms share a hall bathroom with extra linen closets. The overhead bonus room opens the home to extra possibilities. With a complete bathroom and closet, this bonus room could work well as a guest bedroom or whatever the homeowner desires. The single-story layout in this Craftsman house plan is designed to last for years to come and the overhead bonus room adds a remarkable value to the quality of living.
