Ranch House Plan 041-00189

Sq Ft3,044
Beds4
Baths3
1/2 Baths1
Stories1
Cars3
Width74' 0"
Depth82' 10"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

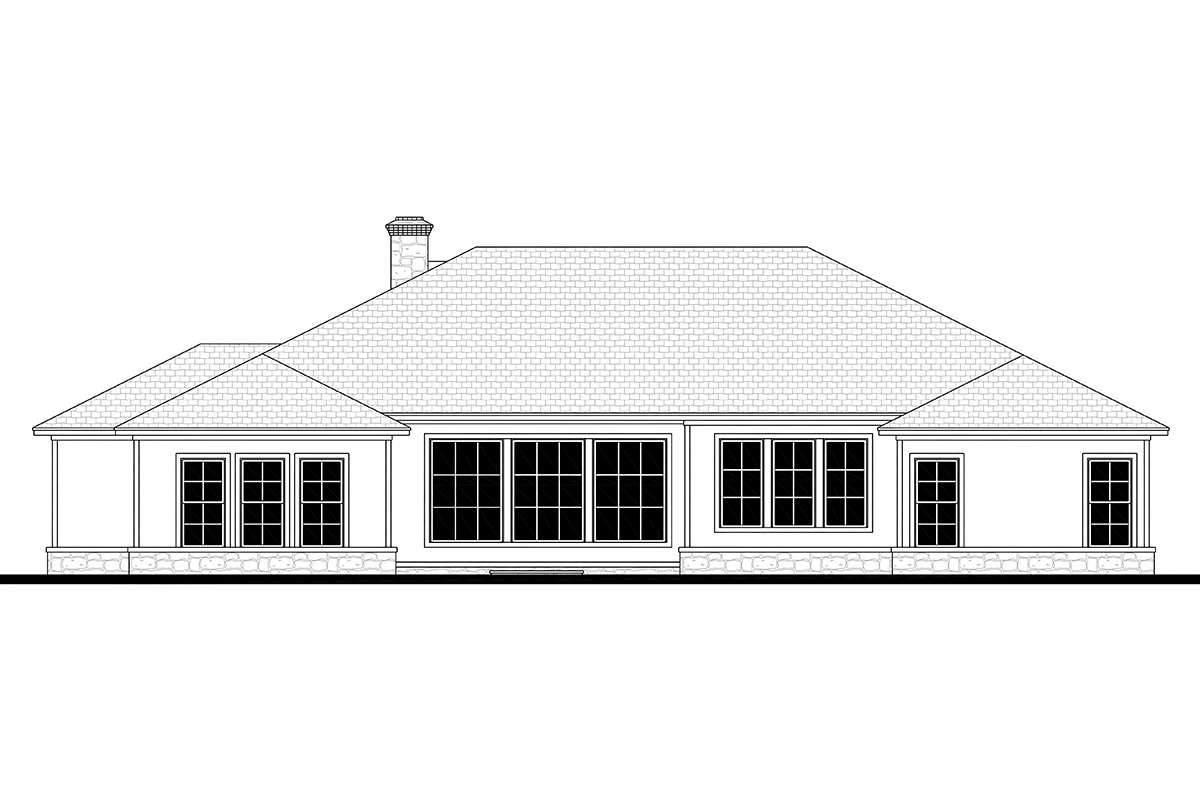

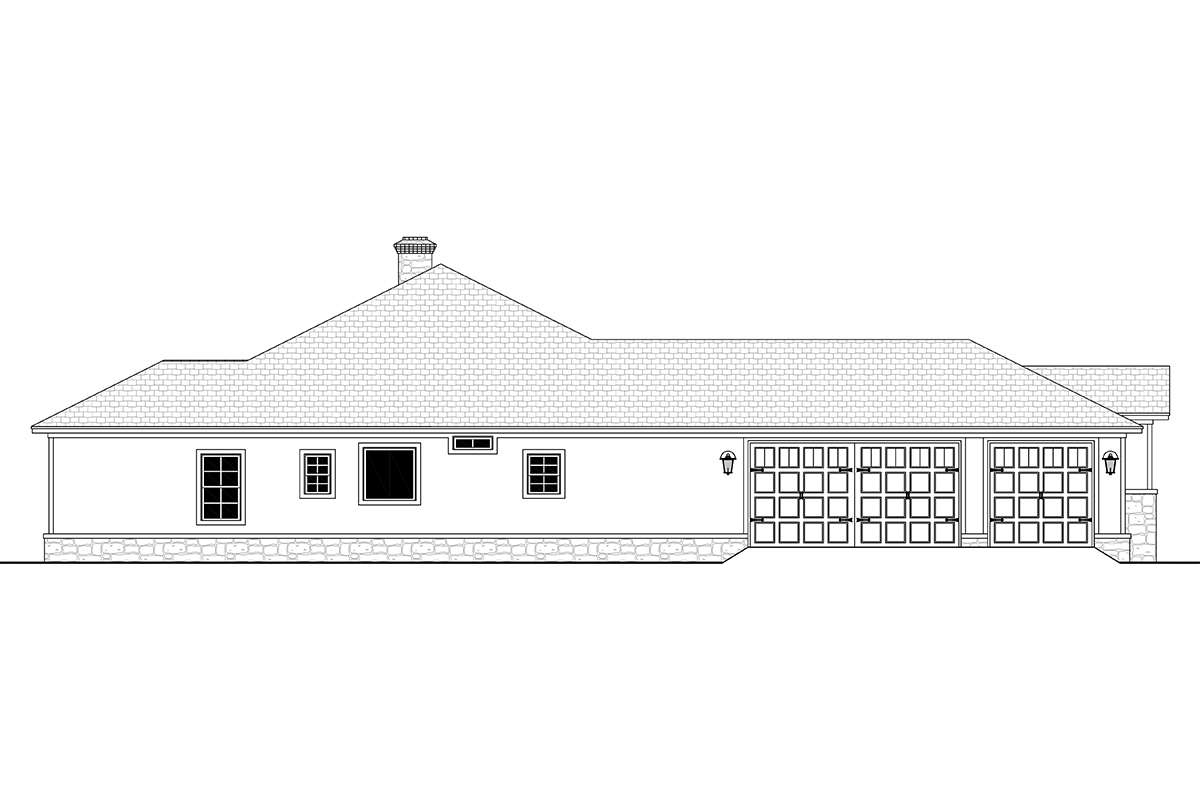

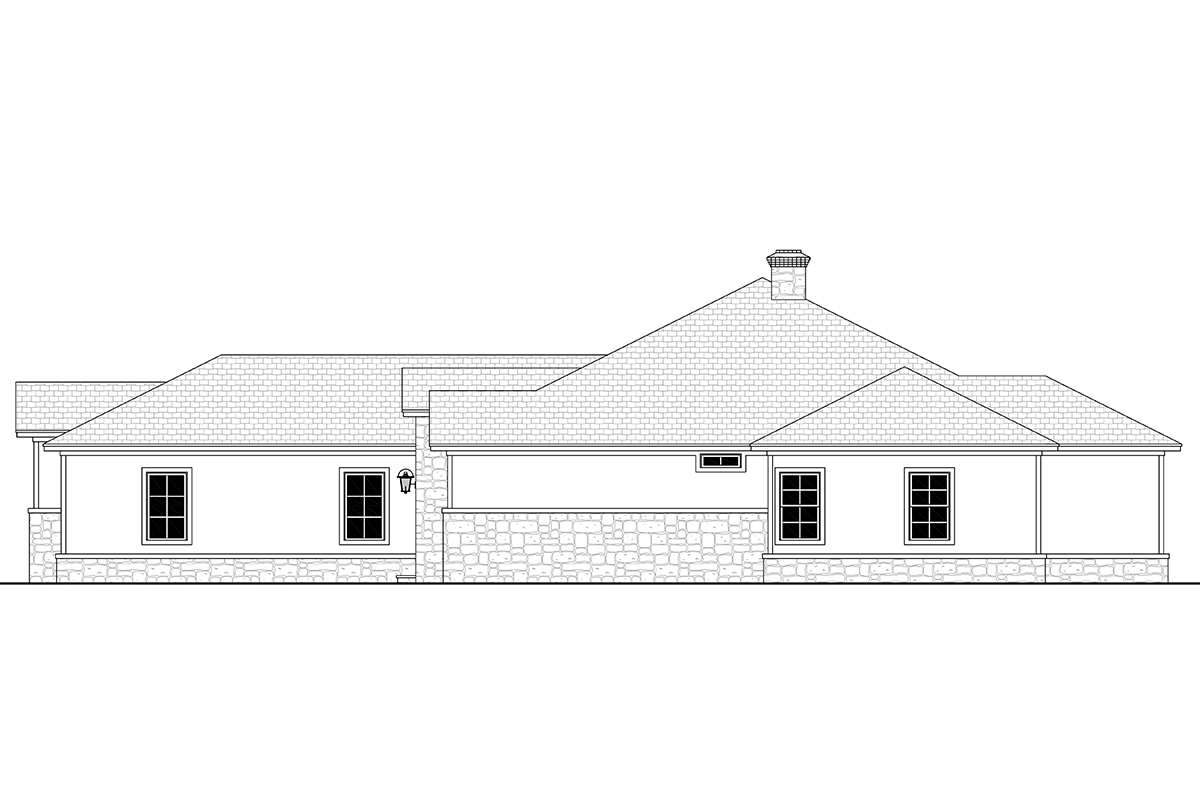

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

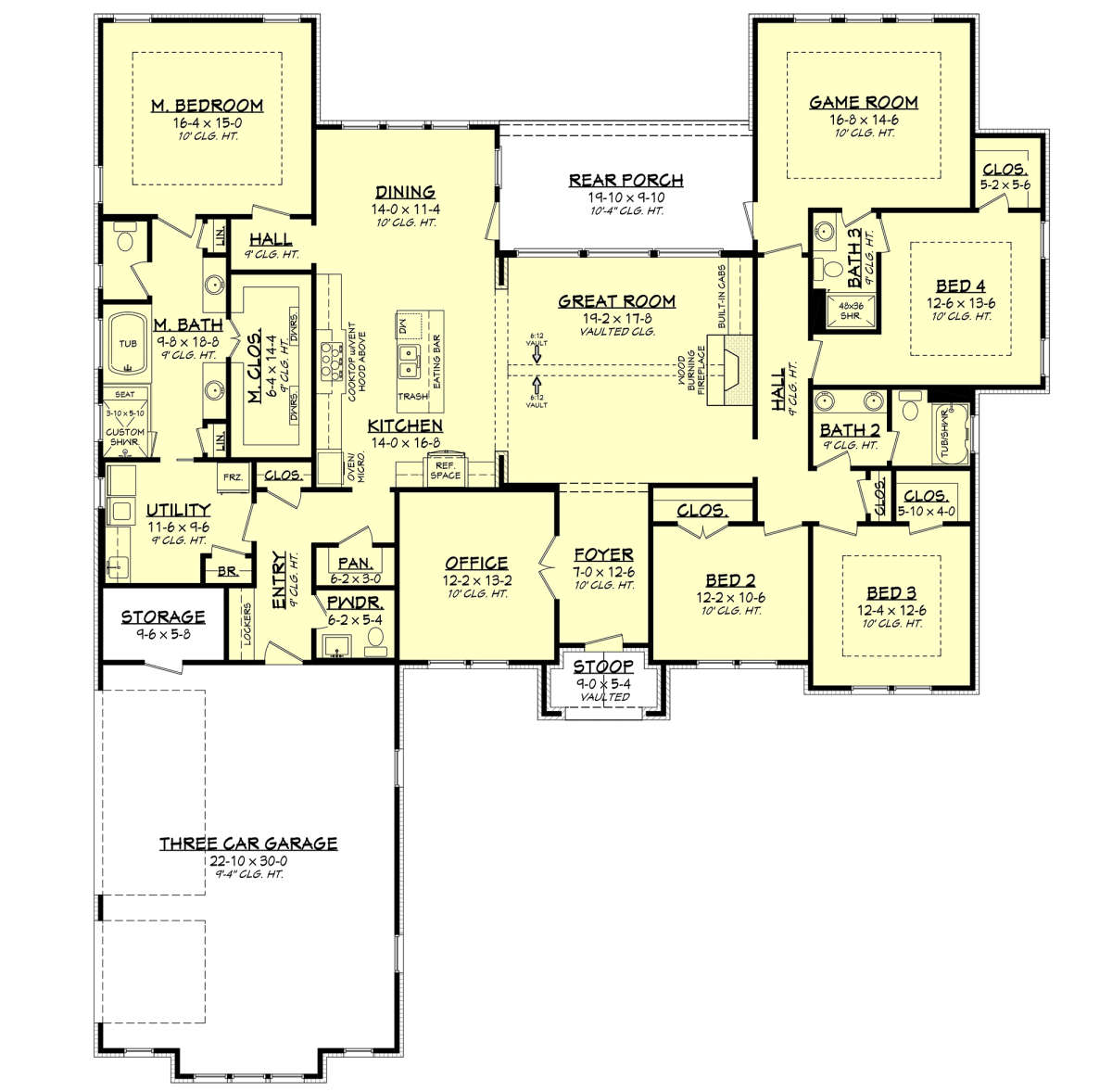

Main Floor for House Plan #041-00189
Main Floor
Main Floor for House Plan #041-00189


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Cover Sheet
    Cover sheet typically includes a front view of the plan (may be in color), index of pages included, and other miscellaneous notes and details.
  • Foundation Plan & Details
    Foundation plans describe to the builder, the type of foundation requested by the home owner or the type of foundation required by a certain geographic area. In most cases, the foundation plan will include footing sizes and locations, footing details and other important information needed to properly construct the home. In some specific areas, a structural engineer may be required to review and certify the house plans purchased. These reasons include, but are not limited to the following: seismic (earthquake) considerations, high wind (coastal , mountainous areas, etc.), snow loads, etc.
  • Floor Plans
    The floor plans locate all walls, interior and exterior, of the entire building, denote ceiling heights and treatments, locate all plumbing fixtures, cabinets, door and window locations and sizes, gives square footage measurements, locate water heaters and hvac systems.
  • Exterior Elevations
    The exterior elevations are used to depict the exterior finishes (brick, siding, stucco, etc.), roof styles (hip or gable) and slopes, ridge heights, and window styles, and overhang lengths. The exterior elevations include a front, right, rear, and left elevation.
  • Building Sections
    The building sections describe to the builder how a particular home is to be constructed.  Building sections typically show stud heights, the roof construction, whether stick built or pre engineered, direction of the ceiling joist members, overhang finishes, wall and ceiling finishes, and interior roof support members.
  • Roof Plan
    The roof plan depicts the roof type, plate heights and roof slope of each plane.
  • Interior Cabinet Views
    Interior cabinet views depict the overall design and layout of all interior cabinets. These include kitchen cabinets, bathroom cabinets, built-in cabinets, and other specialty items designed within a particular home.
  • Electrical Plan
    The electrical plan depicts the general location of all interior and exterior electrical devices. This generally includes light switches, electrical outlets, ceiling fixtures, and smoke detectors. The electrical plan will also generally locate the breaker box and power entry.

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

Attractive, highly functional and perfect for the modern family, this one story Ranch house plan features everything today’s family needs. The inviting exterior features simple construction and yet, offers “eye pleasing” architectural design elements consisting of beautiful stonework, smooth stucco exterior walls and an abundant series of delightful window views. The calming exterior houses approximately 3,044 square feet of living space with four bedrooms, three plus baths and an open floor plan. There is a three car side entry garage with a single and double bay that also offers dedicated storage space and leads to the rear entry where there is a guest powder room, lockers and a coat closet before entering the family utility room which features sink and counter space, a broom closet and freezer space. The main entry is off the vaulted front stoop and opens onto the home office through French doors as well as the centrally located great room. The great room measures in excess of 19’x 17’ with built-in cabinetry, a wood burning fireplace, vaulted ceiling heights and windows spanning the rear wall. The great room is open to both the kitchen and dining space; the dining room has rear porch access making entertaining and dining al fresco enjoyable and effortless. The gourmet kitchen is perfect for family and friends to gather in comfort while preparing meals; there is a large center island with a breakfast bar, plenty of counter/cabinet space and around the corner is a walk-in pantry.

The split bedroom plan allows for privacy and comfort for the homeowners; there is a master suite which features a large trey ceiling bedroom, a luxurious bath with generous floor space that features a private water closet, separate dual vanities, a garden tub, double linen closets and a custom shower with seating. There is a separate entry from the master bath into the family laundry room for convenience and the master closet is super spacious with plenty of room for the homeowner’s clothing and accessories. The secondary bedrooms are located on the opposite side of the home with an attached hallway where there is a game room at the rear of the space. This game room is large, has 10’ ceiling heights, window views and is perfectly designed as a playroom for small children or a lounge for older children. All three of the remaining bedrooms feature similar sized rooms with window views and large or walk-in closets. There are two bathrooms; one has a vanity, toilet space and a shower with private access for the fourth bedroom while the second bath is highlighted with double sinks and a toilet room with a tub/shower combination near bedrooms two and three. This family friendly Ranch house plan is visually appealing, features a family friendly floor plan and great storage space.
