Craftsman Plan 041-00176

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,086
Beds 3-4
Bath 2
1/2 Baths 0
Car 2
Stories 1.5
Width 66' 2"
Depth 54' 2"

Floorplan Drawings

Main Floor

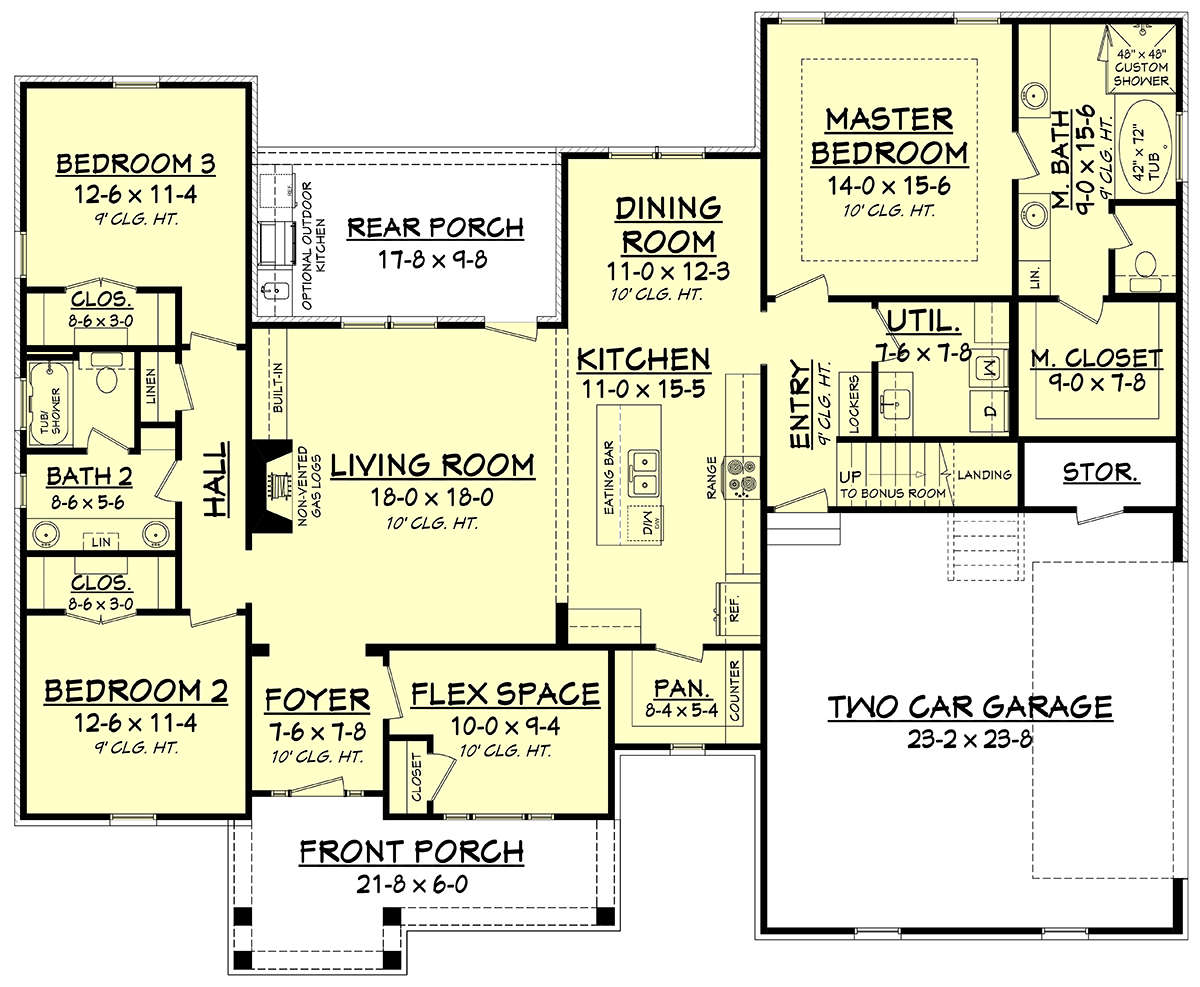

Main Floor  for House Plan #041-00176

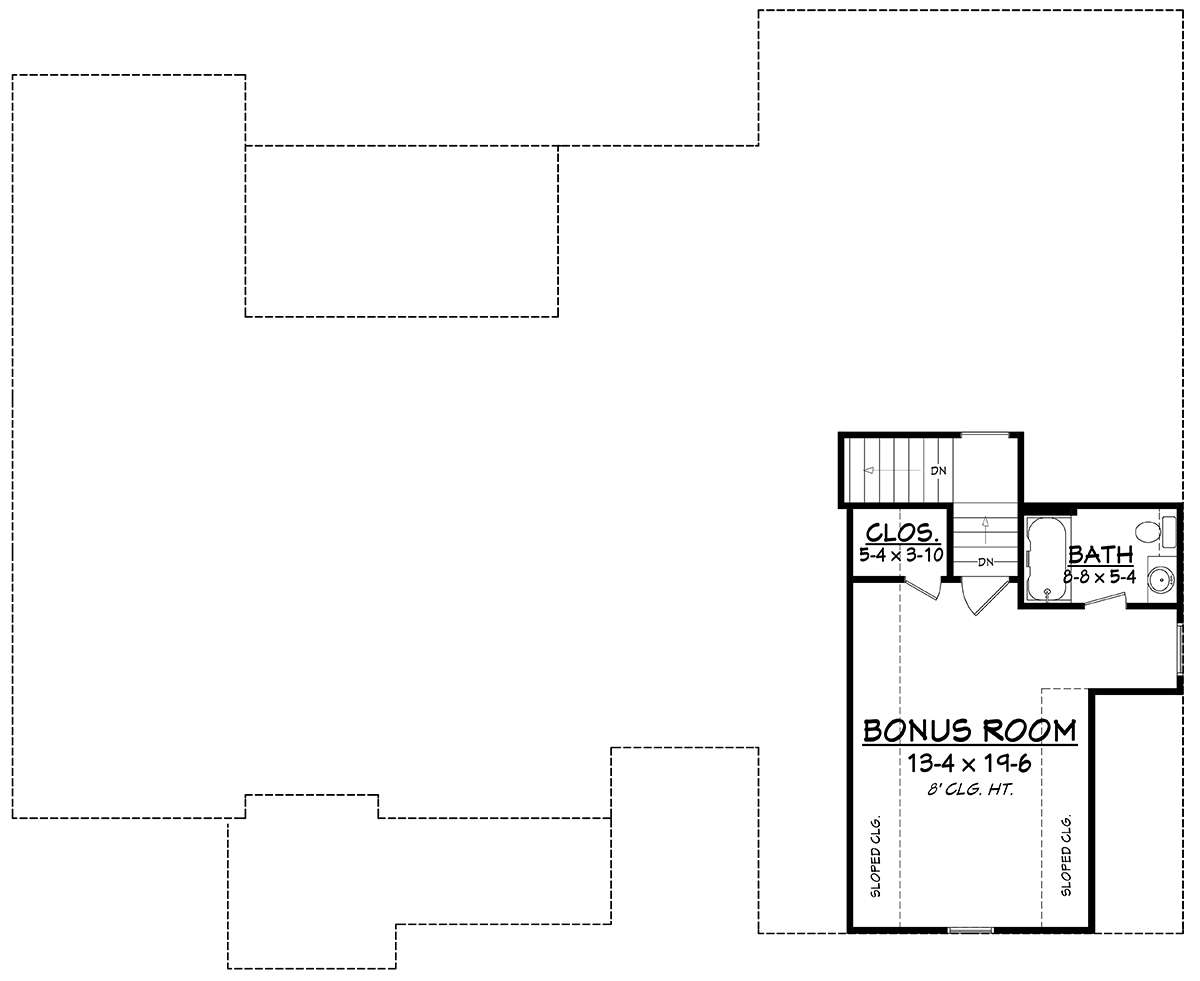

Bonus Room
Bonus Room for House Plan #041-00176


What's Included in these plans?

  • Cover Sheet
    Cover sheet typically includes a front view of the plan (may be in color), index of pages included, and other miscellaneous notes and details.
  • Foundation Plan & Details
    Foundation plans describe to the builder, the type of foundation requested by the home owner or the type of foundation required by a certain geographic area. In most cases, the foundation plan will include footing sizes and locations, footing details and other important information needed to properly construct the home. In some specific areas, a structural engineer may be required to review and certify the house plans purchased. These reasons include, but are not limited to the following: seismic (earthquake) considerations, high wind (coastal , mountainous areas, etc.), snow loads, etc.
  • Floor Plans
    The floor plans locate all walls, interior and exterior, of the entire building, denote ceiling heights and treatments, locate all plumbing fixtures, cabinets, door and window locations and sizes, gives square footage measurements, locate water heaters and hvac systems.
  • Exterior Elevations
    The exterior elevations are used to depict the exterior finishes (brick, siding, stucco, etc.), roof styles (hip or gable) and slopes, ridge heights, and window styles, and overhang lengths. The exterior elevations include a front, right, rear, and left elevation.
  • Building Sections
    The building sections describe to the builder how a particular home is to be constructed.  Building sections typically show stud heights, the roof construction, whether stick built or pre engineered, direction of the ceiling joist members, overhang finishes, wall and ceiling finishes, and interior roof support members.
  • Roof Plan
    The roof plan depicts the roof type, plate heights and roof slope of each plane.
  • Interior Cabinet Views
    Cabinet views depict the overall design and layout of the kitchen cabinets.
  • Electrical Plan
    The electrical plan depicts the general location of all interior and exterior electrical devices. This generally includes light switches, electrical outlets, ceiling fixtures, and smoke detectors. The electrical plan will also generally locate the breaker box and power entry.

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

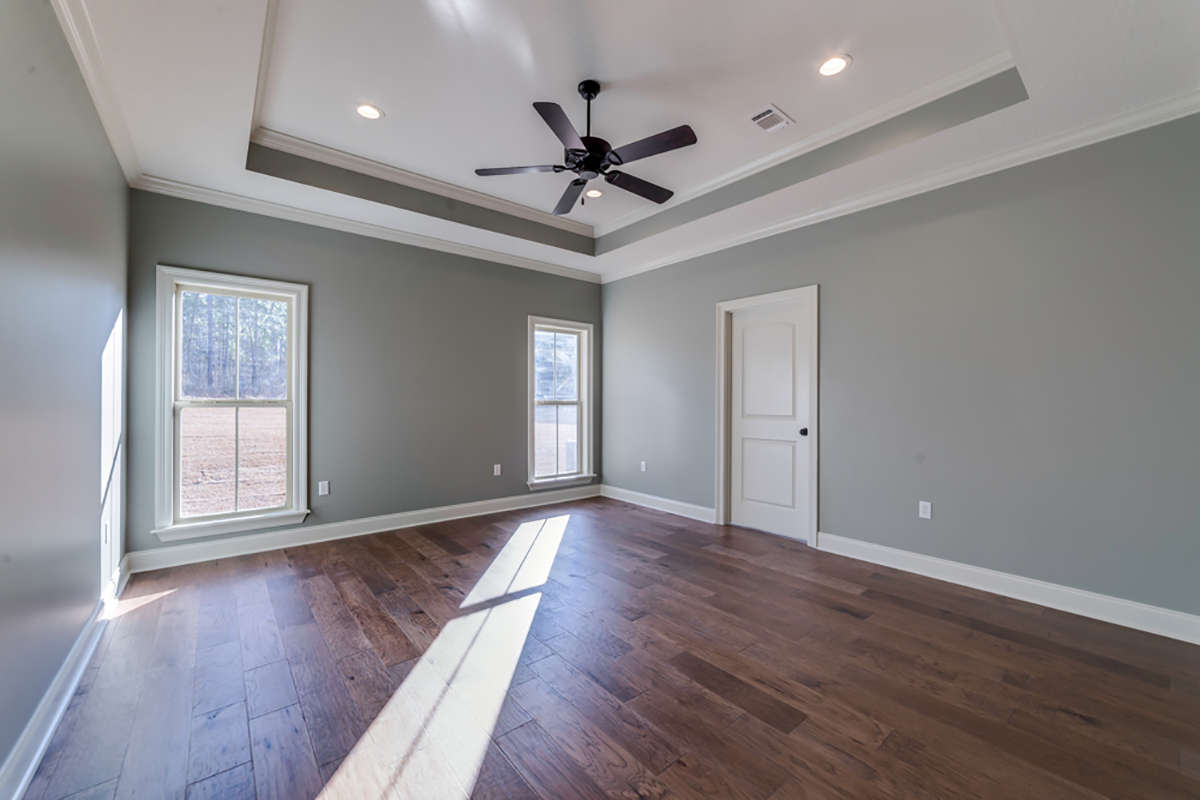

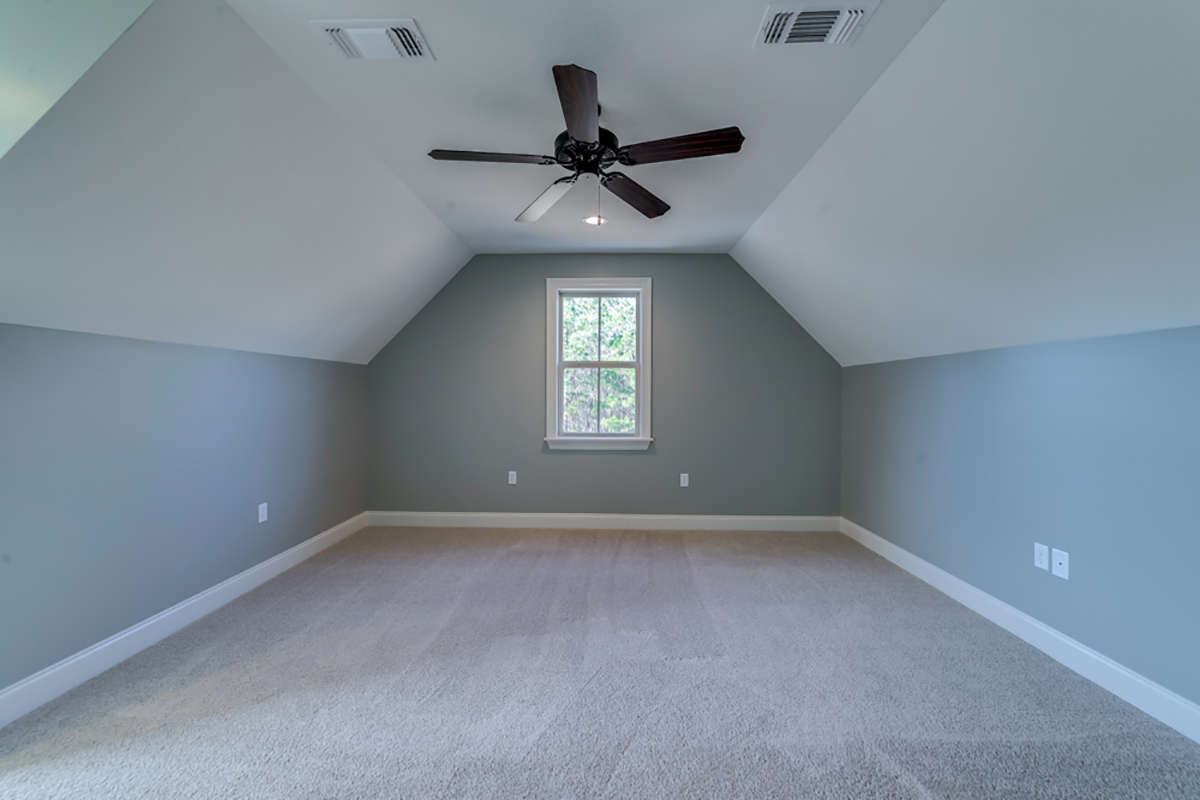

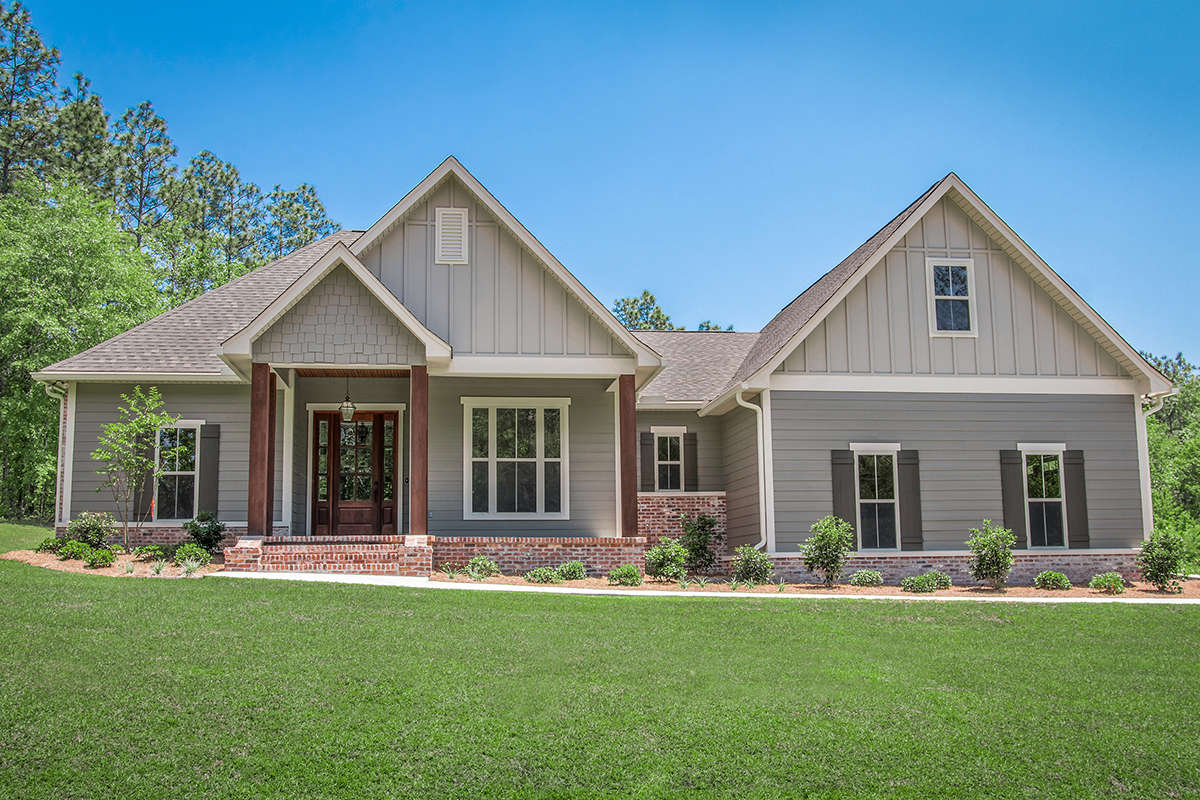

This wonderful Craftsman house plan features a board and batten exterior with a brick perimeter skirt circling to the rear exterior that is fully laid with amazing brickwork. Natural light engulfs the home design as windows surround the circumference of the home. Blending naturally with the exterior façade is the interior layout measuring approximately 2,086 square feet with three bedrooms and two bathrooms in a 1.5-story home. The optional bonus room adds approximately 395 square feet to the overall floorplan and is versatile in function; its full plumbing and closet space make it exceptional as a fourth bedroom, a media room, or a kids’ playroom. The spacious two car garage offers great vehicle space with an additional storage area.

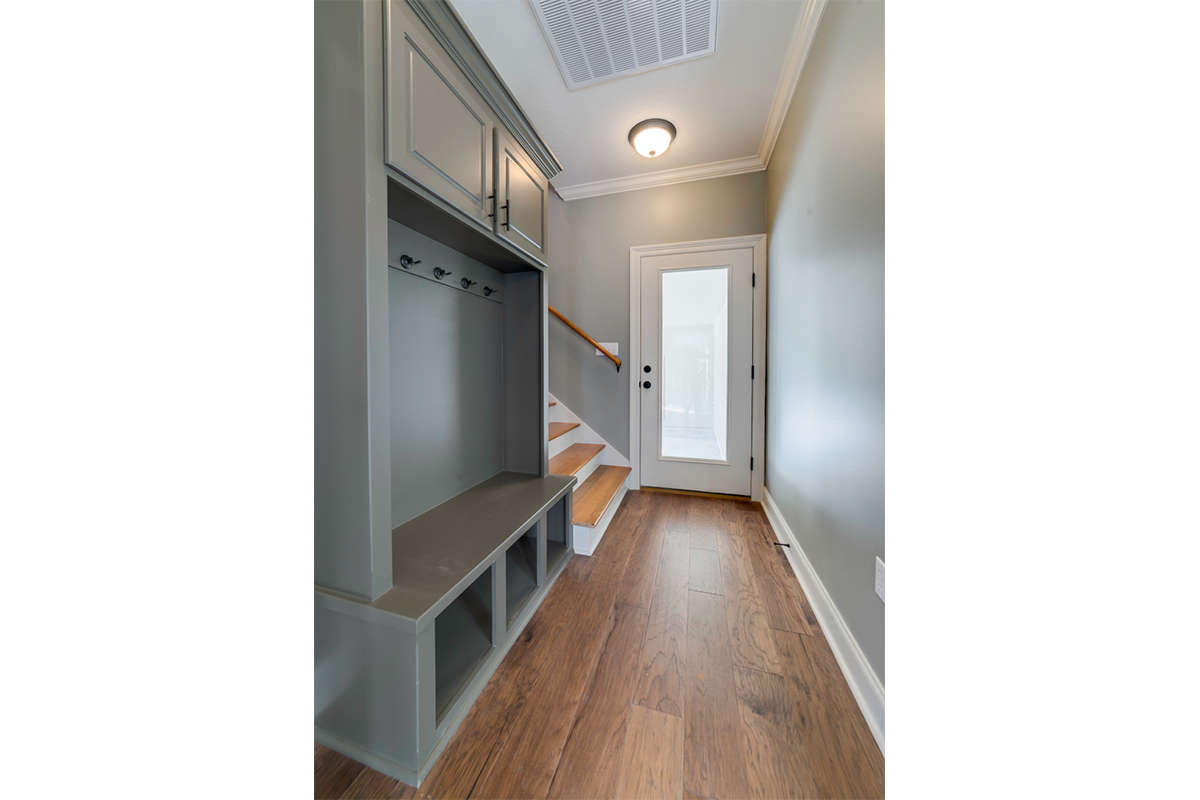

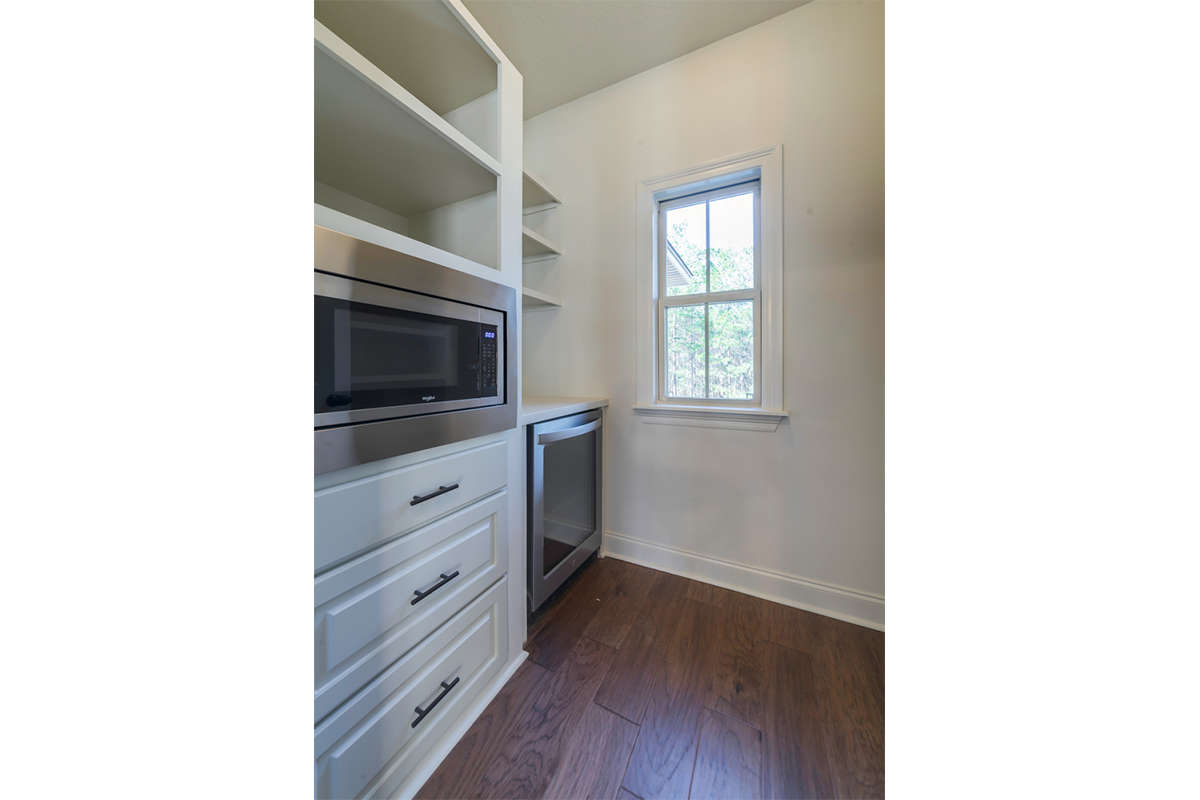

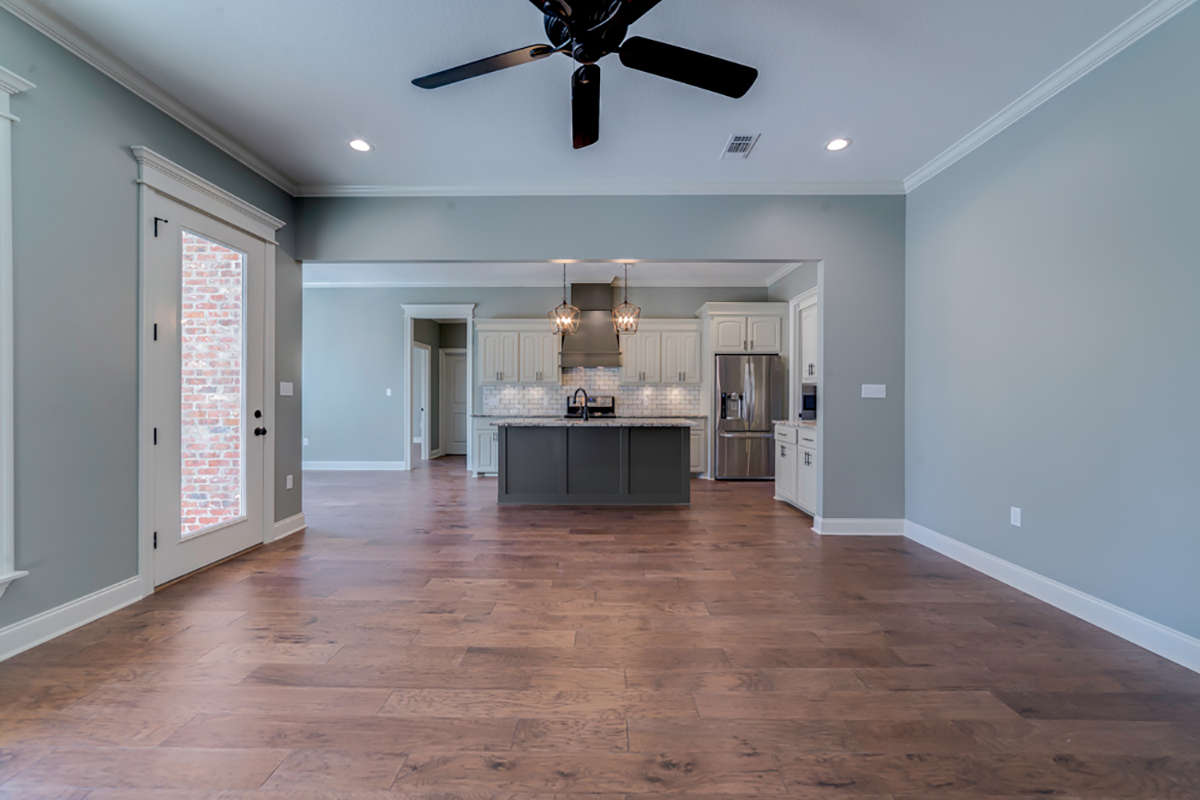

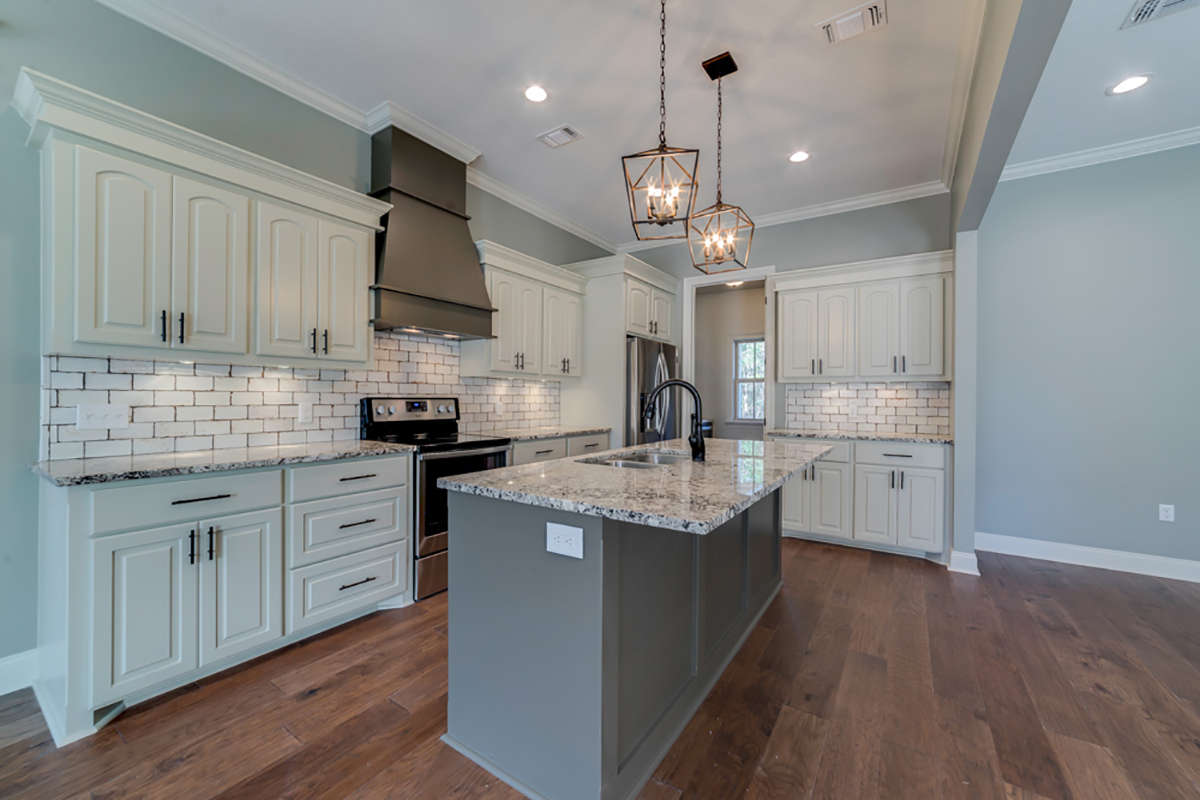

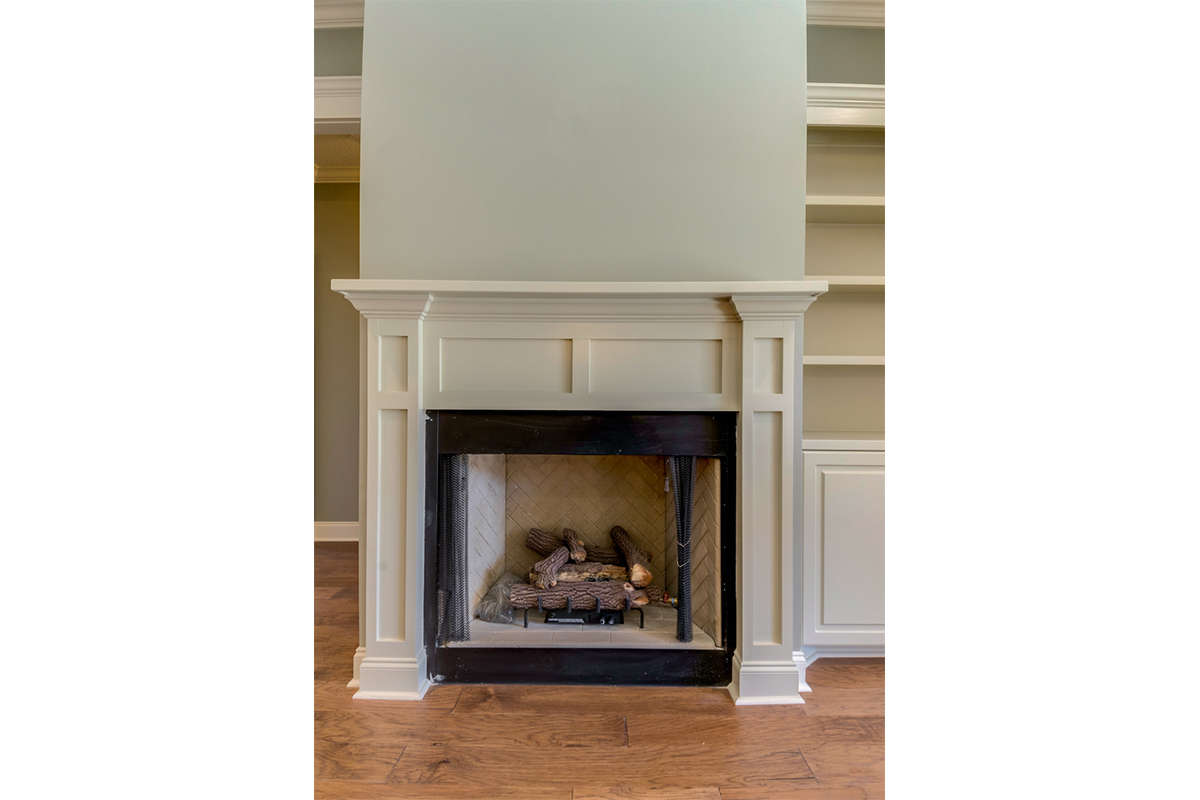

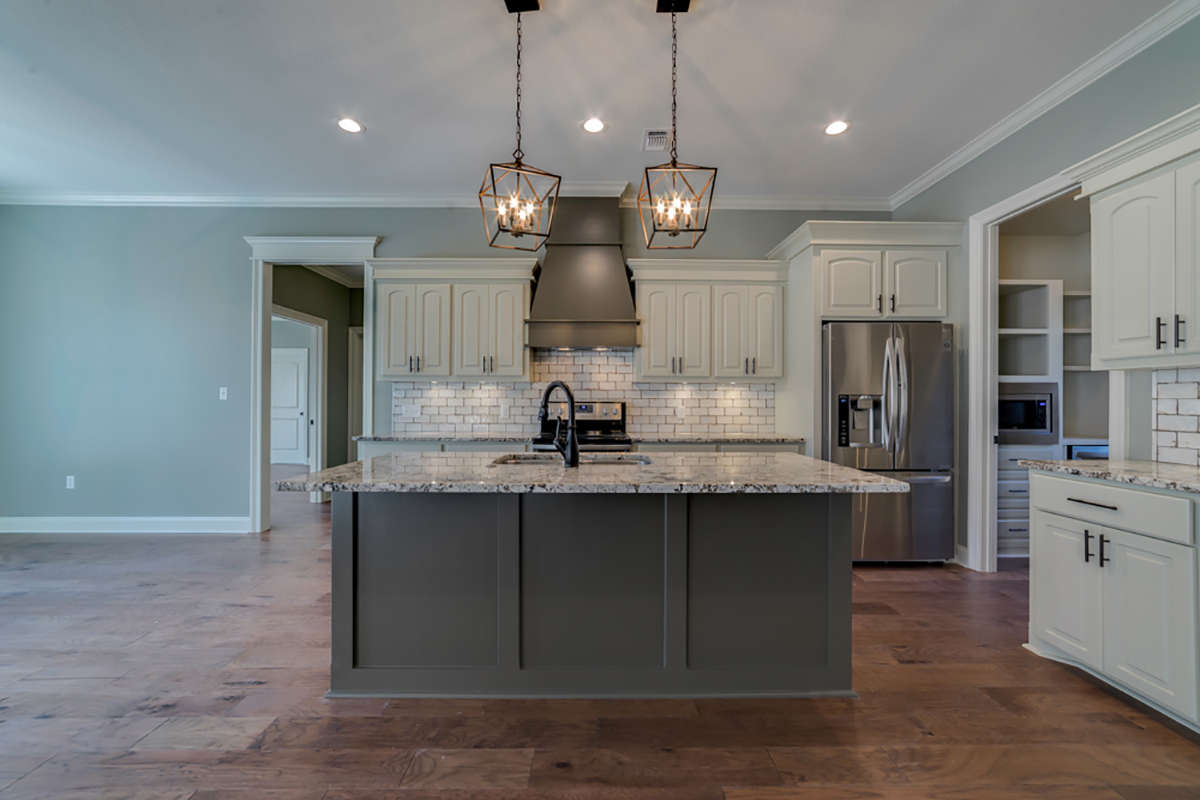

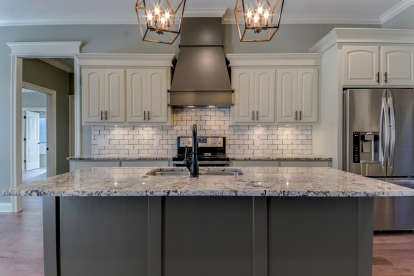

The popular open concept offers great spaces for entertaining including the spacious porches and the future space to allow for a growing family. Through the covered front porch into the foyer advances to the flex space with a closet; this space can be customized to your liking and would serve well as a home office, crafts room, or an exercise room. The open concept of the living room flows well with the kitchen and formal dining room. The living room features a gas log fireplace, built-in shelving, and access to the rear porch; which features an optional outdoor kitchen. The indoor kitchen offers a center island with a breakfast bar, plenty of cabinetry and countertop space, and a walk-in pantry. Right off the kitchen is the owner's bedroom; this luxurious suite contains a tray ceiling, an en suite bath with dual vanities, a large soaking tub, and separate shower. The walk-in closet is right off the en suite. The spacious laundry room has a sink area and mudroom with lockers nearby. The secondary bedrooms are located on the opposite side of the house. Both are equal in size, closet space, and share a hall bathroom with dual vanities and a shower/tub combination. This Craftsman house plan is loaded with features and tremendous curb appeal, designed to fit any family’s need.
