Craftsman House Plan 041-00170

Sq Ft2,534
Beds3
Baths2
1/2 Baths1
Stories1.5
Cars2
Width88' 7"
Depth70' 10"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

  REVERSE     PRINT     DOWNLOAD   Images copyrighted by the designer.

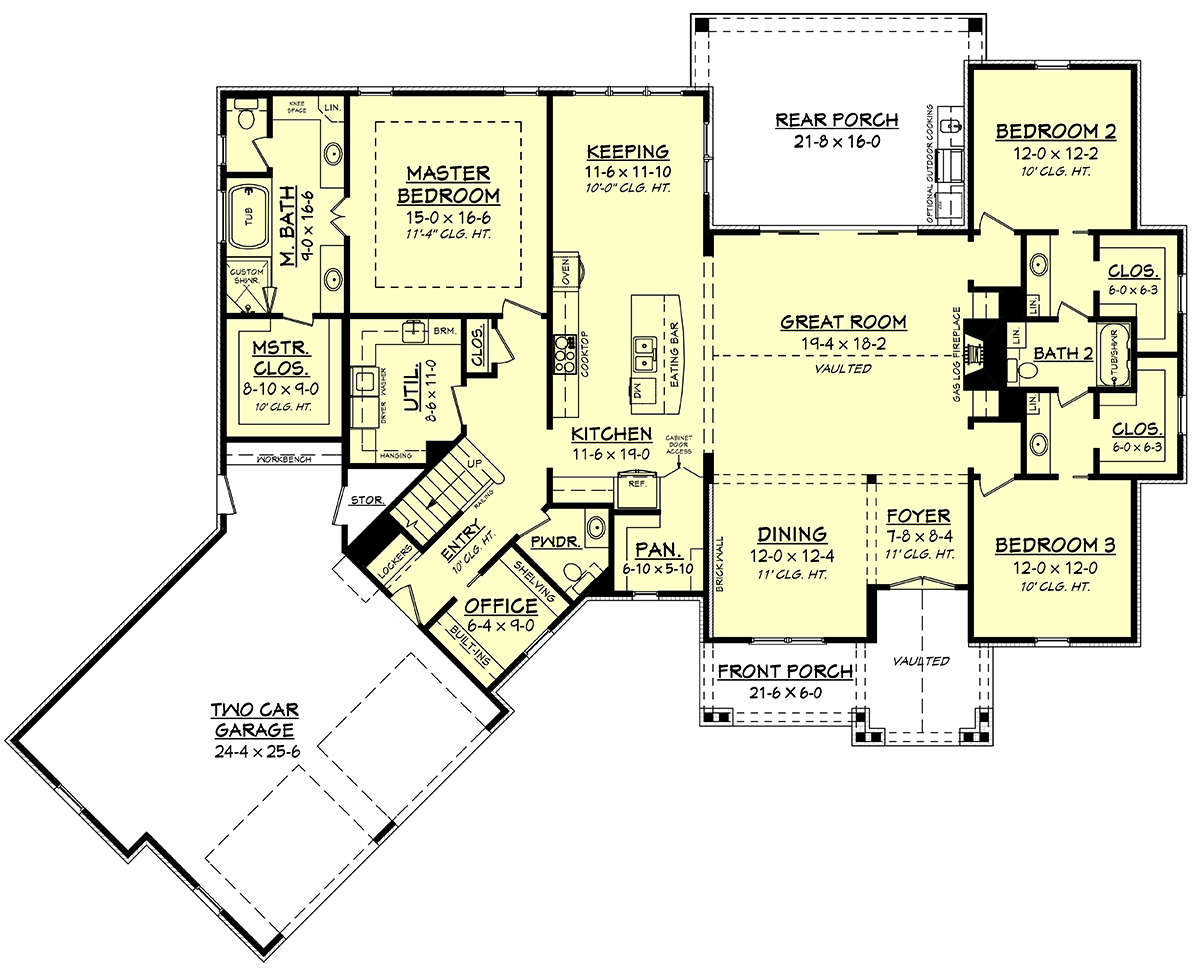

First Floor

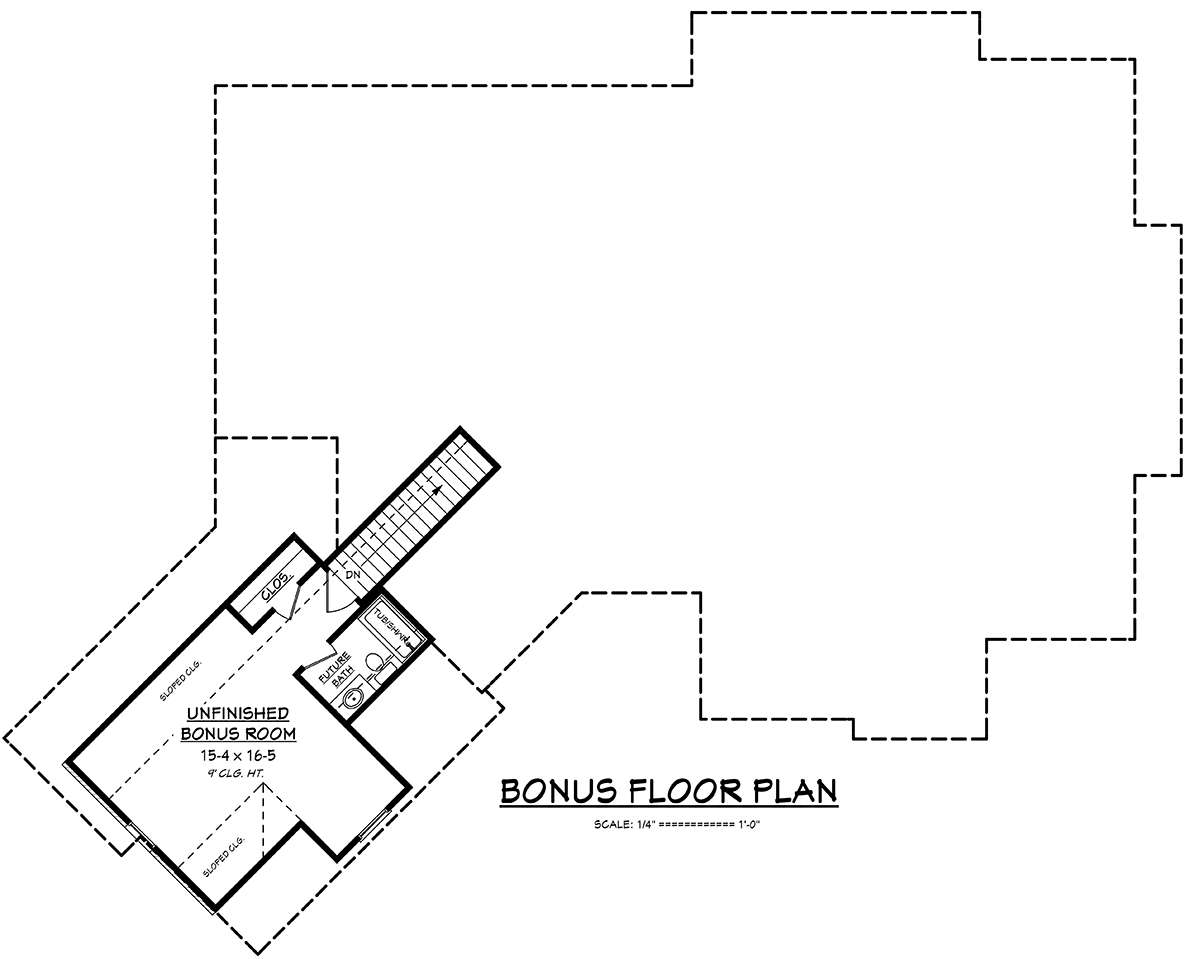

Bonus Room


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Cover Sheet
    Cover sheet typically includes a front view of the plan (may be in color), index of pages included, and other miscellaneous notes and details.
  • Foundation Plan & Details
    Foundation plans describe to the builder, the type of foundation requested by the home owner or the type of foundation required by a certain geographic area. In most cases, the foundation plan will include footing sizes and locations, footing details and other important information needed to properly construct the home. In some specific areas, a structural engineer may be required to review and certify the house plans purchased. These reasons include, but are not limited to the following: seismic (earthquake) considerations, high wind (coastal , mountainous areas, etc.), snow loads, etc.
  • Floor Plans
    The floor plans locate all walls, interior and exterior, of the entire building, denote ceiling heights and treatments, locate all plumbing fixtures, cabinets, door and window locations and sizes, gives square footage measurements, locate water heaters and hvac systems.
  • Exterior Elevations

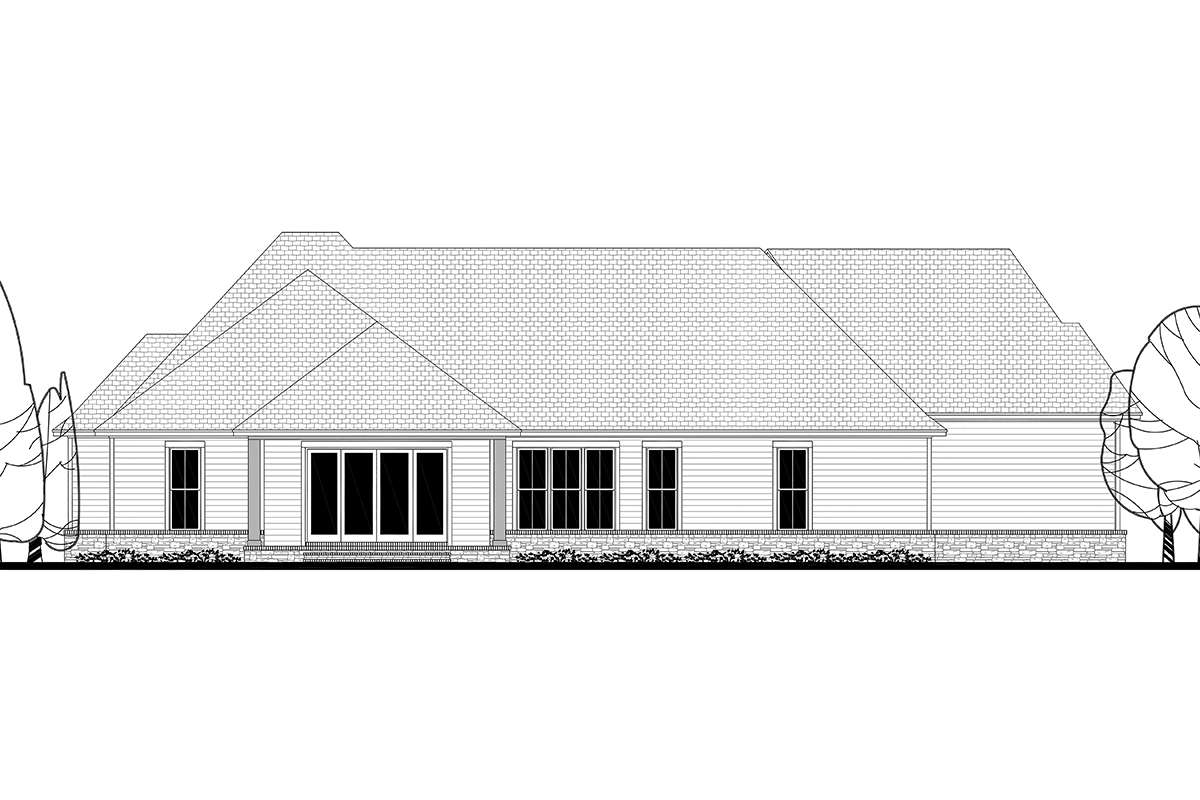

    The exterior elevations are used to depict the exterior finishes (brick, siding, stucco, etc.), roof styles (hip or gable) and slopes, ridge heights, and window styles, and overhang lengths. The exterior elevations include a front, right, rear, and left elevation.
  • Building Sections
    The building sections describe to the builder how a particular home is to be constructed.  Building sections typically show stud heights, the roof construction, whether stick built or pre engineered, direction of the ceiling joist members, overhang finishes, wall and ceiling finishes, and interior roof support members.
  • Roof Plan
    The roof plan depicts the roof type, plate heights and roof slope of each plane.
  • Interior Cabinet Views
    Interior cabinet views depict the overall design and layout of all interior cabinets. These include kitchen cabinets, bathroom cabinets, built-in cabinets, and other specialty items designed within a particular home.
  • Electrical Plan
    The electrical plan depicts the general location of all interior and exterior electrical devices. This generally includes light switches, electrical outlets, ceiling fixtures, and smoke detectors. The electrical plan will also generally locate the breaker box and power entry.

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

A gorgeous Craftsman house design with an attractive exterior and single story floor plan is available with this plan. In addition to the main floor of living, there is an overhead bonus space measuring 418 square feet; plenty of room for a fourth bedroom and bath, a hobby/craft room or a casual family room for relaxing. The remaining interior space is approximately 2,534 square feet with an open floor plan, three bedrooms and two plus baths. There is a two car front entry garage which is quite spacious and allows plenty of vehicle space, storage space and there is a workbench located along the rear wall. The exterior of the home features a fresh approach to home design with its use of innovative and light casting elements. There is board and batten, gorgeous window views, double gables and a front covered porch highlighted with warm wood accents, stone pillars and double columned beams. The extensive front porch is great space for relaxing and greeting family and friends into the front foyer of the home where 11’ ceiling heights are found. There is an open dining space with columns and front window views overlooking the porch. The subsequent great room is quite large; again, with vaulted ceilings and there is a gas log fireplace and access onto the rear covered porch. This rear outdoor space is a large space designed for entertaining and relaxing and there is space for an outdoor kitchen as well. The great room is open to the kitchen and keeping room for superior entertaining possibilities. The grand kitchen is highlighted with a large island/breakfast bar area and there is a huge walk-in food storage pantry. The keeping room is great space to gather as a family whether enjoying family meals, relaxing or “hanging out.” Located between the kitchen and garage is a home office with shelving, a guest powder room and a drop-off zone for backpacks, outer gear and assorted other family items along with the upper level staircase. Around the corner is a coat closet and the enormous family laundry room where there is plenty of counter space as well as a sink, an area for hanging clothes and a broom closet.

The split bedroom plan features the master suite on one wing of the home while the two secondary bedrooms are situated on the opposite side. Bedrooms two and three are of equivalent size, both have 10’ ceiling heights and window views along with large spacious walk-in closets. There is a jack and jill bath with separate vanities and the toilet area and tub/shower combination are in a connected space. The master suite offers a spacious bedroom with a trey ceiling and beautiful rear window views. French doors connect the bedroom and master bath where dual vanities, a private water closet, a whirlpool tub and separate shower are found. The walk-in master closet is located beyond the bath for privacy. This beautifully attractive home is a great home for families with its open layout, split bedroom plan and overhead expansion space.
