Craftsman House Plan 041-00167

Sq Ft2,759
Beds4
Baths3
1/2 Baths1
Stories1
Cars2
Width77' 8"
Depth61' 6"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

  REVERSE     PRINT     DOWNLOAD   Images copyrighted by the designer.

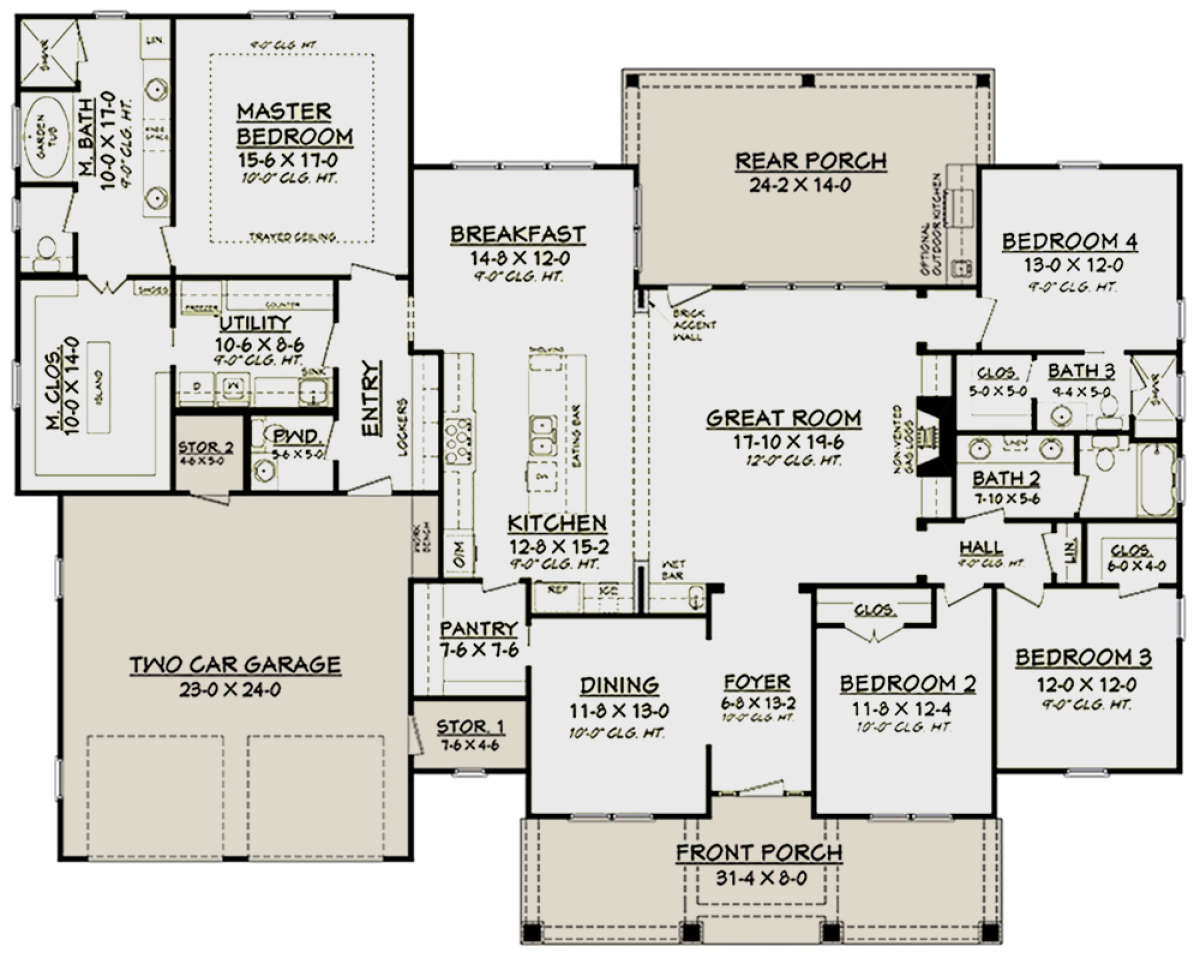

Main Floor for House Plan #041-00167
Main Floor
Main Floor for House Plan #041-00167


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Cover Sheet
    Cover sheet typically includes a front view of the plan (may be in color), index of pages included, and other miscellaneous notes and details.
  • Foundation Plan & Details
    Foundation plans describe to the builder, the type of foundation requested by the home owner or the type of foundation required by a certain geographic area. In most cases, the foundation plan will include footing sizes and locations, footing details and other important information needed to properly construct the home. In some specific areas, a structural engineer may be required to review and certify the house plans purchased. These reasons include, but are not limited to the following: seismic (earthquake) considerations, high wind (coastal , mountainous areas, etc.), snow loads, etc.
  • Floor Plans
    The floor plans locate all walls, interior and exterior, of the entire building, denote ceiling heights and treatments, locate all plumbing fixtures, cabinets, door and window locations and sizes, gives square footage measurements, locate water heaters and hvac systems.

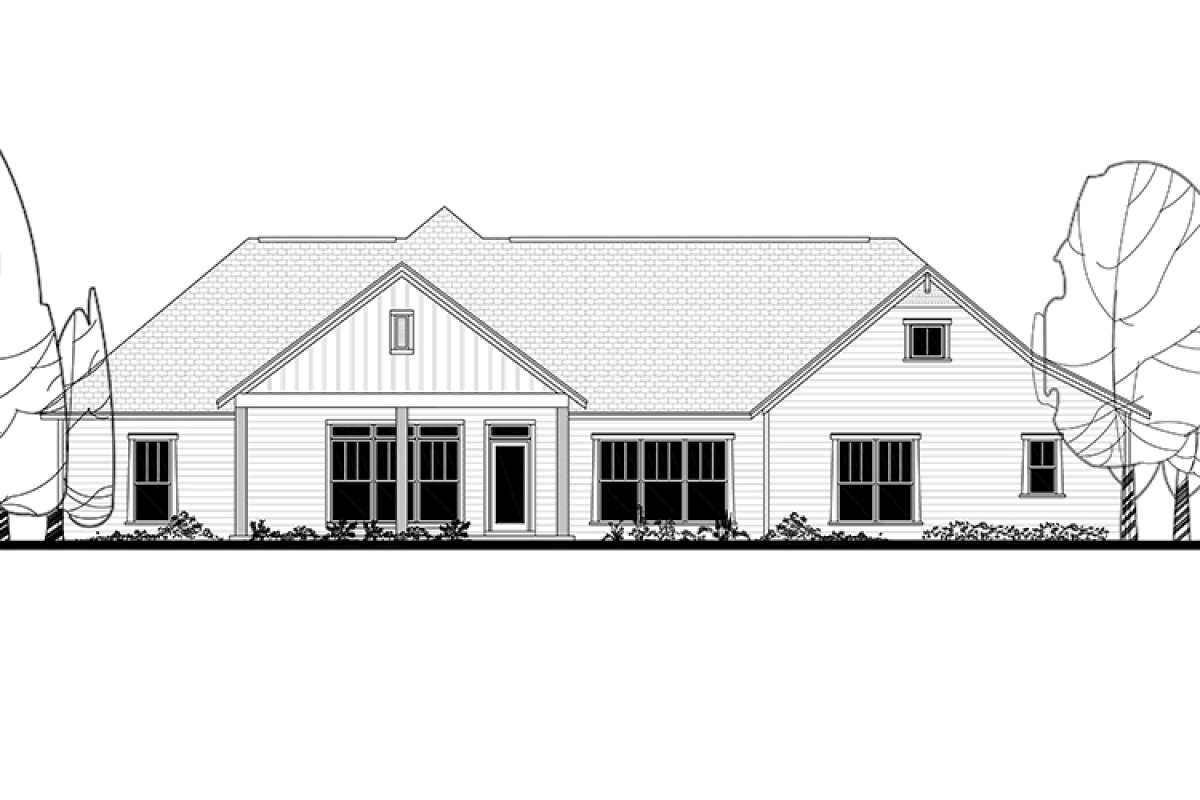

  • Exterior Elevations
    The exterior elevations are used to depict the exterior finishes (brick, siding, stucco, etc.), roof styles (hip or gable) and slopes, ridge heights, and window styles, and overhang lengths. The exterior elevations include a front, right, rear, and left elevation.
  • Building Sections
    The building sections describe to the builder how a particular home is to be constructed.  Building sections typically show stud heights, the roof construction, whether stick built or pre engineered, direction of the ceiling joist members, overhang finishes, wall and ceiling finishes, and interior roof support members.
  • Roof Plan
    The roof plan depicts the roof type, plate heights and roof slope of each plane.
  • Interior Cabinet Views
    Interior cabinet views depict the overall design and layout of all interior cabinets. These include kitchen cabinets, bathroom cabinets, built-in cabinets, and other specialty items designed within a particular home.
  • Electrical Plan
    The electrical plan depicts the general location of all interior and exterior electrical devices. This generally includes light switches, electrical outlets, ceiling fixtures, and smoke detectors. The electrical plan will also generally locate the breaker box and power entry.

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This beautiful Craftsman house plan features a modern twist on a classic style with its split gable porch detailing. The front covered porch is extensive and is highlighted with double gables, substantial tapered beams and brick pillars. The remainder of the home’s exterior offers horizontal siding, an overhead triple window gable and oversized front window views. The home’s interior features a great family layout with approximately 2,759 square feet of living space. There is an open layout concept and four bedrooms and three plus baths in the split bedroom plan. The two car front loading garage is highlighted with single load bays and there are two separate storage areas located off the garage. The main entrance into the home leads to the spacious foyer and side flanking formal dining room; this space overlooks the front covered porch and features comfortable dining space for everyday and special occasion meals. The centrally located great room is large with 12’ ceiling heights, a warming fireplace, a wet bar and built-in cabinetry. Rear porch access and a triple window wall are located off the great room; the rear covered porch is large with an optional outdoor summer kitchen which is perfect for lazy summer day cook-outs. The grand kitchen and casual breakfast nook are open to the great room where the nook is surrounded with window views and the kitchen space is large and comfortable for family and friends to gather. There is an enormous center island with breakfast bar, plenty of additional counter and cabinet space and a generously proportioned walk-in food storage pantry is located directly off the kitchen. Situated between the kitchen and the garage is a large mudroom with lockers, a powder room and the laundry room which offers a sink, good counter space and enough room for a freezer.

The split bedroom plan features three secondary bedrooms, a master suite and three full bathrooms. Bedroom two offers a double window view overlooking the front covered porch and generous closet space while the third bedroom is similar sized with single window views and a walk-in closet. There is a nearby shared hall bath with double sinks, a separate toilet area and a tub/shower combination along with a hall linen closet. The fourth bedroom is situated at the rear of the home and features a private bath with vanity, toilet area and a shower. There is an attached walk-in closet off the bath which offers excellent clothing and other accessories storage space. The master suite is located on the opposite side of the home and features a spacious bedroom with trey ceiling accent. The en suite bath is comfortably sized with modern amenities; there are dual vanities, a garden tub, separate shower and a compartmentalized toilet room. The walk-in master closet is quite large, measuring 10’ x 14’ with a center island dressing table. This Craftsman design is a beautiful reflection of the ideal family home; one story living, great outdoor space, an open layout and a split bedroom home.
