Craftsman House Plan 041-00161

Sq Ft2,073
Beds3
Baths2
1/2 Baths0
Stories1
Cars2
Width66' 6"
Depth54' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

  REVERSE     PRINT     DOWNLOAD   Images copyrighted by the designer.

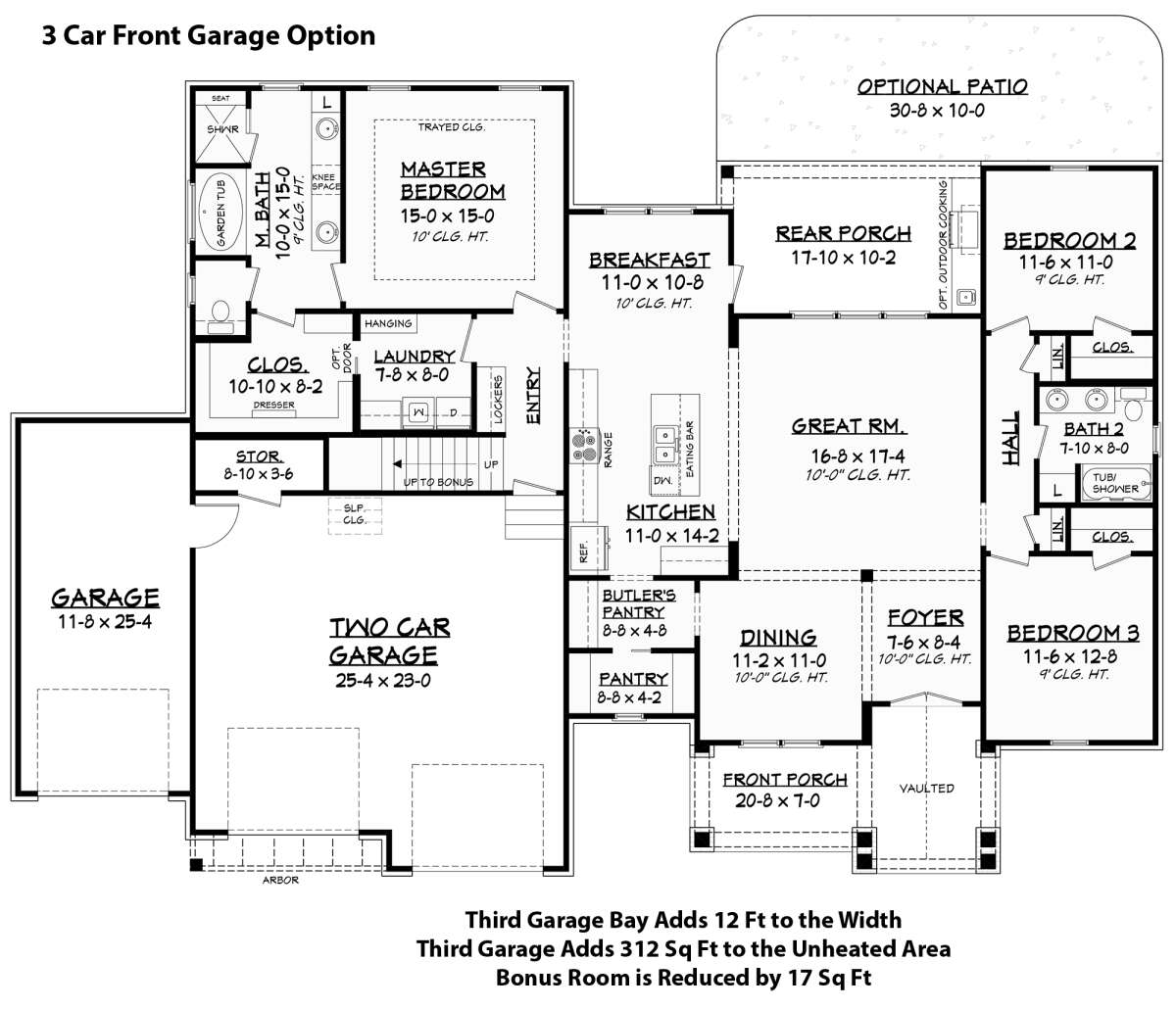

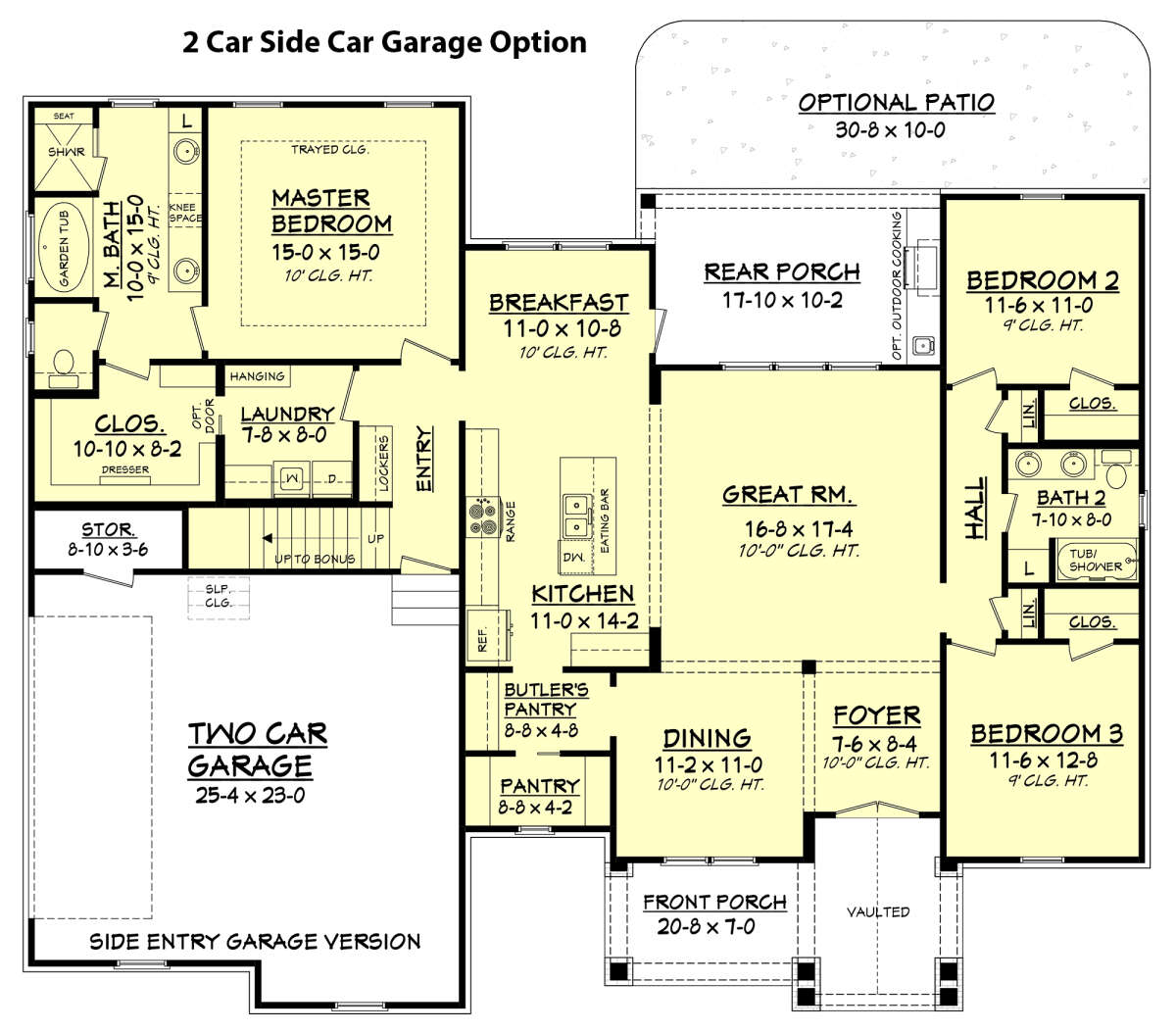

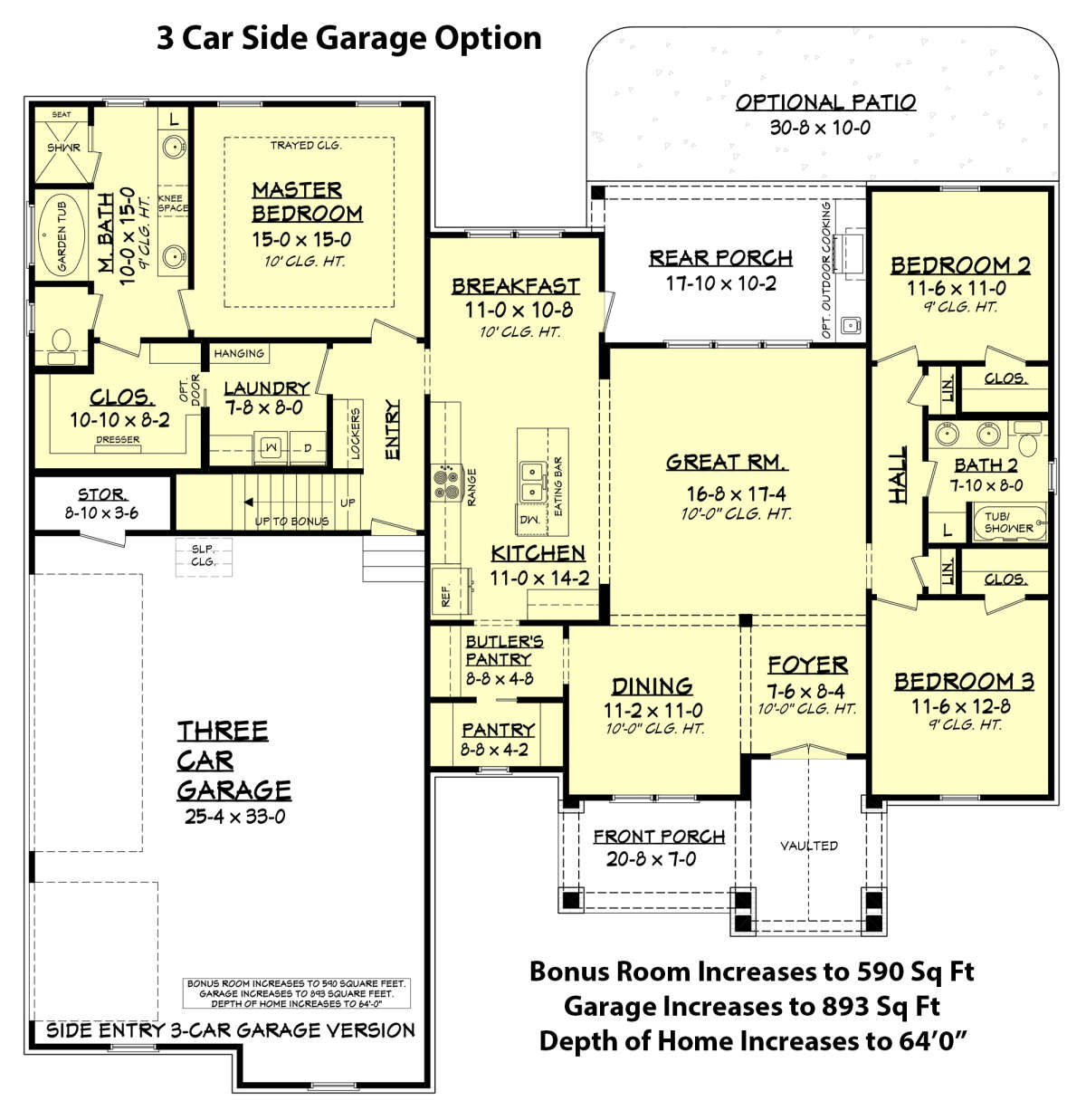

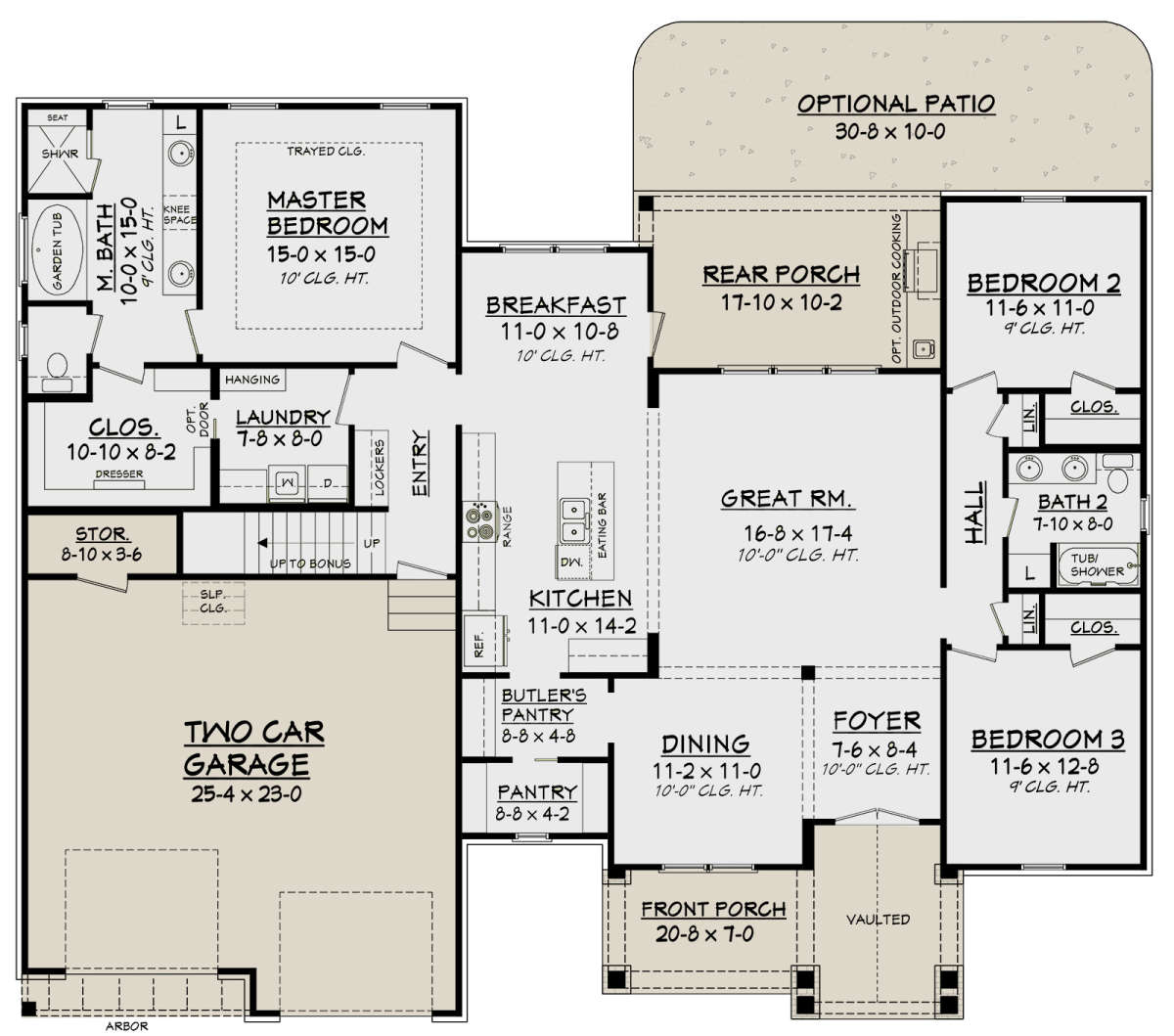

Main Floor

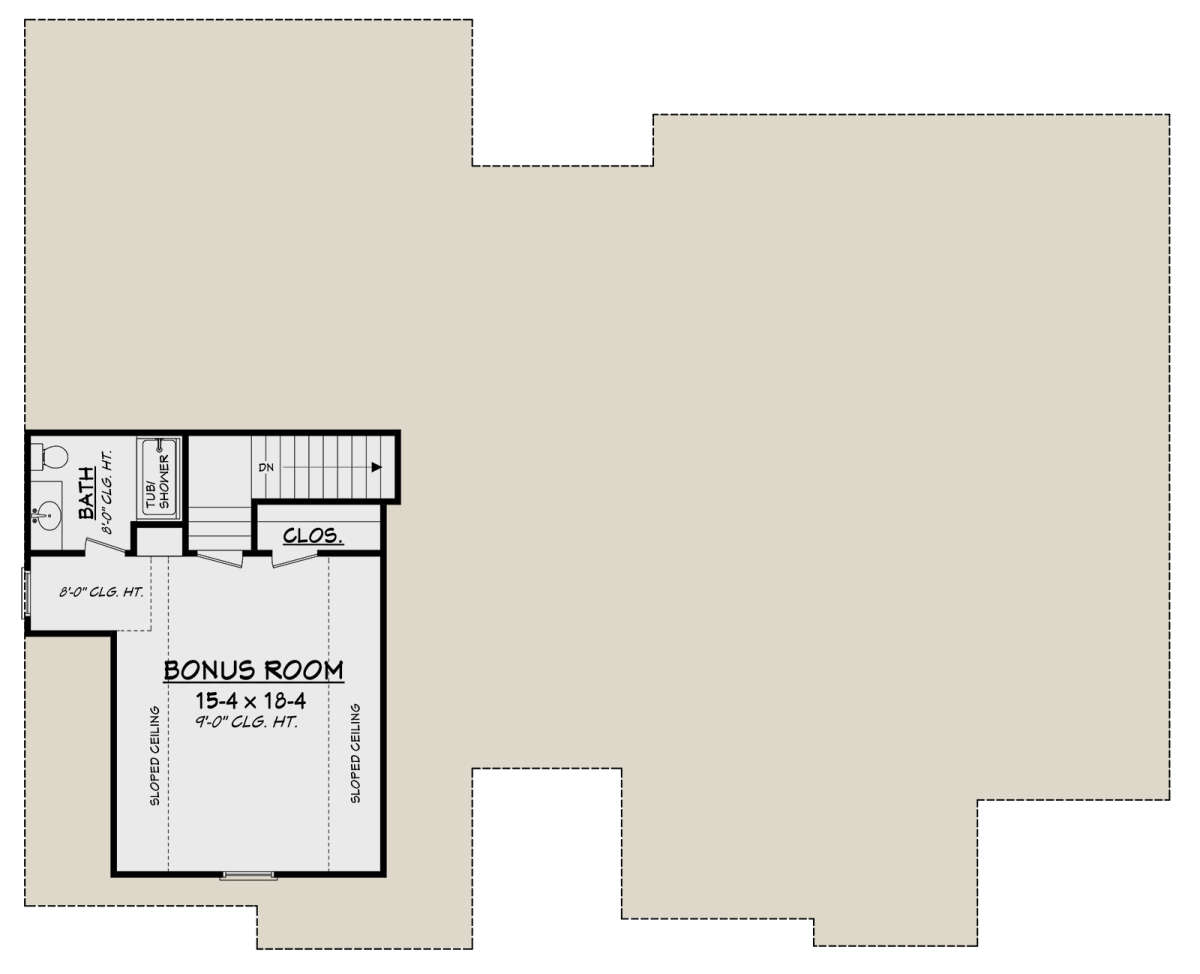

Bonus Room


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Cover Sheet
    Cover sheet typically includes a front view of the plan (may be in color), index of pages included, and other miscellaneous notes and details.
  • Foundation Plan & Details
    Foundation plans describe to the builder, the type of foundation requested by the home owner or the type of foundation required by a certain geographic area. In most cases, the foundation plan will include footing sizes and locations, footing details and other important information needed to properly construct the home. In some specific areas, a structural engineer may be required to review and certify the house plans purchased. These reasons include, but are not limited to the following: seismic (earthquake) considerations, high wind (coastal , mountainous areas, etc.), snow loads, etc.
  • Floor Plans
    The floor plans locate all walls, interior and exterior, of the entire building, denote ceiling heights and treatments, locate all plumbing fixtures, cabinets, door and window locations and sizes, gives square footage measurements, locate water heaters and hvac systems.
  • Exterior Elevations

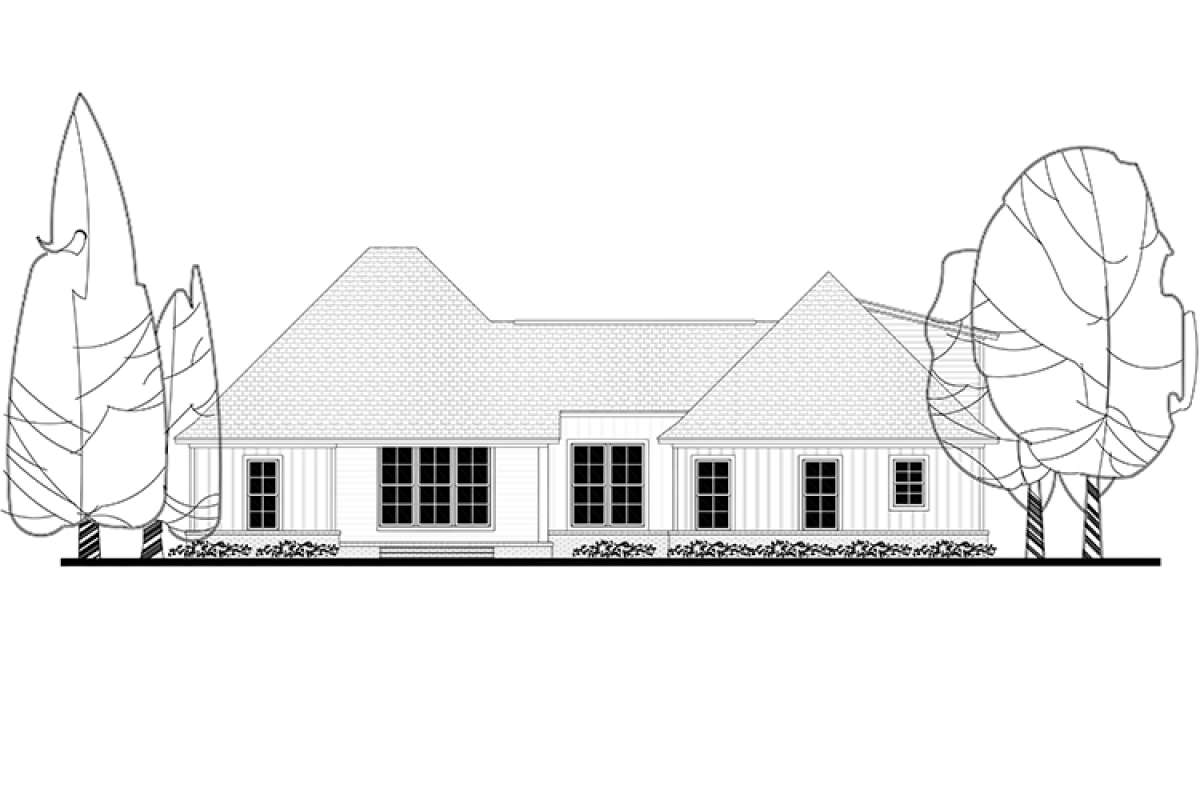

    The exterior elevations are used to depict the exterior finishes (brick, siding, stucco, etc.), roof styles (hip or gable) and slopes, ridge heights, and window styles, and overhang lengths. The exterior elevations include a front, right, rear, and left elevation.
  • Building Sections
    The building sections describe to the builder how a particular home is to be constructed.  Building sections typically show stud heights, the roof construction, whether stick built or pre engineered, direction of the ceiling joist members, overhang finishes, wall and ceiling finishes, and interior roof support members.
  • Roof Plan
    The roof plan depicts the roof type, plate heights and roof slope of each plane.
  • Interior Cabinet Views
    Interior cabinet views depict the overall design and layout of all interior cabinets. These include kitchen cabinets, bathroom cabinets, built-in cabinets, and other specialty items designed within a particular home.
  • Electrical Plan
    The electrical plan depicts the general location of all interior and exterior electrical devices. This generally includes light switches, electrical outlets, ceiling fixtures, and smoke detectors. The electrical plan will also generally locate the breaker box and power entry.

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

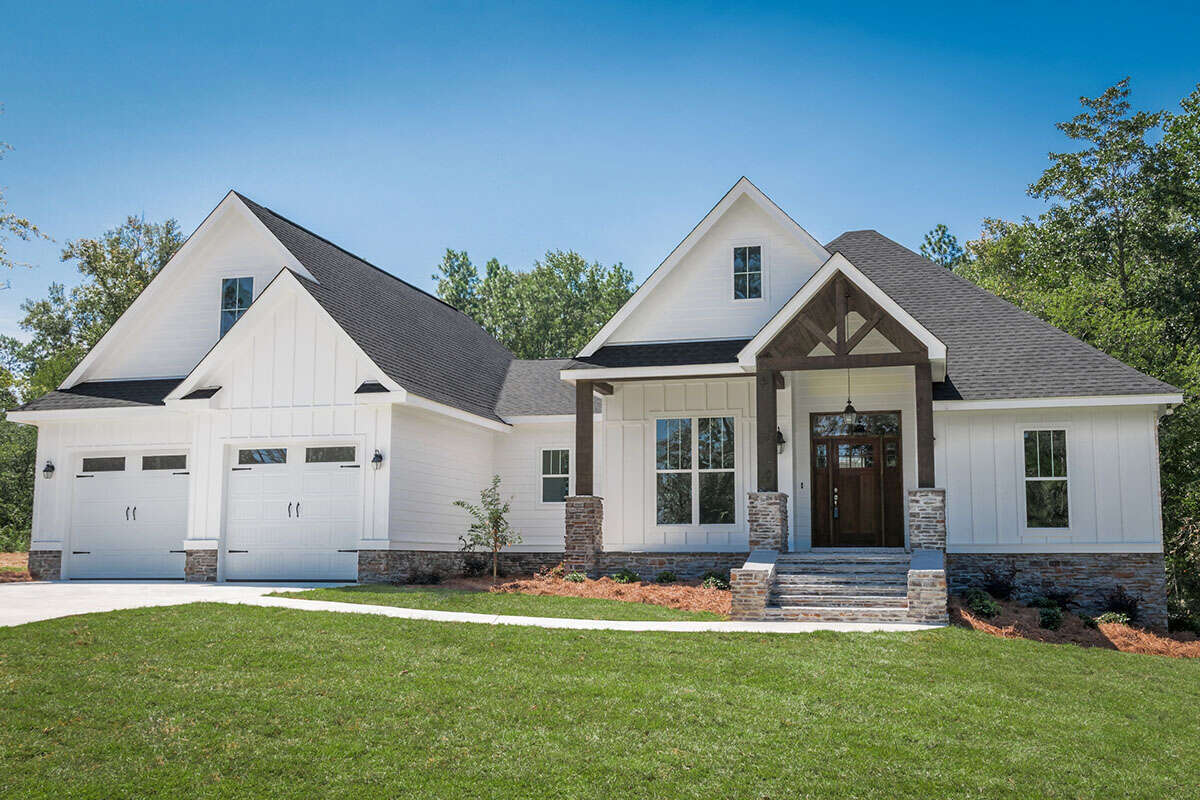

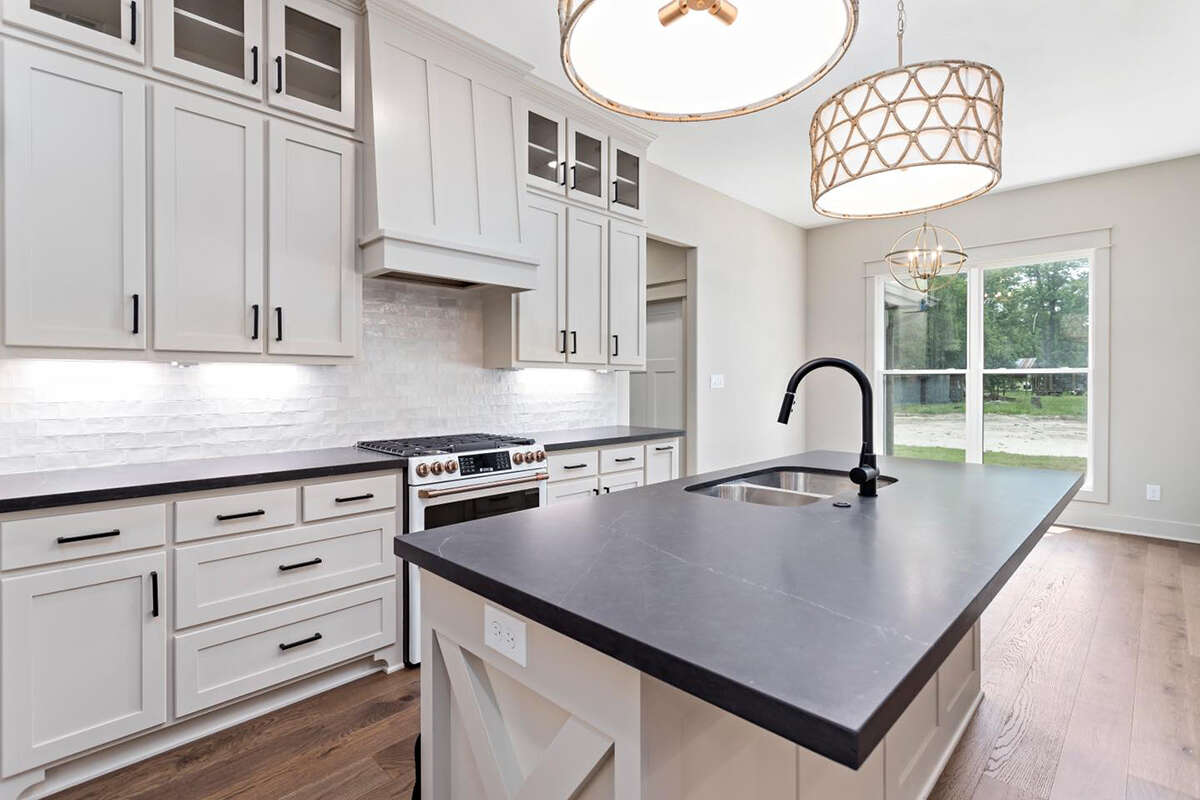

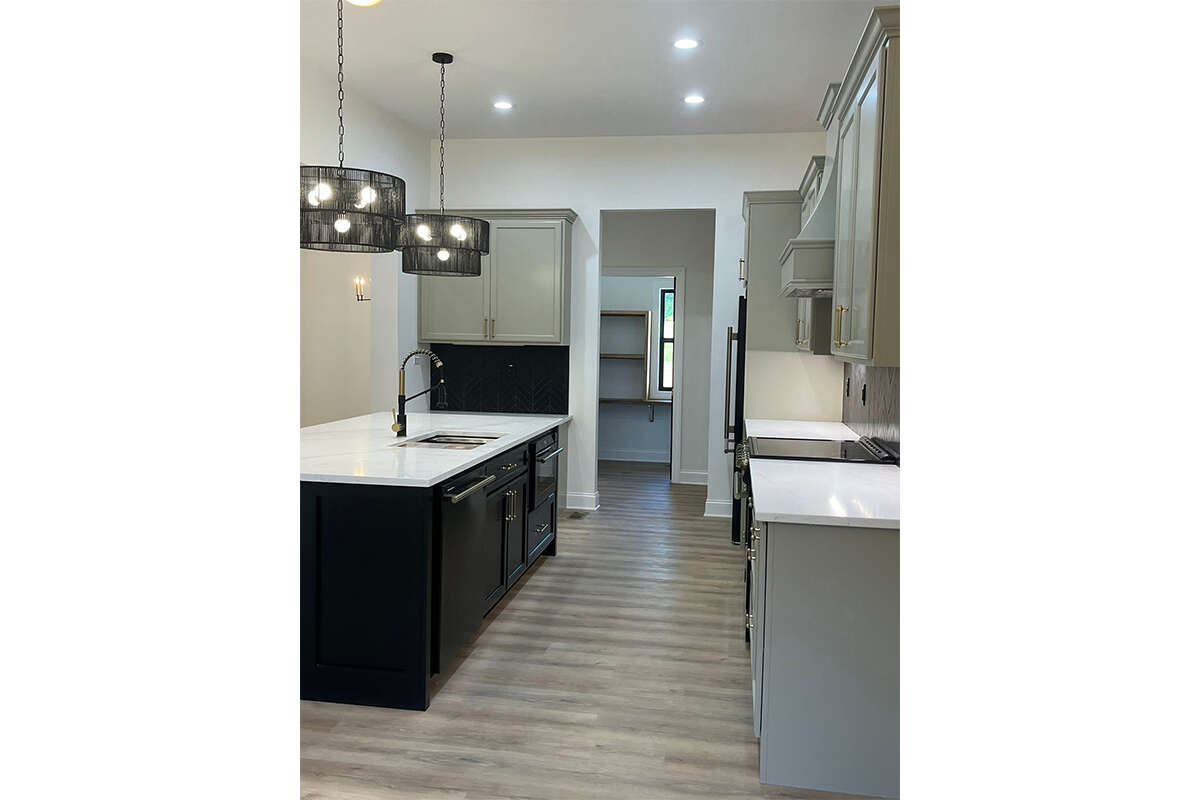

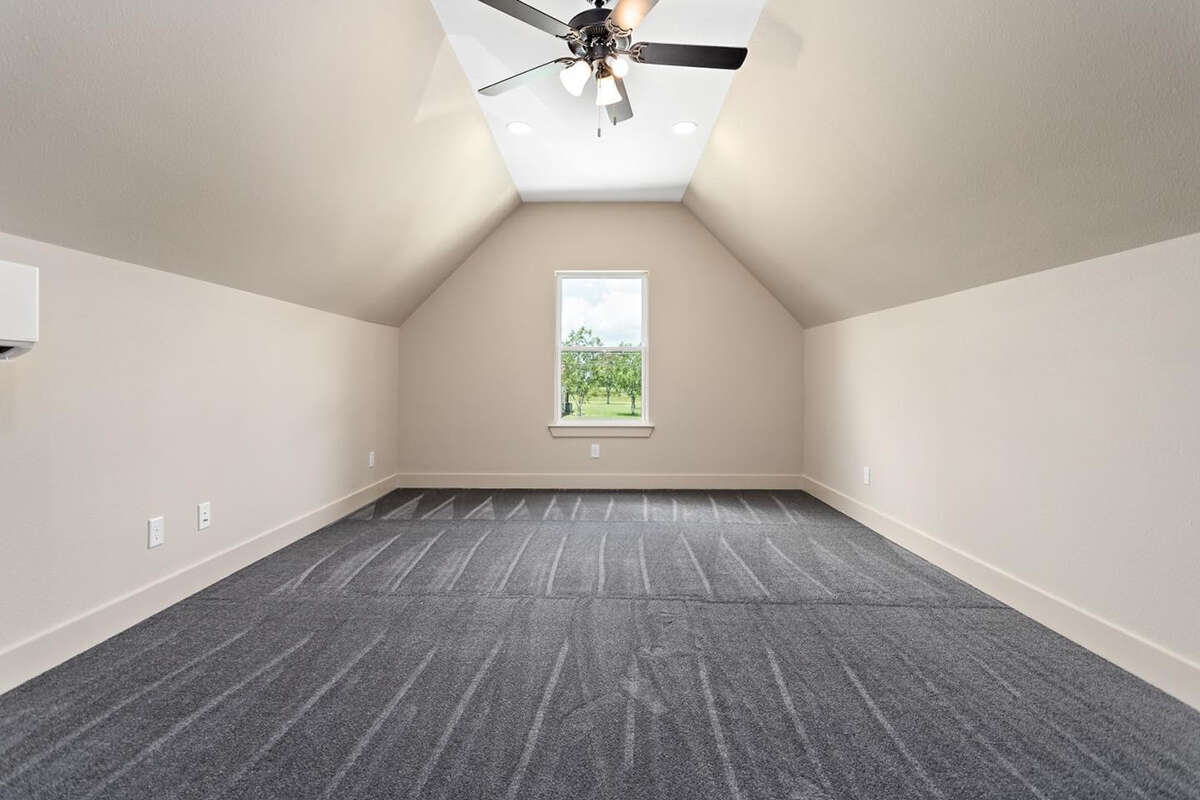

This simply constructed yet, attractive Craftsman house plan features a clean and fresh exterior consisting of wide board and batten planks, decorative horizontal siding gables and a stone perimeter. There is an extended front covered porch which features an overhead open gable designed with warm woods, columned beams and stone pillars. The interior floor plan offers approximately 2,073 square feet of living space with three bedrooms and two baths. The open floor plan is highlighted with large common rooms and a split bedroom layout. An additional 430 square foot bonus room is situated overhead and could be utilized as a fourth bedroom and bath, an artist’s studio, a home office/study or as a multi-purpose casual family room. The home’s main living space is accessed from the front vaulted porch into the 10’ ceiling height foyer where the open floor plan is revealed. There is a spacious dining room with an adjacent butler’s pantry as well as a large food storage walk-in pantry. The kitchen features a center island with a breakfast bar and assorted other counter space and cabinets and there is a far end casual breakfast room. Sunny and bright, the breakfast room grants access to the rear covered porch and outdoor kitchen and there is an optional patio space which is large and comfortable. The centrally located great room features 10’ ceiling heights and a rear window wall overlooking the rear porch. A two car front entry garage is highlighted with good vehicle space and there is an adjoining storage room at the rear wall. The staircase to the bonus room is located on the interior wall along with locker space and a family laundry room with counter space and a hanging station for drying clothes.

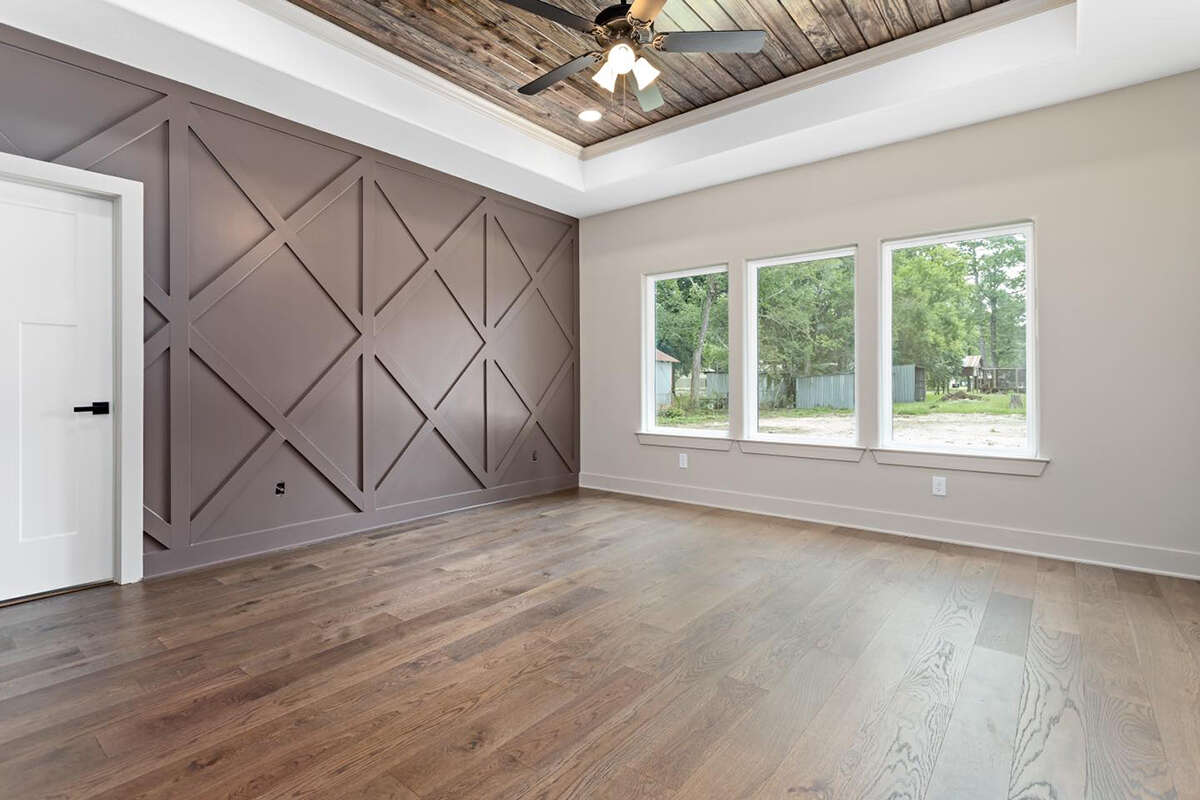

The master suite is situated on this wing of the home and offers a trey ceiling bedroom, an attached master bath with dual vanities, a linen closet, a private toilet room, a garden tub and a separate shower. The walk-in master closet is great space for the homeowner’s clothing and assorted other accessories and there is a private entry into the family laundry room for convenience. The remaining two bedrooms are located across the home and feature good floor space, 9’ ceiling heights, window views and plenty of closet space. There are double linen closets lining the hallway and the shared bath features double sinks, a linen closet, a toilet area and a tub/shower combination. An attractive exterior, a functional family layout and expandable space are found in this Craftsman design.
