Craftsman Plan 041-00153


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,657
Beds 3
Bath 2
1/2 Baths 0
Car 2
Stories 1
Width 55'
Depth 51' 2"

Floorplan Drawings

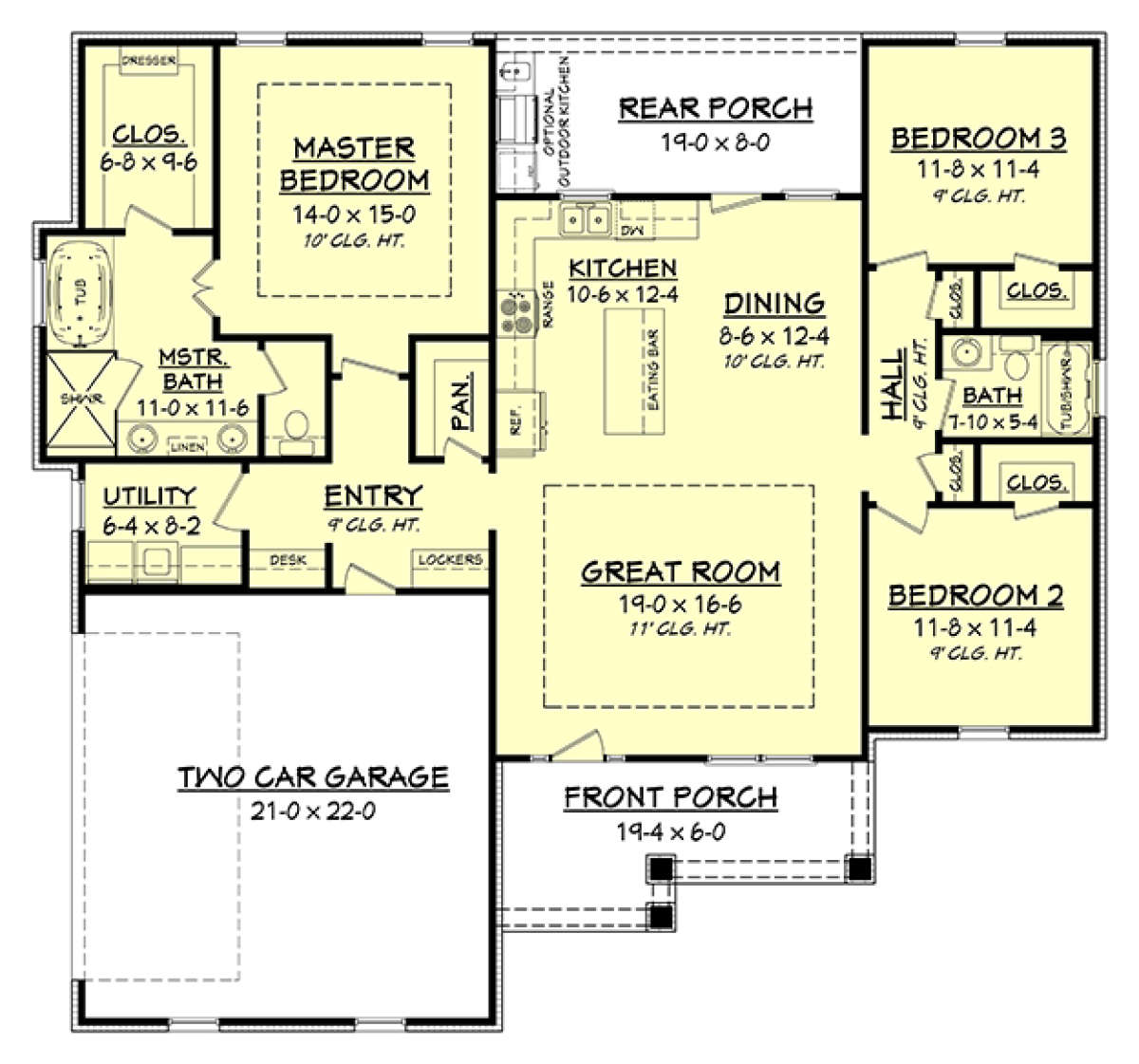

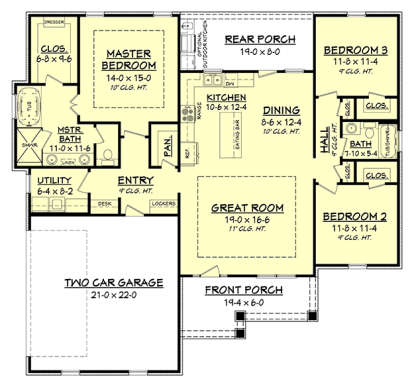

Main for House Plan #041-00153
2 Car Front Garage Option

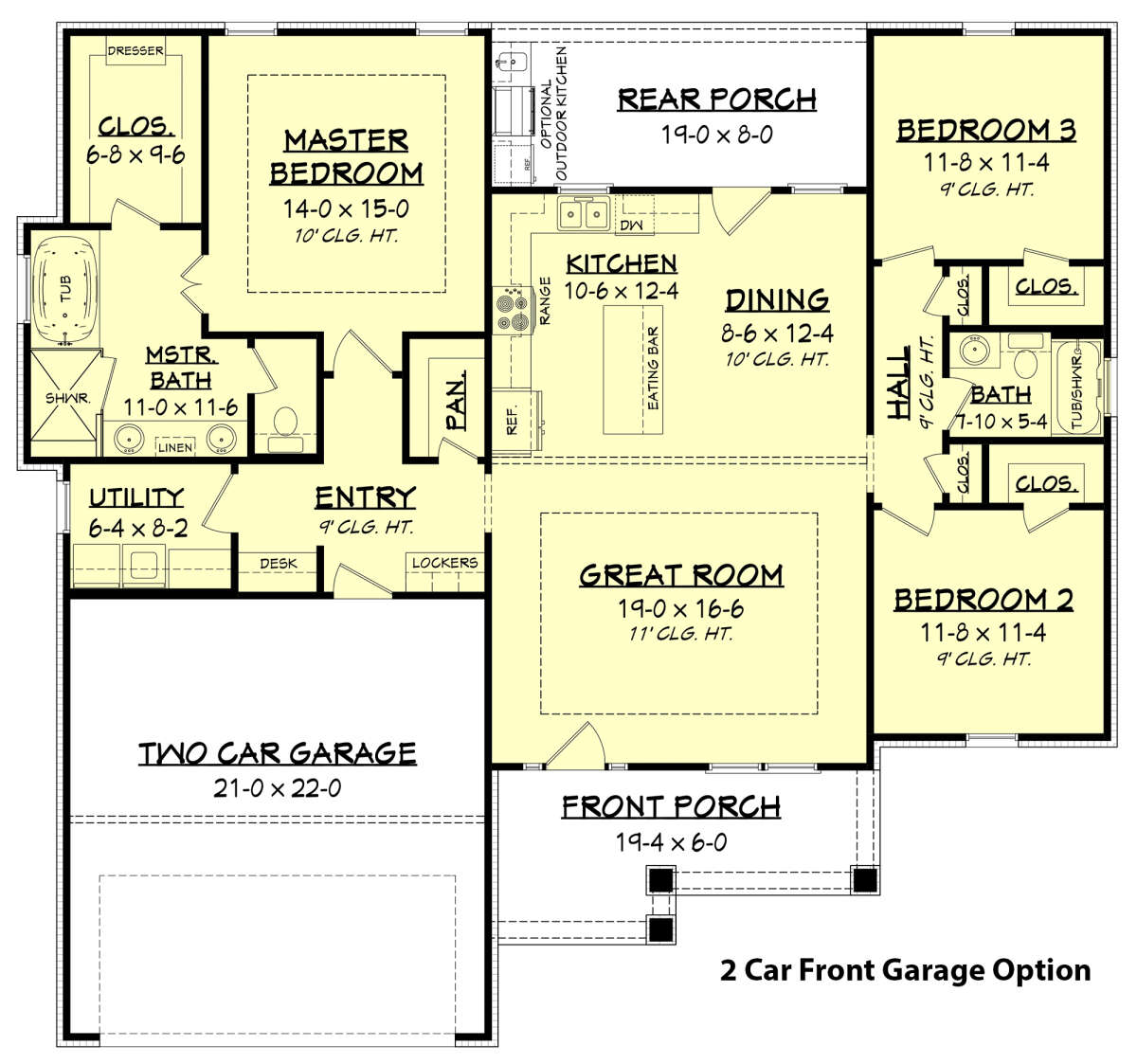

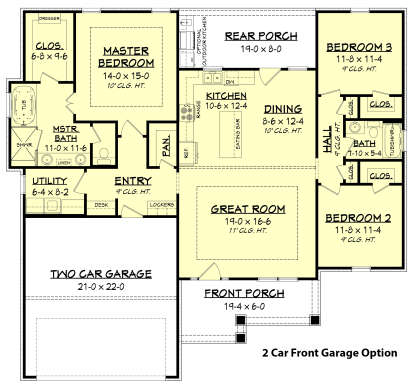

2 Car Front Garage Option for House Plan #041-00153

What's Included in these plans?

  • Cover Sheet
    Cover sheet typically includes a front view of the plan (may be in color), index of pages included, and other miscellaneous notes and details.
  • Foundation Plan & Details
    Foundation plans describe to the builder, the type of foundation requested by the home owner or the type of foundation required by a certain geographic area. In most cases, the foundation plan will include footing sizes and locations, footing details and other important information needed to properly construct the home. In some specific areas, a structural engineer may be required to review and certify the house plans purchased. These reasons include, but are not limited to the following: seismic (earthquake) considerations, high wind (coastal , mountainous areas, etc.), snow loads, etc.
  • Floor Plans
    The floor plans locate all walls, interior and exterior, of the entire building, denote ceiling heights and treatments, locate all plumbing fixtures, cabinets, door and window locations and sizes, gives square footage measurements, locate water heaters and hvac systems.
  • Exterior Elevations

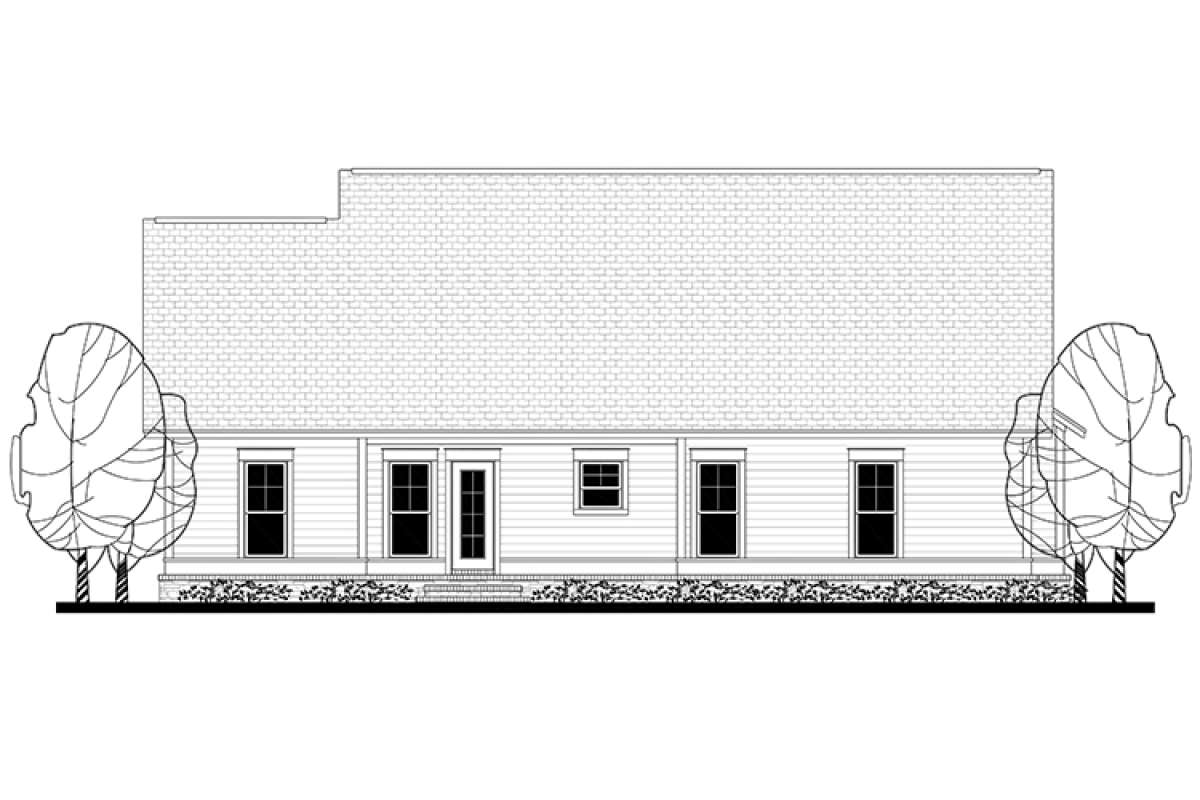

    The exterior elevations are used to depict the exterior finishes (brick, siding, stucco, etc.), roof styles (hip or gable) and slopes, ridge heights, and window styles, and overhang lengths. The exterior elevations include a front, right, rear, and left elevation.
  • Building Sections
    The building sections describe to the builder how a particular home is to be constructed.  Building sections typically show stud heights, the roof construction, whether stick built or pre engineered, direction of the ceiling joist members, overhang finishes, wall and ceiling finishes, and interior roof support members.
  • Roof Plan
    The roof plan depicts the roof type, plate heights and roof slope of each plane.
  • Interior Cabinet Views
    Cabinet views depict the overall design and layout of the kitchen cabinets.
  • Electrical Plan
    The electrical plan depicts the general location of all interior and exterior electrical devices. This generally includes light switches, electrical outlets, ceiling fixtures, and smoke detectors. The electrical plan will also generally locate the breaker box and power entry.

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This beautiful Craftsman house plan showcases a simple, yet lovely, front exterior that highlights modern design elements in a fresh and crisp fashion. Board and batten trims the majority of the home’s exterior and there is a stone perimeter skirt, an overhead shed dormer, beautiful window views and gables decorated with cedar shake and exposed rafters. The delightful front covered porch is highlighted with stone pillars, substantial tapered beams and offers great space for greeting family and friends. The interior floor plan features approximately 1,657 square feet of living space with three bedrooms and two baths. There is a two car side loading garage with good vehicle and storage space that grants access to the home’s interior where the mudroom/drop-off zone with lockers and a desk area are located. The laundry room is nearby which features good counter space; all in all, the mud/laundry room is designed to maintain a tidy home environment easily.


The open floor plan/split bedroom plan is ideal for casual living and the layout is immediately revealed once you enter the home’s main door. There is a large great room with 11’ ceiling heights and the dining room and kitchen are situated just beyond the great room. The dining space is spacious and comfortable with access to the rear covered porch which features an optional outdoor kitchen. The grand kitchen is highlighted with a center island that features a breakfast bar with additional seating options, plenty of cabinet and counter space and an oversized walk-in pantry lies on the other side of the kitchen. The split bedroom plan offers two secondary bedrooms and a bath on one side of the home’s interior. Both bedrooms are equivalent sized, have window views and large spacious closets. Double closets are located in the hallway and flank the shared hall bath where there is a vanity space, a toilet area and a tub/shower combination. The owner's suite is located on the other side of the home and offers a large bedroom with a trey ceiling, great window views and French door access to both the huge walk-in closet and primary bath. The bath features generous floor space and includes dual vanities, a linen closet, a compartmentalized toilet, garden tub and a separate walk-in shower. This Craftsman home features a lovely exterior, a casual floor plan for everyday living and a split bedroom plan.
