Craftsman Plan 041-00145

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,151
Beds 3
Bath 2
1/2 Baths 1
Car 3
Stories 1
Width 58' 8"
Depth 78' 4"

Floorplan Drawings

Main

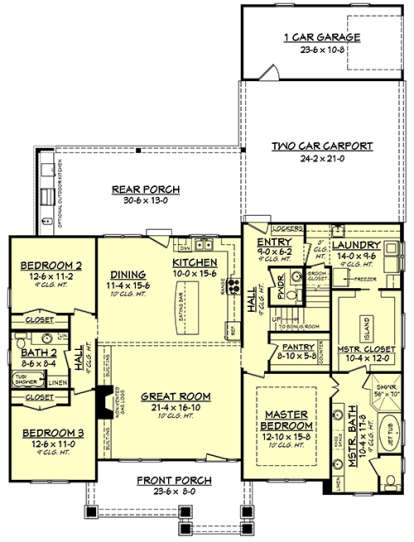

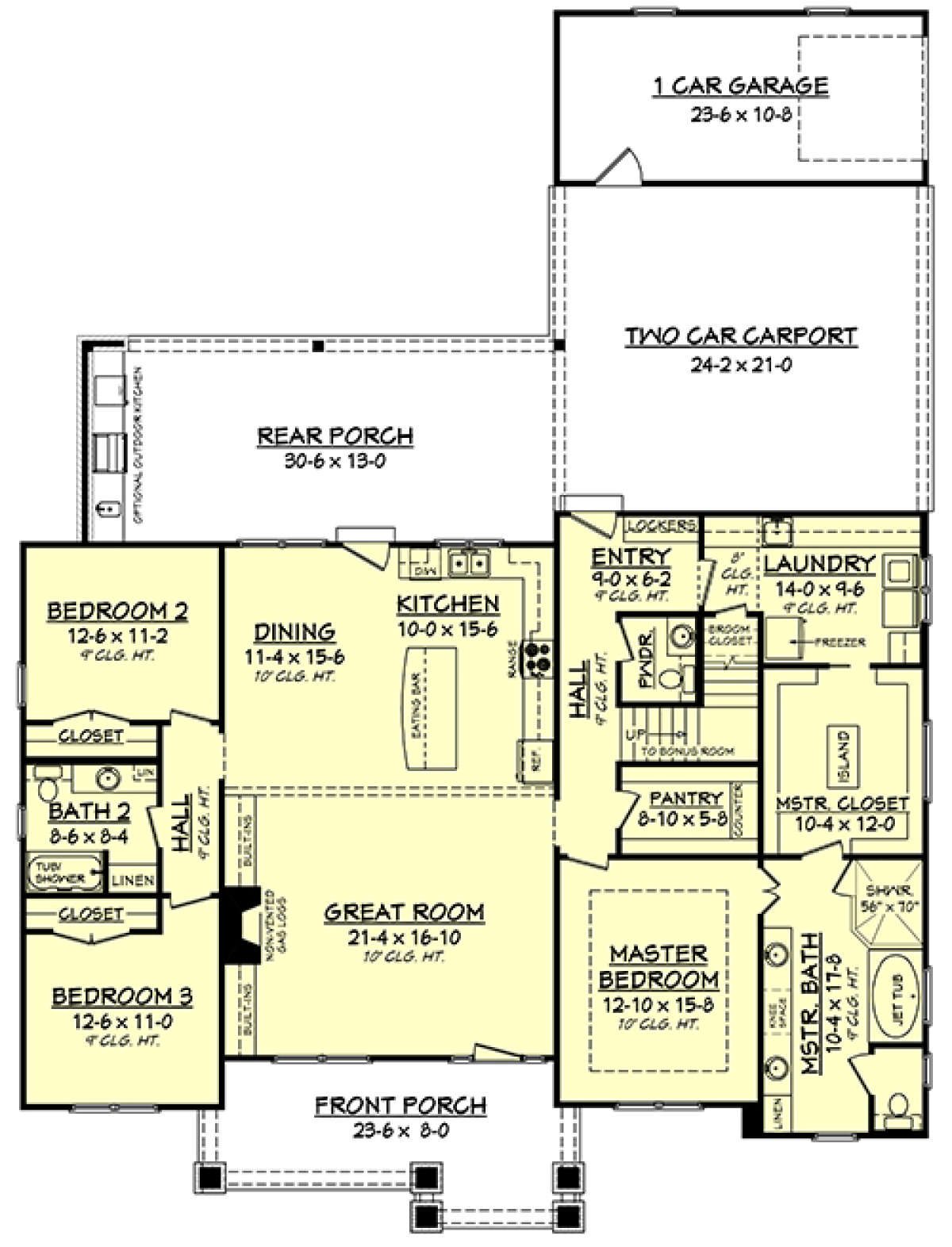

Main for House Plan #041-00145
Bonus

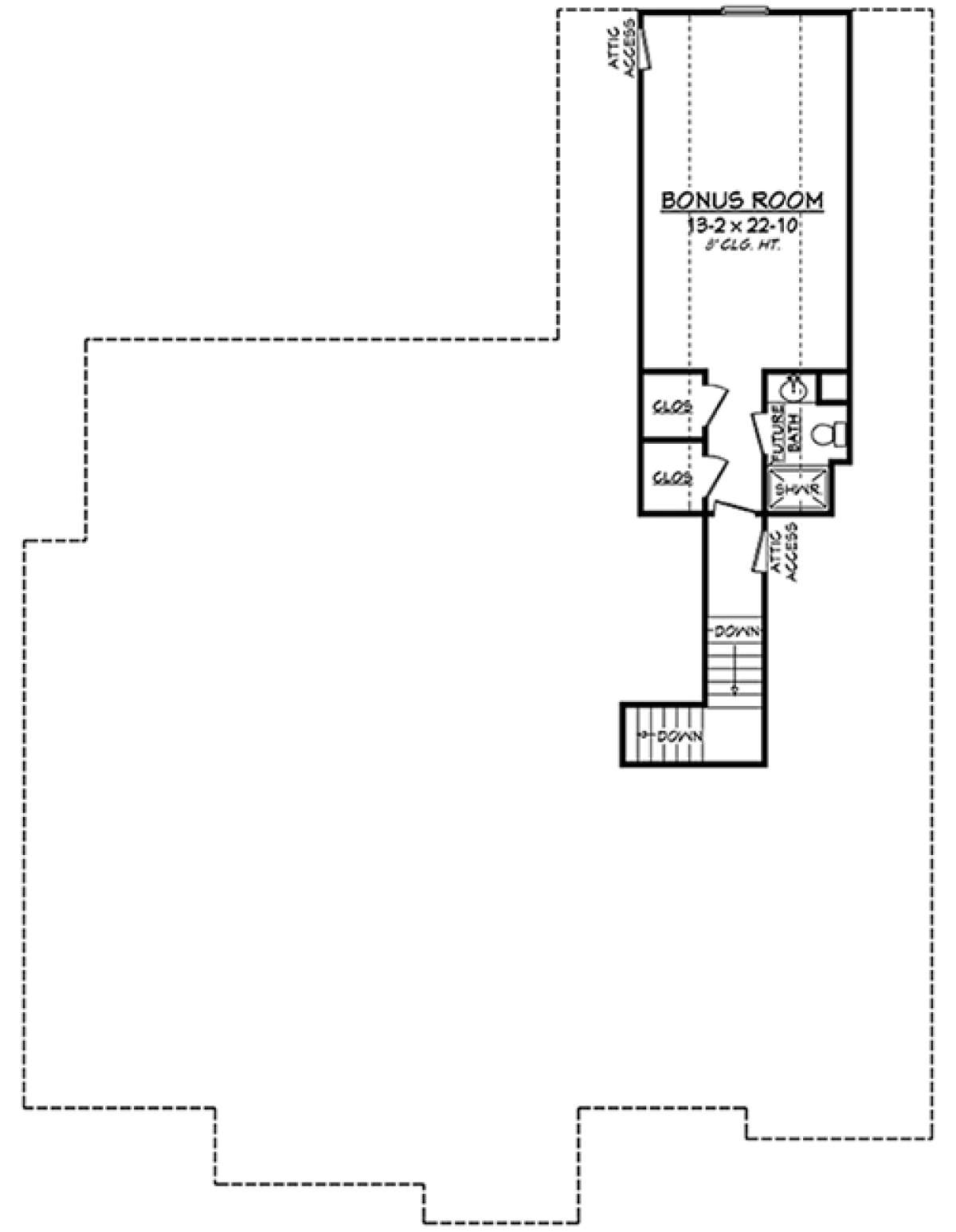

Bonus for House Plan #041-00145


What's Included in these plans?

  • Cover Sheet
    Cover sheet typically includes a front view of the plan (may be in color), index of pages included, and other miscellaneous notes and details.
  • Foundation Plan & Details
    Foundation plans describe to the builder, the type of foundation requested by the home owner or the type of foundation required by a certain geographic area. In most cases, the foundation plan will include footing sizes and locations, footing details and other important information needed to properly construct the home. In some specific areas, a structural engineer may be required to review and certify the house plans purchased. These reasons include, but are not limited to the following: seismic (earthquake) considerations, high wind (coastal , mountainous areas, etc.), snow loads, etc.
  • Floor Plans
    The floor plans locate all walls, interior and exterior, of the entire building, denote ceiling heights and treatments, locate all plumbing fixtures, cabinets, door and window locations and sizes, gives square footage measurements, locate water heaters and hvac systems.
  • Exterior Elevations

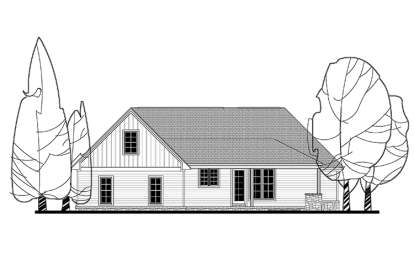

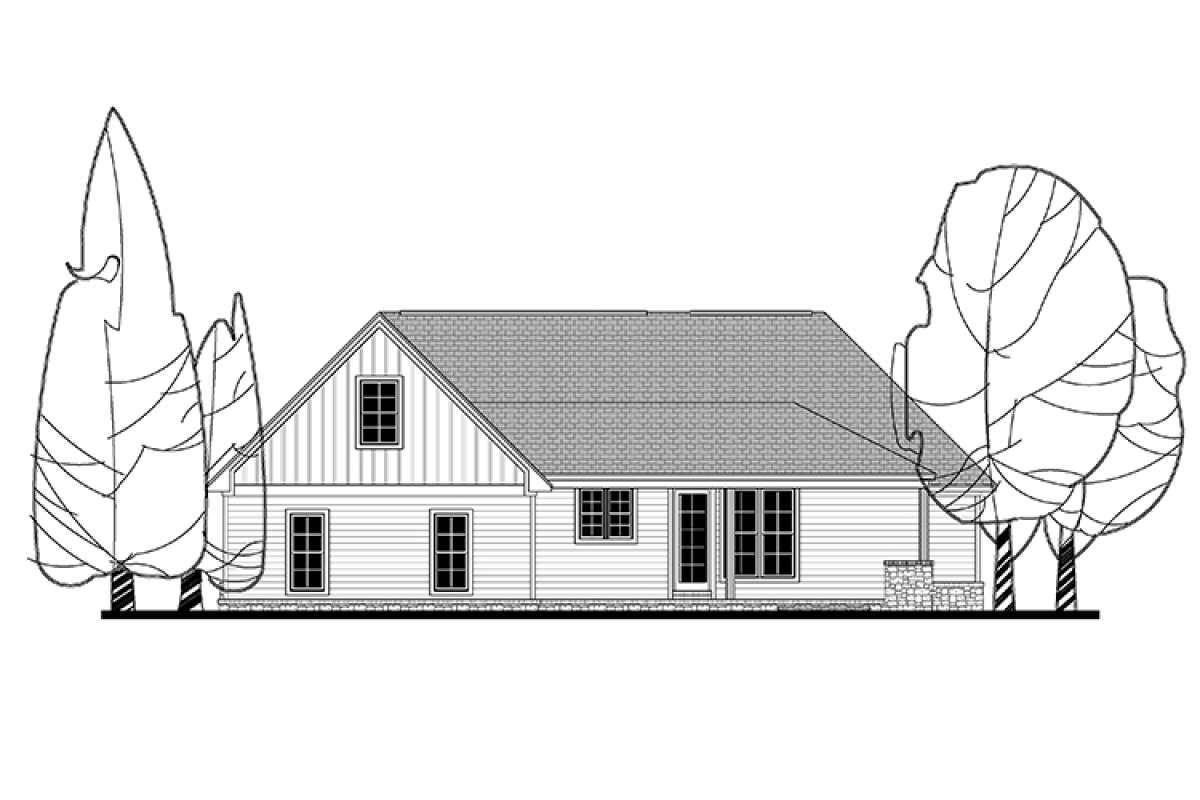

    The exterior elevations are used to depict the exterior finishes (brick, siding, stucco, etc.), roof styles (hip or gable) and slopes, ridge heights, and window styles, and overhang lengths. The exterior elevations include a front, right, rear, and left elevation.
  • Building Sections
    The building sections describe to the builder how a particular home is to be constructed.  Building sections typically show stud heights, the roof construction, whether stick built or pre engineered, direction of the ceiling joist members, overhang finishes, wall and ceiling finishes, and interior roof support members.
  • Roof Plan
    The roof plan depicts the roof type, plate heights and roof slope of each plane.
  • Interior Cabinet Views
    Cabinet views depict the overall design and layout of the kitchen cabinets.
  • Electrical Plan
    The electrical plan depicts the general location of all interior and exterior electrical devices. This generally includes light switches, electrical outlets, ceiling fixtures, and smoke detectors. The electrical plan will also generally locate the breaker box and power entry.

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This three-bedroom, two-plus bathroom Craftsman house plan is for those who are looking for a simple layout with an exterior loaded with awesome curb appeal. The tapered column front porch, the stonework of the perimeter skirt, and the mixed material siding create a dazzling Craftsman style home design. The two-car carport located at the rear of the home offers a single-car garage, access to the rear porch, and entry in the home through the mudroom furnished with built-in lockers. The rear porch calls for relaxing under the shade, summer barbeques, and cookouts with the optional outdoor kitchen.


Measuring approximately 2,151 square feet, the split bedroom floor plan allows for more privacy of the owner's suite and keeps the secondary bedrooms close with only a hall bathroom between them. The secondary bedrooms are similarly sized with ample closet space, while the primary bedroom enjoys a luxurious en suite bath that includes a custom walk-in shower, dual vanities, and a jet tub. The attached closet contains a center island and sliding door access to the laundry room where there is plenty of countertop space, a sink, and room for a deep freezer. There is an optional bonus room with a full bathroom and double closet space making it just right for a guest bedroom. The common areas excel in an open-concept layout right as you walk in the front door. The great room features a non-vented gas log fireplace flanked by built-in shelving while the island kitchen offers a delightful rear-facing window over the sink and high top seating on the center island. Around the corner of the refrigerator lies the walk-in pantry with counter space. This delightful Craftsman house plan highlights a simply-mapped interior with an awesome exterior designed for great curb appeal.
