Craftsman Plan 041-00144

Sq Ft 2,004
Beds 3
Bath 2
1/2 Baths 1
Car 2
Stories 1
Width 56' 8"
Depth 66' 10"

Floorplan Drawings

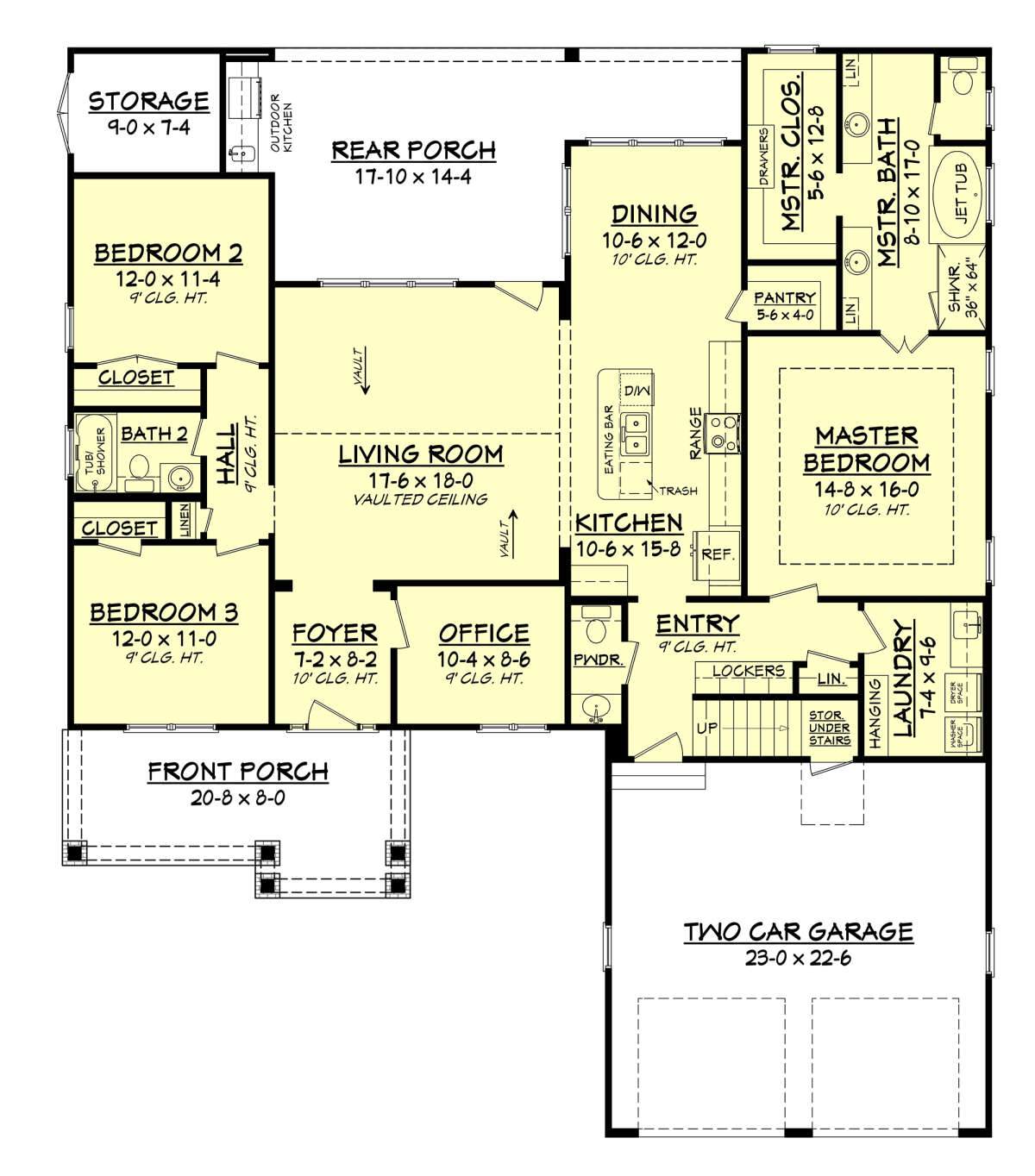

Main Floor
Main Floor for House Plan #041-00144

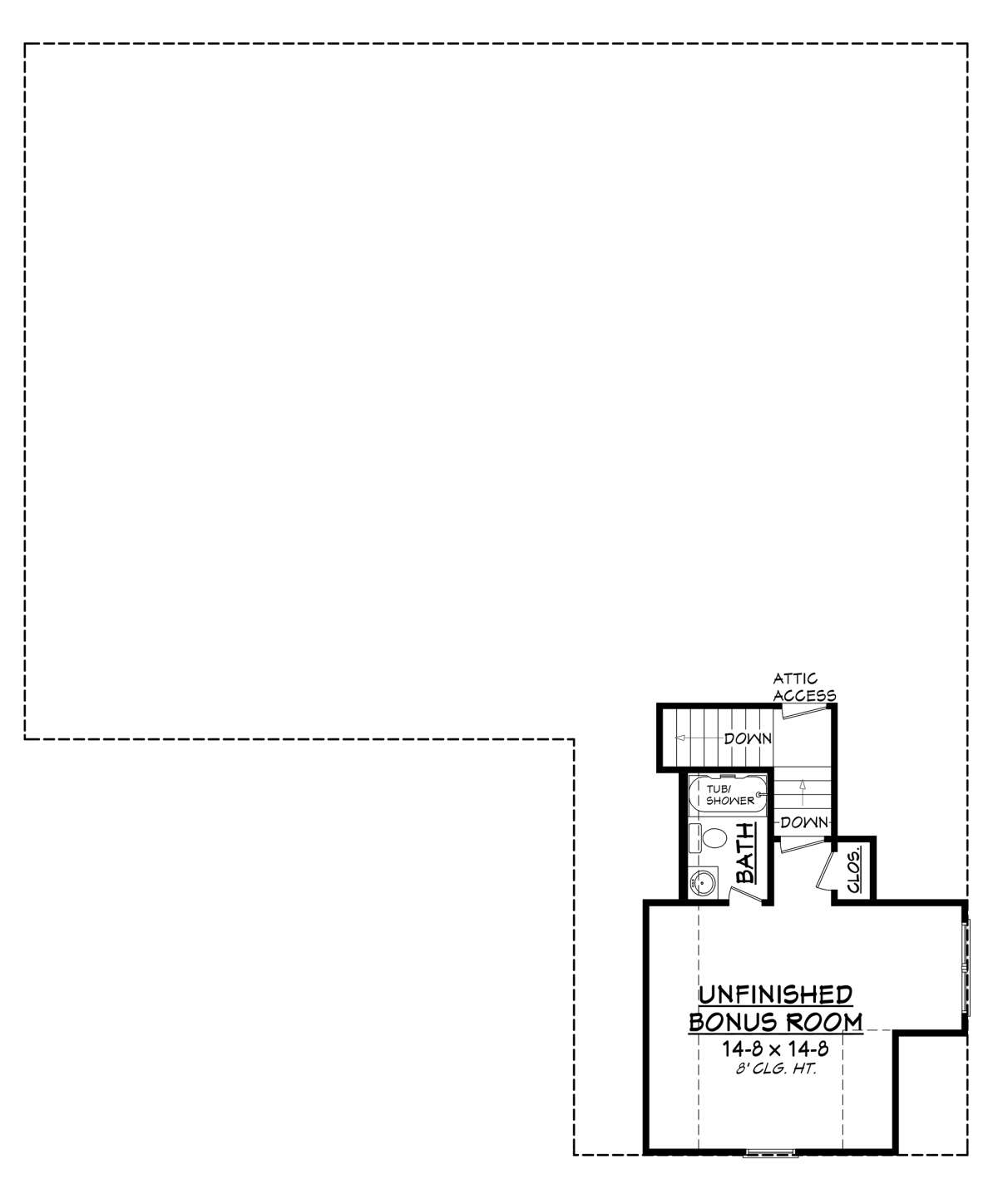

Bonus Room
Bonus Room for House Plan #041-00144

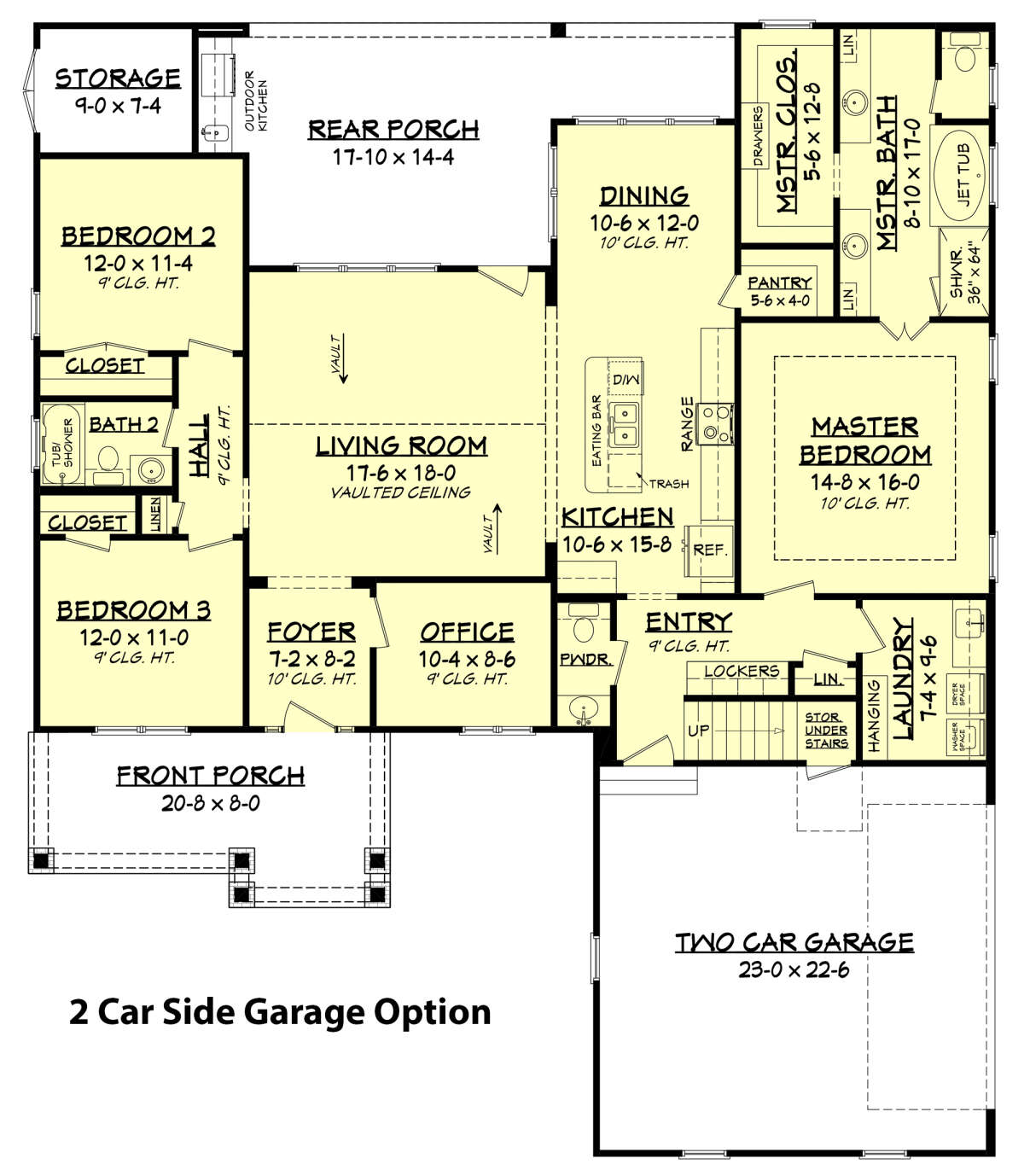

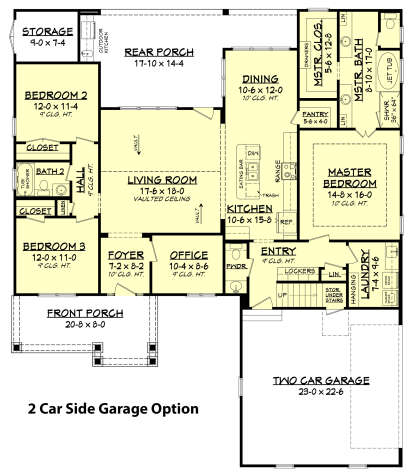

2 Car Side Garage Option
2 Car Side Garage Option for House Plan #041-00144


What's Included in these plans?

  • Cover Sheet
    Cover sheet typically includes a front view of the plan (may be in color), index of pages included, and other miscellaneous notes and details.
  • Foundation Plan & Details
    Foundation plans describe to the builder, the type of foundation requested by the home owner or the type of foundation required by a certain geographic area. In most cases, the foundation plan will include footing sizes and locations, footing details and other important information needed to properly construct the home. In some specific areas, a structural engineer may be required to review and certify the house plans purchased. These reasons include, but are not limited to the following: seismic (earthquake) considerations, high wind (coastal , mountainous areas, etc.), snow loads, etc.
  • Floor Plans
    The floor plans locate all walls, interior and exterior, of the entire building, denote ceiling heights and treatments, locate all plumbing fixtures, cabinets, door and window locations and sizes, gives square footage measurements, locate water heaters and hvac systems.
  • Exterior Elevations

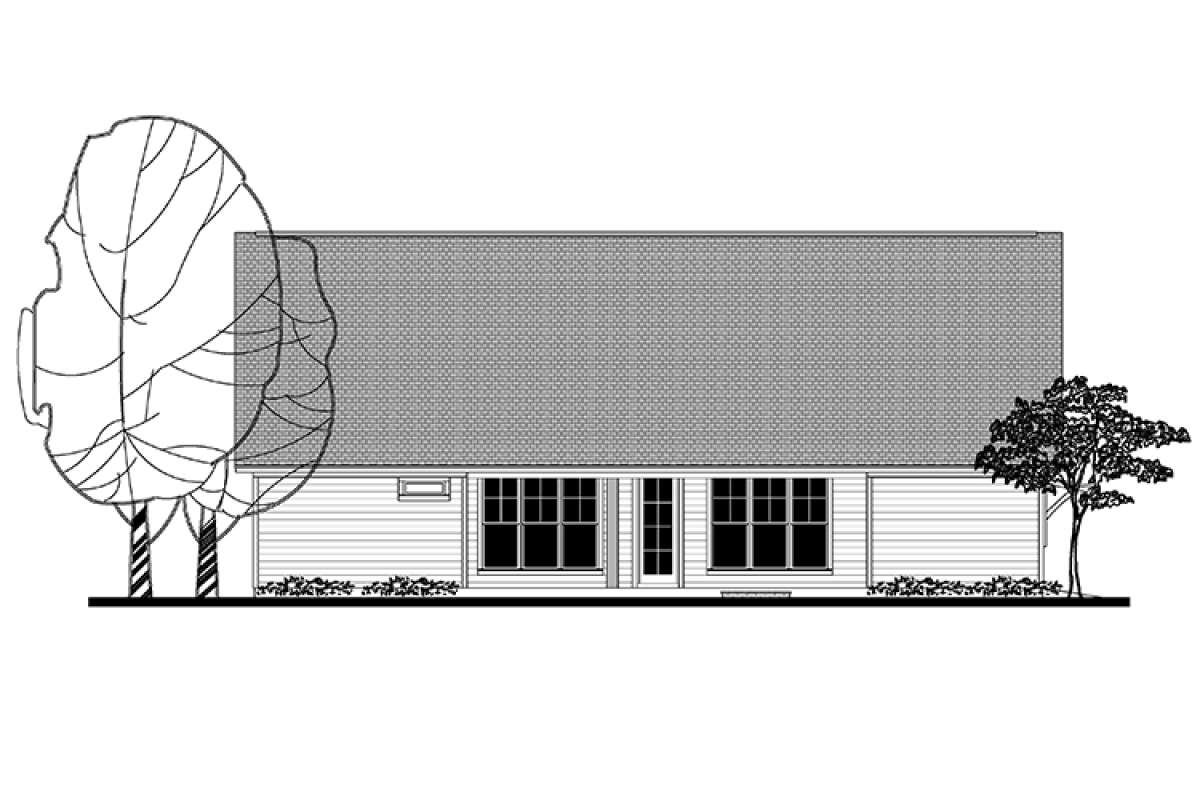

    The exterior elevations are used to depict the exterior finishes (brick, siding, stucco, etc.), roof styles (hip or gable) and slopes, ridge heights, and window styles, and overhang lengths. The exterior elevations include a front, right, rear, and left elevation.
  • Building Sections
    The building sections describe to the builder how a particular home is to be constructed.  Building sections typically show stud heights, the roof construction, whether stick built or pre engineered, direction of the ceiling joist members, overhang finishes, wall and ceiling finishes, and interior roof support members.
  • Roof Plan
    The roof plan depicts the roof type, plate heights and roof slope of each plane.
  • Interior Cabinet Views
    Cabinet views depict the overall design and layout of the kitchen cabinets.
  • Electrical Plan
    The electrical plan depicts the general location of all interior and exterior electrical devices. This generally includes light switches, electrical outlets, ceiling fixtures, and smoke detectors. The electrical plan will also generally locate the breaker box and power entry.

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This super attractive and highly functional Craftsman house design features a family-friendly layout. The exterior façade is highlighted with enormous curb appeal that incorporates board and batten gables, a shed dormer, exposed rafters and a front covered porch designed for greeting family and friends. The interior layout features approximately 2,004 square feet of usable living space with three bedrooms and two plus baths on the main level. The overhead bonus room supplies an additional 354 square feet of space; great as a multi-purpose family room, study or an artist’s studio. There is a full bath and closet as well so this extra space could also be utilized as a fourth bedroom. The two-car front loading garage is spacious with adjacent storage space and entry into the home’s interior.


Entering the home from the front porch, you are greeted with a spacious foyer that leads to the flanking home office and subsequent living room. The study is accessed through French doors and features double window views. The centrally located living room is nicely vaulted, open to the kitchen and provides triple window views and access to the rear porch. The rear porch is huge, measures in excess of 17’ x 14’, is covered and has an outdoor kitchen area; perfect for outdoor family fun and cook-outs. Bordering the porch is a large storage room that is ideal for lawn and sporting equipment. The grand kitchen is highlighted with a center island, breakfast bar, loads of cabinet and counter space and the walk-in pantry is situated between the kitchen and dining area. The dining room features 10’ ceiling heights and is sundrenched with double-sided window views overlooking the porch. Off the garage entrance, is a family functional space for maintaining a tidy home environment. There is a laundry room featuring a sink area, counter space and hanging space for clothing. The adjacent lockers and linen/storage closet provide space for the drop off of backpacks, outerwear, and other gear and there is a guest powder room nearby. The owner's suite is situated on one side of the home for privacy and features a large bedroom with trey ceiling accent, 10’ ceiling heights, and wonderful window views. The adjacent bath is highlighted with good floor space and modern amenities; there are separate dual vanities and linen closets, a jetted tub, a separate shower, and a compartmentalized toilet area for the homeowner's pleasure. The primary walk-in closet is quite large and allows for spacious clothing and other apparel storage. Bedroom two and three are almost identical in size, both have window views and plentiful closet space. There is a shared hall bath with a vanity area, toilet, a tub/shower combination, and a nearby linen hall closet. This Craftsman plan features a lovely exterior, a functional floor plan and great outdoor space for the modern family.
