European Plan 041-00141


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,210
Beds 4
Bath 2
1/2 Baths 0
Car 2
Stories 1.5
Width 69' 6"
Depth 53'

Floorplan Drawings

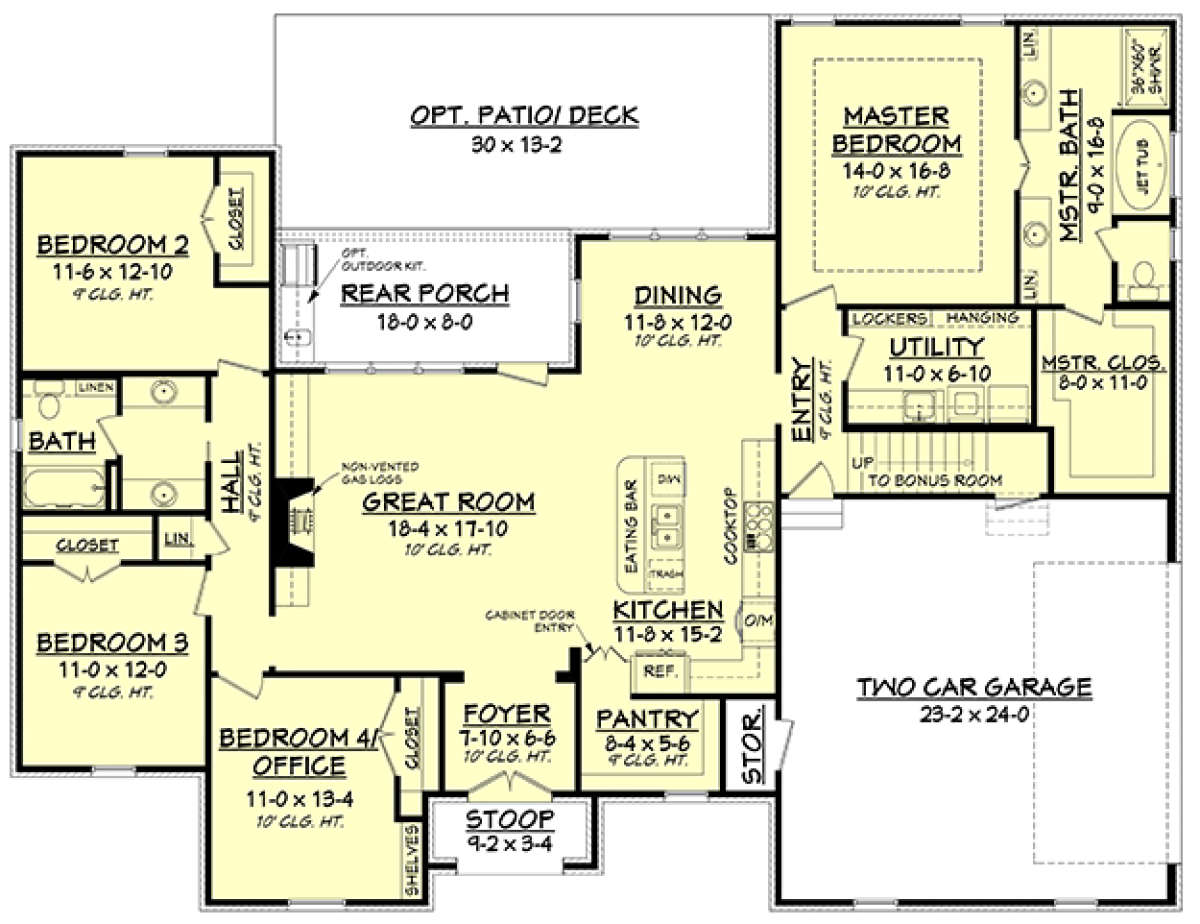

Main Floor
Main Floor for House Plan #041-00141

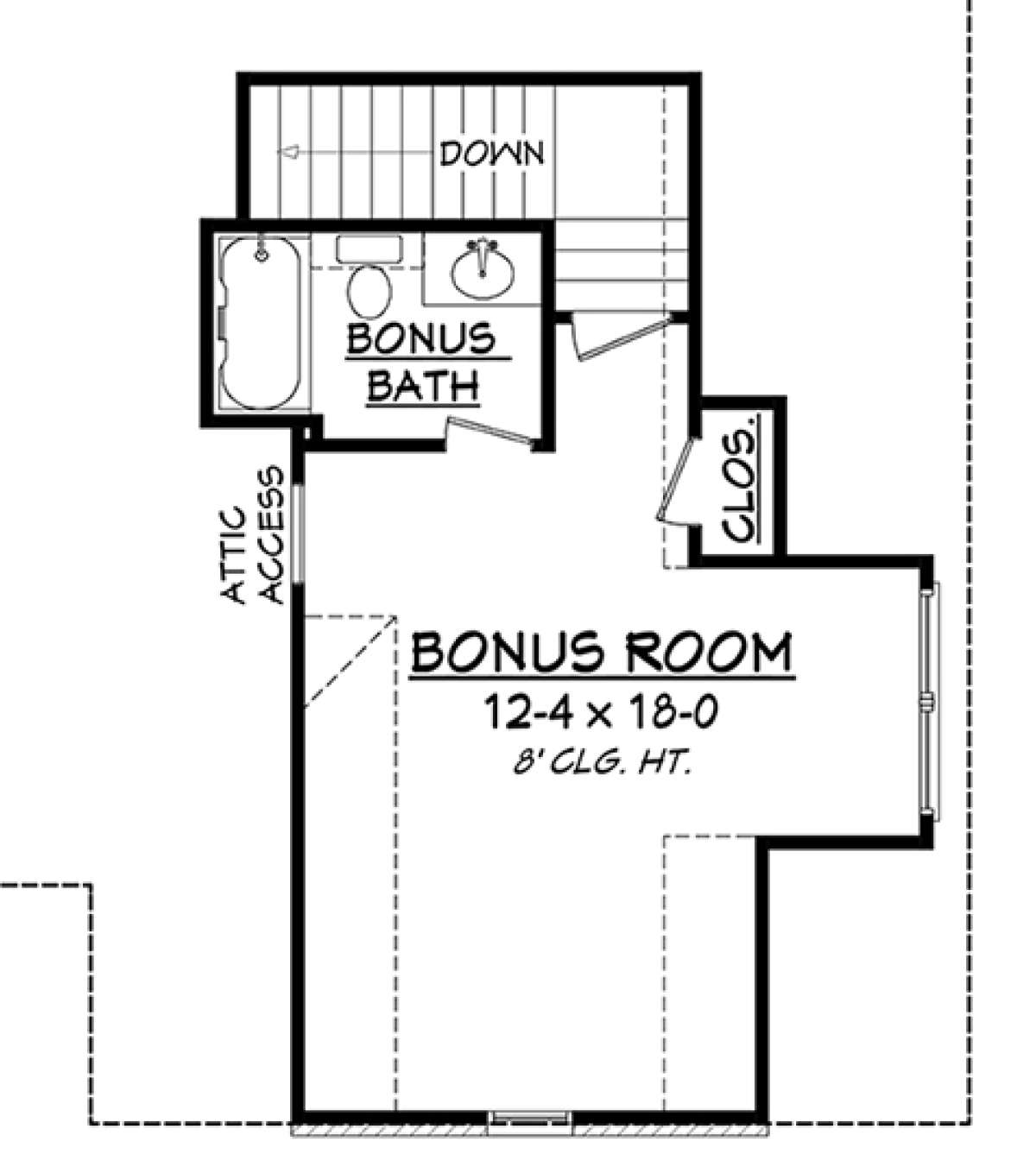

Bonus Floor Plan
Bonus Floor Plan for House Plan #041-00141

What's Included in these plans?

  • Cover Sheet
    Cover sheet typically includes a front view of the plan (may be in color), index of pages included, and other miscellaneous notes and details.
  • Foundation Plan & Details
    Foundation plans describe to the builder, the type of foundation requested by the home owner or the type of foundation required by a certain geographic area. In most cases, the foundation plan will include footing sizes and locations, footing details and other important information needed to properly construct the home. In some specific areas, a structural engineer may be required to review and certify the house plans purchased. These reasons include, but are not limited to the following: seismic (earthquake) considerations, high wind (coastal , mountainous areas, etc.), snow loads, etc.
  • Floor Plans
    The floor plans locate all walls, interior and exterior, of the entire building, denote ceiling heights and treatments, locate all plumbing fixtures, cabinets, door and window locations and sizes, gives square footage measurements, locate water heaters and hvac systems.
  • Exterior Elevations
    The exterior elevations are used to depict the exterior finishes (brick, siding, stucco, etc.), roof styles (hip or gable) and slopes, ridge heights, and window styles, and overhang lengths. The exterior elevations include a front, right, rear, and left elevation.
  • Building Sections
    The building sections describe to the builder how a particular home is to be constructed.  Building sections typically show stud heights, the roof construction, whether stick built or pre engineered, direction of the ceiling joist members, overhang finishes, wall and ceiling finishes, and interior roof support members.
  • Roof Plan
    The roof plan depicts the roof type, plate heights and roof slope of each plane.
  • Interior Cabinet Views
    Cabinet views depict the overall design and layout of the kitchen cabinets.
  • Electrical Plan
    The electrical plan depicts the general location of all interior and exterior electrical devices. This generally includes light switches, electrical outlets, ceiling fixtures, and smoke detectors. The electrical plan will also generally locate the breaker box and power entry.

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

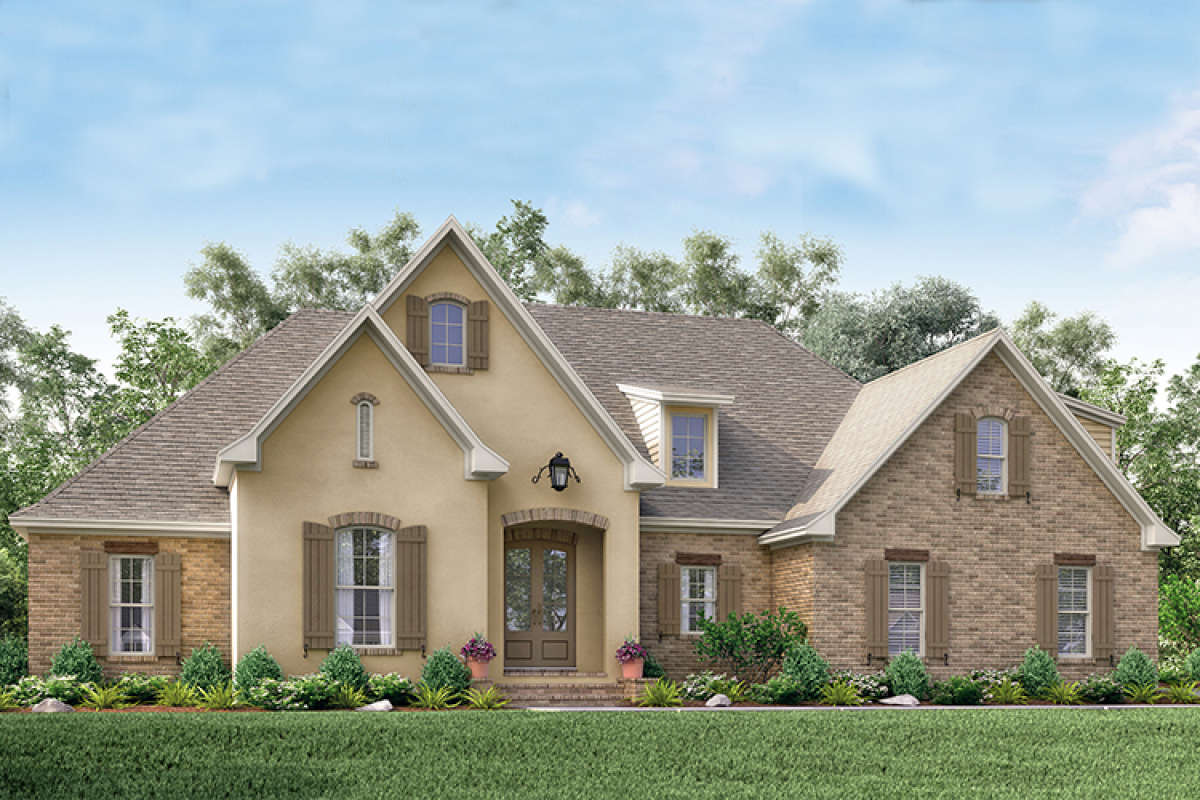

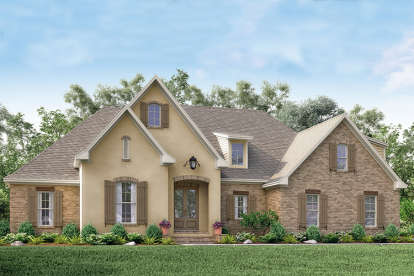

This gorgeous European style house plan features a warm and inviting exterior and a spacious interior in 1.5 stories. Smooth stucco, brick work and tall gables with wide eaves creatively blend an attractive exterior brimming with curb appeal. The interior floor plan is highlighted with approximately 2,210 square feet of living space which incorporates four bedrooms and two baths into the home’s interior. The foundation is a choice between a slab and crawl space; however, there is an option for a basement foundation if future expansion space is needed. Additionally, there is a second level bonus room featuring another 364 approximate square feet; this room is perfect for an additional bedroom as it contains a closet and full bath. This space could also be configured as a homework station for the children, a multi-purpose family room or an artist’s studio. Along with the bonus room, there is overhead attic space as well. The main floor of the home features an open floor plan once you enter the spacious foyer with 10’ ceiling heights. There is a centrally located layout with a huge great room that features a gas log fireplace, built-in cabinetry and access to the outdoor space. The rear covered porch is the ideal gathering spot for family and friends to enjoy the outdoors and the prospect of an outdoor kitchen further enhances the space. The dining space is located at the rear of the common rooms and is a bright and sunny area for dining. The grand kitchen offers excellent space in which to prepare meals; there is a large center island with an eat-in area and double sinks. In addition to the center island, there are loads of counter and cabinet space along with an enormous walk-in food storage pantry. The two car side loading garage has a small storage space attached and leads into the interior where there is a staircase to the bonus room and the laundry room. The laundry room is quite large with locker space, a sink area and a drying rod for clothing.

The split bedroom plan features three bedrooms and a large bathroom on one side of the home while the master suite is privately located on the opposite side. Bedroom four is situated at the front of the home and could be utilized for a home office and there is a closet area as well as shelving. The second and third bedrooms are similar in size with large closets and window views. There is a large shared hall bath with good floor space, double separate sinks, an enclosed linen closet and a tub/shower combination. The master suite features a spacious bedroom with trey ceiling, an expansive master bath and an oversized master walk-in closet. The elegant master bath is highlighted with separate dual vanities, a jetted tub, separate shower and a compartmentalized toilet area while the master closet is ideal for a large assortment of clothing and other items. This lovely family home features an attractive exterior and a spacious interior with great entertaining space and a large assortment of private family spaces.
