European Plan 041-00120

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,937
Beds 3
Bath 2
1/2 Baths 0
Car 2
Stories 1
Width 55' 6"
Depth 69'

Floorplan Drawings

Main Floor

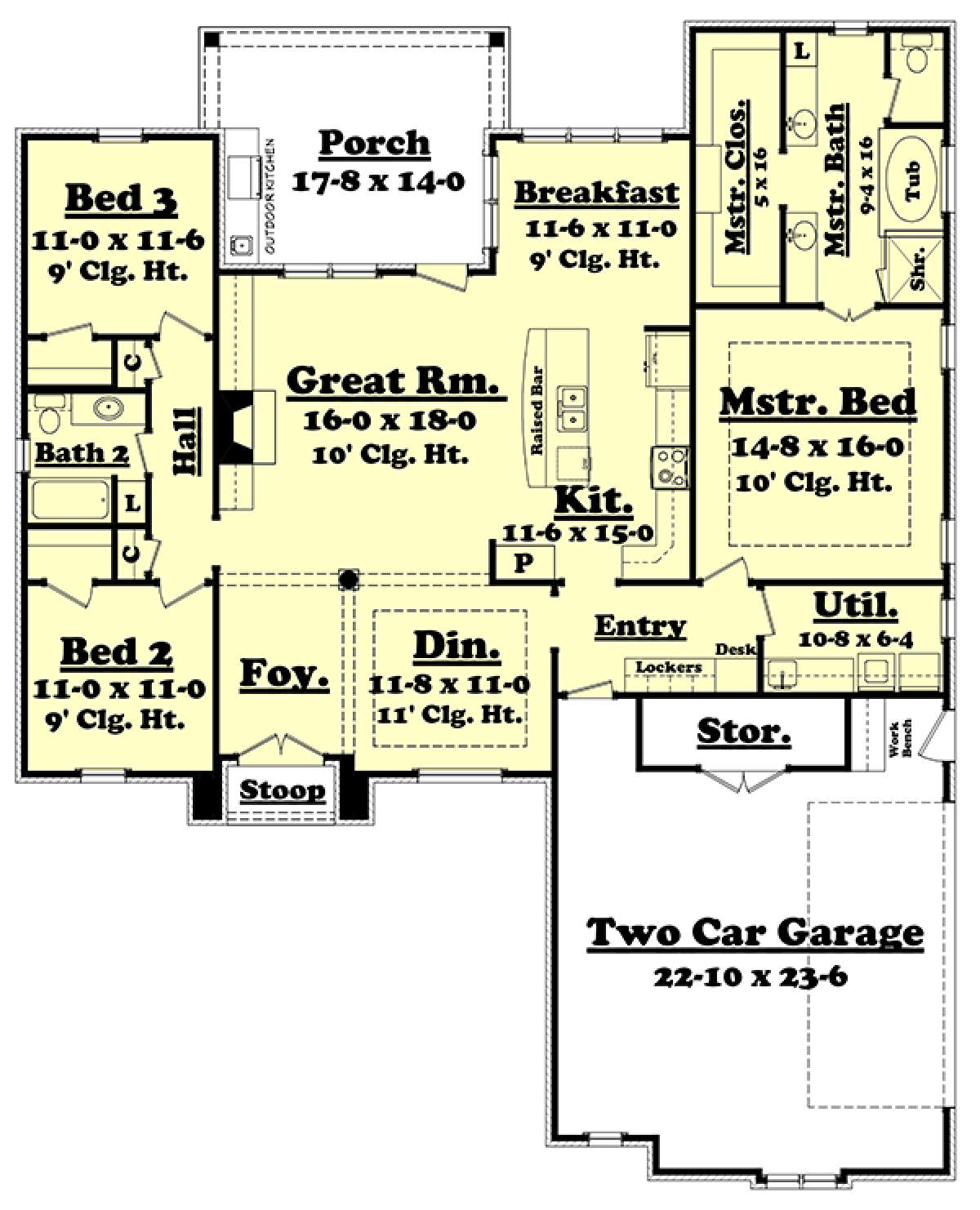

Main Floor for House Plan #041-00120


What's Included in these plans?

  • Cover Sheet
    Cover sheet typically includes a front view of the plan (may be in color), index of pages included, and other miscellaneous notes and details.
  • Foundation Plan & Details
    Foundation plans describe to the builder, the type of foundation requested by the home owner or the type of foundation required by a certain geographic area. In most cases, the foundation plan will include footing sizes and locations, footing details and other important information needed to properly construct the home. In some specific areas, a structural engineer may be required to review and certify the house plans purchased. These reasons include, but are not limited to the following: seismic (earthquake) considerations, high wind (coastal , mountainous areas, etc.), snow loads, etc.
  • Floor Plans
    The floor plans locate all walls, interior and exterior, of the entire building, denote ceiling heights and treatments, locate all plumbing fixtures, cabinets, door and window locations and sizes, gives square footage measurements, locate water heaters and hvac systems.
  • Exterior Elevations

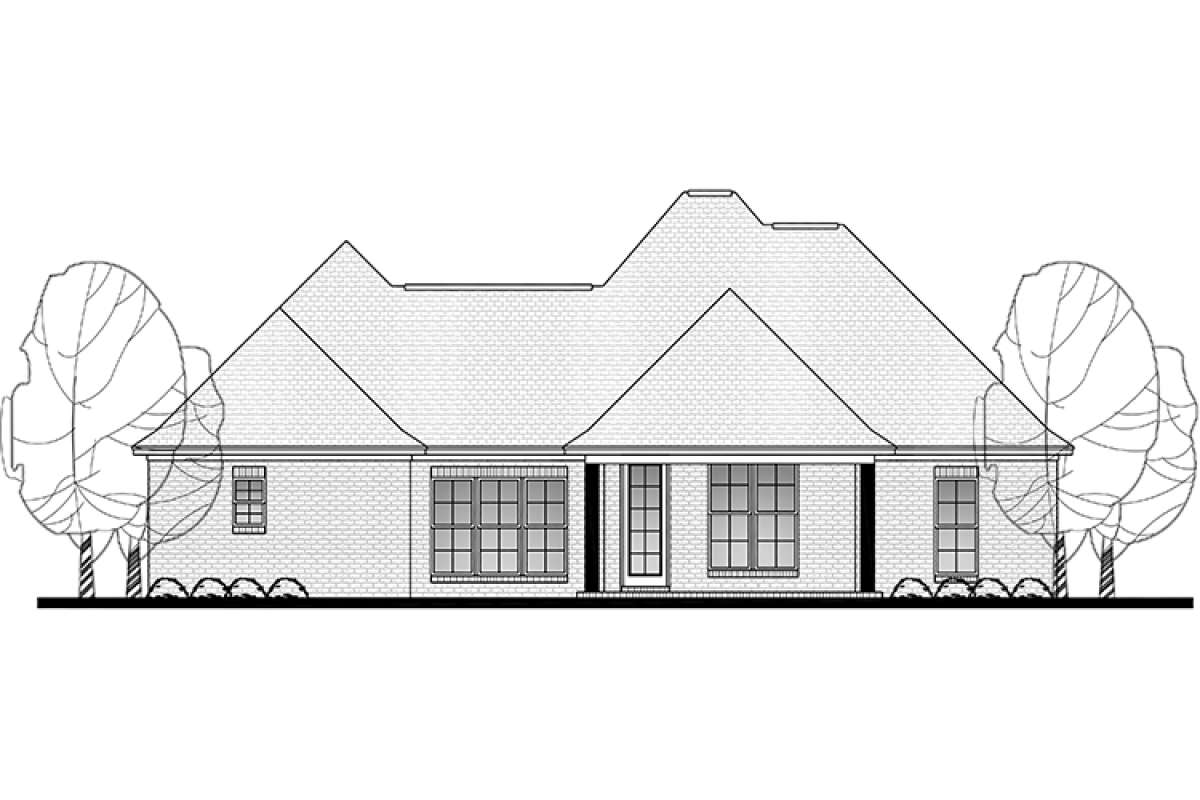

    The exterior elevations are used to depict the exterior finishes (brick, siding, stucco, etc.), roof styles (hip or gable) and slopes, ridge heights, and window styles, and overhang lengths. The exterior elevations include a front, right, rear, and left elevation.
  • Building Sections
    The building sections describe to the builder how a particular home is to be constructed.  Building sections typically show stud heights, the roof construction, whether stick built or pre engineered, direction of the ceiling joist members, overhang finishes, wall and ceiling finishes, and interior roof support members.
  • Roof Plan
    The roof plan depicts the roof type, plate heights and roof slope of each plane.
  • Interior Cabinet Views
    Cabinet views depict the overall design and layout of the kitchen cabinets.
  • Electrical Plan
    The electrical plan depicts the general location of all interior and exterior electrical devices. This generally includes light switches, electrical outlets, ceiling fixtures, and smoke detectors. The electrical plan will also generally locate the breaker box and power entry.

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

European styling and a decidedly open floor plan help define this spacious home where there are approximately 1,937 square feet of living space. The one story home features three bedrooms and two baths on a slab or crawl space foundation and additional square footage is found in the two garage along with plenty of storage space and a workbench area. The exterior of the home is highlighted with light hued stonework, smooth stucco exterior walls and overhead window dormers. The recessed entrance provides protection from the weather and features a double door entry into the home’s interior. An open formal dining room boasts of 11’ ceiling heights, a trey ceiling accent and a columned beam before stepping into the great room. The great room features a handsome fireplace and built-in cabinetry as well as access onto the rear covered porch where entertaining and family relaxing can be continued. The open kitchen is highlighted with a huge center raised breakfast bar, a separate pantry and a back wall of counter and cabinets. There is an adjacent breakfast room which is beautifully encased in surrounding window views for a light and airy space to casually dine. The two car side loading garage directly leads into the home’s mudroom where there are lockers and a desk area as well as a spacious family laundry room with sink area and counter space.

The split bedroom plan features privacy for the master suite’s location where a large master bedroom features a trey ceiling and wonderful window views. An attached walk-in master closet is situated off the master suite where modern amenities highlight the space and include dual vanities, a separate shower and garden tub with a view. The two remaining bedrooms are situated on the opposite side of the home; both are similarly sized, feature window views and plenty of closet space. There is a shared hall bath with an extended vanity, an enclosed linen closet and a tub/shower combination. This family friendly home offers a functional and comfortable layout and an exterior that is attractive.
