Traditional Plan 041-00119

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,172
Beds 4
Bath 2
1/2 Baths 1
Car 2
Stories 2
Width 24'
Depth 93' 4"

Floorplan Drawings

Main Floor
Main Floor for House Plan #041-00119
Second Floor
Second Floor for House Plan #041-00119


What's Included in these plans?

  • Cover Sheet
    Cover sheet typically includes a front view of the plan (may be in color), index of pages included, and other miscellaneous notes and details.
  • Foundation Plan & Details
    Foundation plans describe to the builder, the type of foundation requested by the home owner or the type of foundation required by a certain geographic area. In most cases, the foundation plan will include footing sizes and locations, footing details and other important information needed to properly construct the home. In some specific areas, a structural engineer may be required to review and certify the house plans purchased. These reasons include, but are not limited to the following: seismic (earthquake) considerations, high wind (coastal , mountainous areas, etc.), snow loads, etc.
  • Floor Plans
    The floor plans locate all walls, interior and exterior, of the entire building, denote ceiling heights and treatments, locate all plumbing fixtures, cabinets, door and window locations and sizes, gives square footage measurements, locate water heaters and hvac systems.
  • Exterior Elevations

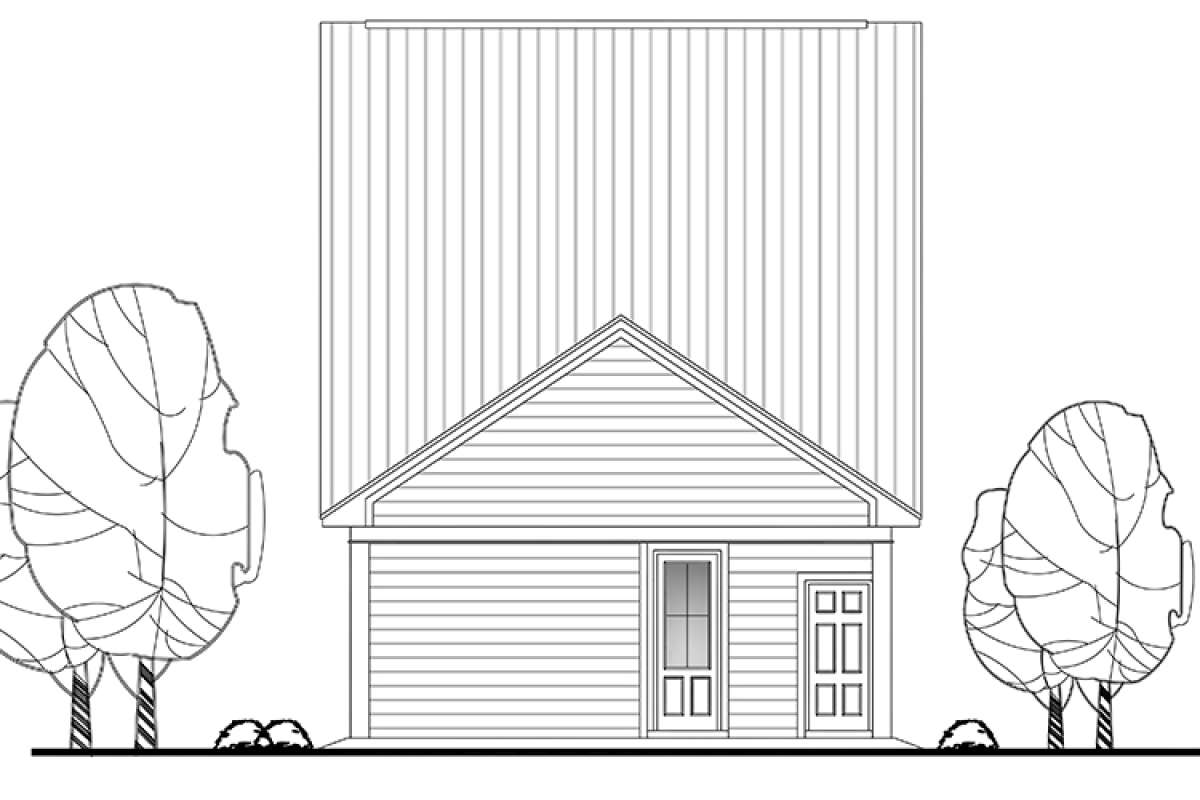

    The exterior elevations are used to depict the exterior finishes (brick, siding, stucco, etc.), roof styles (hip or gable) and slopes, ridge heights, and window styles, and overhang lengths. The exterior elevations include a front, right, rear, and left elevation.
  • Building Sections
    The building sections describe to the builder how a particular home is to be constructed.  Building sections typically show stud heights, the roof construction, whether stick built or pre engineered, direction of the ceiling joist members, overhang finishes, wall and ceiling finishes, and interior roof support members.
  • Roof Plan
    The roof plan depicts the roof type, plate heights and roof slope of each plane.
  • Interior Cabinet Views
    Cabinet views depict the overall design and layout of the kitchen cabinets.
  • Electrical Plan
    The electrical plan depicts the general location of all interior and exterior electrical devices. This generally includes light switches, electrical outlets, ceiling fixtures, and smoke detectors. The electrical plan will also generally locate the breaker box and power entry.

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

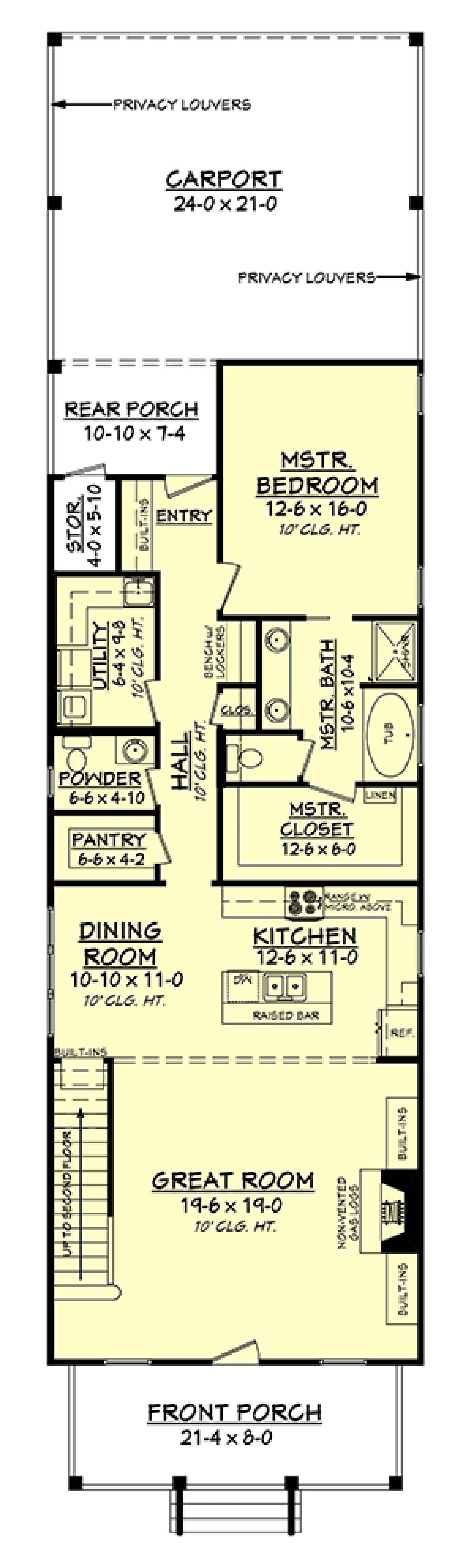

This handsome exterior is well suited for a narrow property lot with its 24’ width dimension and yet, the 93’ plus depth dimension allows for a spacious and well-functioning floor plan. The exterior of the home celebrates simplicity with its overhead triple window dormer, centrally located entrance and front covered porch. The home’s interior space is lined with approximately 2,172 square feet of living space which includes four bedrooms and two plus baths within two floors. The covered porch is perfect for greeting family and friends before entering the home’s great room; this space features a warming fireplace, built-in cabinetry, 10’ ceiling heights and is open to the remainder of the common rooms. A spacious dining room is also highlighted with an extended ceiling height and a wall of windows for spectacular side views of the home. The adjoining kitchen is family friendly with a large center work/prep space that also includes a raised bar for casual dining. A central hallway runs the length of the rear of the home and houses a large walk-in pantry, a guest powder room, a huge laundry room and a rear entry which features built-ins for capturing all types of family gear. There is a rear porch with an enclosed storage area and the carport offers privacy louvers for convenience and a polished finish. The main level master suite features a large bedroom, an en suite bath with dual vanities, a separate shower and a garden tub. Beyond the bath is an oversized walk-in closet with plenty of space for clothing and assorted other items.

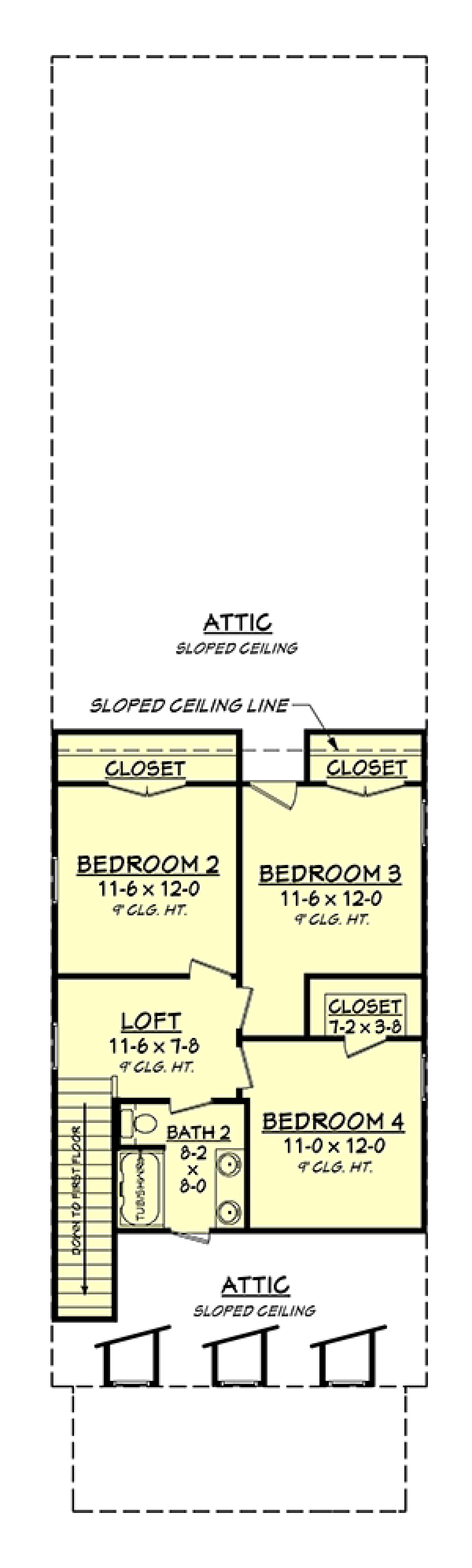

The open staircase to the second floor features a landing with a large loft area; perfect for a playroom or study room for the children. There are three additional bedrooms on this floor; each features good floor space and generous closet space. The shared hall bath offers double sinks thereby reducing morning chaos and there is a tub/shower combination as well. Loads of attic space for seasonal and everyday storage frames the front and rear of the second floor. This is a wonderful home for a large family with a functional and versatile floor plan for casual, everyday living.
