Craftsman House Plan #041-00118 Elevation Photo

Craftsman House Plan #041-00118 Additional Photo

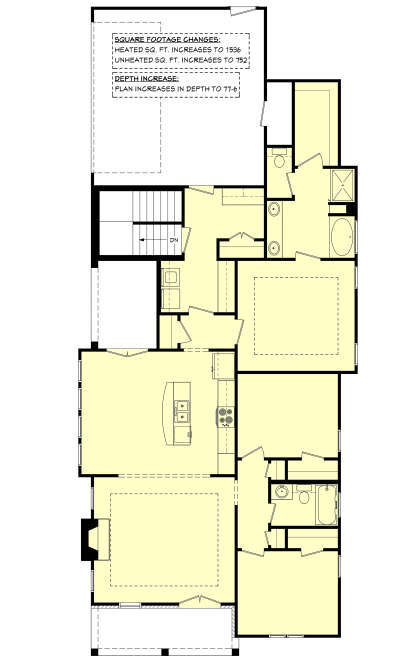

Main Floor w/ Basement Stair Location for House Plan #041-00118

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 1,450

Beds 3

Bath 2

1/2 Baths 0

Car 2

Stories 1

Width 33' 4"

Depth 68' 10"

See What's Included

Return Policy, Building Code & Copyright Info

Floorplan Drawings

REVERSE PRINT DOWNLOAD

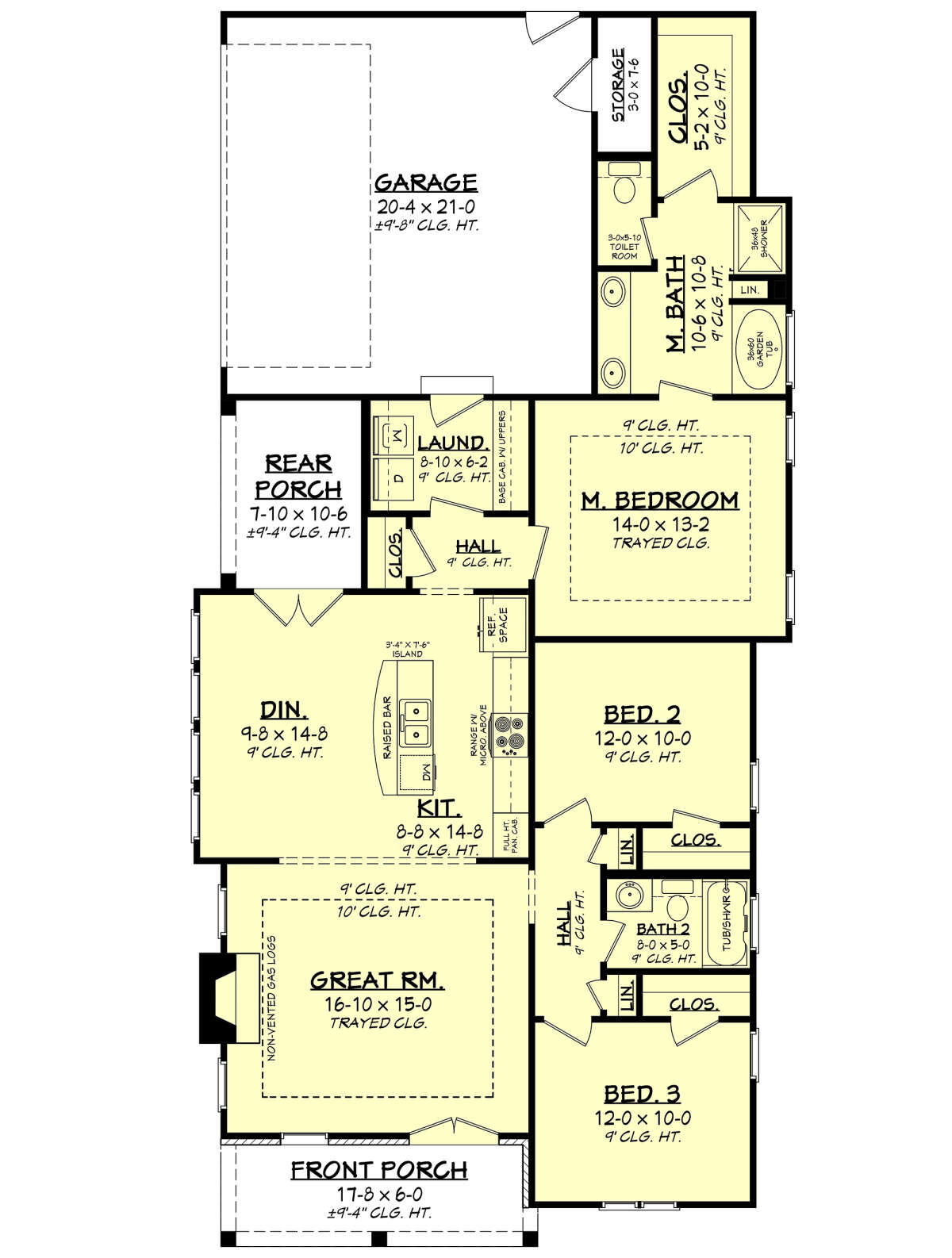

Main Floor

Main Floor w/ Basement Stair Location

Images copyrighted by the designer.

What's Included in these plans?

Cover Sheet
Cover sheet typically includes a front view of the plan (may be in color), index of pages included, and other miscellaneous notes and details.
Foundation Plan & Details
Foundation plans describe to the builder, the type of foundation requested by the home owner or the type of foundation required by a certain geographic area. In most cases, the foundation plan will include footing sizes and locations, footing details and other important information needed to properly construct the home. In some specific areas, a structural engineer may be required to review and certify the house plans purchased. These reasons include, but are not limited to the following: seismic (earthquake) considerations, high wind (coastal , mountainous areas, etc.), snow loads, etc.
Floor Plans
The floor plans locate all walls, interior and exterior, of the entire building, denote ceiling heights and treatments, locate all plumbing fixtures, cabinets, door and window locations and sizes, gives square footage measurements, locate water heaters and hvac systems.
Exterior Elevations

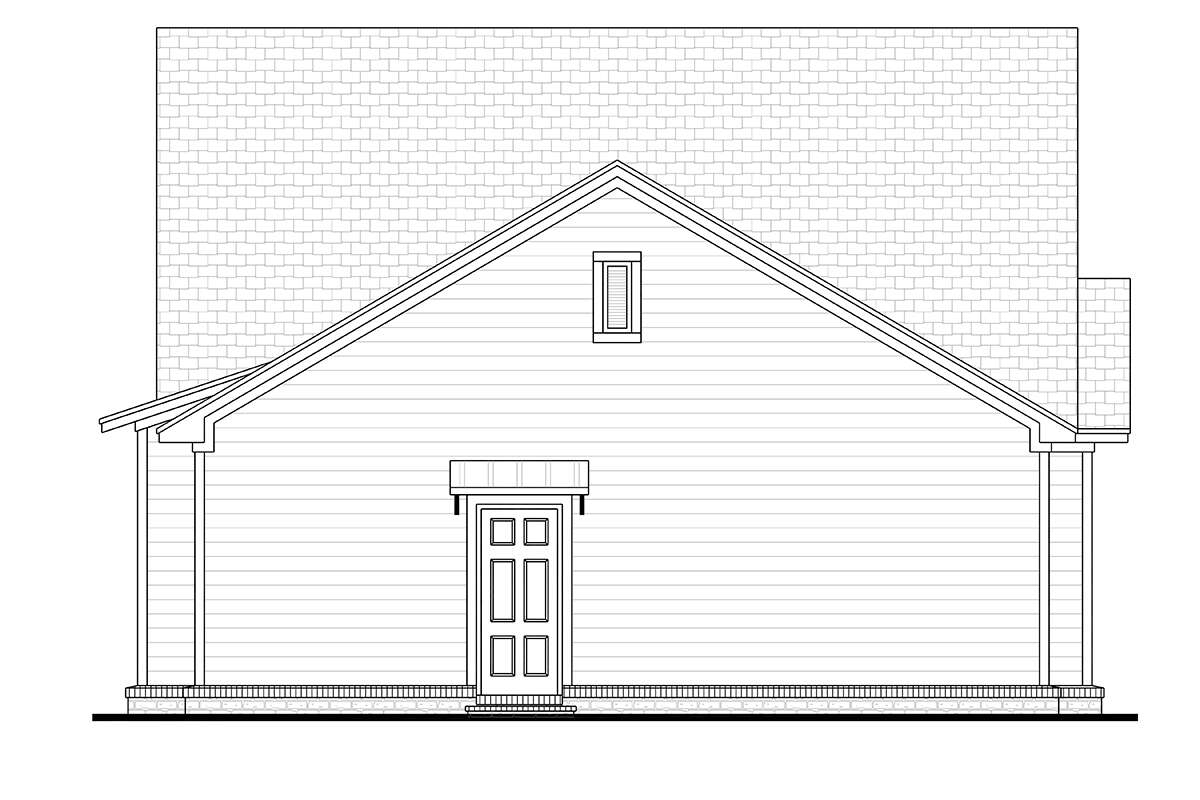

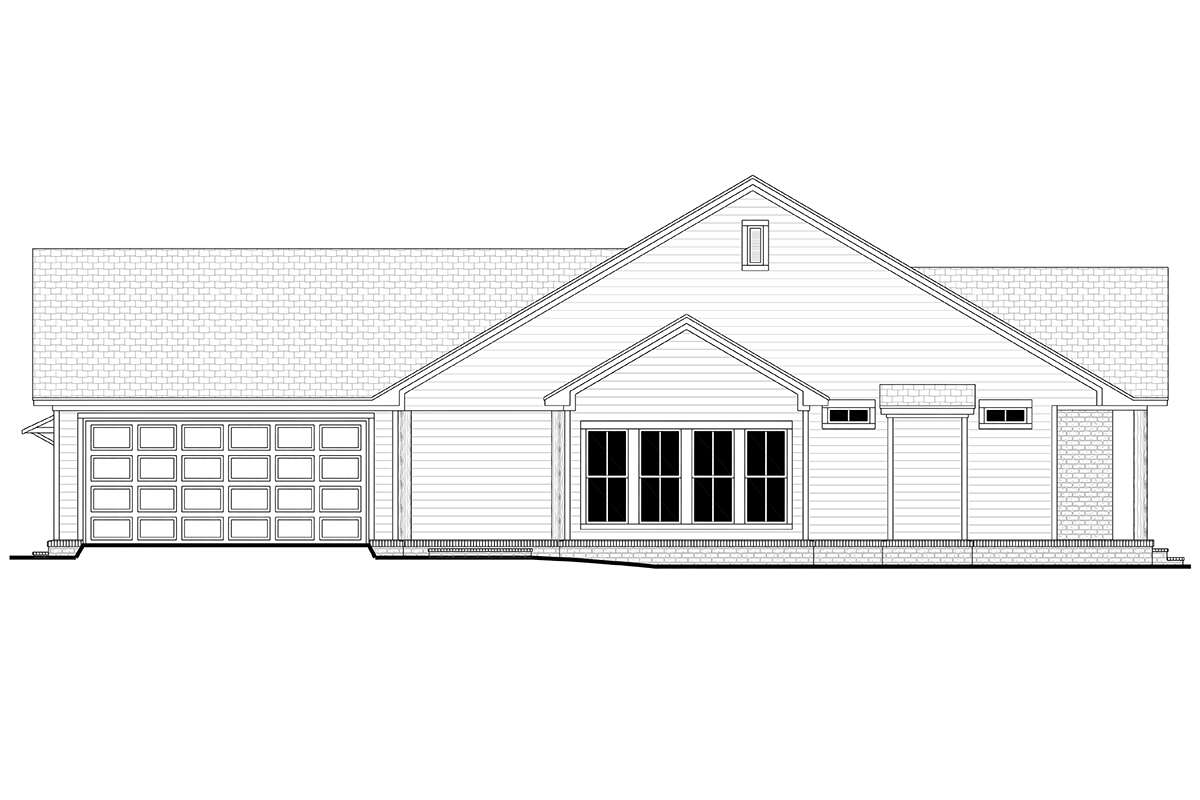

The exterior elevations are used to depict the exterior finishes (brick, siding, stucco, etc.), roof styles (hip or gable) and slopes, ridge heights, and window styles, and overhang lengths. The exterior elevations include a front, right, rear, and left elevation.
Building Sections
The building sections describe to the builder how a particular home is to be constructed. Building sections typically show stud heights, the roof construction, whether stick built or pre engineered, direction of the ceiling joist members, overhang finishes, wall and ceiling finishes, and interior roof support members.
Roof Plan
The roof plan depicts the roof type, plate heights and roof slope of each plane.
Interior Cabinet Views
Cabinet views depict the overall design and layout of the kitchen cabinets.
Electrical Plan
The electrical plan depicts the general location of all interior and exterior electrical devices. This generally includes light switches, electrical outlets, ceiling fixtures, and smoke detectors. The electrical plan will also generally locate the breaker box and power entry.

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.

Ask Us A Question

About This Plan

Completely comfortable and cozy, this Craftsman inspired cottage is highlighted with an inviting exterior composed of brick, horizontal siding and a front covered porch for greeting family and friends. There are three bedrooms and two plus baths in the approximate 1,450 square feet of usable living space. There is a two car side entry garage with plenty of vehicle and storage space where the garage entrance is positioned towards the rear of the home keeping the front exterior sight lines unobstructed. Double door entrance into the home reveals a large open concept layout where family time and entertaining will be enjoyable and effortless. The great room is highlighted with a warming fireplace, 10 foot ceiling heights and wonderful window views. Beyond the great room is the spacious and family friendly kitchen and dining space where there is a center raised breakfast bar, perfect for additional seating. There is a separate pantry as well as a back wall of modern amenities, an entire wall of windows overlooking the yard and French door access onto the rear covered porch. A spacious utility room is located directly off the garage and a second pantry and guest powder room are nearby. The single story home features two bedrooms off the minimal hallway; this is a great space saver and both bedrooms enjoy 9’ ceiling heights, plenty of floor space and ample closet space. The shared hall bath is located between the bedrooms and is flanked by double linen closets. The master suite is positioned at the rear of the home for privacy and features 10’ ceiling heights, a generous footprint and an attached walk-in closet and en suite bath. The master bath is highlighted with dual vanities, a jetted tub, separate shower and enclosed linen closet. This home features a functional floor plan which maximizes the home’s square footage in an imaginative style and the attractive exterior façade is inviting for family and friends alike.
