Craftsman House Plan 041-00116

Sq Ft1,736
Beds4
Baths2
1/2 Baths0
Stories1
Cars2
Width56' 4"
Depth56' 2"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

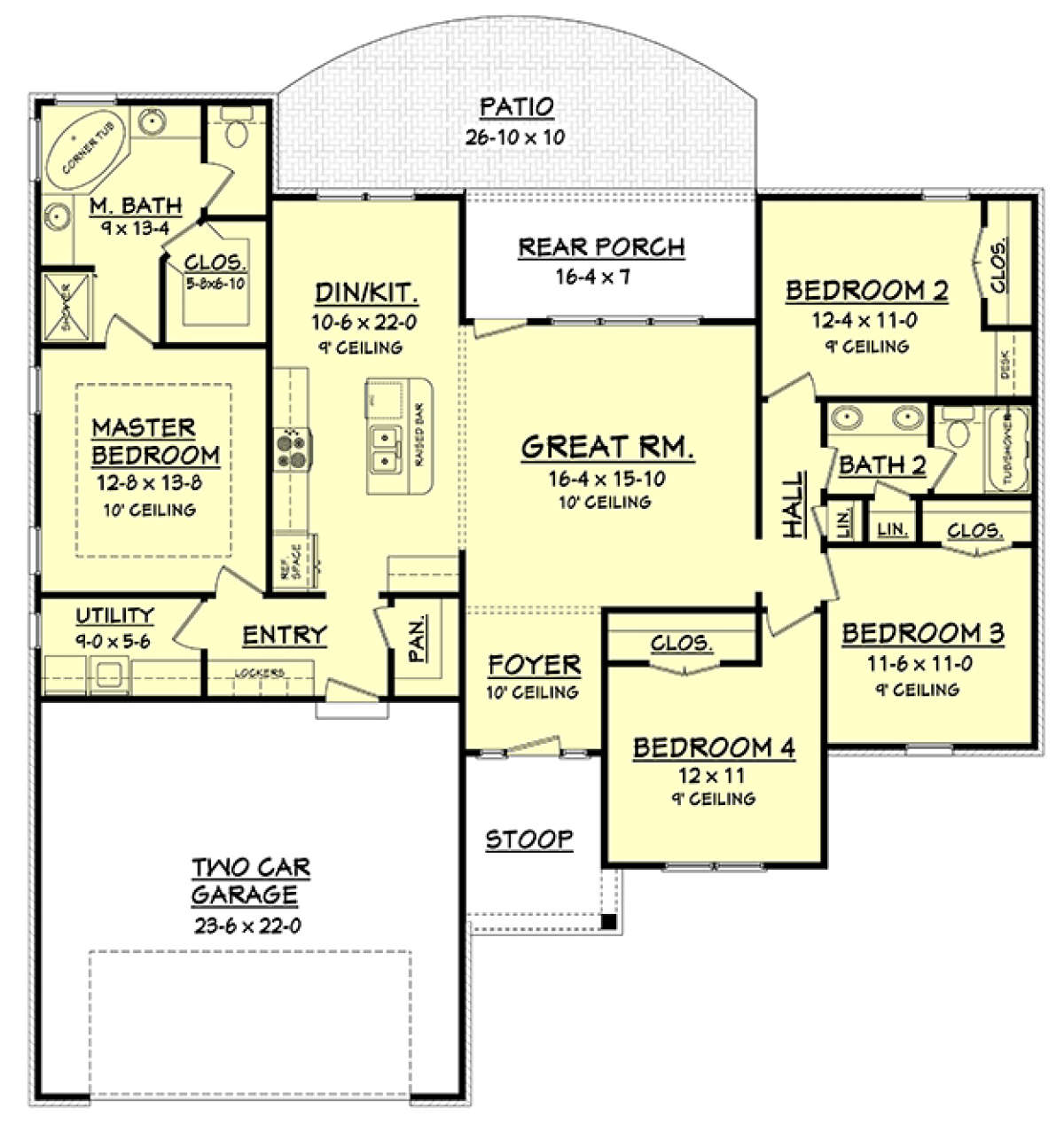

Main Floor for House Plan #041-00116
Main Floor
Main Floor for House Plan #041-00116


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Cover Sheet
    Cover sheet typically includes a front view of the plan (may be in color), index of pages included, and other miscellaneous notes and details.
  • Foundation Plan & Details
    Foundation plans describe to the builder, the type of foundation requested by the home owner or the type of foundation required by a certain geographic area. In most cases, the foundation plan will include footing sizes and locations, footing details and other important information needed to properly construct the home. In some specific areas, a structural engineer may be required to review and certify the house plans purchased. These reasons include, but are not limited to the following: seismic (earthquake) considerations, high wind (coastal , mountainous areas, etc.), snow loads, etc.
  • Floor Plans
    The floor plans locate all walls, interior and exterior, of the entire building, denote ceiling heights and treatments, locate all plumbing fixtures, cabinets, door and window locations and sizes, gives square footage measurements, locate water heaters and hvac systems.

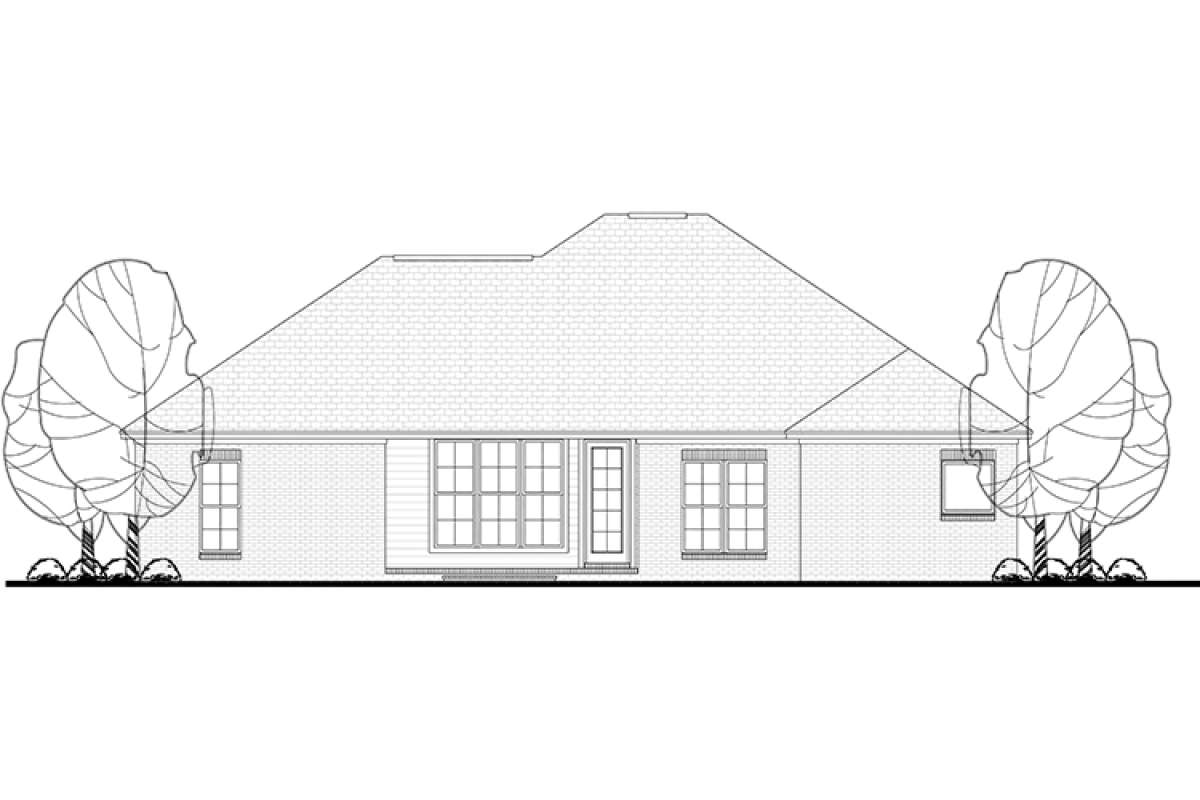

  • Exterior Elevations
    The exterior elevations are used to depict the exterior finishes (brick, siding, stucco, etc.), roof styles (hip or gable) and slopes, ridge heights, and window styles, and overhang lengths. The exterior elevations include a front, right, rear, and left elevation.
  • Building Sections
    The building sections describe to the builder how a particular home is to be constructed.  Building sections typically show stud heights, the roof construction, whether stick built or pre engineered, direction of the ceiling joist members, overhang finishes, wall and ceiling finishes, and interior roof support members.
  • Roof Plan
    The roof plan depicts the roof type, plate heights and roof slope of each plane.
  • Interior Cabinet Views
    Interior cabinet views depict the overall design and layout of all interior cabinets. These include kitchen cabinets, bathroom cabinets, built-in cabinets, and other specialty items designed within a particular home.
  • Electrical Plan
    The electrical plan depicts the general location of all interior and exterior electrical devices. This generally includes light switches, electrical outlets, ceiling fixtures, and smoke detectors. The electrical plan will also generally locate the breaker box and power entry.

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

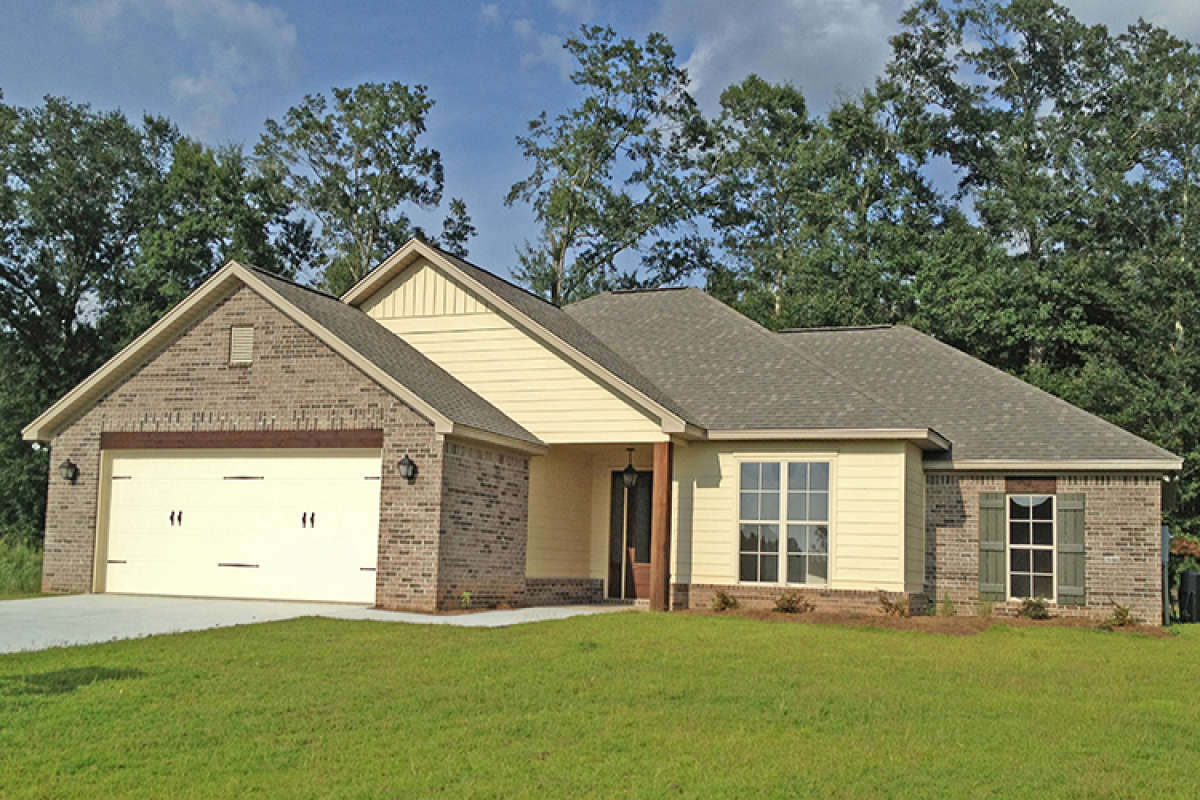

This one story traditional Ranch house plan features an open layout concept and split bedroom plan within the home’s interior. There are approximately 1,736 square feet of usable living space which offers four bedrooms and two baths on a slab or crawl space foundation. Nine foot ceiling heights dominate the floor plan and give the interior a spacious and airy quality to the home. The two car front loading garage features approximately 539 square feet of vehicle and storage space and directly leads into the mudroom with lockers and the large laundry room for a clean home environment. The exterior of the home features simple construction that offers a multitude of brickwork, horizontal siding and a front covered porch. The porch opens onto the foyer with 10’ ceilings and subsequent great room where there is great entertaining space, a rear wall of windows and access onto the rear covered porch and adjoining patio. The great room is open to the grand kitchen and dining space which is highlighted with a raised breakfast bar for additional dining options, plenty of counter/cabinet space and a huge walk-in food storage pantry.

The split bedroom plan features three family style bedrooms on one side of the home and the master suite’s location on the opposite side offers privacy and convenience. All three bedrooms feature good floor space, window views and generous closet space. Double linen closets are available, one located in the hallway while the other is situated in the shared hall bath which features double sinks and a tub/shower combination. The master suite is highlighted with a spacious bedroom accented with an overhead trey ceiling, an attached walk-in closet and a generously appointed master bath. The bath features dual vanities, a corner garden tub encased in window views, a separate shower and a compartmentalized toilet area. This family friendly home features an open floor plan perfect for entertaining and plenty of private family space.
