Craftsman Plan 041-00100

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,825
Beds 3
Bath 2
1/2 Baths 1
Car 2
Stories 1
Width 33'
Depth 93' 10"

Floorplan Drawings

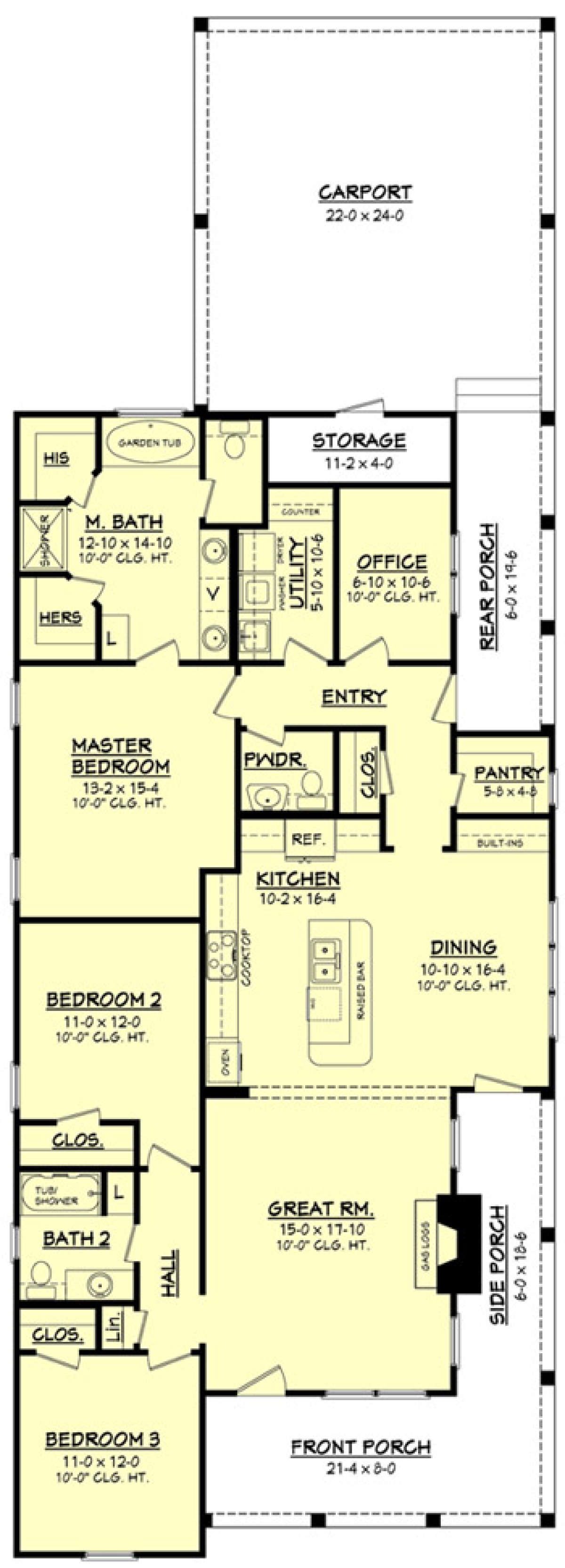

Main Floor
Main Floor for House Plan #041-00100


What's Included in these plans?

  • Cover Sheet
    Cover sheet typically includes a front view of the plan (may be in color), index of pages included, and other miscellaneous notes and details.
  • Foundation Plan & Details
    Foundation plans describe to the builder, the type of foundation requested by the home owner or the type of foundation required by a certain geographic area. In most cases, the foundation plan will include footing sizes and locations, footing details and other important information needed to properly construct the home. In some specific areas, a structural engineer may be required to review and certify the house plans purchased. These reasons include, but are not limited to the following: seismic (earthquake) considerations, high wind (coastal , mountainous areas, etc.), snow loads, etc.
  • Floor Plans
    The floor plans locate all walls, interior and exterior, of the entire building, denote ceiling heights and treatments, locate all plumbing fixtures, cabinets, door and window locations and sizes, gives square footage measurements, locate water heaters and hvac systems.
  • Exterior Elevations
    The exterior elevations are used to depict the exterior finishes (brick, siding, stucco, etc.), roof styles (hip or gable) and slopes, ridge heights, and window styles, and overhang lengths. The exterior elevations include a front, right, rear, and left elevation.
  • Building Sections
    The building sections describe to the builder how a particular home is to be constructed.  Building sections typically show stud heights, the roof construction, whether stick built or pre engineered, direction of the ceiling joist members, overhang finishes, wall and ceiling finishes, and interior roof support members.
  • Roof Plan
    The roof plan depicts the roof type, plate heights and roof slope of each plane.
  • Interior Cabinet Views
    Cabinet views depict the overall design and layout of the kitchen cabinets.
  • Electrical Plan
    The electrical plan depicts the general location of all interior and exterior electrical devices. This generally includes light switches, electrical outlets, ceiling fixtures, and smoke detectors. The electrical plan will also generally locate the breaker box and power entry.

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

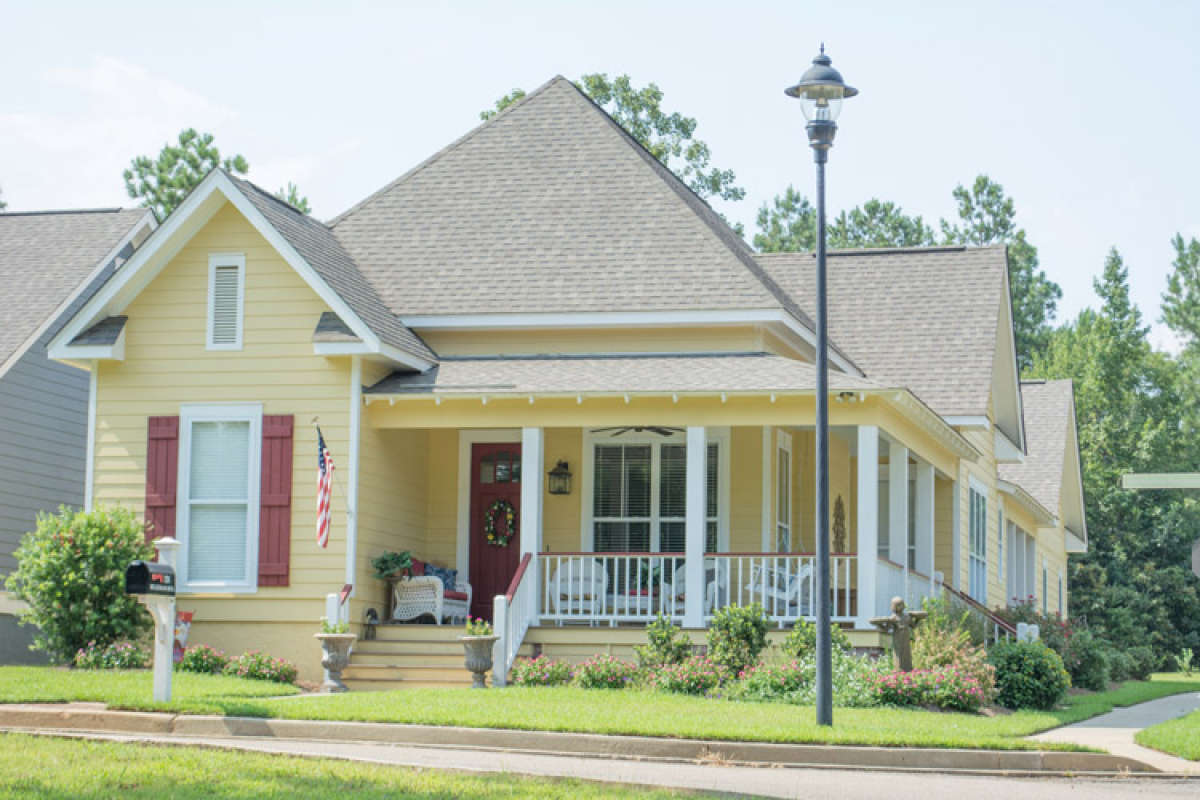

This beautiful Craftsman house design is reminiscent of days gone by with its charming exterior features and functional floor plan. The exterior of the home is perfectly designed for a narrow lot with its 33’ width dimension and yet, there is plenty of interior space. Horizontal siding, varying rooflines and a front covered porch that is highlighted with exposed rafters, large, nicely spaced columns and open railing enhance the attractive exterior. The interior houses approximately 1,825 square feet of living space that incorporates three bedrooms, two plus baths and an open floor plan in a single story. Ten foot ceiling heights and an excellent floor plan flow lend a spacious quality to the home’s efficient layout. The front covered porch extends down the side of the house as well granting the home plenty of room to relax, greet family and friends and entertain. Entering the home’s interior, the great room is revealed; it is a large space with wonderful window views and a handsome fireplace. The dining room and kitchen lie just beyond the great room; the dining space features built-in cabinetry and a three panel window wall. The grand kitchen boasts of a center island with breakfast bar for additional seating options, a separate pantry and plenty of counter and cabinet space. The rear of the home holds a guest powder room, a large closet and a large utility room with a sink, room for the washer and dryer and counter space for laundry folding. There is also an office space, ideal for a family command center, studying or a craft/hobby room. The side porch is an ideal area for a reading daybed, entertaining space or dining al fresco. The carport easily holds two vehicles and there is a large storage room accessible from the carport.

The three bedrooms are situated on one side of the home’s interior and feature great division of space in order to afford the master suite privacy. Bedrooms two and three are equivalent sized, feature window views and large closets. There is a shared hall bath with a large vanity, toilet area, a tub/shower combination and double linen closets are located nearby in the hallway. The master suite is rear positioned for privacy and offers a large master bedroom with double window views. The master bath is highlighted with modern amenities featuring a garden tub, a separate shower, dual vanities, a linen closet and a compartmentalized toilet area. His and her walk-in closets are located on either side of the bathroom for privacy and convenience. This Craftsman house plan features a lovely exterior, great outdoor space and a versatile and functional interior with minimal floor space waste.
