European Plan 041-00096


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,715
Beds 3
Bath 2
1/2 Baths 0
Car 2
Stories 1
Width 53' 8"
Depth 65' 10"

Floorplan Drawings

Main Floor

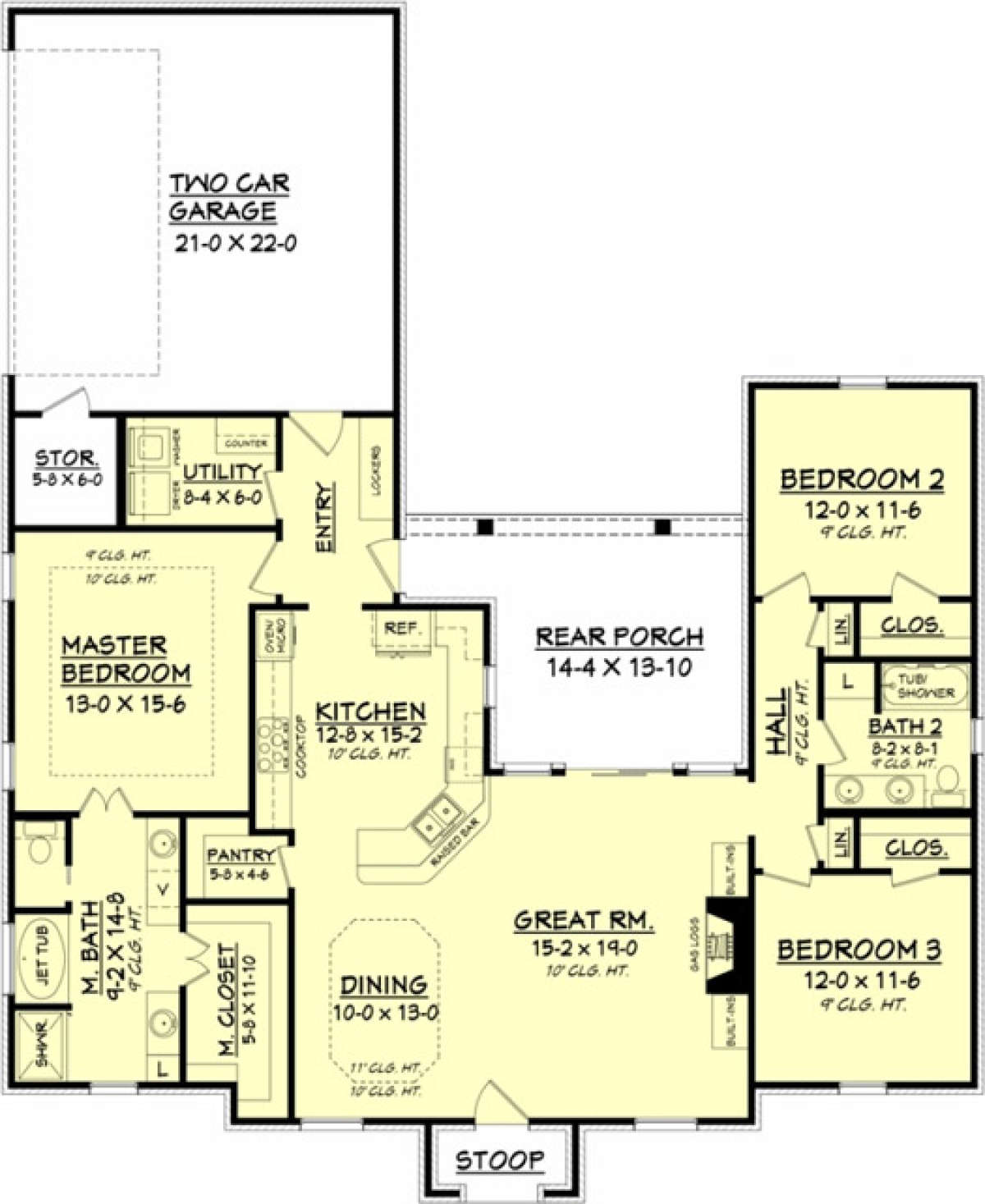

Main Floor for House Plan #041-00096

What's Included in these plans?

  • Cover Sheet
    Cover sheet typically includes a front view of the plan (may be in color), index of pages included, and other miscellaneous notes and details.
  • Foundation Plan & Details
    Foundation plans describe to the builder, the type of foundation requested by the home owner or the type of foundation required by a certain geographic area. In most cases, the foundation plan will include footing sizes and locations, footing details and other important information needed to properly construct the home. In some specific areas, a structural engineer may be required to review and certify the house plans purchased. These reasons include, but are not limited to the following: seismic (earthquake) considerations, high wind (coastal , mountainous areas, etc.), snow loads, etc.
  • Floor Plans
    The floor plans locate all walls, interior and exterior, of the entire building, denote ceiling heights and treatments, locate all plumbing fixtures, cabinets, door and window locations and sizes, gives square footage measurements, locate water heaters and hvac systems.
  • Exterior Elevations
    The exterior elevations are used to depict the exterior finishes (brick, siding, stucco, etc.), roof styles (hip or gable) and slopes, ridge heights, and window styles, and overhang lengths. The exterior elevations include a front, right, rear, and left elevation.
  • Building Sections
    The building sections describe to the builder how a particular home is to be constructed.  Building sections typically show stud heights, the roof construction, whether stick built or pre engineered, direction of the ceiling joist members, overhang finishes, wall and ceiling finishes, and interior roof support members.
  • Roof Plan
    The roof plan depicts the roof type, plate heights and roof slope of each plane.
  • Interior Cabinet Views
    Cabinet views depict the overall design and layout of the kitchen cabinets.
  • Electrical Plan
    The electrical plan depicts the general location of all interior and exterior electrical devices. This generally includes light switches, electrical outlets, ceiling fixtures, and smoke detectors. The electrical plan will also generally locate the breaker box and power entry.

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

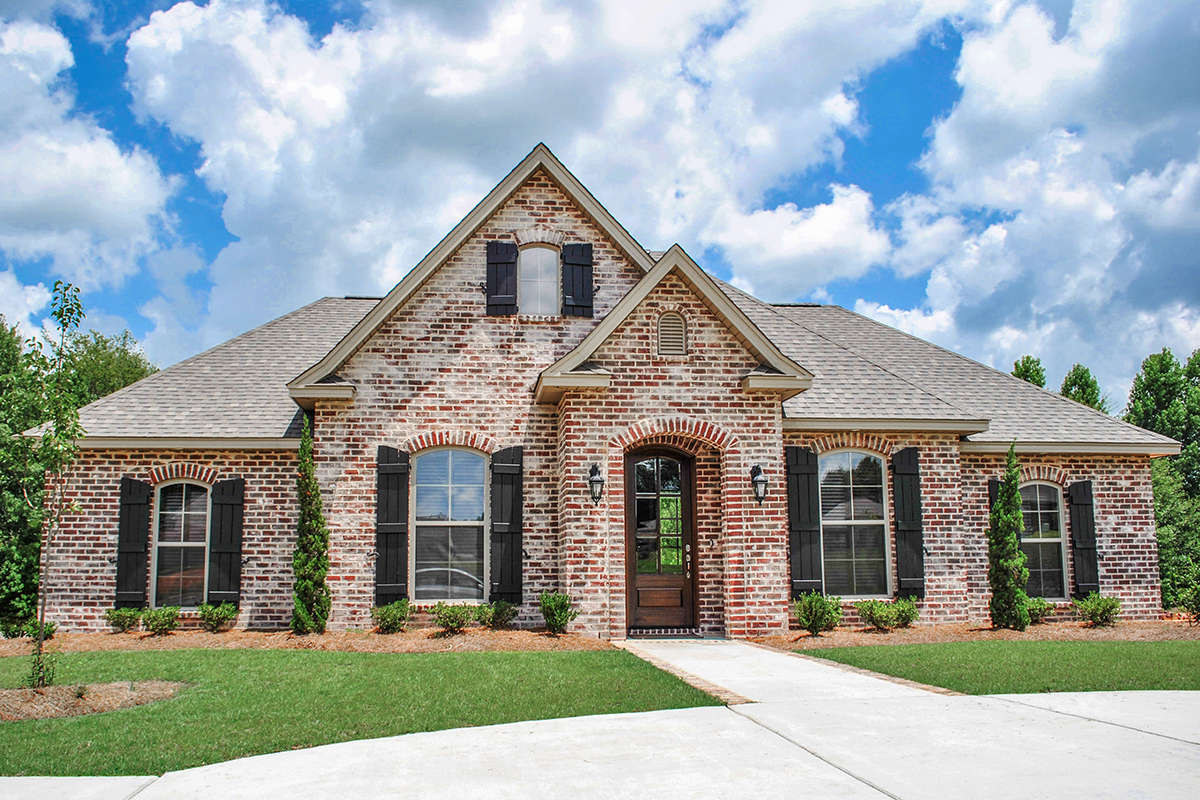

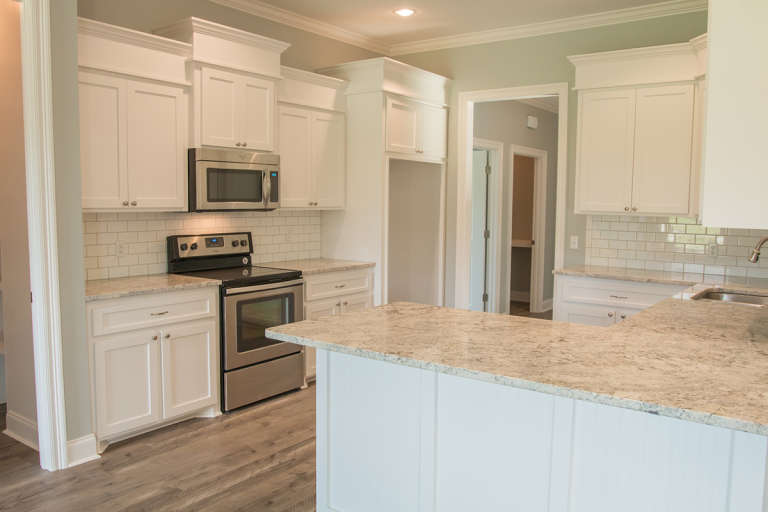

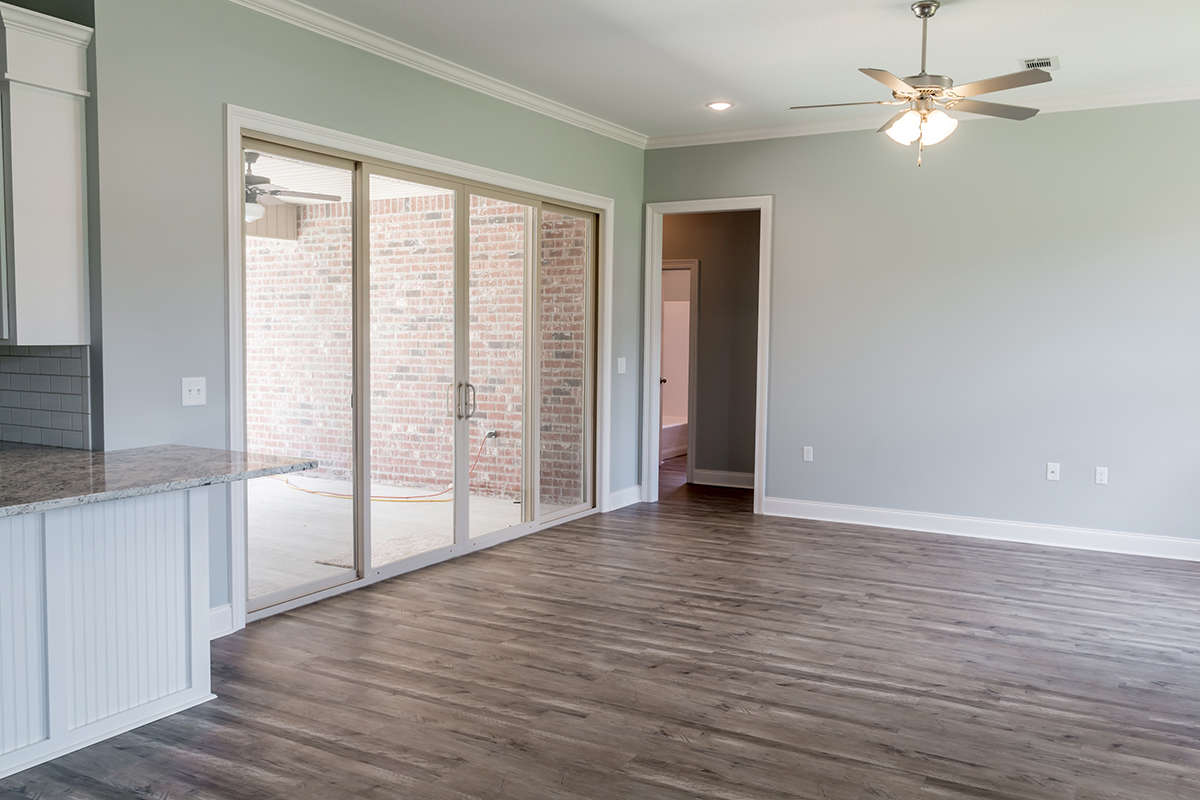

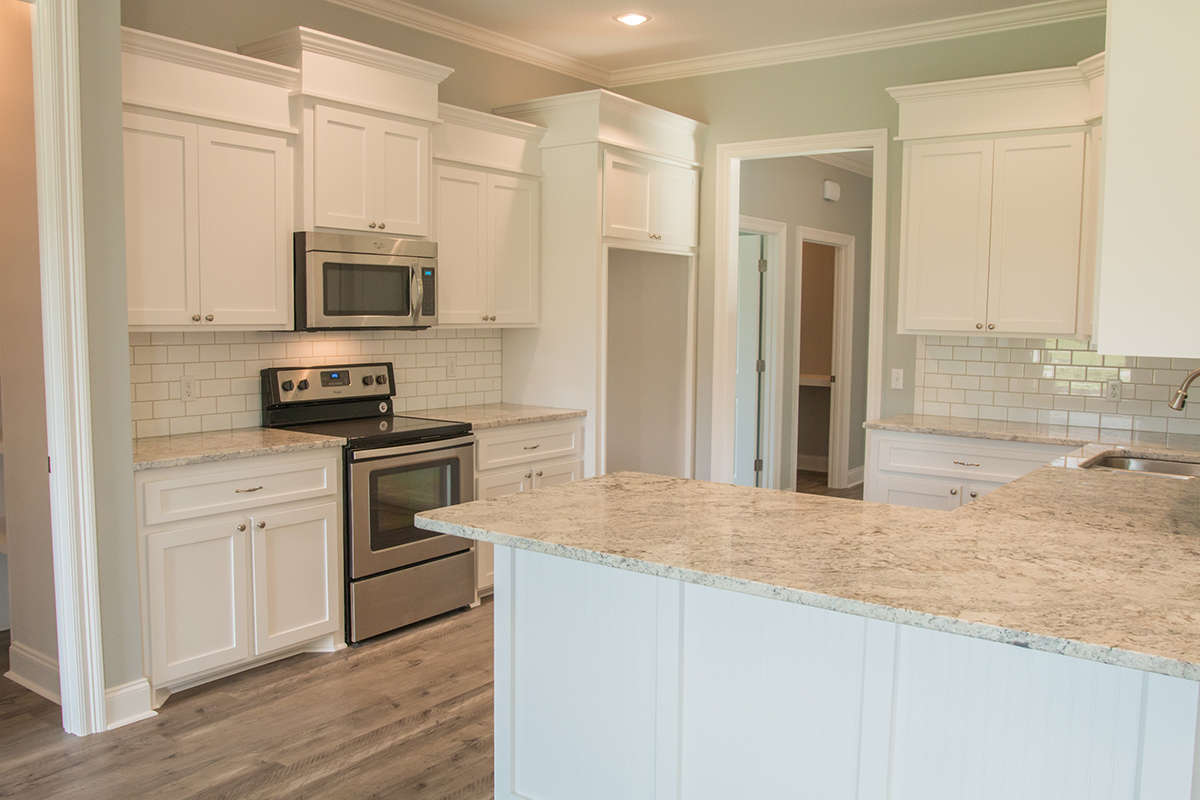

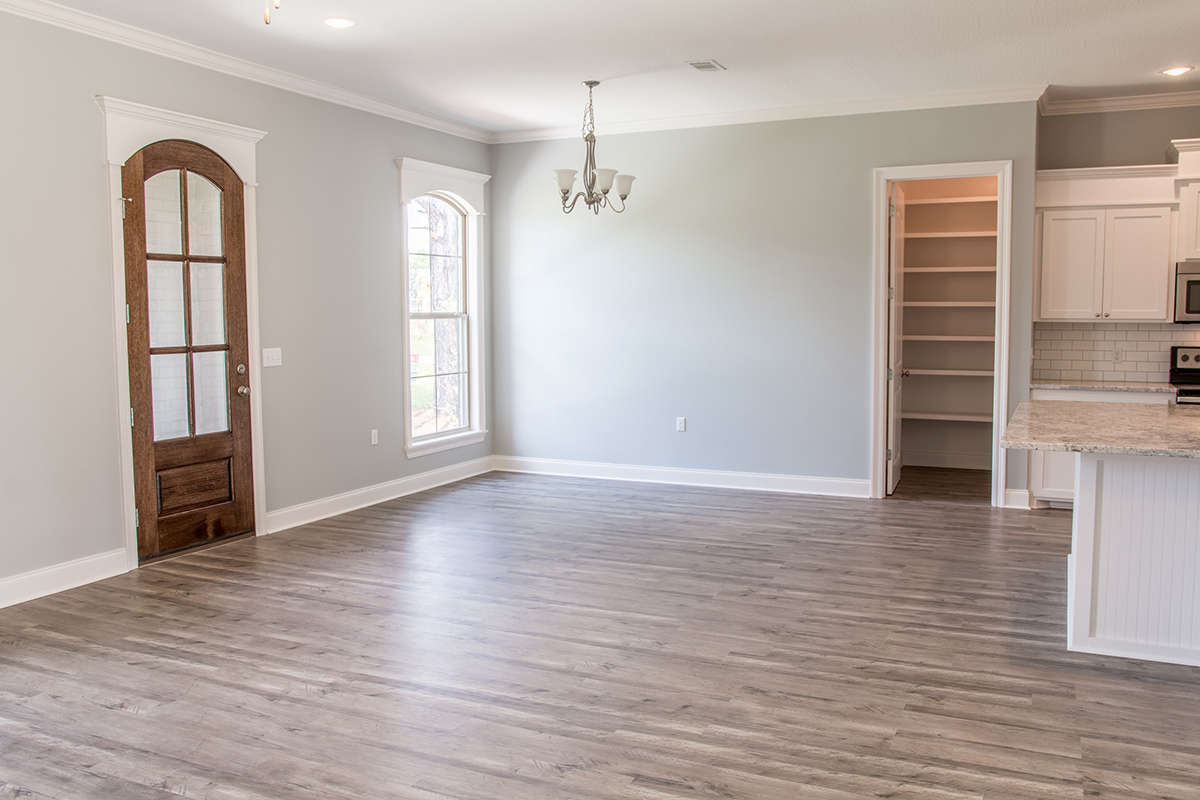

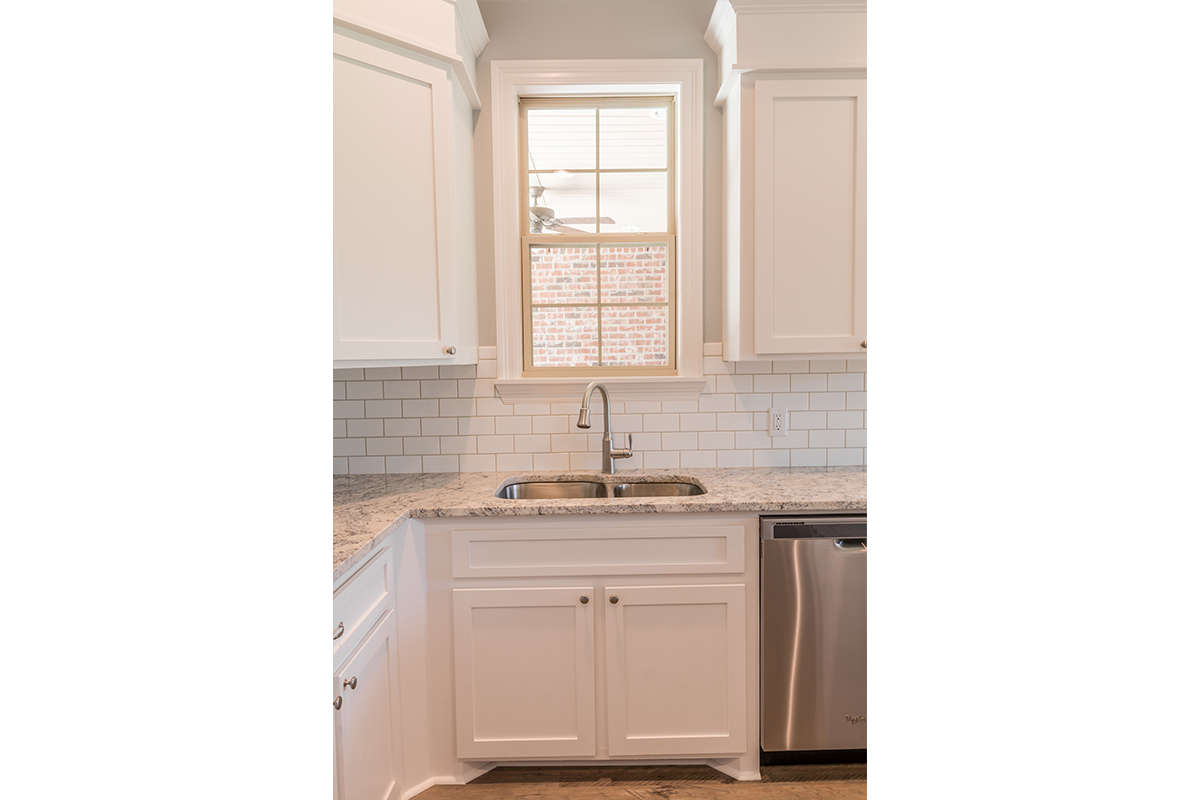

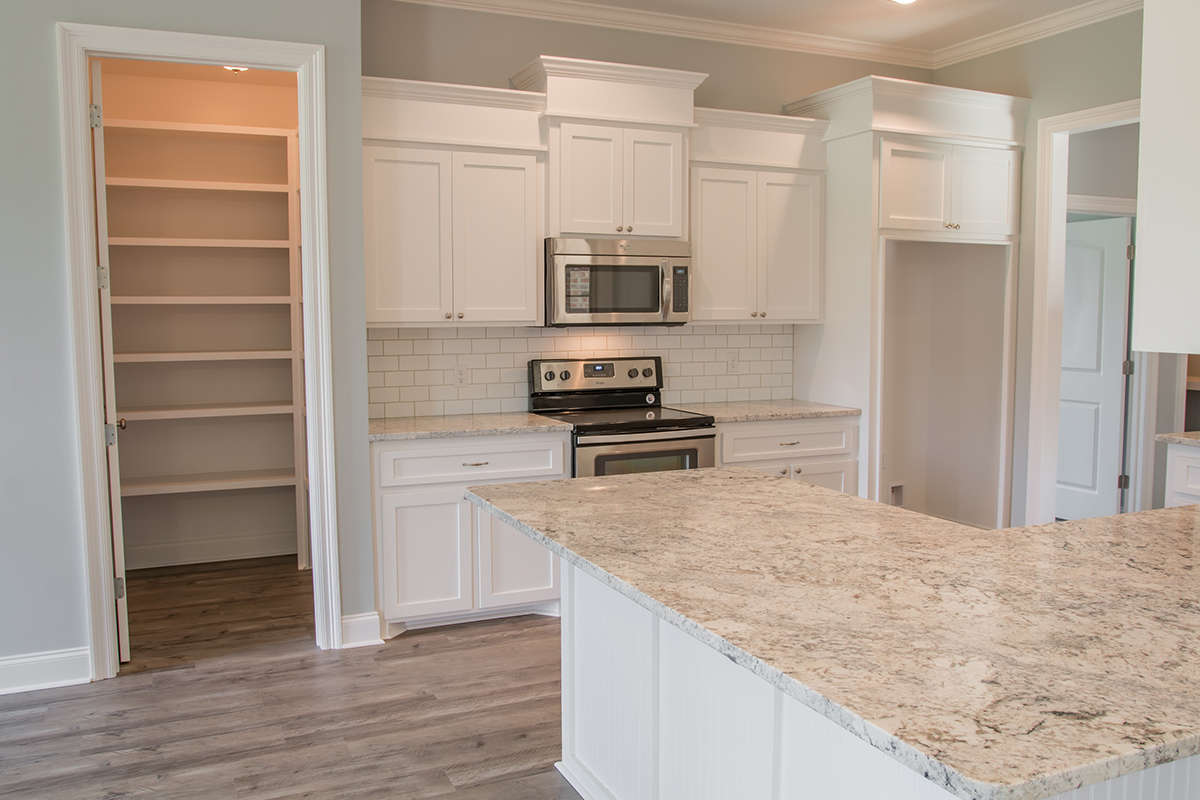

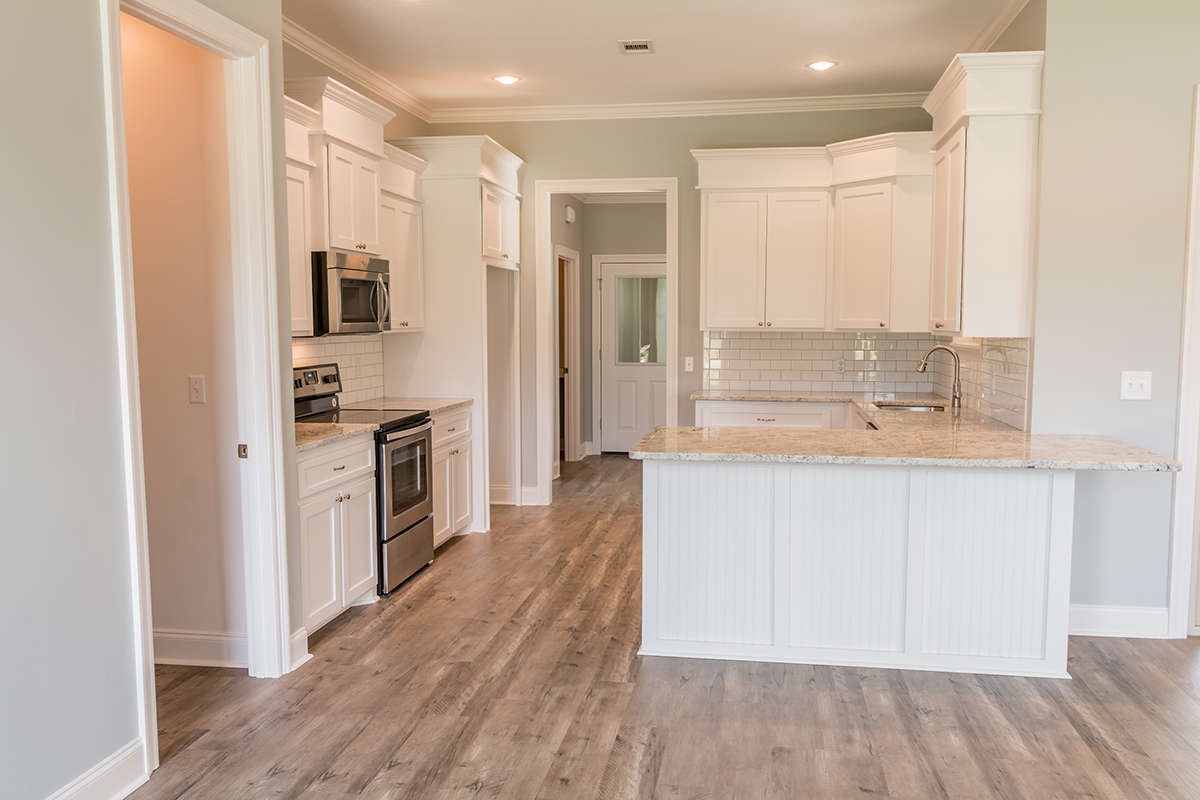

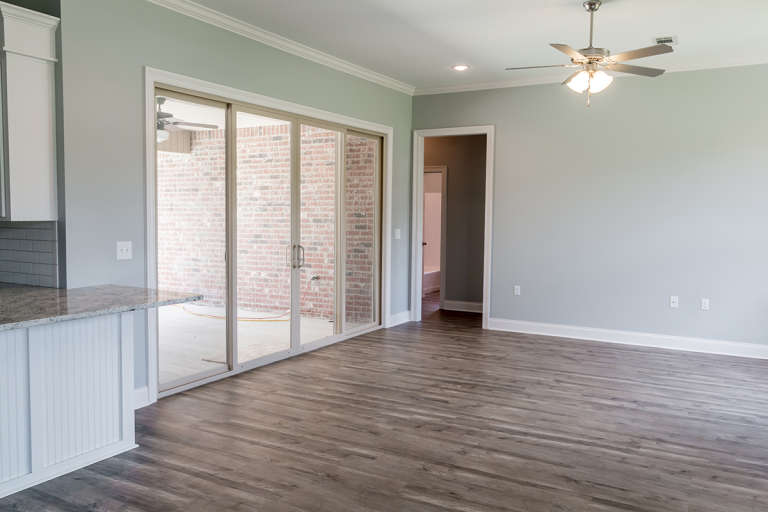

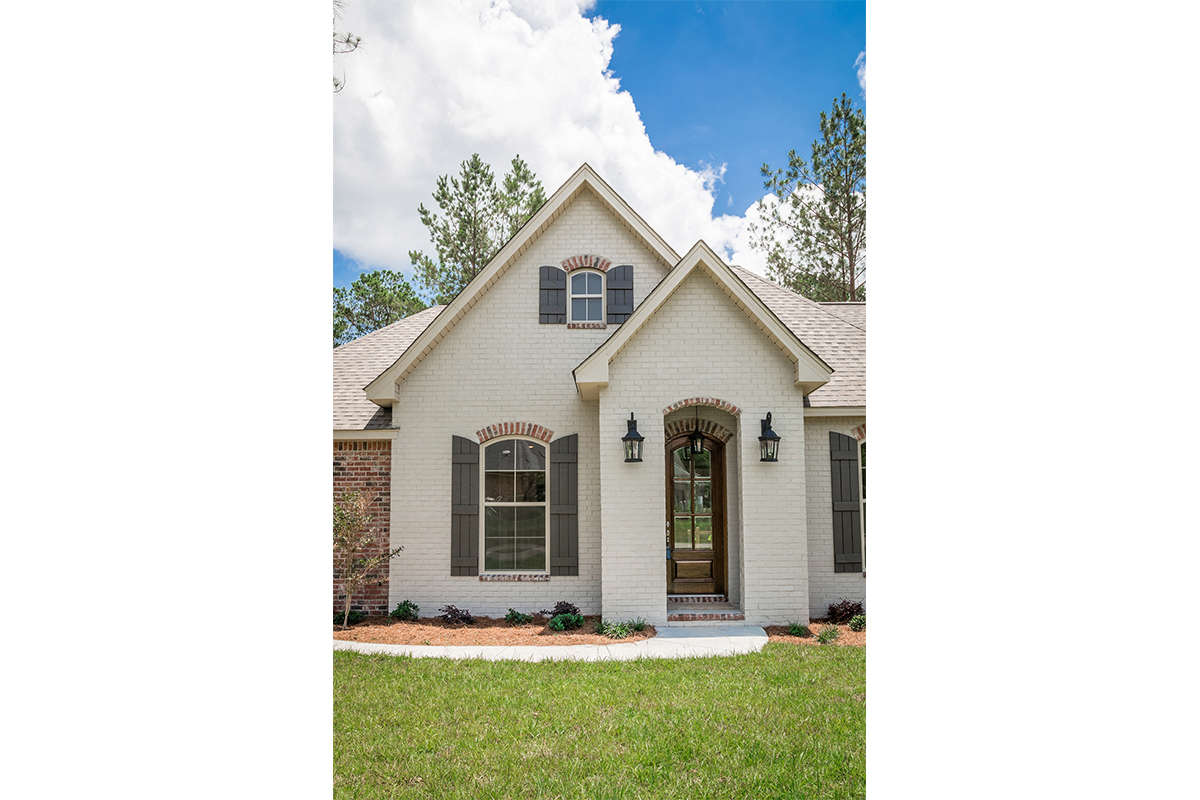

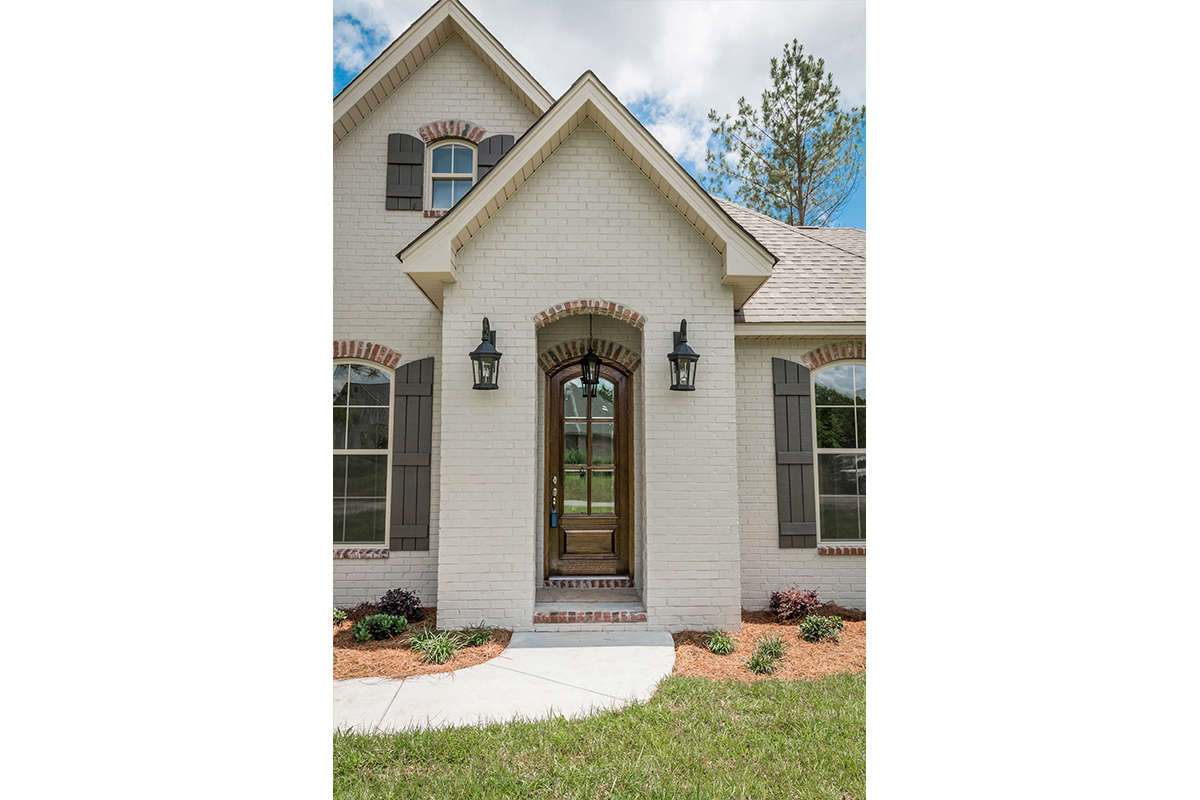

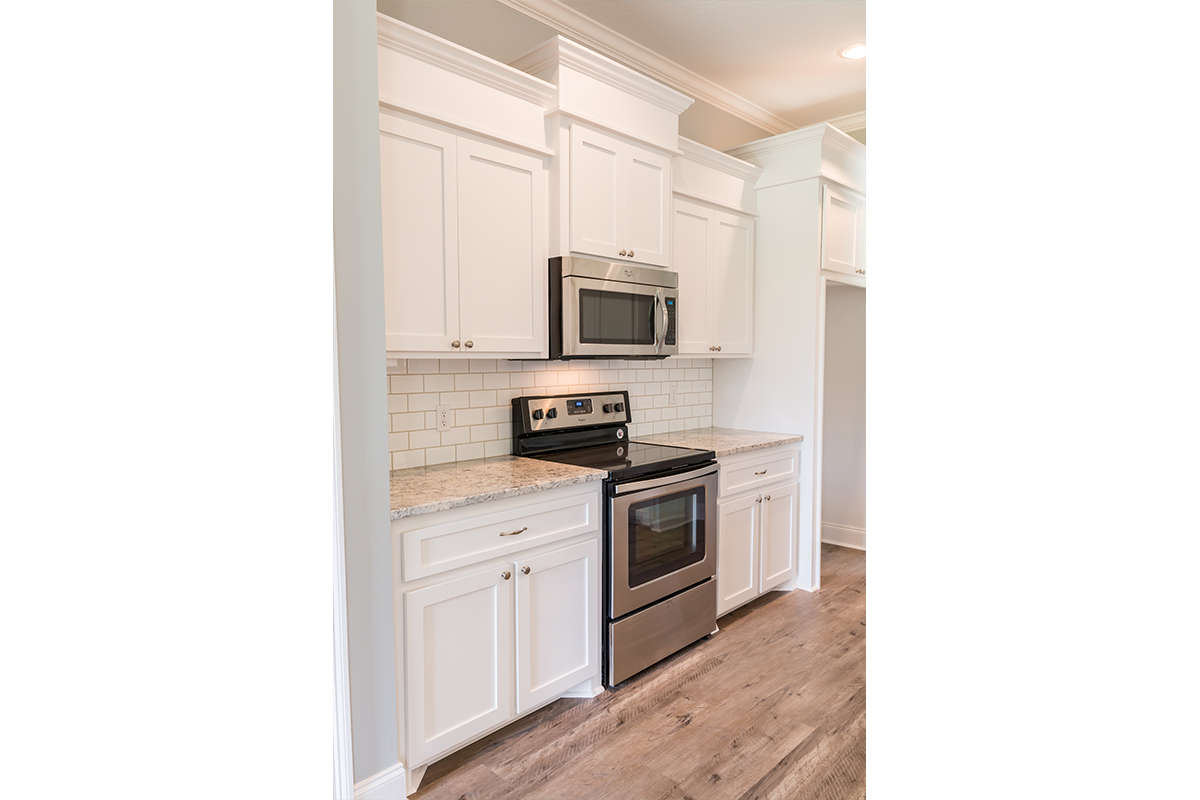

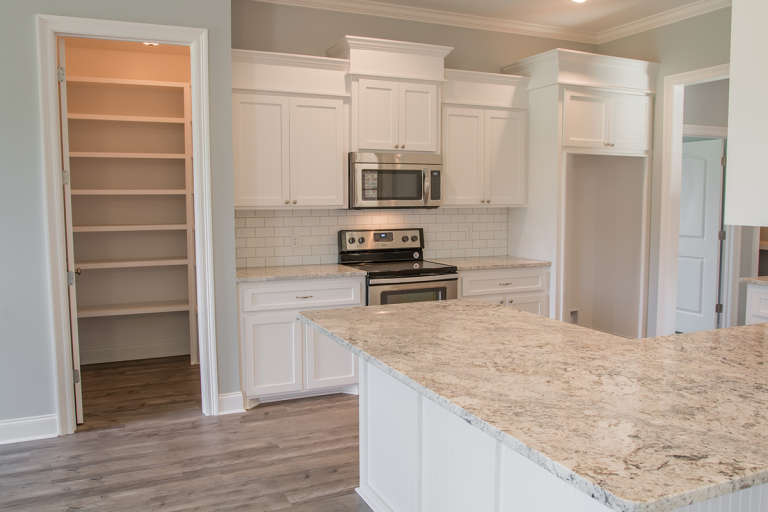

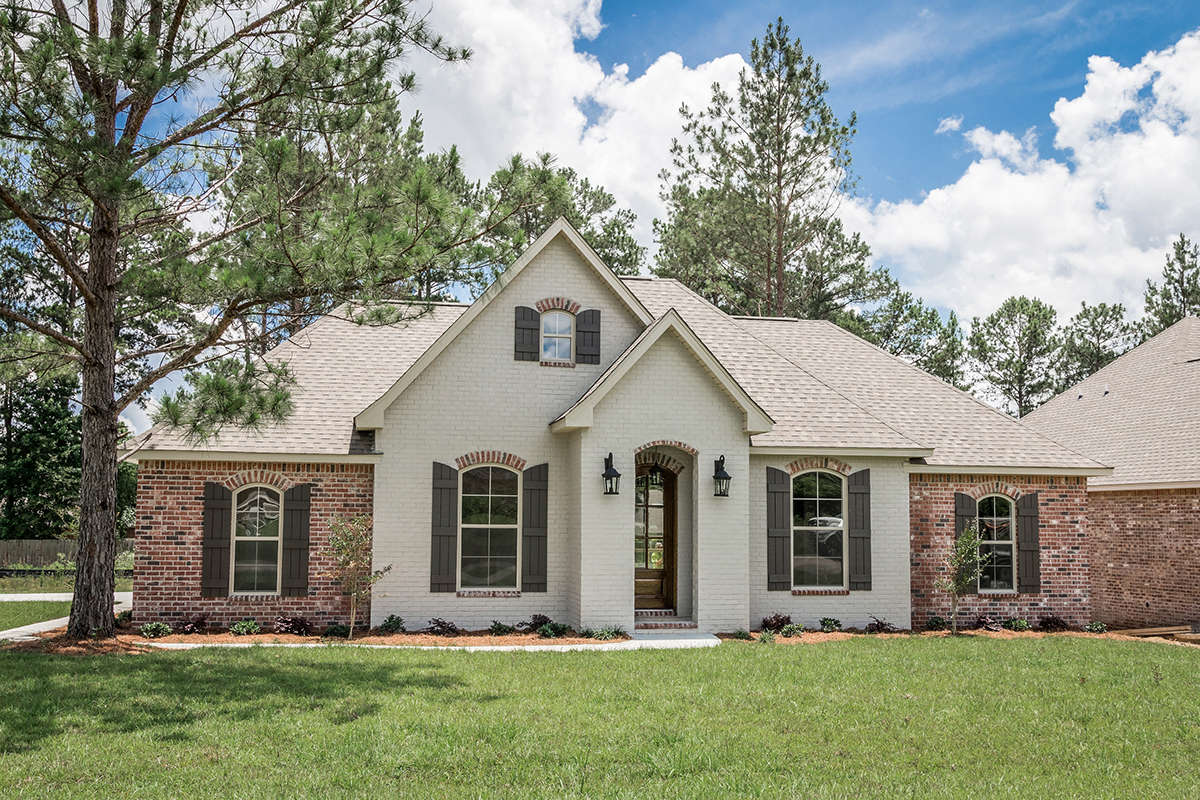

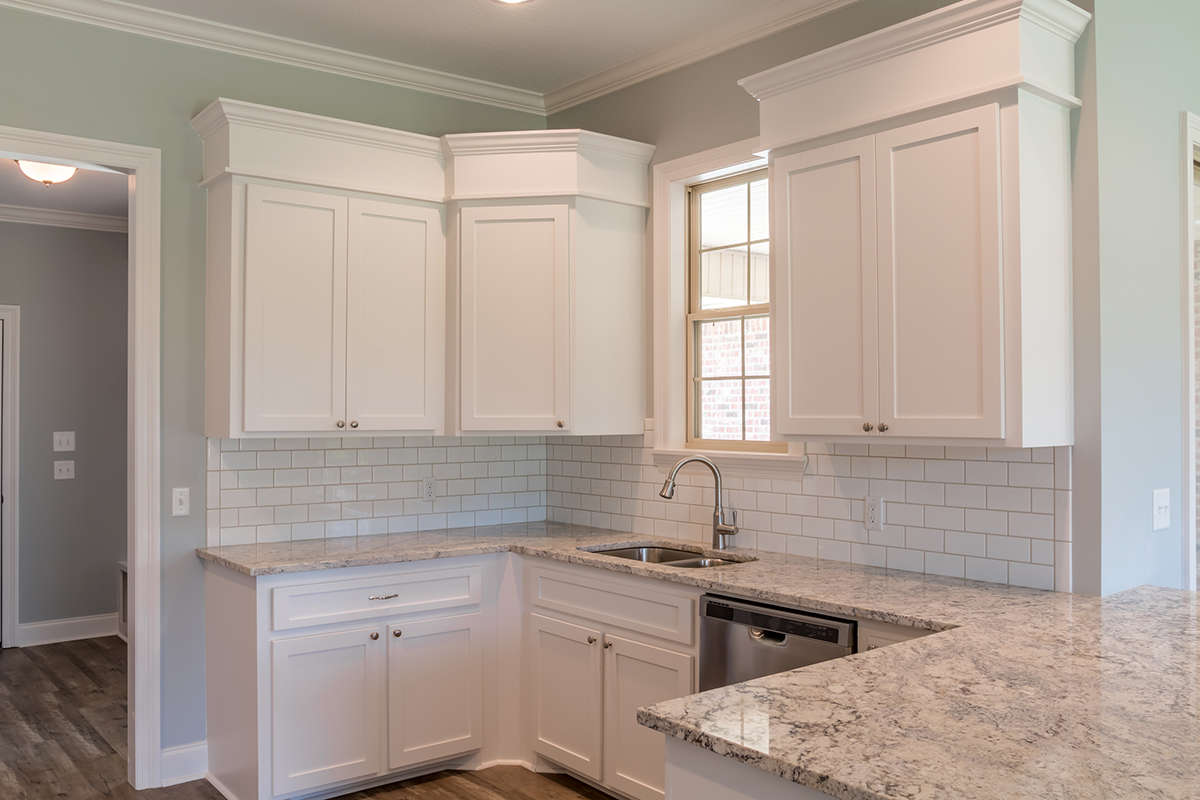

This classic brick exterior is a gorgeous outline on this European house plan with its multi-hued brick exterior, wood shutters, arched windows and doors and a sturdy wood door entry. The interior features approximately 1,715 square feet of space with three bedrooms and two baths. The split bedroom plan offers a main level owner’s suite and the two secondary bedrooms are on the opposite side of the home. In between the two bedroom wings are great living and entertaining spaces. There is a large rear covered porch with double entry points; one to the entry/garage hall and the other to the great room. The open floor plan features a large great room with gas log fireplace and cabinetry along with window views and a slider to the rear porch. A spacious dining room features a tray ceiling and the adjacent kitchen has a raised bar with additional seating, a large layout and 10’ ceiling heights along with all the modern conveniences today’s home chef could want including a walk-in pantry.

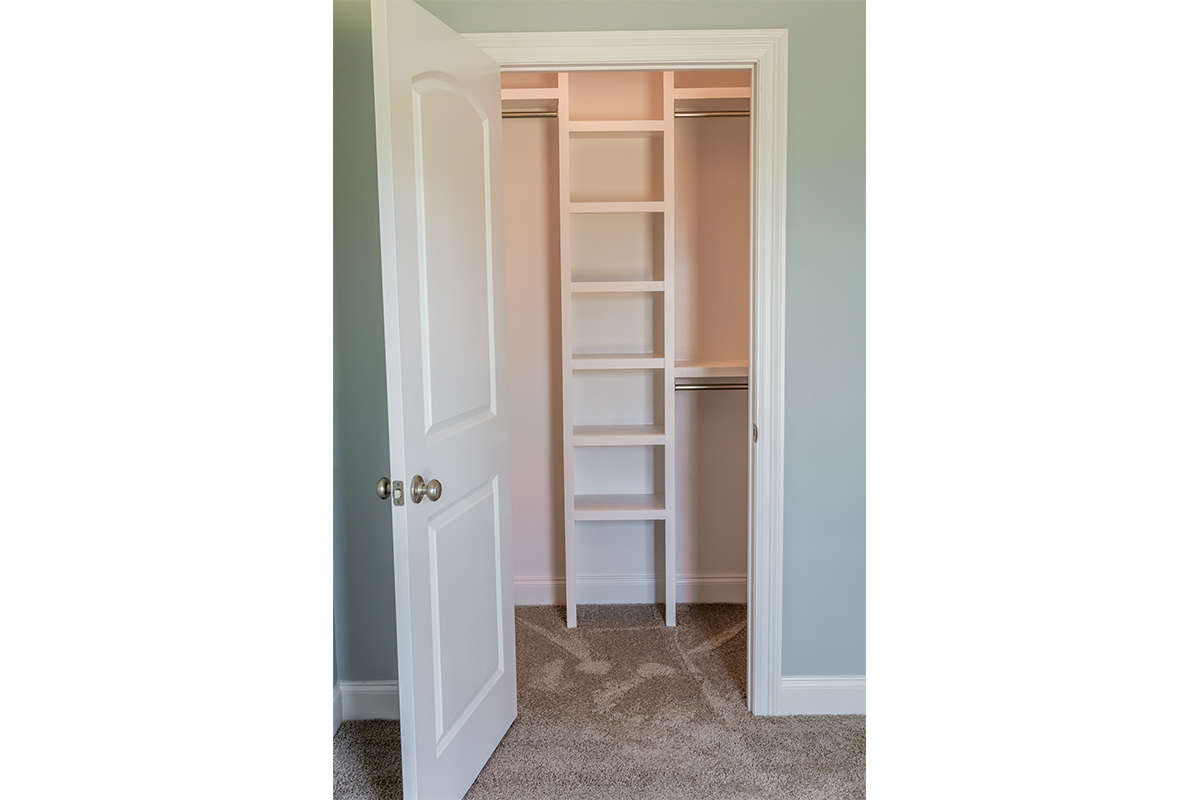

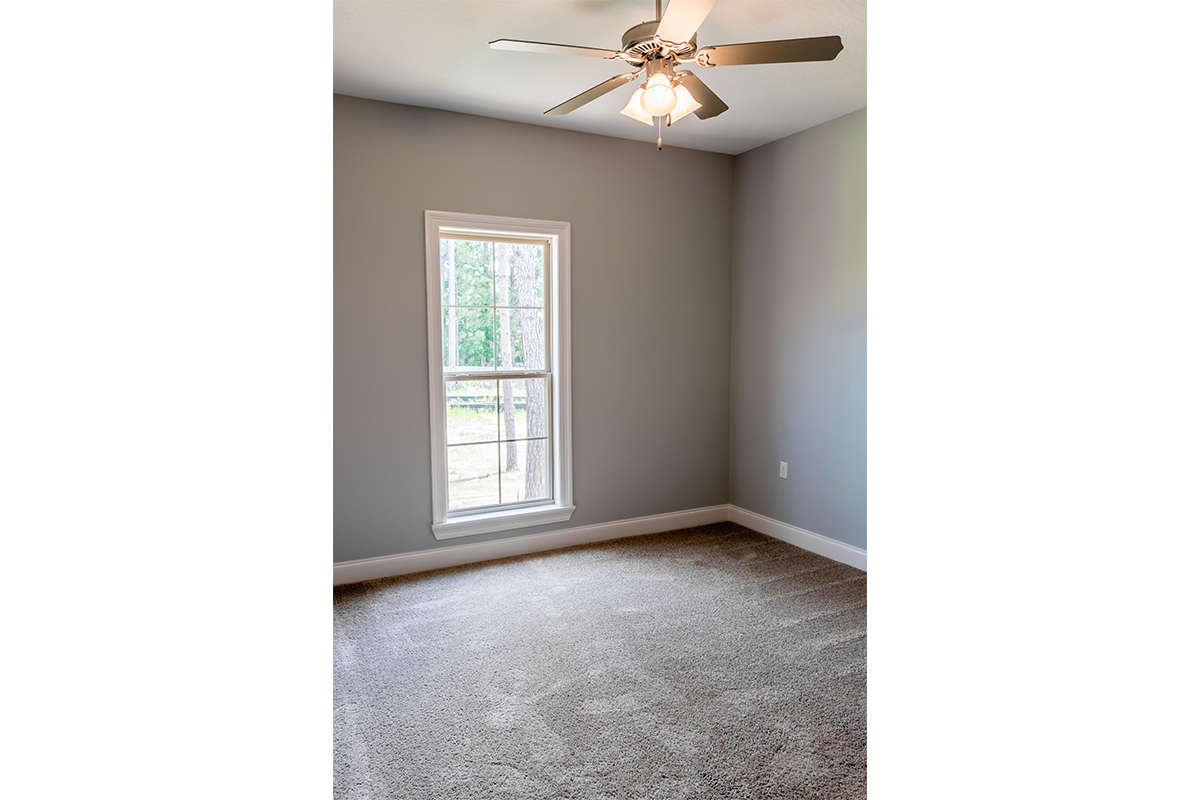

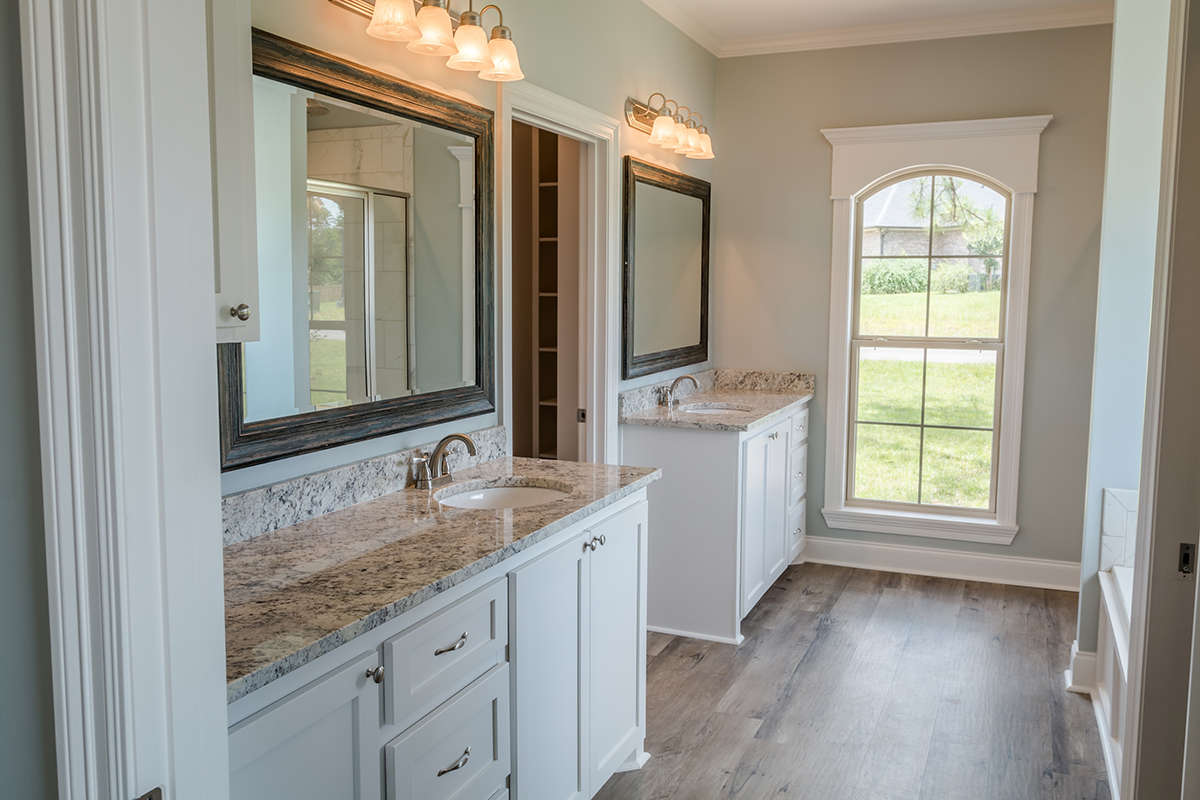

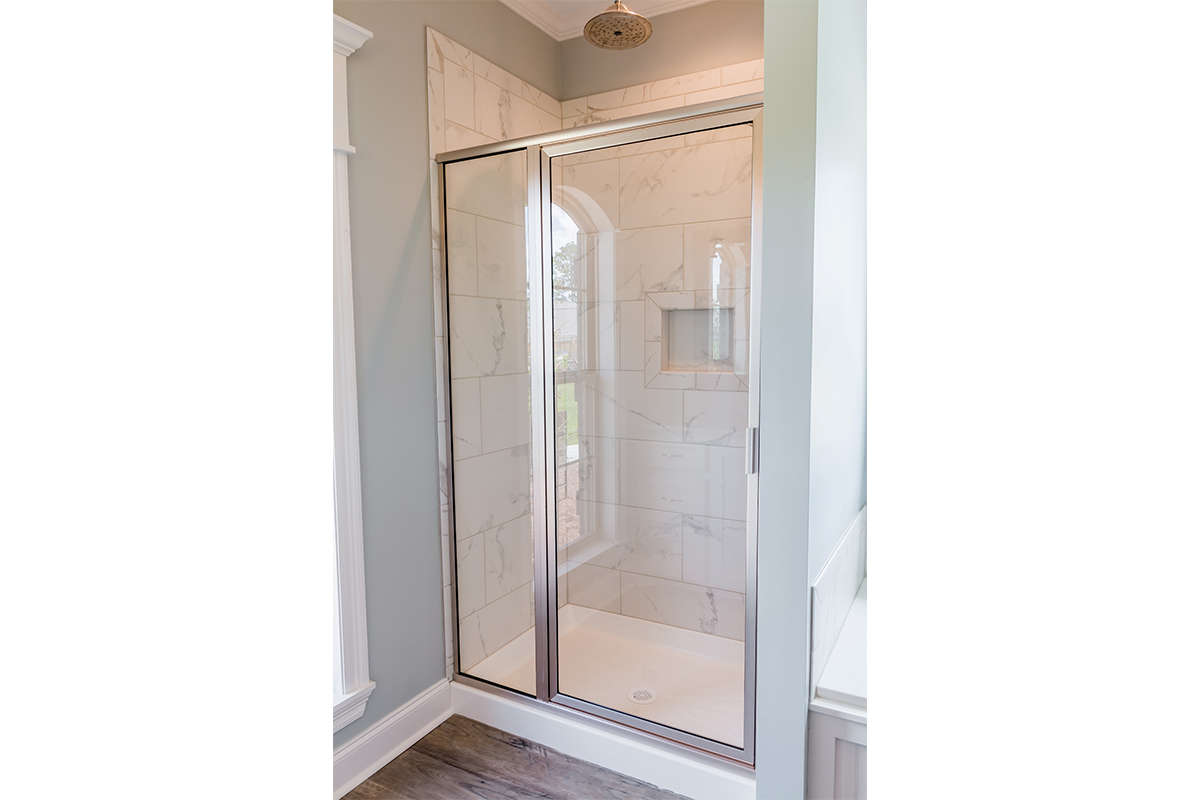

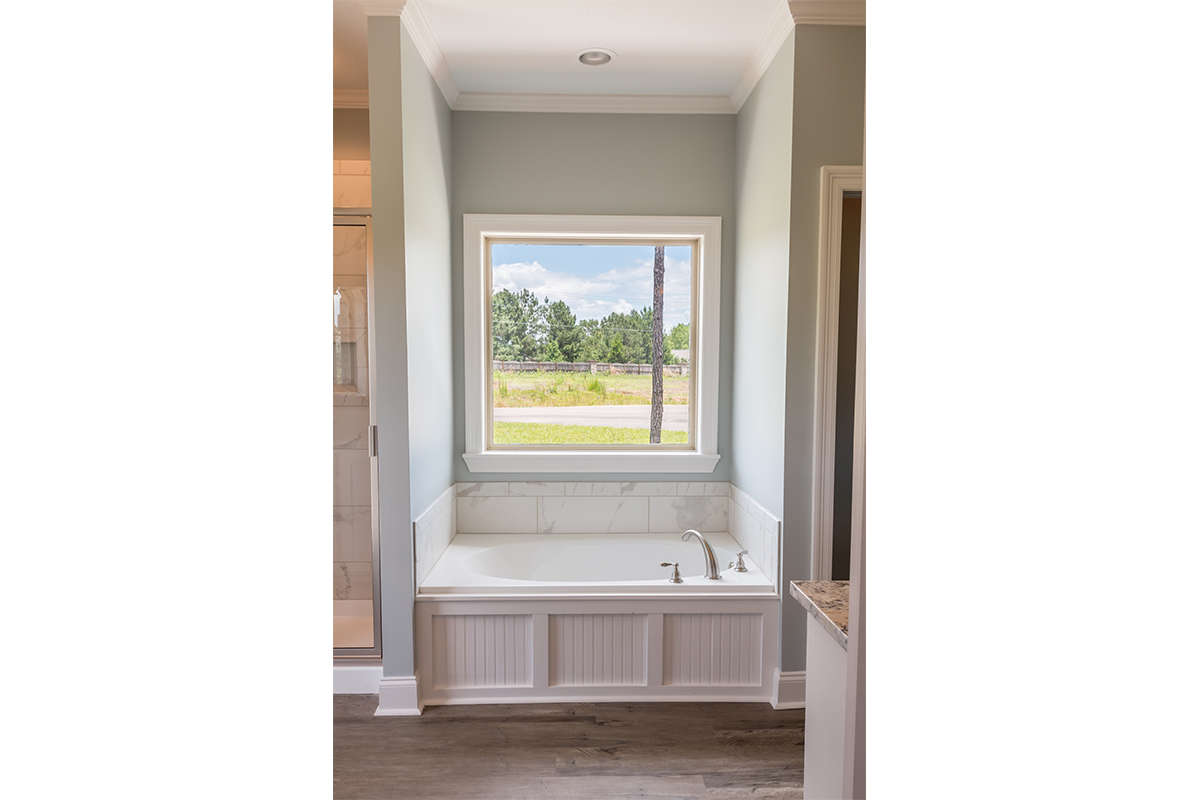

The rear entry hall flows from the two car side entry garage with separate storage into the home where the laundry room and lockers are located. The primary bedroom features a 10’ tray ceiling with French door access into the en suite bath and ultimately the large walk-in closet. The owner’s bath features dual vanities, a linen enclosure, a compartmentalized water closet, a separate shower and a garden tub. The remaining bedrooms are of equivalent size with large closets and window views and they share a hall bath. On either side of the bath are linen closets and once you step into the bath, there is additional linen space, double vanities, a toilet area and a tub/shower combination. The stylish brick exterior and functional interior floor plan combine to make this a great 3/2 family home.
