Traditional Plan 041-00084

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,175
Beds 4
Bath 2
1/2 Baths 1
Car 2
Stories 1
Width 63' 8"
Depth 69' 4"

Floorplan Drawings

Main Floor

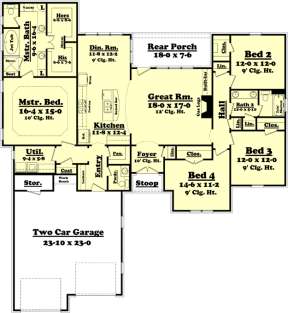

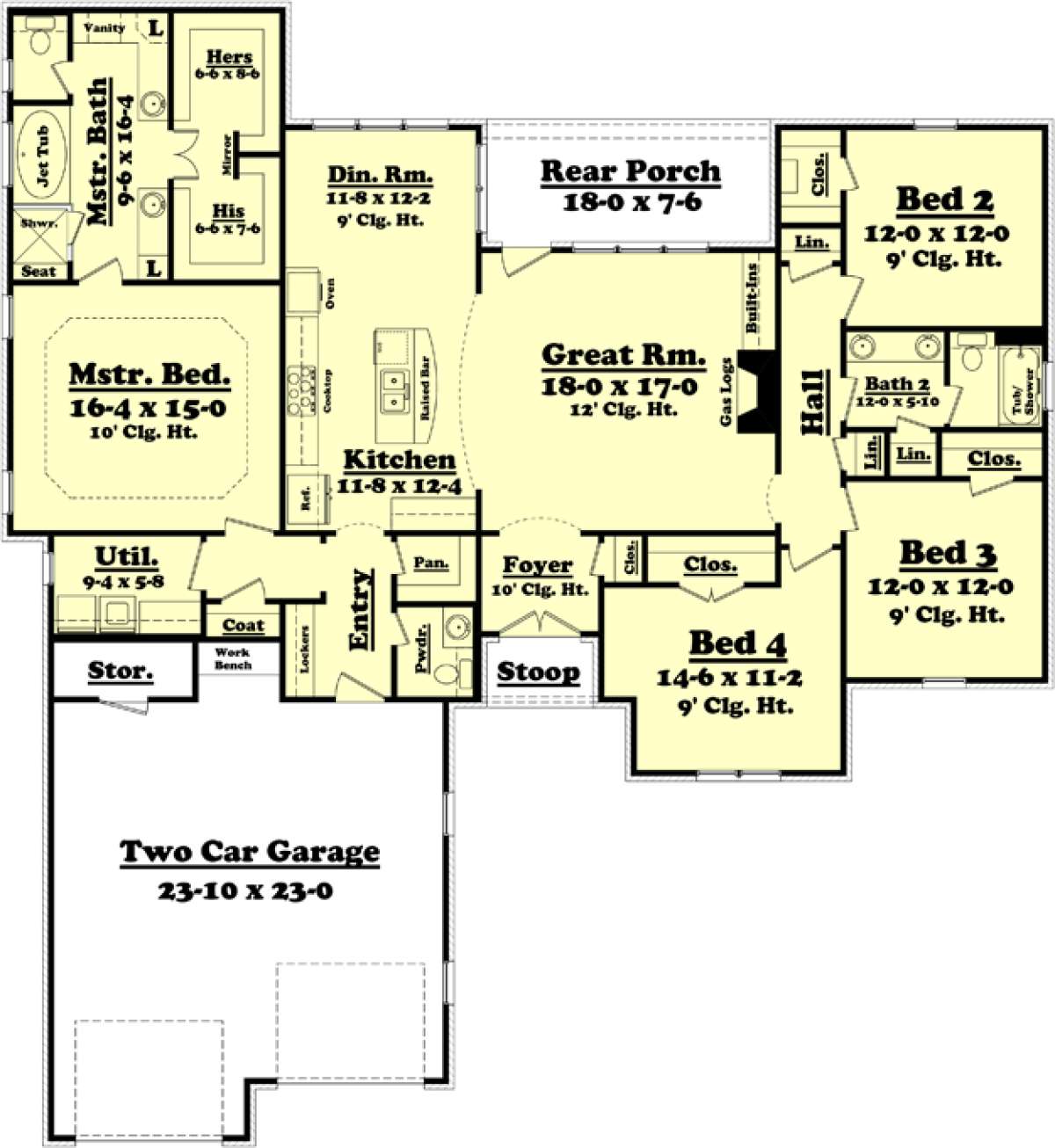

Main Floor for House Plan #041-00084


What's Included in these plans?

  • Cover Sheet
    Cover sheet typically includes a front view of the plan (may be in color), index of pages included, and other miscellaneous notes and details.
  • Foundation Plan & Details
    Foundation plans describe to the builder, the type of foundation requested by the home owner or the type of foundation required by a certain geographic area. In most cases, the foundation plan will include footing sizes and locations, footing details and other important information needed to properly construct the home. In some specific areas, a structural engineer may be required to review and certify the house plans purchased. These reasons include, but are not limited to the following: seismic (earthquake) considerations, high wind (coastal , mountainous areas, etc.), snow loads, etc.
  • Floor Plans
    The floor plans locate all walls, interior and exterior, of the entire building, denote ceiling heights and treatments, locate all plumbing fixtures, cabinets, door and window locations and sizes, gives square footage measurements, locate water heaters and hvac systems.
  • Exterior Elevations
    The exterior elevations are used to depict the exterior finishes (brick, siding, stucco, etc.), roof styles (hip or gable) and slopes, ridge heights, and window styles, and overhang lengths. The exterior elevations include a front, right, rear, and left elevation.
  • Building Sections
    The building sections describe to the builder how a particular home is to be constructed.  Building sections typically show stud heights, the roof construction, whether stick built or pre engineered, direction of the ceiling joist members, overhang finishes, wall and ceiling finishes, and interior roof support members.
  • Roof Plan
    The roof plan depicts the roof type, plate heights and roof slope of each plane.
  • Interior Cabinet Views
    Cabinet views depict the overall design and layout of the kitchen cabinets.
  • Electrical Plan
    The electrical plan depicts the general location of all interior and exterior electrical devices. This generally includes light switches, electrical outlets, ceiling fixtures, and smoke detectors. The electrical plan will also generally locate the breaker box and power entry.

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This handsome home has a stylish exterior and an exciting interior floor plan in over 2,100 square feet. There are four bedrooms, three of which are situated on one side of the home, while the master’s location provides privacy. The three bedrooms all have spacious closets and share a hall bath which offers dual vanities and a total of three linen closets located in either the bath or hallway. The master suite offers a generous size bedroom with trey ceiling and his and her walk-in closets accessed through French doors at the rear of the master bath. The master bath is truly luxurious and features separate dual vanities, double linen closets, a jetted tub, separate shower with seat and additional vanity space. The great room measures 18’x17’ with 12’ ceiling and is highlighted by a gas log fireplace, built-in cabinetry and rear porch access. The dining room and kitchen are massive and the kitchen features a large center island worktop with breakfast bar area, an abundance of additional counter and cabinet space and a walk-in pantry directly accessible off the kitchen. A half bath, large utility room with counter space, coat closet and locker space are directly off the garage. The two car garage offers additional storage space and a workbench. This home offers an abundance of space and a functional floor plan for your family.
