Country Plan 041-00080

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,850
Beds 3
Bath 2
1/2 Baths 0
Car 2
Stories 1
Width 63' 6"
Depth 57' 10"

Floorplan Drawings

Main Floor

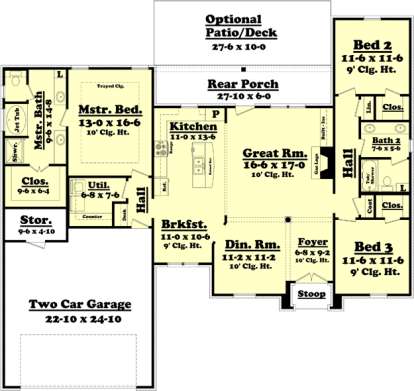

Main Floor for House Plan #041-00080


What's Included in these plans?

  • Cover Sheet
    Cover sheet typically includes a front view of the plan (may be in color), index of pages included, and other miscellaneous notes and details.
  • Foundation Plan & Details
    Foundation plans describe to the builder, the type of foundation requested by the home owner or the type of foundation required by a certain geographic area. In most cases, the foundation plan will include footing sizes and locations, footing details and other important information needed to properly construct the home. In some specific areas, a structural engineer may be required to review and certify the house plans purchased. These reasons include, but are not limited to the following: seismic (earthquake) considerations, high wind (coastal , mountainous areas, etc.), snow loads, etc.
  • Floor Plans
    The floor plans locate all walls, interior and exterior, of the entire building, denote ceiling heights and treatments, locate all plumbing fixtures, cabinets, door and window locations and sizes, gives square footage measurements, locate water heaters and hvac systems.
  • Exterior Elevations
    The exterior elevations are used to depict the exterior finishes (brick, siding, stucco, etc.), roof styles (hip or gable) and slopes, ridge heights, and window styles, and overhang lengths. The exterior elevations include a front, right, rear, and left elevation.
  • Building Sections
    The building sections describe to the builder how a particular home is to be constructed.  Building sections typically show stud heights, the roof construction, whether stick built or pre engineered, direction of the ceiling joist members, overhang finishes, wall and ceiling finishes, and interior roof support members.
  • Roof Plan
    The roof plan depicts the roof type, plate heights and roof slope of each plane.
  • Interior Cabinet Views
    Cabinet views depict the overall design and layout of the kitchen cabinets.
  • Electrical Plan
    The electrical plan depicts the general location of all interior and exterior electrical devices. This generally includes light switches, electrical outlets, ceiling fixtures, and smoke detectors. The electrical plan will also generally locate the breaker box and power entry.

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This 1,850 square foot ranch has an old world charm exterior and an interior floor plan boasting of modern conveniences. The spacious foyer leads to the open concept living spaces which includes the great room with gas log fireplace and built-in cabinetry. The large rear porch and optional deck/patio are accessible through the great room. There are two eating areas; the formal dining room and the informal breakfast area. The kitchen has a beautiful center island worktop with raised bar area, a separate pantry and an abundance of additional counter and cabinet space. A small built-in desk area is situated off the kitchen as well as the oversized laundry room with plenty of counter space. Two generous bedrooms, each with their own walk-in closet share a hall bath which features dual vanities and double linen closets. The master retreat is private and beautifully appointed with a trey ceiling bedroom and an oversized walk-in closet located at the rear of the bath. The master bath features dual vanities, a separate shower, jetted tub, linen closet and compartmentalized toilet. The two car garage includes a large additional storage area. This home offers an exciting and functional floor plan.
