Cottage House Plan 041-00077

Sq Ft1,675
1/2 Baths0
Width62' 2"
Depth47' 4"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

  REVERSE     PRINT     DOWNLOAD   Images copyrighted by the designer.

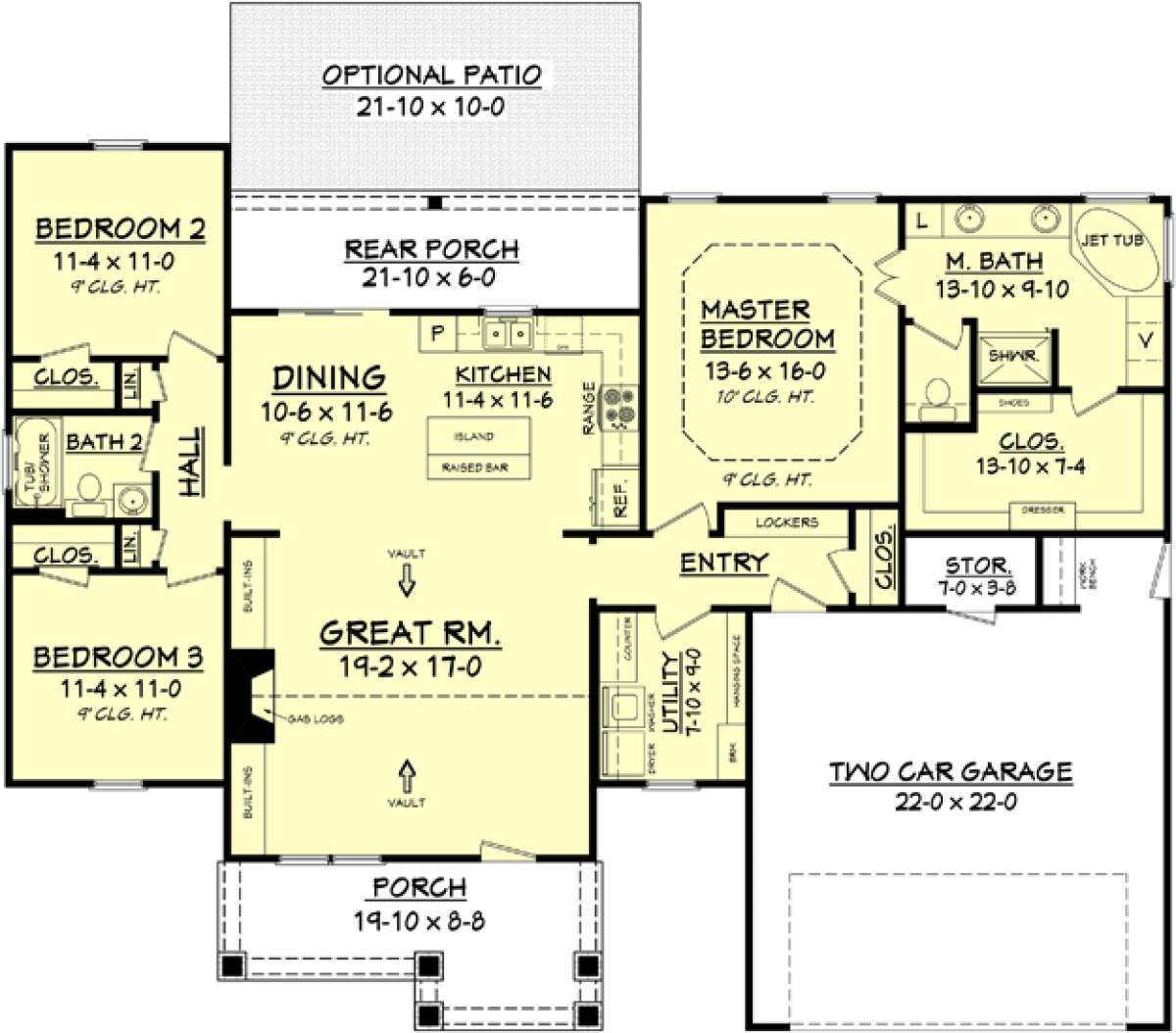

Floorplan 1

Frequently Asked Questions


What's Included in these plans?

  • Cover Sheet
    Cover sheet typically includes a front view of the plan (may be in color), index of pages included, and other miscellaneous notes and details.
  • Foundation Plan & Details
    Foundation plans describe to the builder, the type of foundation requested by the home owner or the type of foundation required by a certain geographic area. In most cases, the foundation plan will include footing sizes and locations, footing details and other important information needed to properly construct the home. In some specific areas, a structural engineer may be required to review and certify the house plans purchased. These reasons include, but are not limited to the following: seismic (earthquake) considerations, high wind (coastal , mountainous areas, etc.), snow loads, etc.
  • Floor Plans
    The floor plans locate all walls, interior and exterior, of the entire building, denote ceiling heights and treatments, locate all plumbing fixtures, cabinets, door and window locations and sizes, gives square footage measurements, locate water heaters and hvac systems.
  • Exterior Elevations
    The exterior elevations are used to depict the exterior finishes (brick, siding, stucco, etc.), roof styles (hip or gable) and slopes, ridge heights, and window styles, and overhang lengths. The exterior elevations include a front, right, rear, and left elevation.
  • Building Sections
    The building sections describe to the builder how a particular home is to be constructed.  Building sections typically show stud heights, the roof construction, whether stick built or pre engineered, direction of the ceiling joist members, overhang finishes, wall and ceiling finishes, and interior roof support members.
  • Roof Plan
    The roof plan depicts the roof type, plate heights and roof slope of each plane.
  • Interior Cabinet Views
    Interior cabinet views depict the overall design and layout of all interior cabinets. These include kitchen cabinets, bathroom cabinets, built-in cabinets, and other specialty items designed within a particular home.
  • Electrical Plan
    The electrical plan depicts the general location of all interior and exterior electrical devices. This generally includes light switches, electrical outlets, ceiling fixtures, and smoke detectors. The electrical plan will also generally locate the breaker box and power entry.

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.


E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

An all American house plan offers an exterior façade with amazing curb appeal featuring multiple split gables with wide eaves, horizontal siding, a brick foundation and a charming front covered porch highlighted with tapered beams. There is a spacious two car front loading garage with attractive hardware that offers 530 square feet of space with additional storage room. In excess of 1,670 square feet of usable living space lines the interior floor plan where there are three bedrooms and two baths. Entrance into the home from the front covered porch reveals an open floor plan with an expansive vaulted great room that includes a gas log fireplace and flanking built-in cabinetry. The gourmet kitchen is highlighted with a large center island with breakfast bar, a separate pantry and adjoins the dining space where there is rear porch access. There is a huge utility room with counter and hanging space for laundry chores and an adjacent mudroom featuring closet space and locker space directly accessible off the garage for a tidy home environment.
The split bedroom plan features two family style bedrooms on one side of the home; both bedrooms are spacious with 9’ ceiling heights and plentiful closet space. Double linen closets line the hallway to the shared bath where there is a vanity space, a toilet area and a tub/shower combination. The master retreat is situated on the opposite side of the home for privacy and is highlighted with a gorgeous trey ceiling accent, double window views and French door access into the en suite bath. The master bath enjoys a large footprint and modern amenities consisting of dual vanities, additional vanity space for “her”, a corner jetted tub, separate shower and a compartmentalized toilet. There is an enviable sized master walk-in closet with shoe storage and a built-in dresser area. This Cottage house plan is attractively designed with an exterior that combines function and an aesthetically pleasing façade housing a comfortable floor plan.
