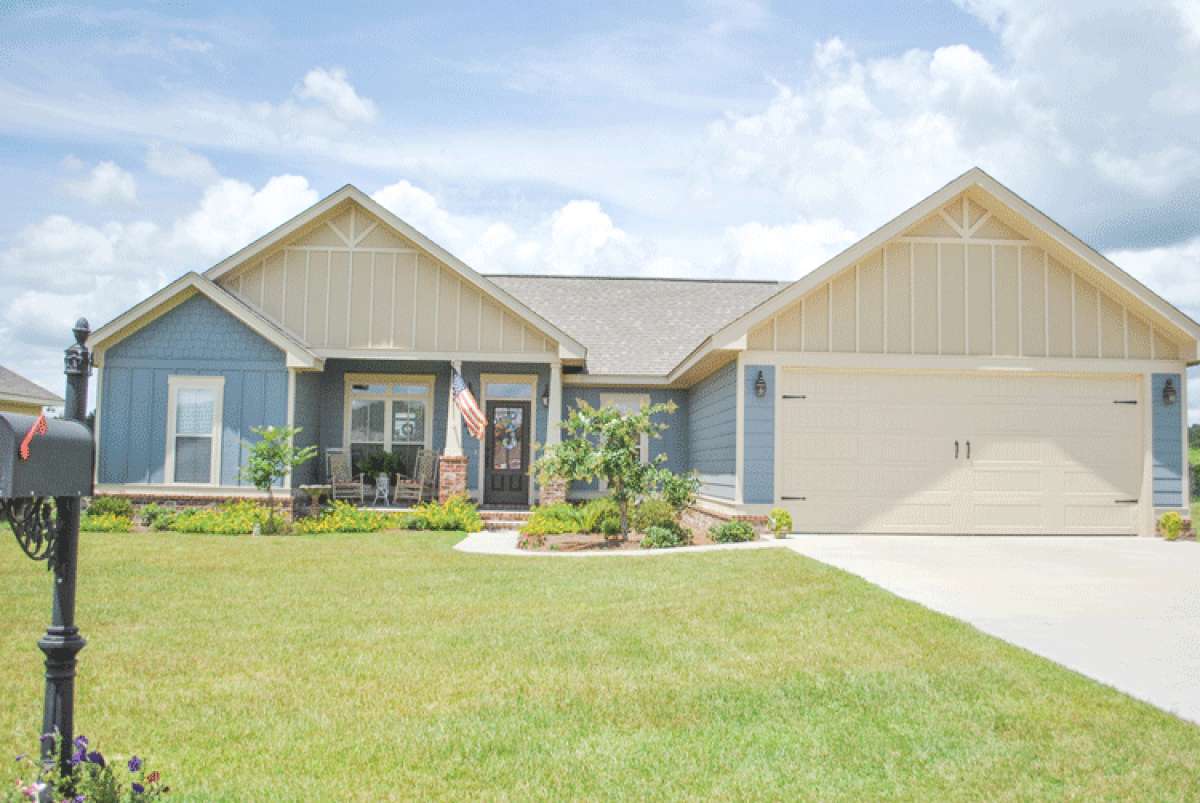

Ranch House Plan #041-00076 Elevation Photo

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 1,609

Beds 3

Bath 2

1/2 Baths 0

Car 2

Stories 1

Width 62' 2"

Depth 50'

See What's Included

Return Policy, Building Code & Copyright Info

Floorplan Drawings

REVERSE PRINT DOWNLOAD

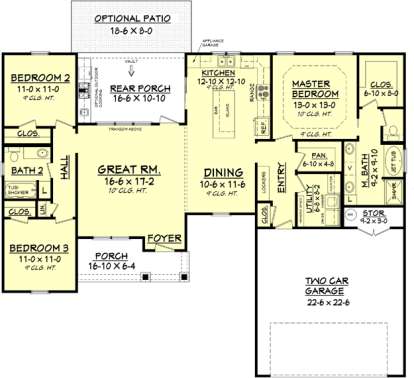

Main Floor

Images copyrighted by the designer.

What's Included in these plans?

Cover Sheet
Cover sheet typically includes a front view of the plan (may be in color), index of pages included, and other miscellaneous notes and details.
Foundation Plan & Details
Foundation plans describe to the builder, the type of foundation requested by the home owner or the type of foundation required by a certain geographic area. In most cases, the foundation plan will include footing sizes and locations, footing details and other important information needed to properly construct the home. In some specific areas, a structural engineer may be required to review and certify the house plans purchased. These reasons include, but are not limited to the following: seismic (earthquake) considerations, high wind (coastal , mountainous areas, etc.), snow loads, etc.
Floor Plans
The floor plans locate all walls, interior and exterior, of the entire building, denote ceiling heights and treatments, locate all plumbing fixtures, cabinets, door and window locations and sizes, gives square footage measurements, locate water heaters and hvac systems.

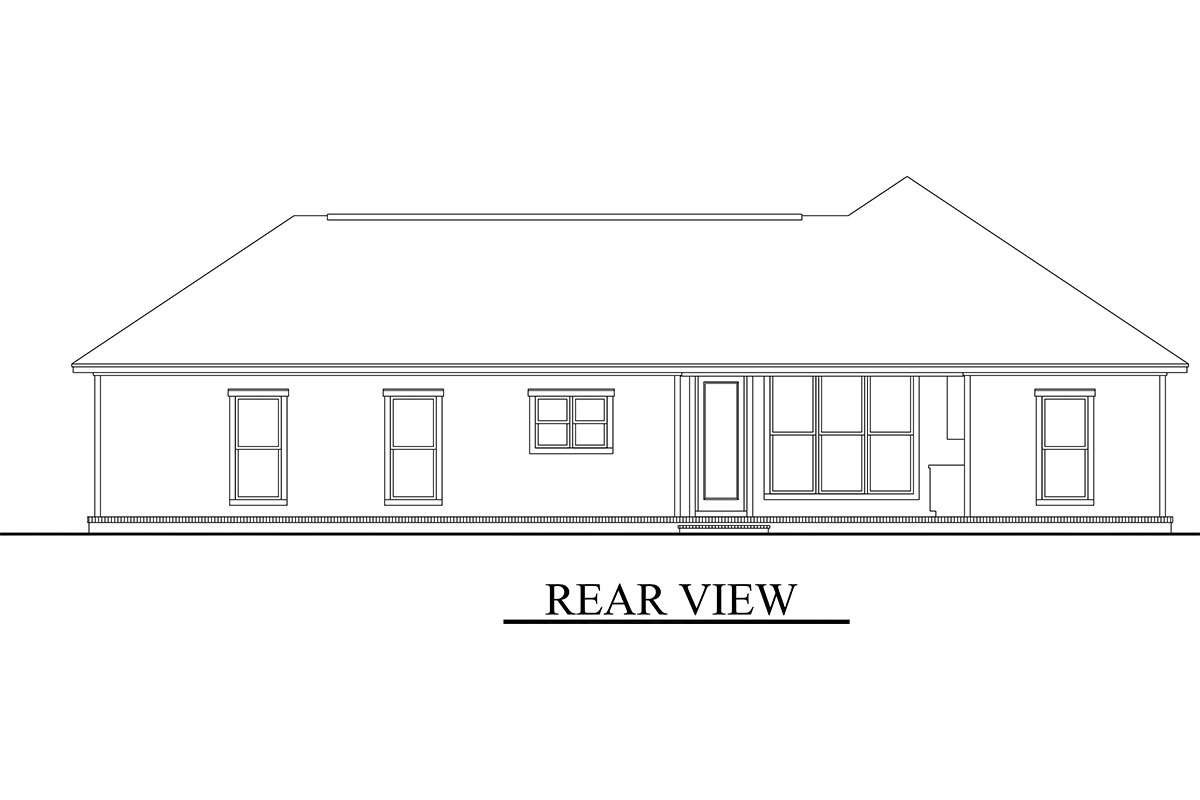

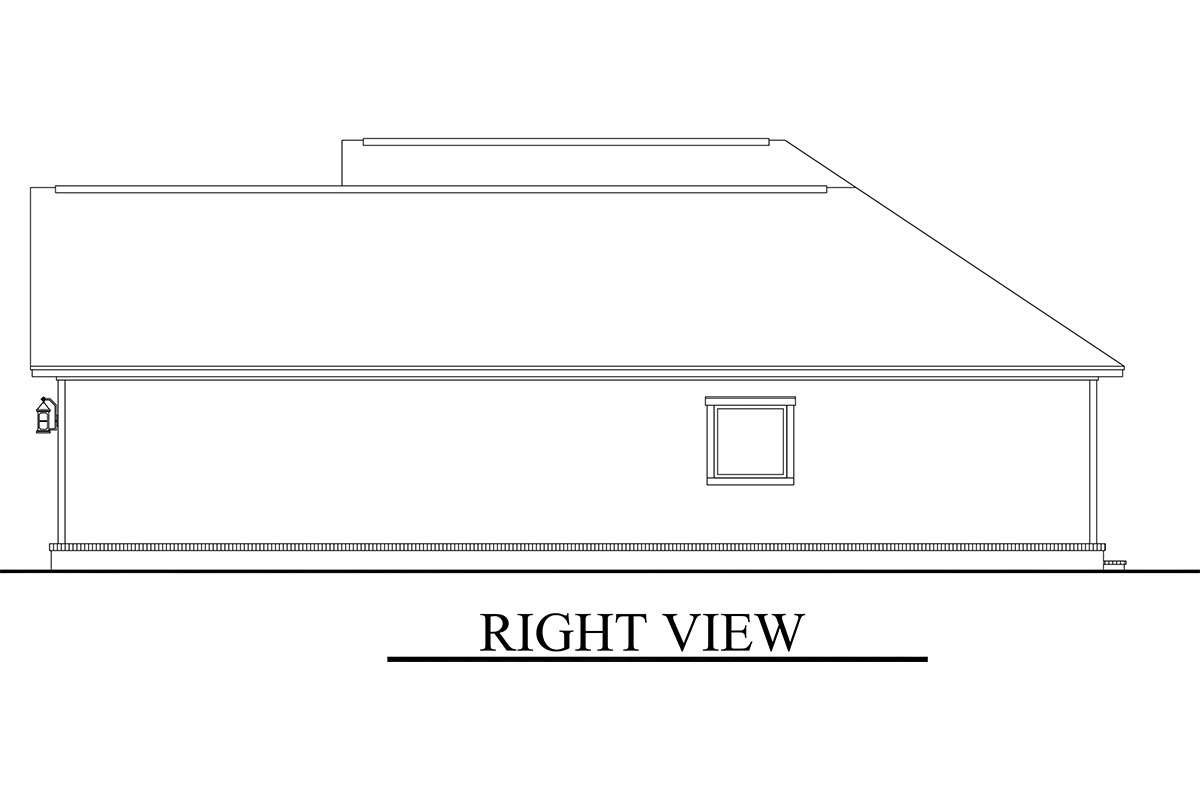

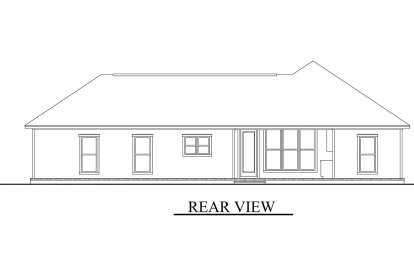

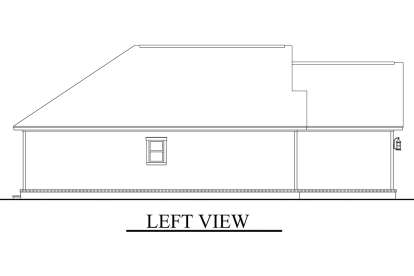

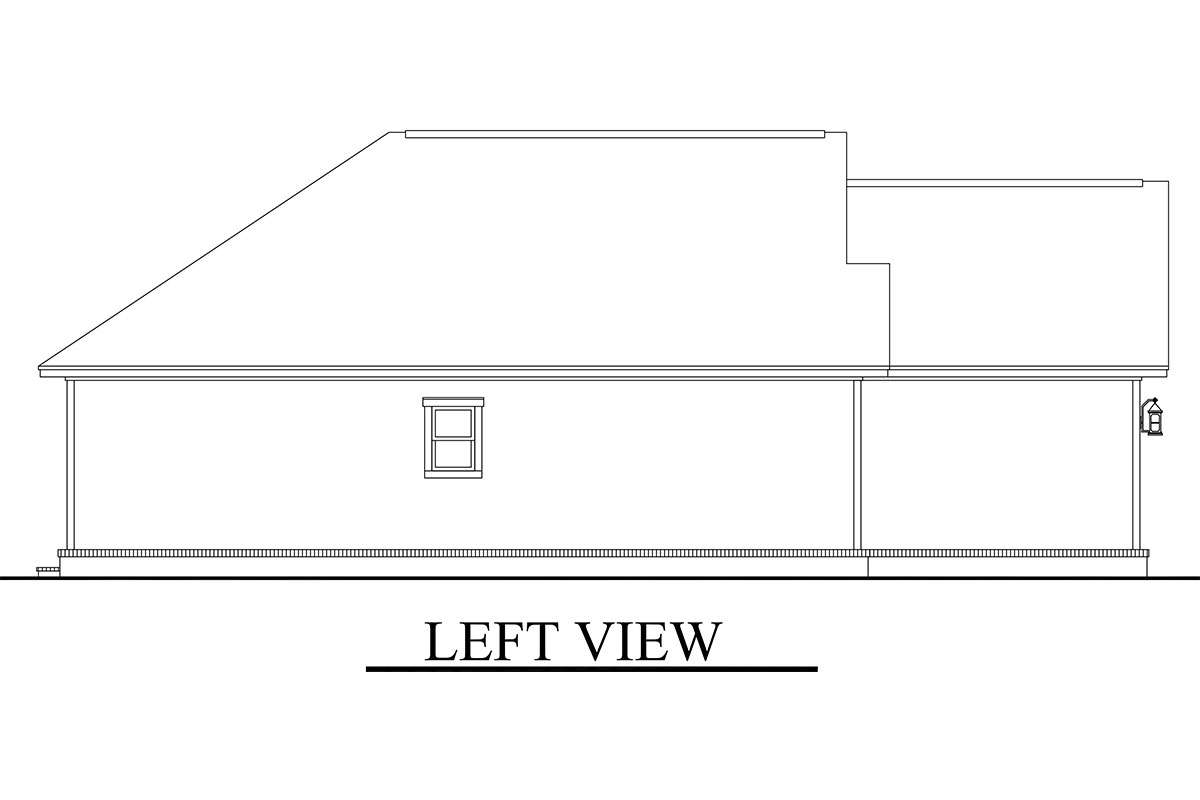

Exterior Elevations
The exterior elevations are used to depict the exterior finishes (brick, siding, stucco, etc.), roof styles (hip or gable) and slopes, ridge heights, and window styles, and overhang lengths. The exterior elevations include a front, right, rear, and left elevation.
Building Sections
The building sections describe to the builder how a particular home is to be constructed. Building sections typically show stud heights, the roof construction, whether stick built or pre engineered, direction of the ceiling joist members, overhang finishes, wall and ceiling finishes, and interior roof support members.
Roof Plan
The roof plan depicts the roof type, plate heights and roof slope of each plane.
Interior Cabinet Views
Cabinet views depict the overall design and layout of the kitchen cabinets.
Electrical Plan
The electrical plan depicts the general location of all interior and exterior electrical devices. This generally includes light switches, electrical outlets, ceiling fixtures, and smoke detectors. The electrical plan will also generally locate the breaker box and power entry.

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.

Ask Us A Question

About This Plan

This stylish single-story Ranch house plan features a country front porch which is ideal for greeting family and friends. The rear porch is vaulted and offers an optional outdoor kitchen, great to summer barbecues or romantic outdoor dinners. The two car garage hosts a storage room for the water heater. The great room is massive with a wall of windows and transoms above which add to the feeling of spaciousness and invites more natural light to radiate. The great room is open to the dining room and kitchen; the kitchen features a center island with breakfast bar, appliance garage, and there is an oversized walk-in pantry directly off the kitchen. The oversized laundry room includes countertops, a separate hanging space, lockers, and an additional coat closet is located directly across. The secondary bedrooms share a hall bathroom with double linen closets on the left wing of the home. The owner's suite offers a beautiful bedroom with a tray ceiling and a primary bathroom boasting of dual vanities, a separate shower, jetted tub and an oversized walk-in closet. The convenient layout, the desirable owner's suite, and the open concept make this Ranch house plan well suited for any family.
