Ranch House Plan 041-00070

Sq Ft1,762
Beds3
Baths2
1/2 Baths0
Stories1
Cars2
Width53' 2"
Depth62' 8"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

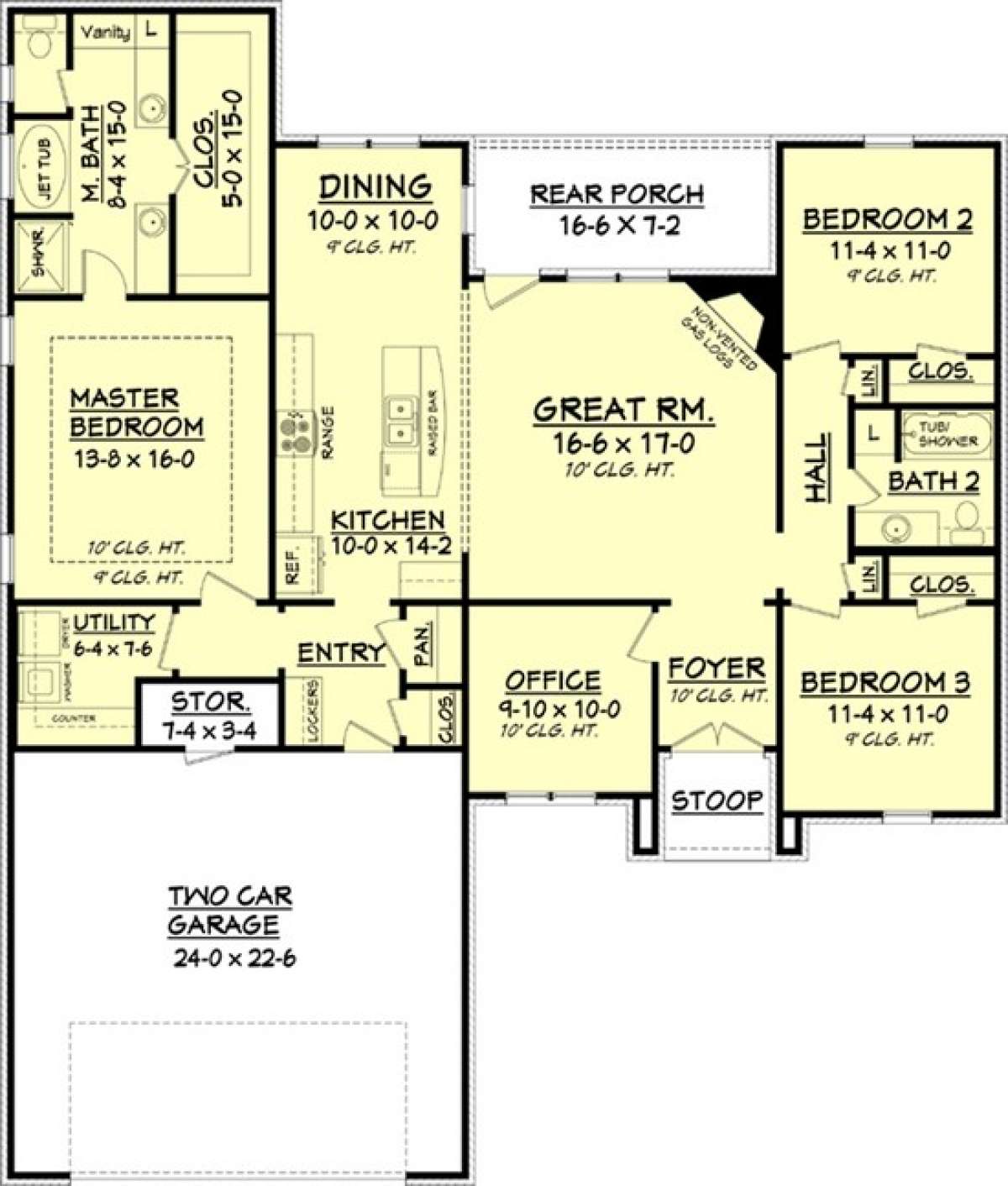

Main Floor for House Plan #041-00070
Main Floor

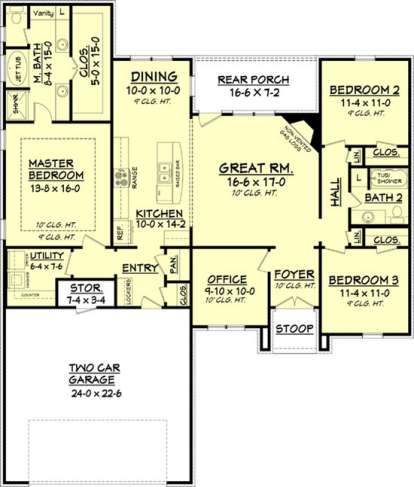

Main Floor for House Plan #041-00070


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Cover Sheet
    Cover sheet typically includes a front view of the plan (may be in color), index of pages included, and other miscellaneous notes and details.
  • Foundation Plan & Details
    Foundation plans describe to the builder, the type of foundation requested by the home owner or the type of foundation required by a certain geographic area. In most cases, the foundation plan will include footing sizes and locations, footing details and other important information needed to properly construct the home. In some specific areas, a structural engineer may be required to review and certify the house plans purchased. These reasons include, but are not limited to the following: seismic (earthquake) considerations, high wind (coastal , mountainous areas, etc.), snow loads, etc.
  • Floor Plans
    The floor plans locate all walls, interior and exterior, of the entire building, denote ceiling heights and treatments, locate all plumbing fixtures, cabinets, door and window locations and sizes, gives square footage measurements, locate water heaters and hvac systems.
  • Exterior Elevations
    The exterior elevations are used to depict the exterior finishes (brick, siding, stucco, etc.), roof styles (hip or gable) and slopes, ridge heights, and window styles, and overhang lengths. The exterior elevations include a front, right, rear, and left elevation.
  • Building Sections
    The building sections describe to the builder how a particular home is to be constructed.  Building sections typically show stud heights, the roof construction, whether stick built or pre engineered, direction of the ceiling joist members, overhang finishes, wall and ceiling finishes, and interior roof support members.
  • Roof Plan
    The roof plan depicts the roof type, plate heights and roof slope of each plane.
  • Interior Cabinet Views
    Cabinet views depict the overall design and layout of the kitchen cabinets.
  • Electrical Plan
    The electrical plan depicts the general location of all interior and exterior electrical devices. This generally includes light switches, electrical outlets, ceiling fixtures, and smoke detectors. The electrical plan will also generally locate the breaker box and power entry.

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.

ASK US A QUESTION

Name:
E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This French country ranch offers a covered entrance and spacious foyer with 10’ ceilings with direct office access. The great room offers a fireplace, rear porch access and is open to the kitchen and dining room. There is an oversized center island worktop with breakfast bar which defines the kitchen space along with a walk-in pantry adjacent to the kitchen. A shared hall bath with double linen closets and two bedrooms are situated on one side of the home while the master suite is located on the opposite side for privacy. The master suite features a trey ceiling bedroom which measures approximately 14’x16’and an oversized walk-in closet situated at the rear of the master bath. The master bath is beautifully appointed and is highlighted by separate dual vanities, a separate shower, jetted tub and compartmentalized toilet. The two car garage contains additional storage and opens onto a row of lockers, closet space and a large utility room with an abundance of counter space. This home offers a functional and design friendly floor plan.
