Ranch Plan 041-00067


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,750
Beds 4
Bath 2
1/2 Baths 0
Car 2
Stories 1
Width 57' 8"
Depth 62' 10"

Floorplan Drawings

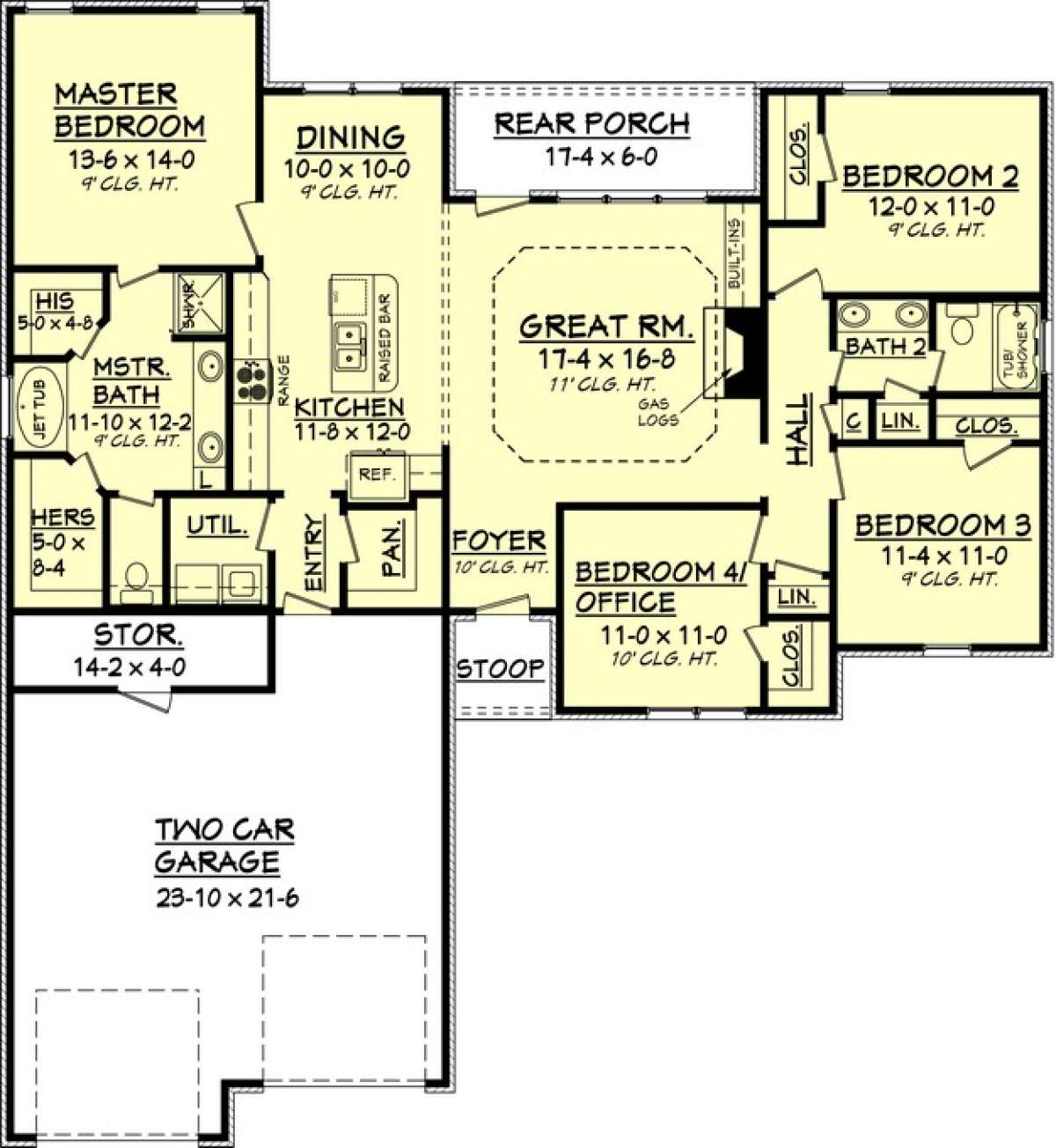

Main Floor
Main Floor for House Plan #041-00067

What's Included in these plans?

  • Cover Sheet
    Cover sheet typically includes a front view of the plan (may be in color), index of pages included, and other miscellaneous notes and details.
  • Foundation Plan & Details
    Foundation plans describe to the builder, the type of foundation requested by the home owner or the type of foundation required by a certain geographic area. In most cases, the foundation plan will include footing sizes and locations, footing details and other important information needed to properly construct the home. In some specific areas, a structural engineer may be required to review and certify the house plans purchased. These reasons include, but are not limited to the following: seismic (earthquake) considerations, high wind (coastal , mountainous areas, etc.), snow loads, etc.
  • Floor Plans
    The floor plans locate all walls, interior and exterior, of the entire building, denote ceiling heights and treatments, locate all plumbing fixtures, cabinets, door and window locations and sizes, gives square footage measurements, locate water heaters and hvac systems.
  • Exterior Elevations

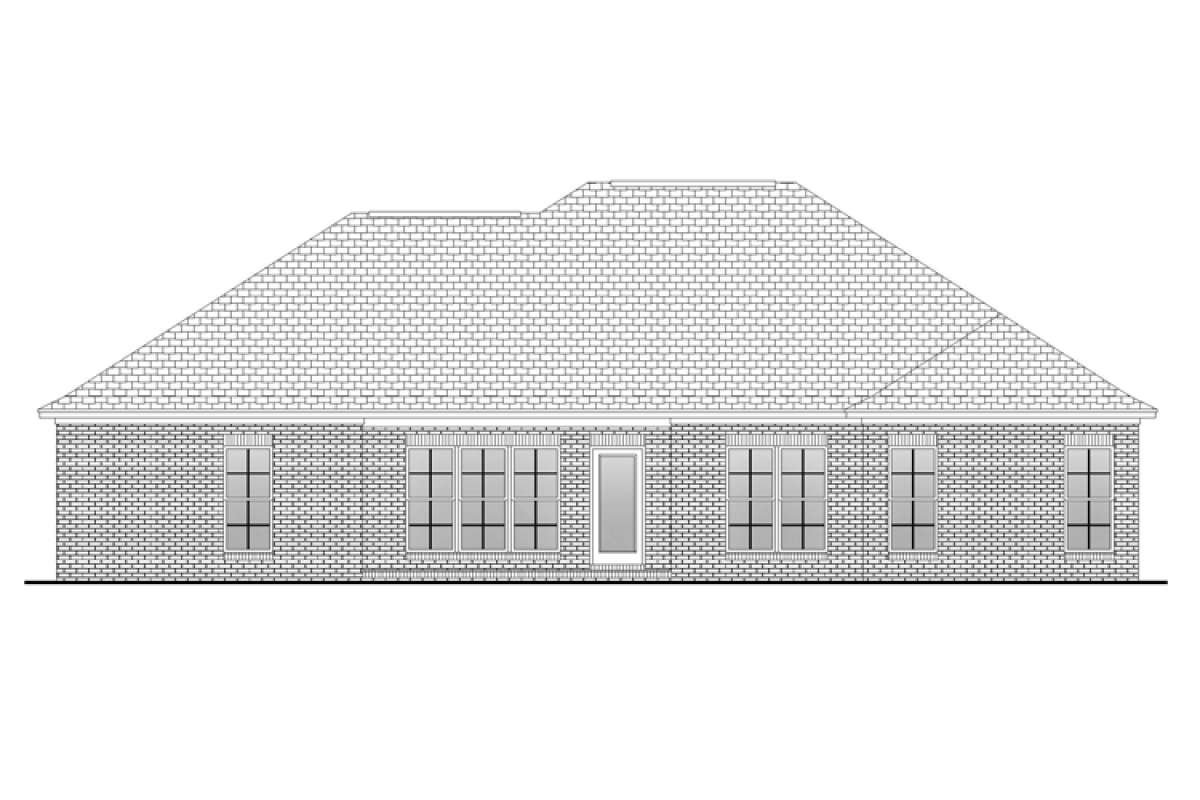

    The exterior elevations are used to depict the exterior finishes (brick, siding, stucco, etc.), roof styles (hip or gable) and slopes, ridge heights, and window styles, and overhang lengths. The exterior elevations include a front, right, rear, and left elevation.
  • Building Sections
    The building sections describe to the builder how a particular home is to be constructed.  Building sections typically show stud heights, the roof construction, whether stick built or pre engineered, direction of the ceiling joist members, overhang finishes, wall and ceiling finishes, and interior roof support members.
  • Roof Plan
    The roof plan depicts the roof type, plate heights and roof slope of each plane.
  • Interior Cabinet Views
    Cabinet views depict the overall design and layout of the kitchen cabinets.
  • Electrical Plan
    The electrical plan depicts the general location of all interior and exterior electrical devices. This generally includes light switches, electrical outlets, ceiling fixtures, and smoke detectors. The electrical plan will also generally locate the breaker box and power entry.

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

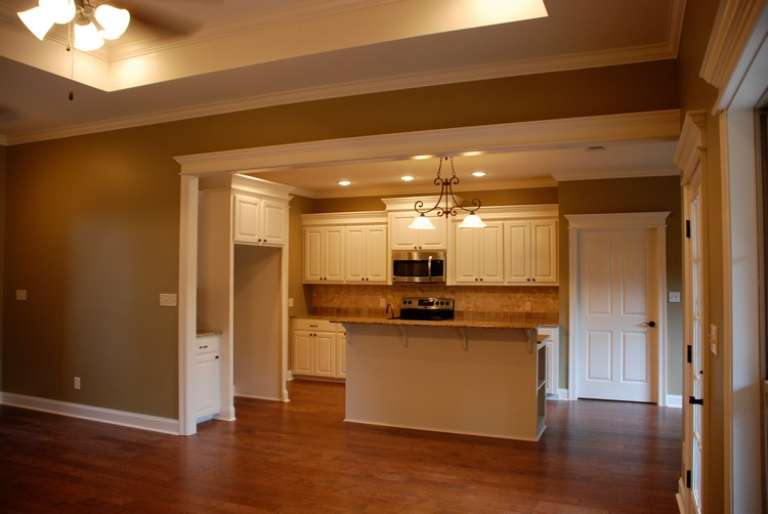

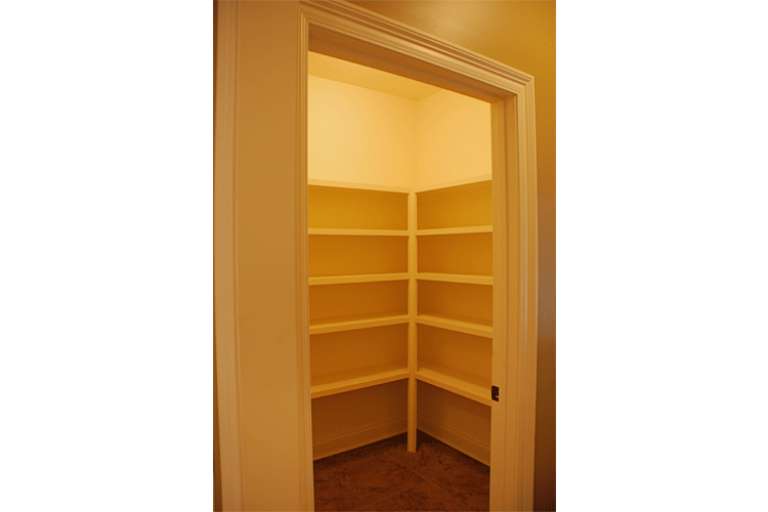

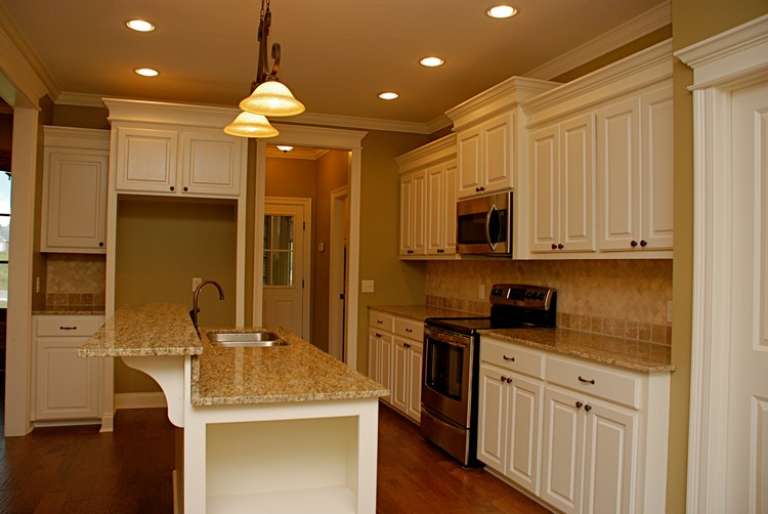

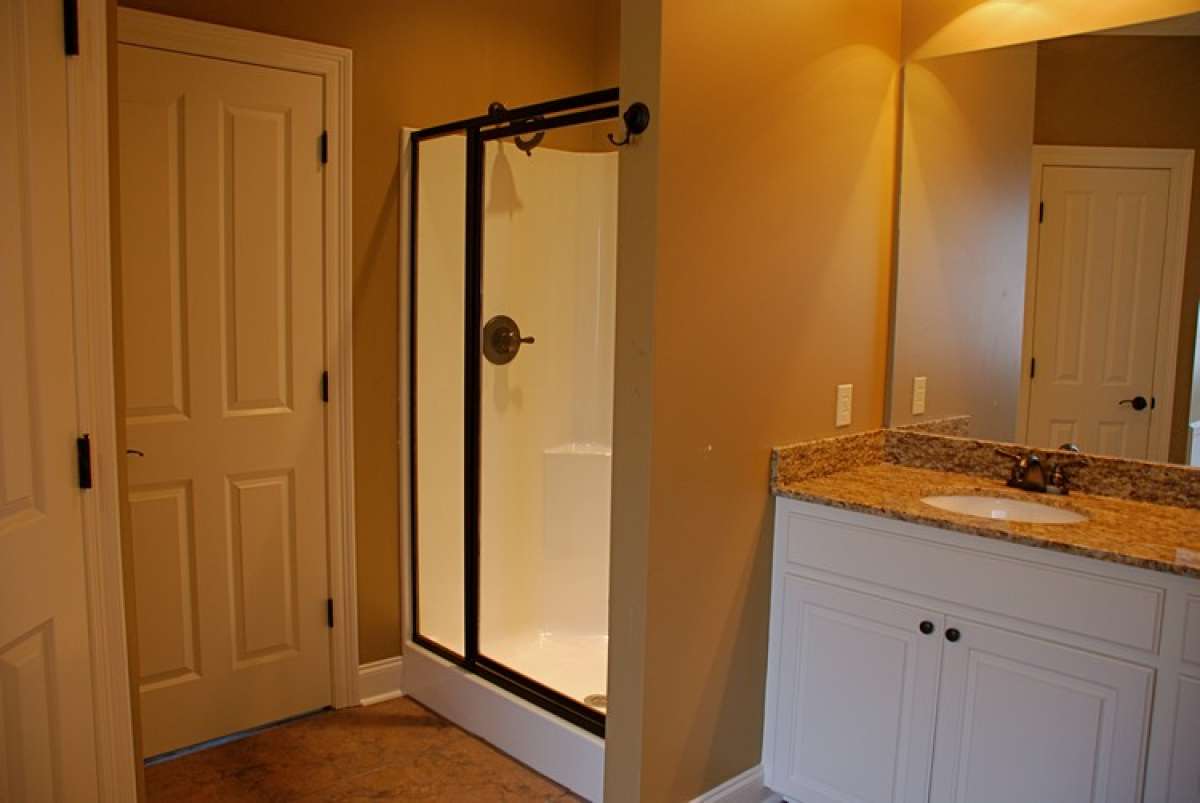

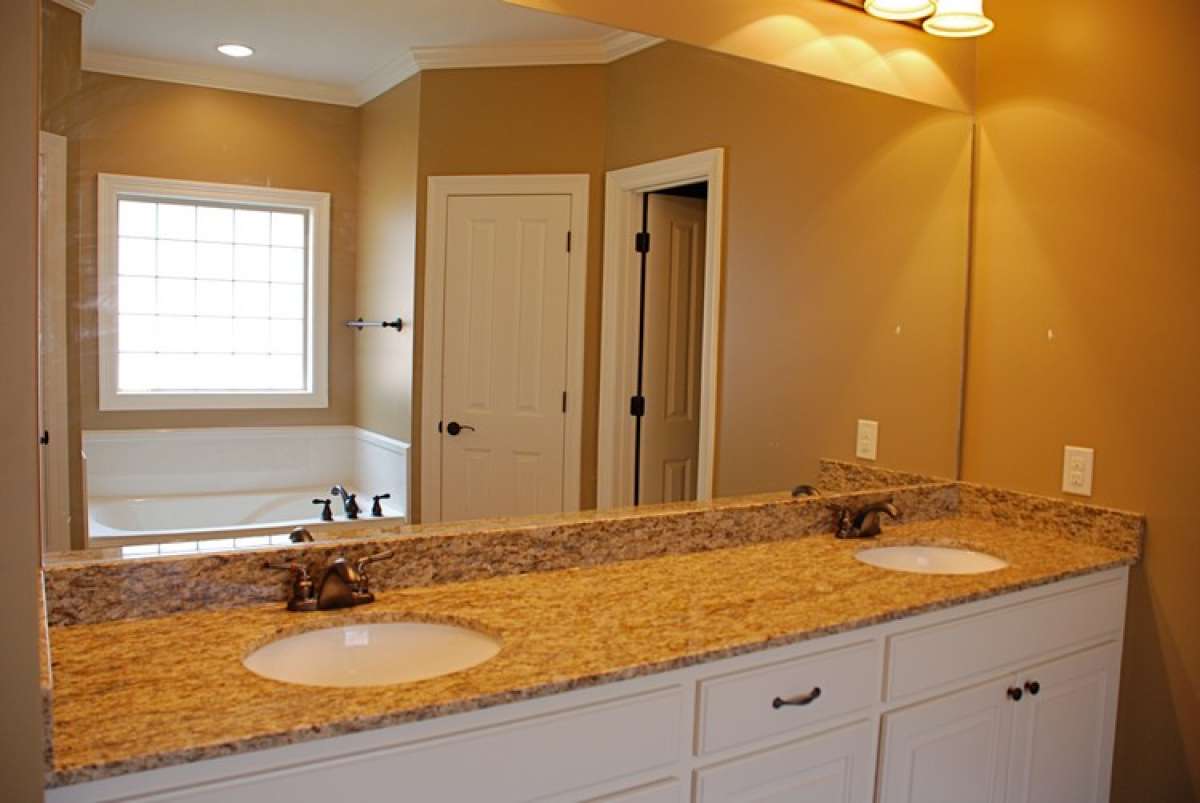

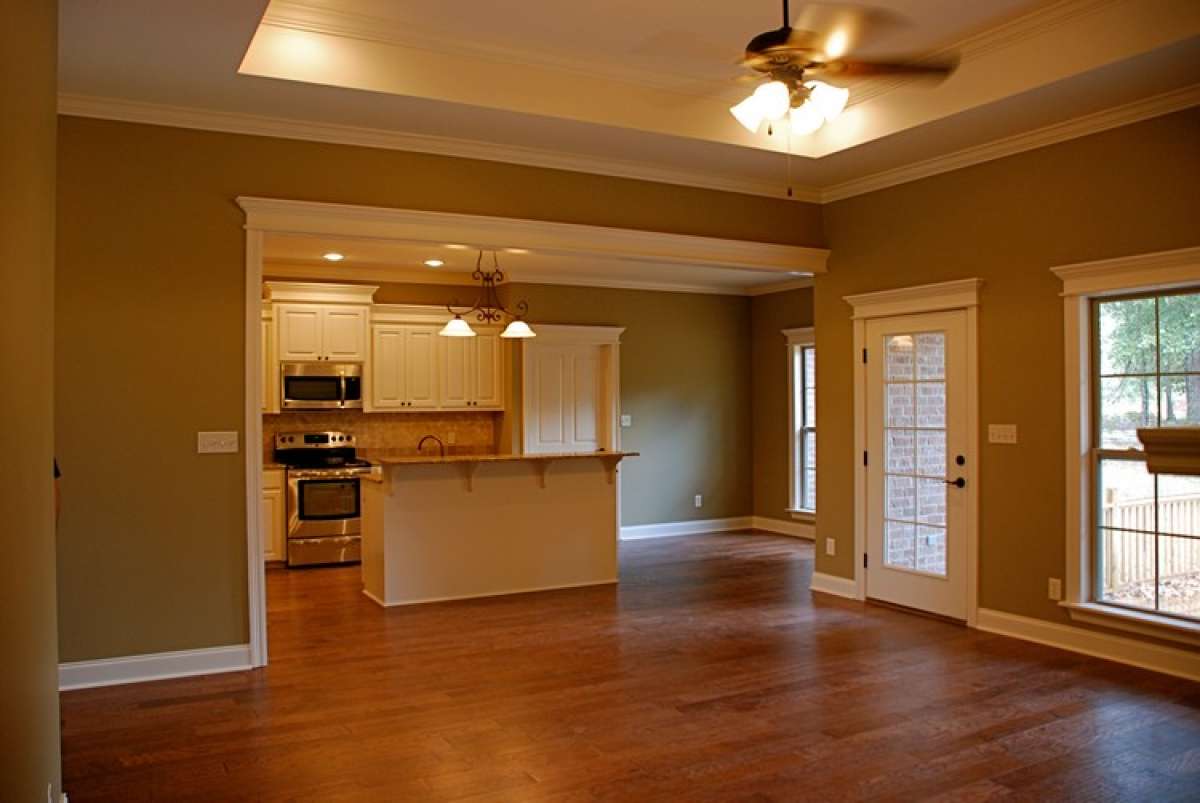

This charming brick ranch has 1,750 square feet and a two car garage with separate bays and a large additional storage space. The spacious foyer has 10’ ceilings and views into the oversized great room with trey ceiling, a gas log fireplace, built-in cabinetry and access to the rear porch. The dining room has rear yard views and is adjacent to the kitchen which features a center island worktop and breakfast bar and an abundance of cabinets and additional counter space. There is a massive walk-in pantry located directly off the kitchen as well as a laundry room. Bedrooms two and three each have spacious closet space and share a hall bath which includes dual vanities and a linen closet. There is an additional linen and coat closet situated in the hallway as well as an additional room which could function as an office/study or fourth bedroom. The master retreat is stunning and offers 9’ ceilings in both the bedroom and bath. The master bath is large and features dual vanities, a separate shower, jetted tub, linen closet and a compartmentalized toilet. His and her walk-in closets are situated on either side of the master bath. This traditional home offers an abundance of style and design friendly amenities for your family.
