European Plan 041-00056

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,500
Beds 3
Bath 2
1/2 Baths 0
Car 2
Stories 1
Width 58'
Depth 46'

Floorplan Drawings

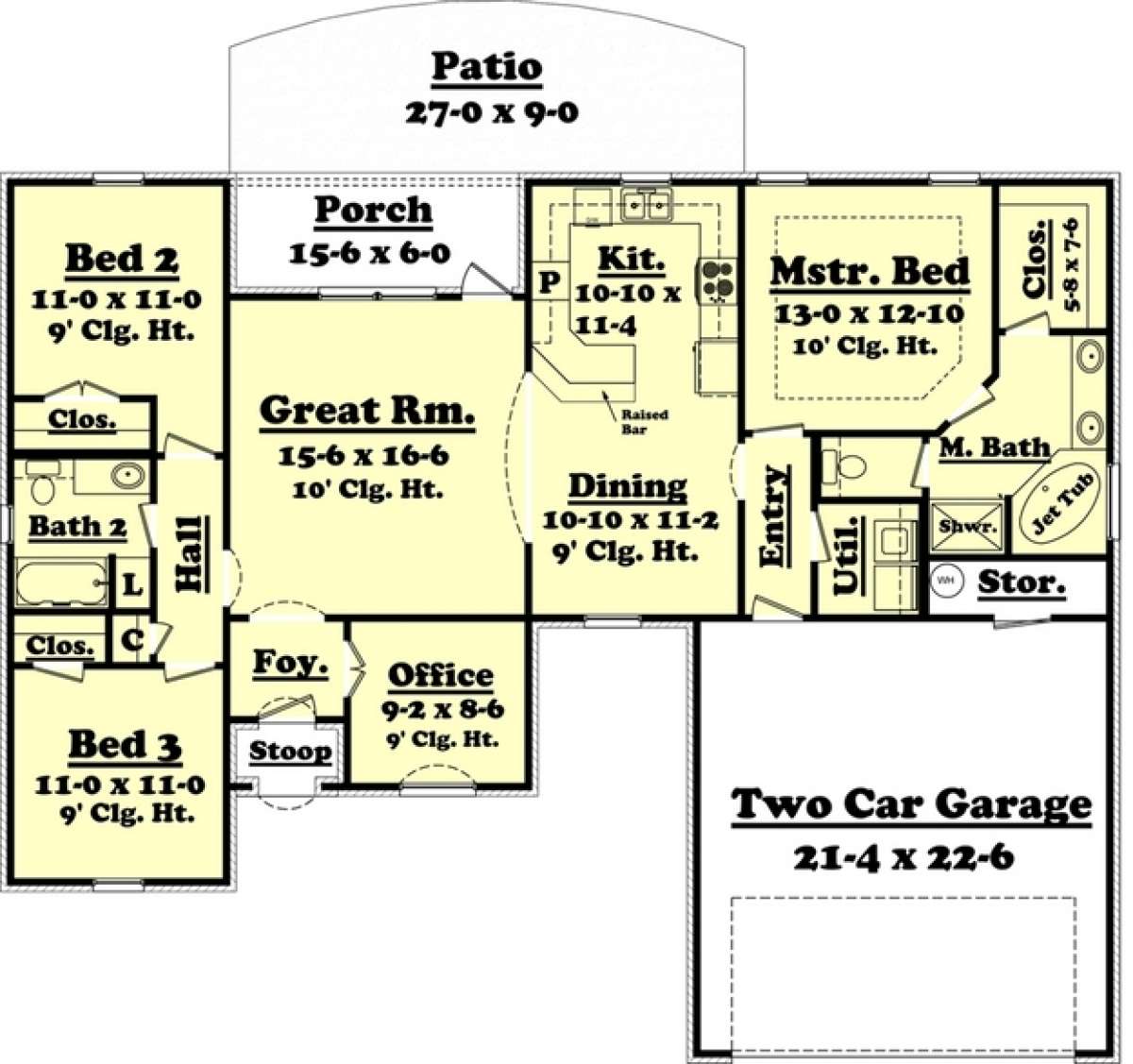

Main Floor
Main Floor for House Plan #041-00056


What's Included in these plans?

  • Cover Sheet
    Cover sheet typically includes a front view of the plan (may be in color), index of pages included, and other miscellaneous notes and details.
  • Foundation Plan & Details
    Foundation plans describe to the builder, the type of foundation requested by the home owner or the type of foundation required by a certain geographic area. In most cases, the foundation plan will include footing sizes and locations, footing details and other important information needed to properly construct the home. In some specific areas, a structural engineer may be required to review and certify the house plans purchased. These reasons include, but are not limited to the following: seismic (earthquake) considerations, high wind (coastal , mountainous areas, etc.), snow loads, etc.
  • Floor Plans
    The floor plans locate all walls, interior and exterior, of the entire building, denote ceiling heights and treatments, locate all plumbing fixtures, cabinets, door and window locations and sizes, gives square footage measurements, locate water heaters and hvac systems.

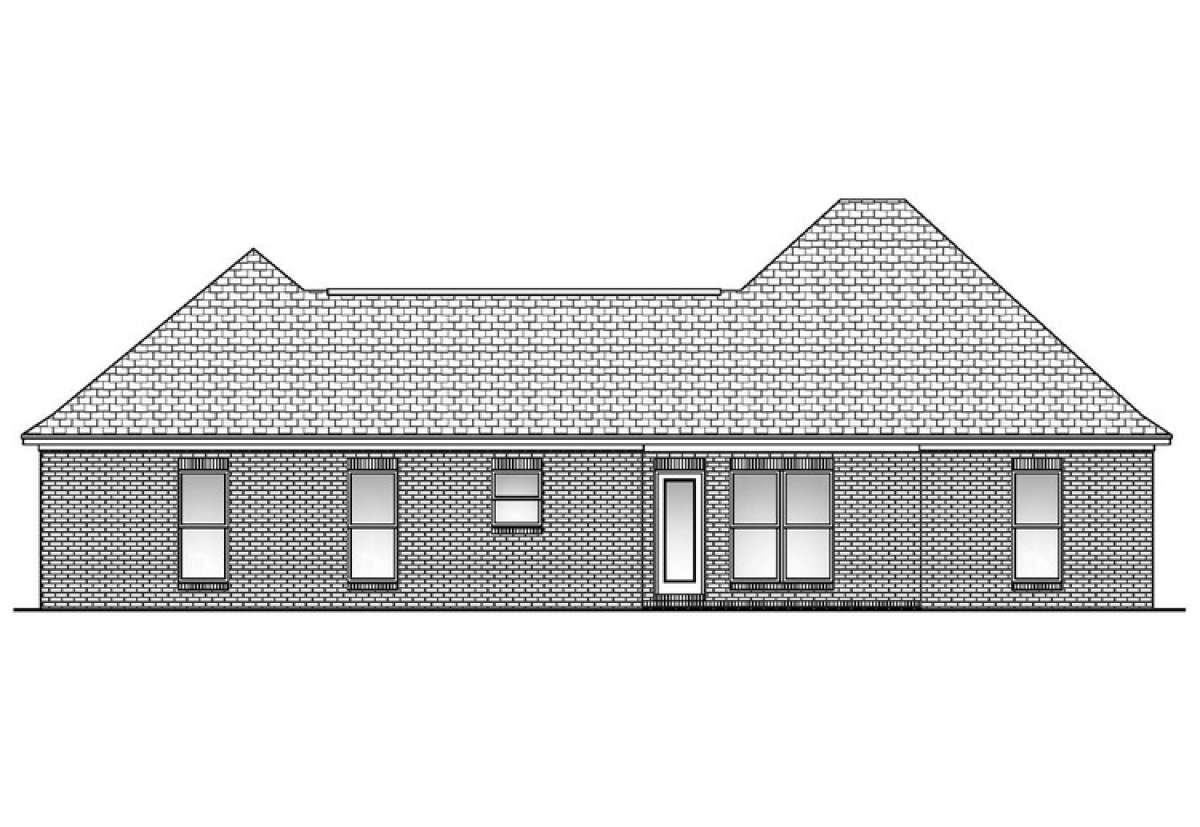

  • Exterior Elevations
    The exterior elevations are used to depict the exterior finishes (brick, siding, stucco, etc.), roof styles (hip or gable) and slopes, ridge heights, and window styles, and overhang lengths. The exterior elevations include a front, right, rear, and left elevation.
  • Building Sections
    The building sections describe to the builder how a particular home is to be constructed.  Building sections typically show stud heights, the roof construction, whether stick built or pre engineered, direction of the ceiling joist members, overhang finishes, wall and ceiling finishes, and interior roof support members.
  • Roof Plan
    The roof plan depicts the roof type, plate heights and roof slope of each plane.
  • Interior Cabinet Views
    Cabinet views depict the overall design and layout of the kitchen cabinets.
  • Electrical Plan
    The electrical plan depicts the general location of all interior and exterior electrical devices. This generally includes light switches, electrical outlets, ceiling fixtures, and smoke detectors. The electrical plan will also generally locate the breaker box and power entry.

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

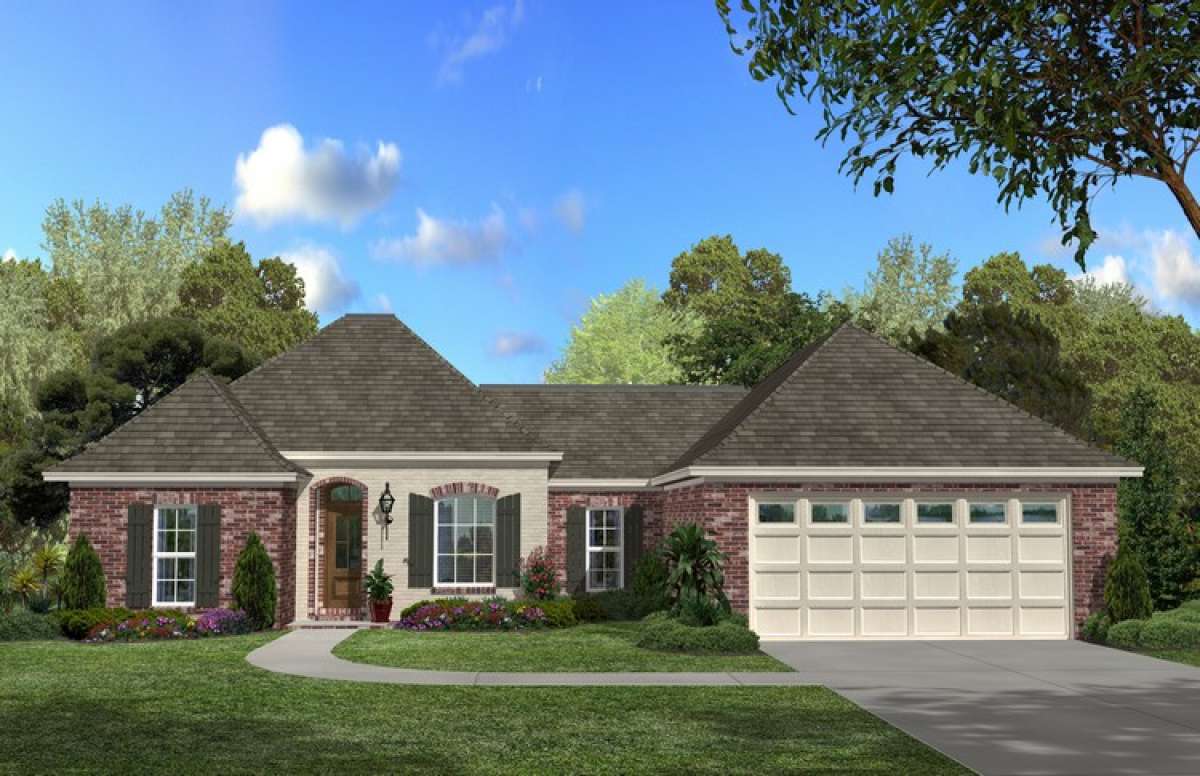

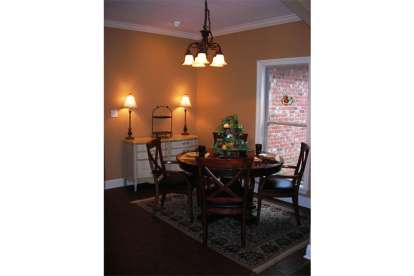

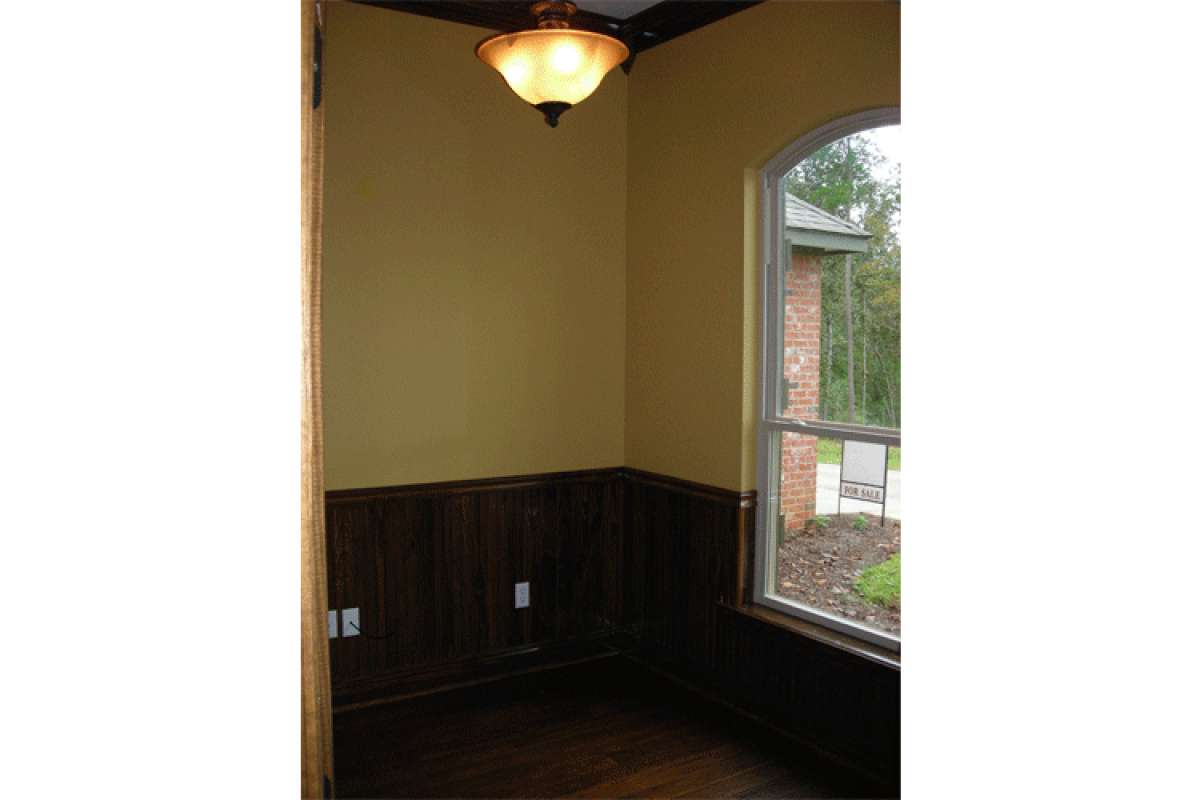

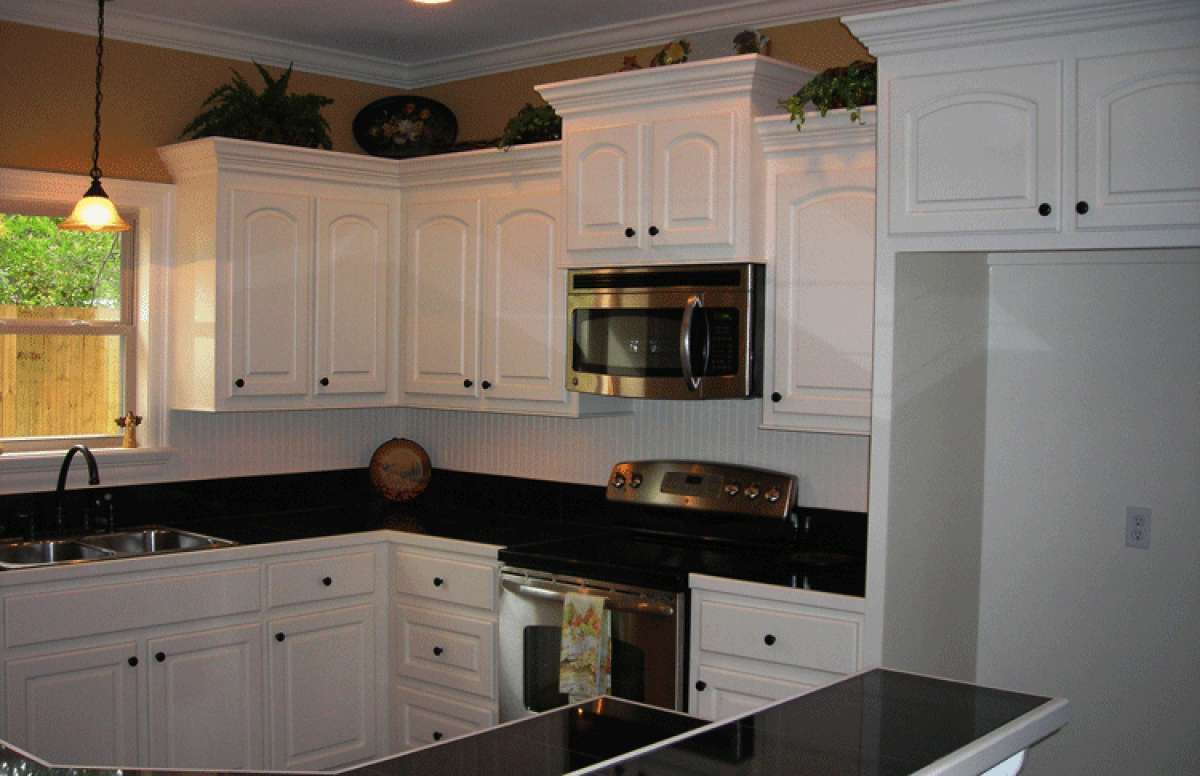

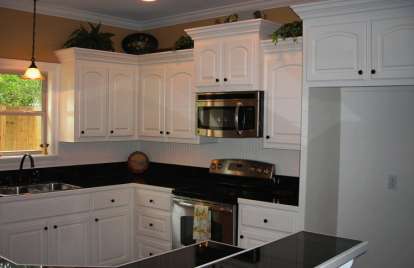

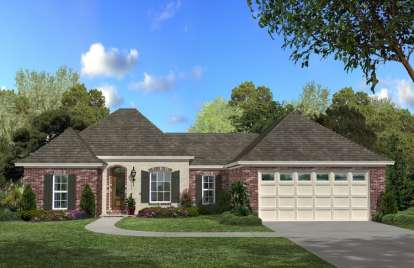

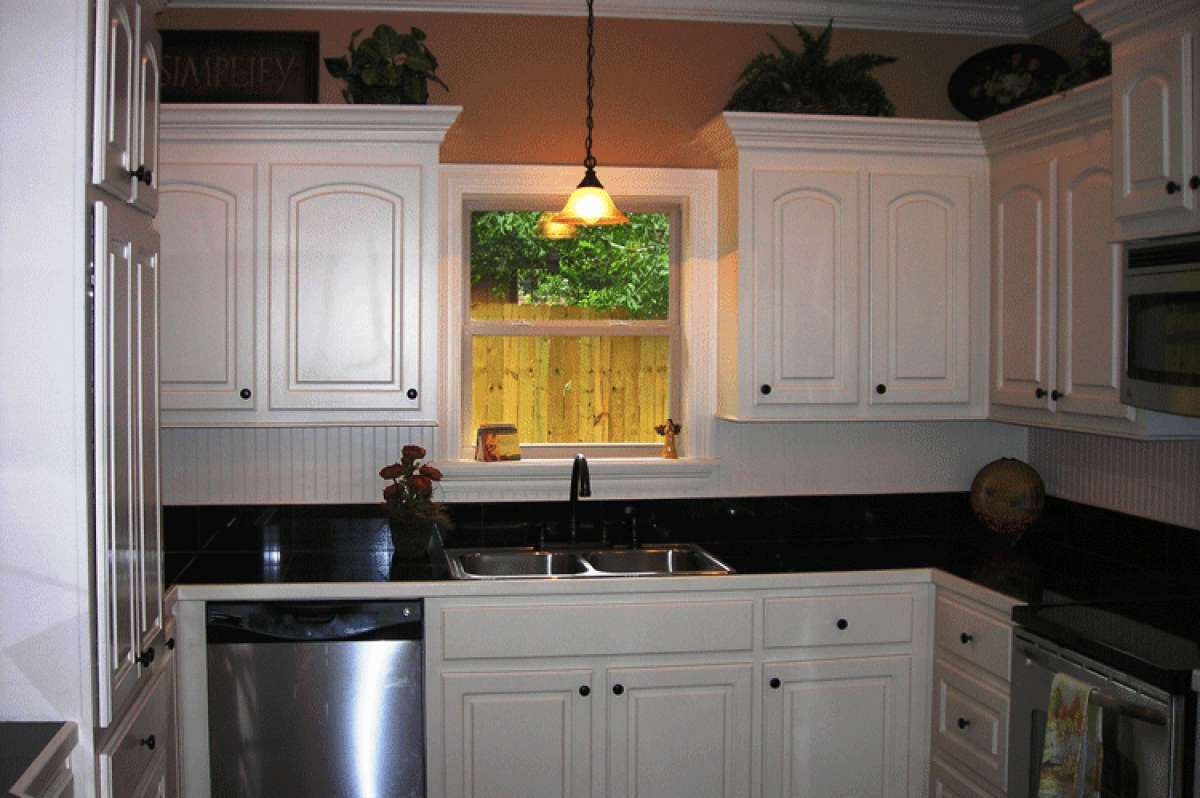

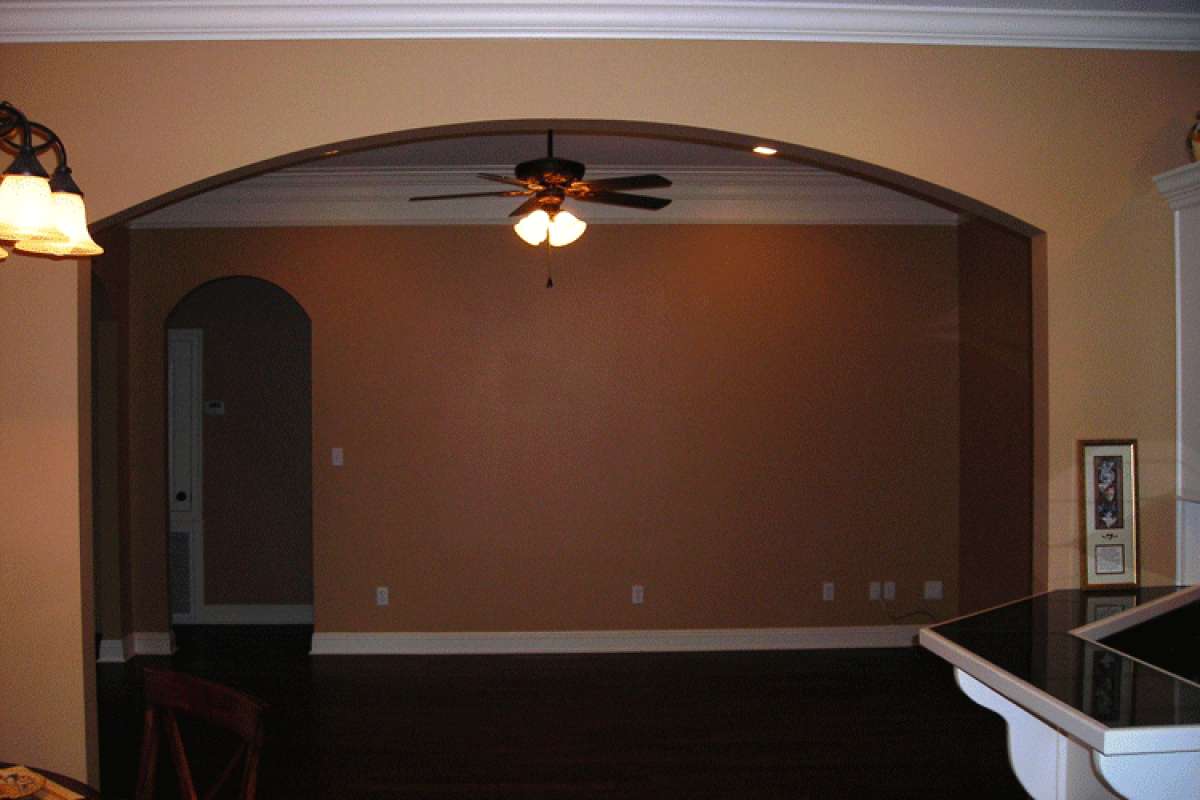

European in nature and design, this attractive house plan features a low maintenance exterior and an open floor plan interior. Contrasting brick work, a hip roof, a brick alcove entryway and brick arches atop window views combine to create an alluring exterior. The interior floor plan features an open layout on one floor with a split bedroom plan for privacy. Approximately 1,500 square feet of living space offers three bedrooms and two baths on either a slab or crawl space foundation. Walking into the interior of the home, the spacious foyer opens onto the front office through French doors; this is great space for a private office and the large window view brings in plenty of natural light. There is a large great room with ten foot ceiling heights with rear window views and access onto the rear covered porch. Easy entertaining is available in the space and there is a subsequent patio as well for grilling, outdoor family fun and relaxing. The formal dining room and grand kitchen are both open to the great room for easy access and good flow. The dining room features 9’ ceiling heights and offers a nice space for family meals. The kitchen is highlighted with a peninsula bar offering additional seating options for casual dining as well as a separate food storage pantry, double sink window views and plenty of additional counter and cabinet space. The two car front loading garage provides good vehicle space and there is a rear room for storage items. The utility room is located directly off the garage for ease of clean-up and a tidy home environment.

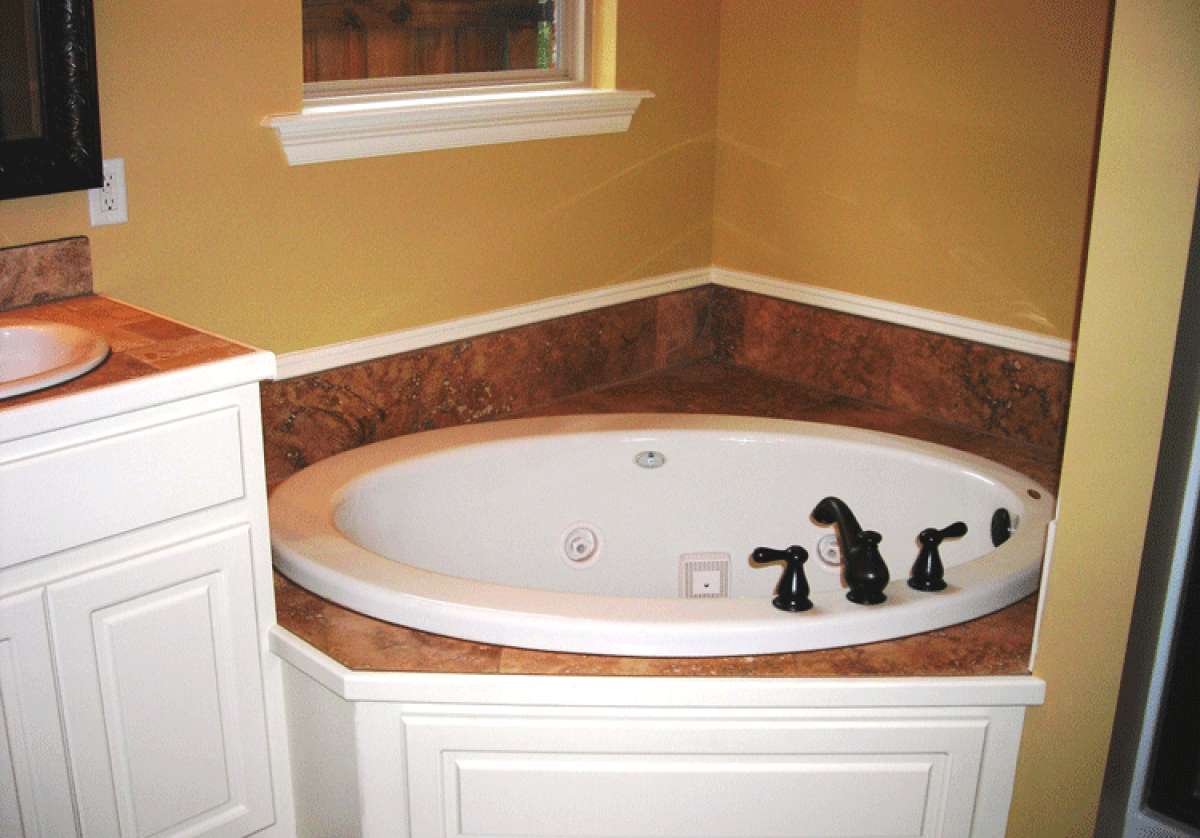

The split bedroom plan offers a private master suite on one side of the home where the master bedroom is highlighted with good floor space, an overhead tray ceiling and rear window views. The master walk-in closet is located off the bathroom for convenience. The en suite bath features dual vanities, a compartmentalized toilet, a corner jet tub and separate shower. The remaining two bedrooms are of equivalent size with 9’ ceiling heights, window views and ample closet space. A hall closet is great for linens and other storage items and the shared hall bath also features a separate linen closet, a large vanity and a tub/shower combination. This European house plan features an attractive exterior, a functional floor plan and great outdoor space for entertaining and relaxing.
