Ranch House Plan 041-00054

Sq Ft1,300
Beds3
Baths2
1/2 Baths0
Stories1
Cars2
Width49' 8"
Depth43' 8"

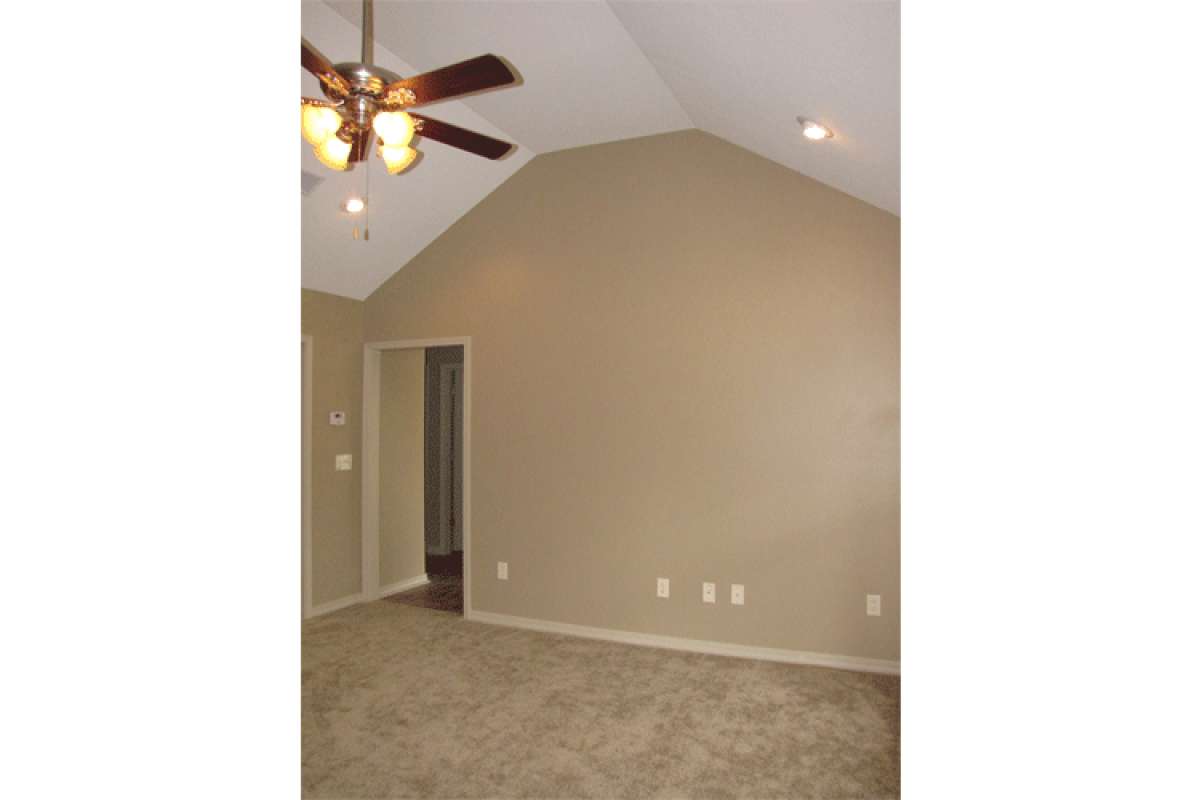

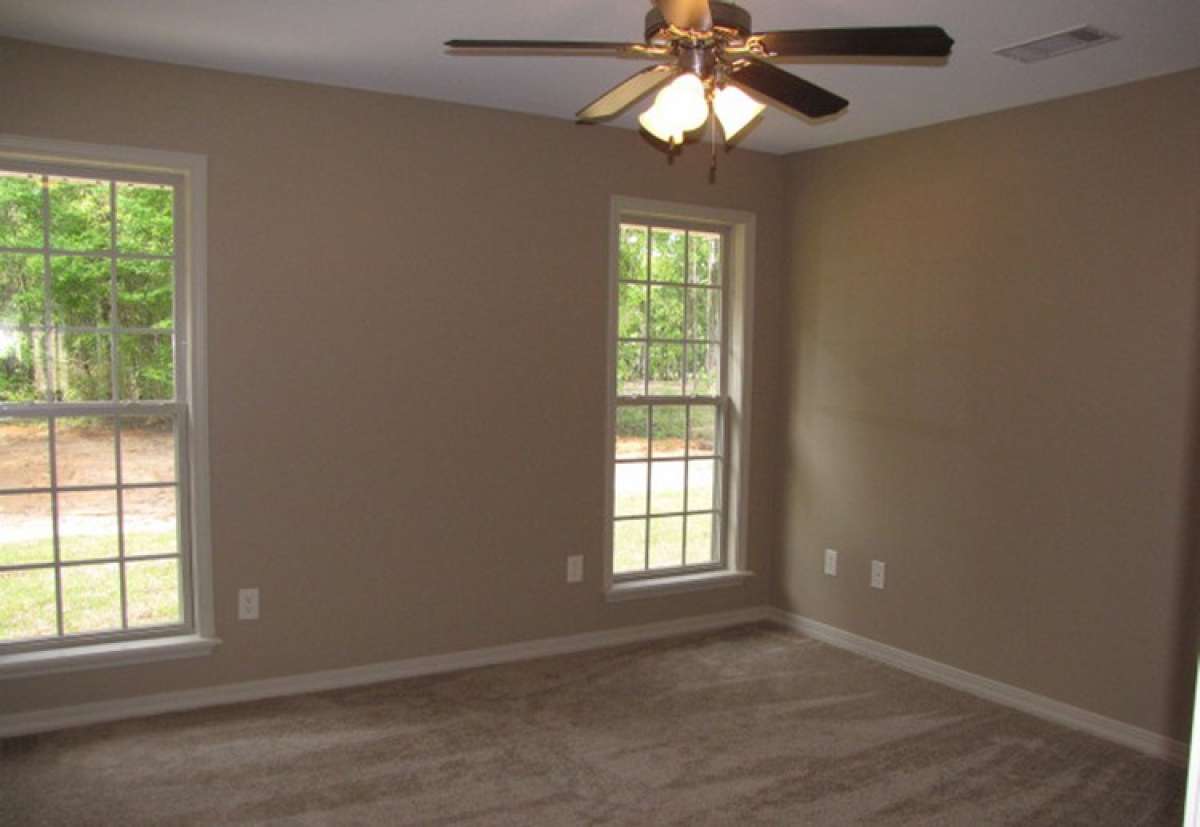

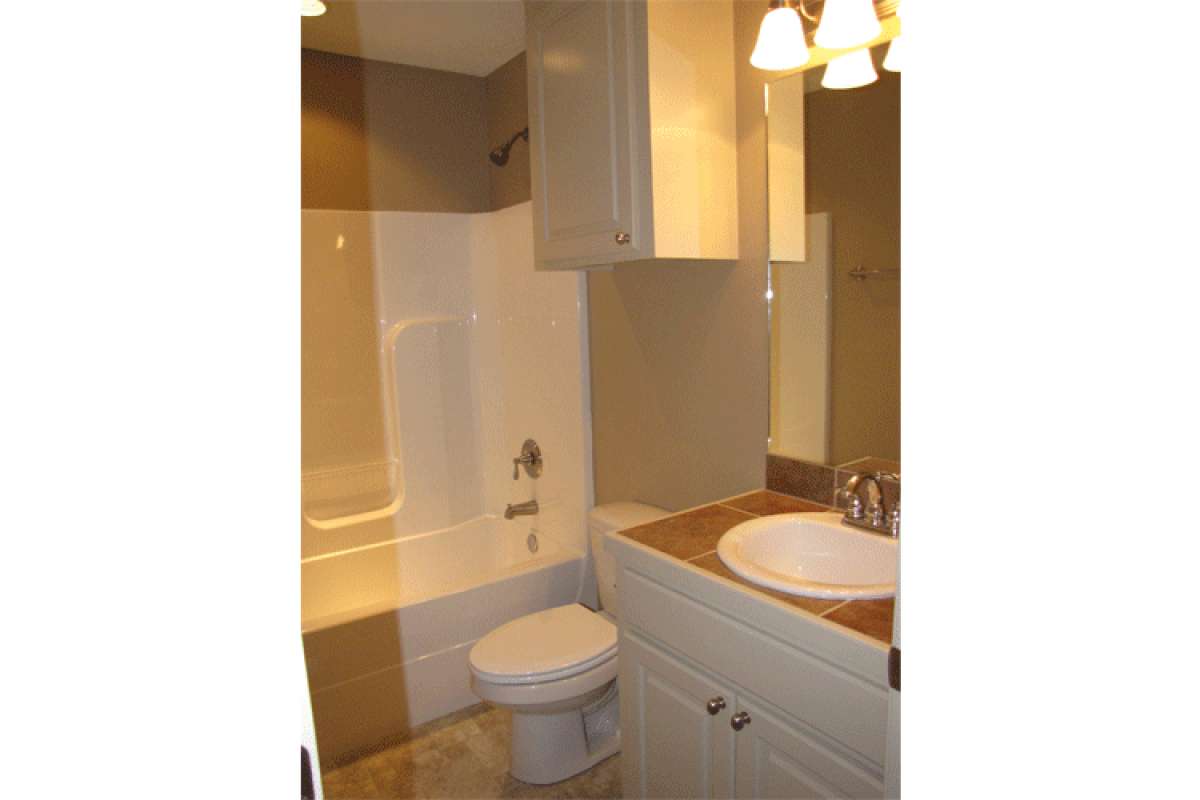

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

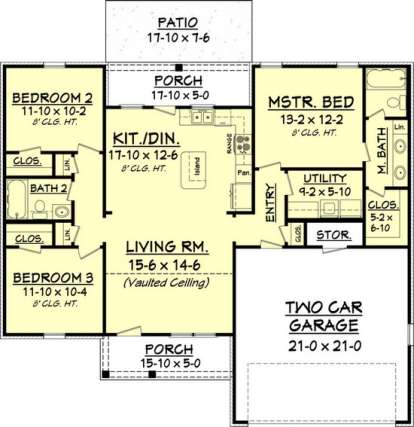

Main Floor for House Plan #041-00054
Main Floor
Main Floor for House Plan #041-00054


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Cover Sheet
    Cover sheet typically includes a front view of the plan (may be in color), index of pages included, and other miscellaneous notes and details.
  • Foundation Plan & Details
    Foundation plans describe to the builder, the type of foundation requested by the home owner or the type of foundation required by a certain geographic area. In most cases, the foundation plan will include footing sizes and locations, footing details and other important information needed to properly construct the home. In some specific areas, a structural engineer may be required to review and certify the house plans purchased. These reasons include, but are not limited to the following: seismic (earthquake) considerations, high wind (coastal , mountainous areas, etc.), snow loads, etc.
  • Floor Plans
    The floor plans locate all walls, interior and exterior, of the entire building, denote ceiling heights and treatments, locate all plumbing fixtures, cabinets, door and window locations and sizes, gives square footage measurements, locate water heaters and hvac systems.
  • Exterior Elevations
    The exterior elevations are used to depict the exterior finishes (brick, siding, stucco, etc.), roof styles (hip or gable) and slopes, ridge heights, and window styles, and overhang lengths. The exterior elevations include a front, right, rear, and left elevation.
  • Building Sections
    The building sections describe to the builder how a particular home is to be constructed.  Building sections typically show stud heights, the roof construction, whether stick built or pre engineered, direction of the ceiling joist members, overhang finishes, wall and ceiling finishes, and interior roof support members.
  • Roof Plan
    The roof plan depicts the roof type, plate heights and roof slope of each plane.
  • Interior Cabinet Views
    Interior cabinet views depict the overall design and layout of all interior cabinets. These include kitchen cabinets, bathroom cabinets, built-in cabinets, and other specialty items designed within a particular home.
  • Electrical Plan
    The electrical plan depicts the general location of all interior and exterior electrical devices. This generally includes light switches, electrical outlets, ceiling fixtures, and smoke detectors. The electrical plan will also generally locate the breaker box and power entry.

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This brick Ranch home features a low maintenance exterior that is attractive and inviting with a three step gabled roofline and a front covered porch highlighted with wood beams. There are 1,300 square feet of living space which incorporates three bedrooms and two baths into the interior floor plan. Additionally, there is a 459 square foot two car garage which supplies plenty of space for vehicles and other storage items. The open concept plan is accessible from the front covered porch where a large living room with vaulted ceilings is revealed. Beyond the living room there is a huge casual dining space and family friendly kitchen. A center island with a wraparound breakfast bar takes center stage and a plethora of modern amenities, a separate pantry and double sink window views are featured highlights. Access to the rear covered porch and adjoining patio space is off the kitchen/dining space and can accommodate large gatherings of family and friends whether enjoying cook-outs, outdoor activities or hosting special family occasions. An interior closet and large laundry room is conveniently located off the two car garage for easy clean-up and a tidy home.
The split bedroom plan features two family bedrooms located on one end of the home. Each bedroom is spacious and includes window views and plentiful closet space. There is a hall bath that is situated between the bedrooms for easy access and double linen closets line the hallway. The bathroom features a vanity area, toilet space and a tub/shower combination. The master suite is situated on the far end of the home for privacy and is highlighted with good floor space, double window views and an en suite bath. The master bath is highlighted with dual vanities, a private toilet area with a tub/shower combination and there is an attached walk-in master closet as well. This is a wonderful family home with an attractive exterior, plenty of outdoor space and an interior floor that is comfortable and inviting.
