European Plan 041-00050

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,400
Beds 4
Bath 3
1/2 Baths 0
Car 2
Stories 1
Width 66' 4"
Depth 72' 2"

Floorplan Drawings

Main Floor

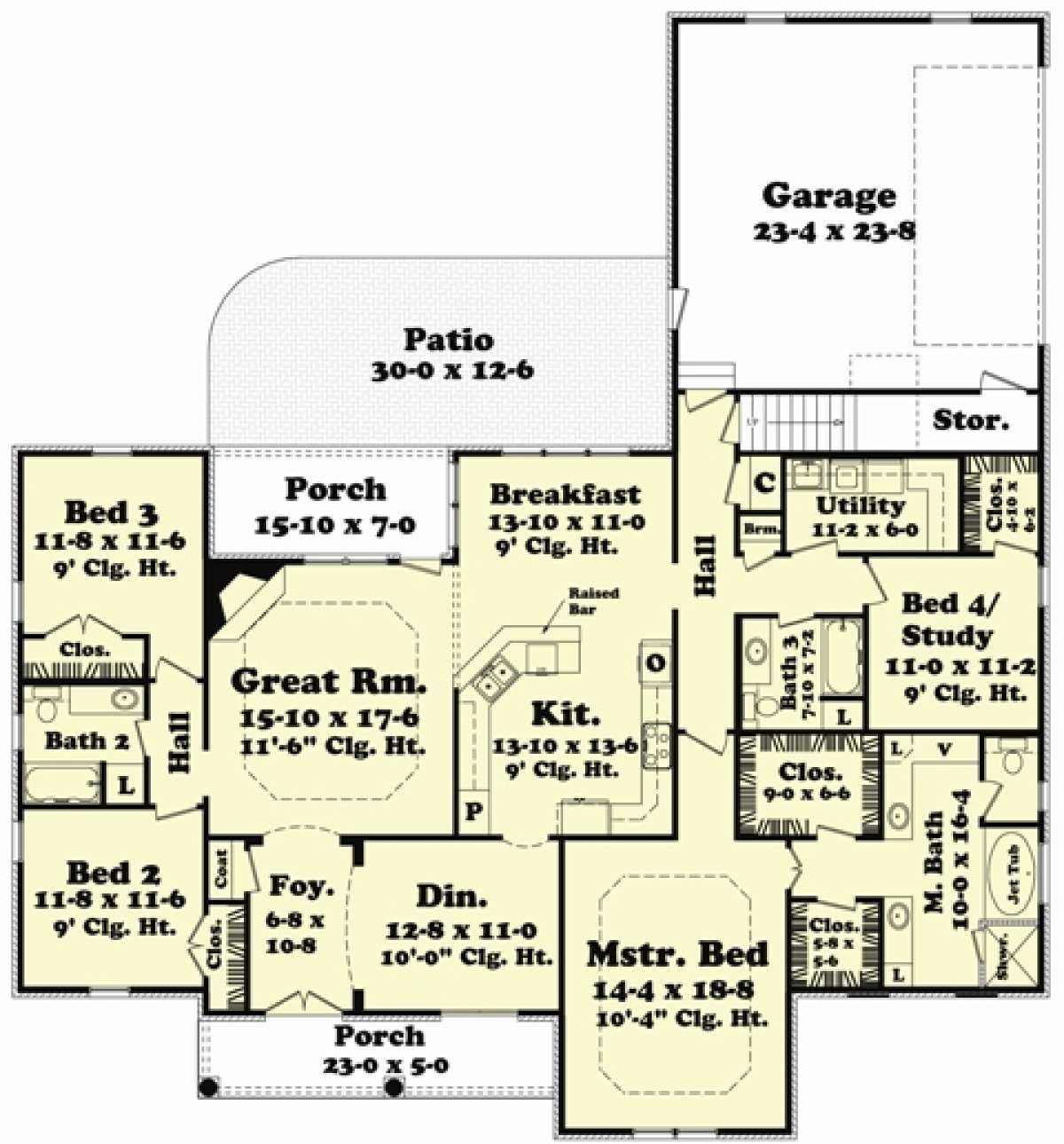

Main Floor for House Plan #041-00050
Bonus Room

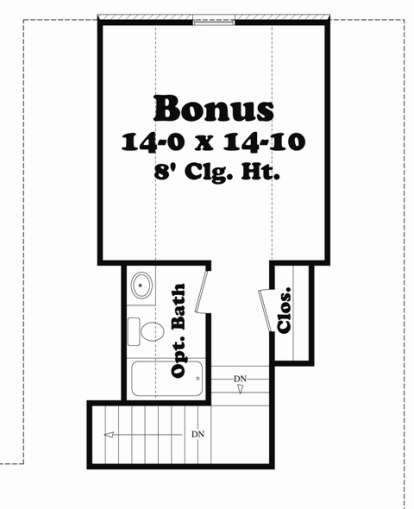

Bonus Room for House Plan #041-00050


What's Included in these plans?

  • Cover Sheet
    Cover sheet typically includes a front view of the plan (may be in color), index of pages included, and other miscellaneous notes and details.
  • Foundation Plan & Details
    Foundation plans describe to the builder, the type of foundation requested by the home owner or the type of foundation required by a certain geographic area. In most cases, the foundation plan will include footing sizes and locations, footing details and other important information needed to properly construct the home. In some specific areas, a structural engineer may be required to review and certify the house plans purchased. These reasons include, but are not limited to the following: seismic (earthquake) considerations, high wind (coastal , mountainous areas, etc.), snow loads, etc.
  • Floor Plans
    The floor plans locate all walls, interior and exterior, of the entire building, denote ceiling heights and treatments, locate all plumbing fixtures, cabinets, door and window locations and sizes, gives square footage measurements, locate water heaters and hvac systems.
  • Exterior Elevations

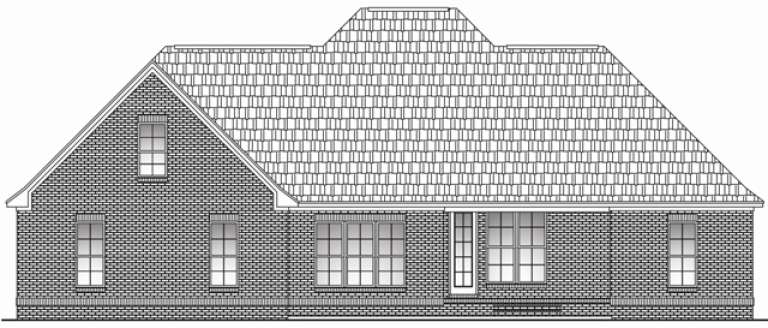

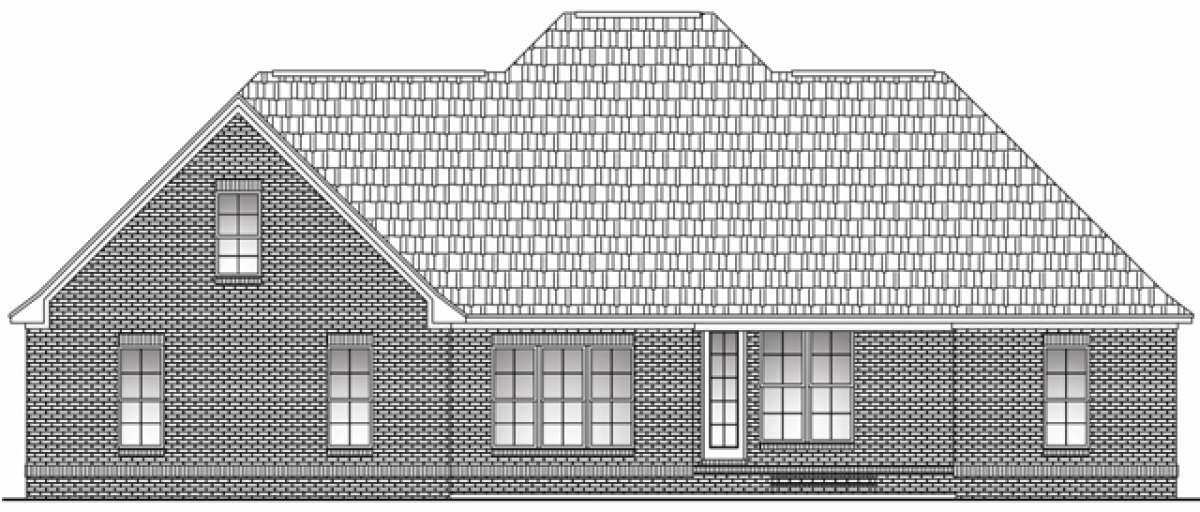

    The exterior elevations are used to depict the exterior finishes (brick, siding, stucco, etc.), roof styles (hip or gable) and slopes, ridge heights, and window styles, and overhang lengths. The exterior elevations include a front, right, rear, and left elevation.
  • Building Sections
    The building sections describe to the builder how a particular home is to be constructed.  Building sections typically show stud heights, the roof construction, whether stick built or pre engineered, direction of the ceiling joist members, overhang finishes, wall and ceiling finishes, and interior roof support members.
  • Roof Plan
    The roof plan depicts the roof type, plate heights and roof slope of each plane.
  • Interior Cabinet Views
    Cabinet views depict the overall design and layout of the kitchen cabinets.
  • Electrical Plan
    The electrical plan depicts the general location of all interior and exterior electrical devices. This generally includes light switches, electrical outlets, ceiling fixtures, and smoke detectors. The electrical plan will also generally locate the breaker box and power entry.

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This French inspired home features a brick exterior with double door entry, columns and formal dining room access to the covered front porch. The spacious great room has a trey ceiling, corner fireplace and rear porch and patio access. The kitchen and breakfast room offer a corner angled bar area, separate pantry and an abundance of additional counter and cabinet space. Two bedrooms with oversized closets share a hall bath on one side of the home. A flex space, which could be used as an office/study or fourth bedroom, and has direct access to a full bath is situated on the opposite side of the home for privacy as well as the master suite. The master suite features a trey ceiling bedroom, his and her walk-in closets and a beautifully appointed master bath that includes dual vanities, a jetted tub, separate shower and double linen closets. A large utility room with counter space along with a broom closet, coat closet and two car, side entry garage completes the home. This home offers an inspiring exterior along with a stylish interior floor plan.
