European Plan 041-00045

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,000
Beds 3
Bath 2
1/2 Baths 0
Car 2
Stories 1
Width 58' 10"
Depth 73'

Floorplan Drawings

Main Floor

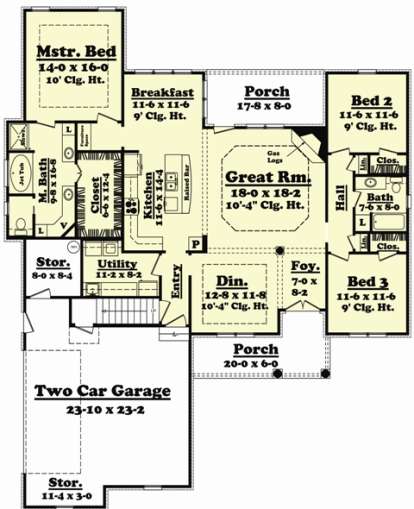

Main Floor for House Plan #041-00045
Second Floor

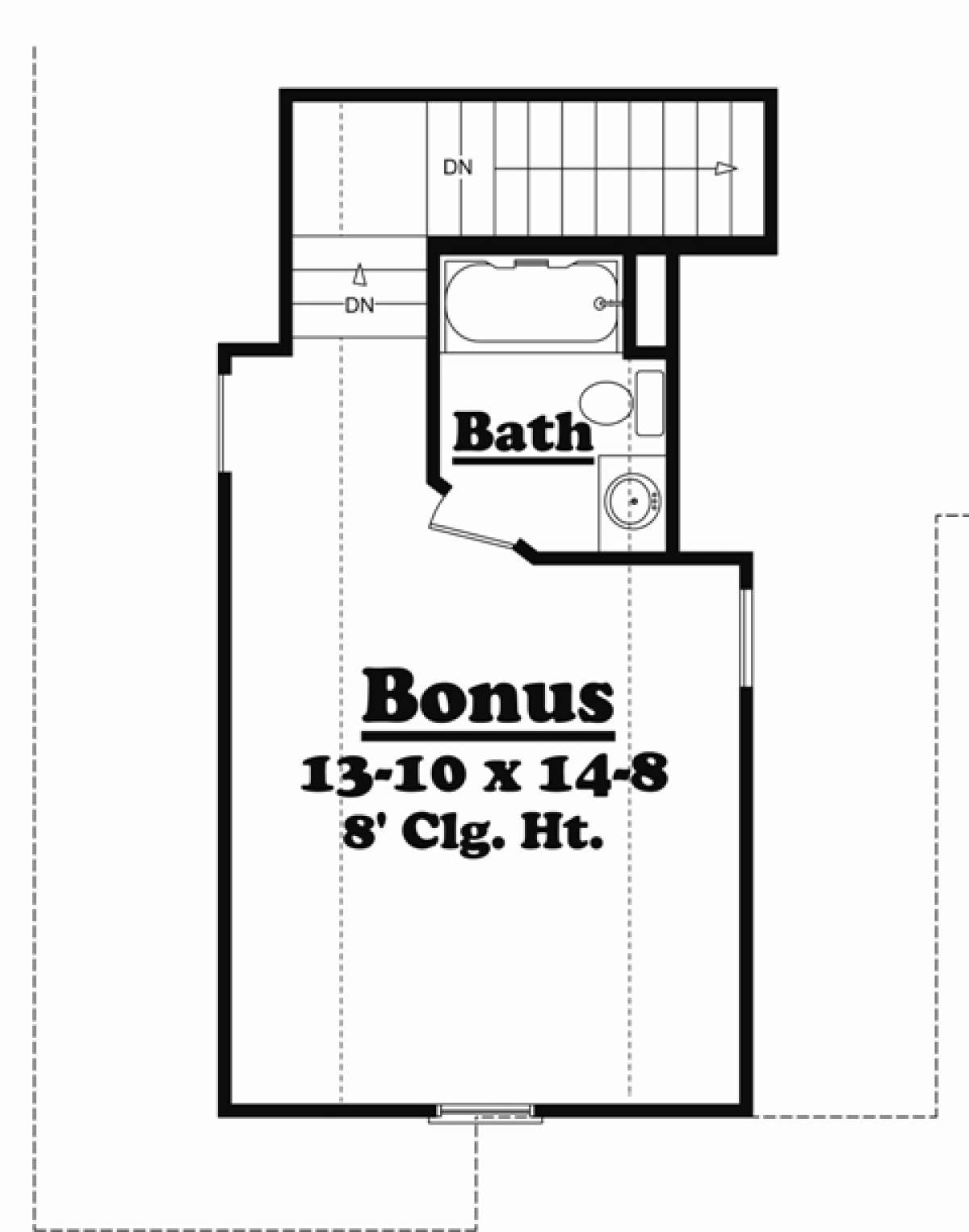

Second Floor for House Plan #041-00045


What's Included in these plans?

  • Cover Sheet
    Cover sheet typically includes a front view of the plan (may be in color), index of pages included, and other miscellaneous notes and details.
  • Foundation Plan & Details
    Foundation plans describe to the builder, the type of foundation requested by the home owner or the type of foundation required by a certain geographic area. In most cases, the foundation plan will include footing sizes and locations, footing details and other important information needed to properly construct the home. In some specific areas, a structural engineer may be required to review and certify the house plans purchased. These reasons include, but are not limited to the following: seismic (earthquake) considerations, high wind (coastal , mountainous areas, etc.), snow loads, etc.
  • Floor Plans
    The floor plans locate all walls, interior and exterior, of the entire building, denote ceiling heights and treatments, locate all plumbing fixtures, cabinets, door and window locations and sizes, gives square footage measurements, locate water heaters and hvac systems.
  • Exterior Elevations

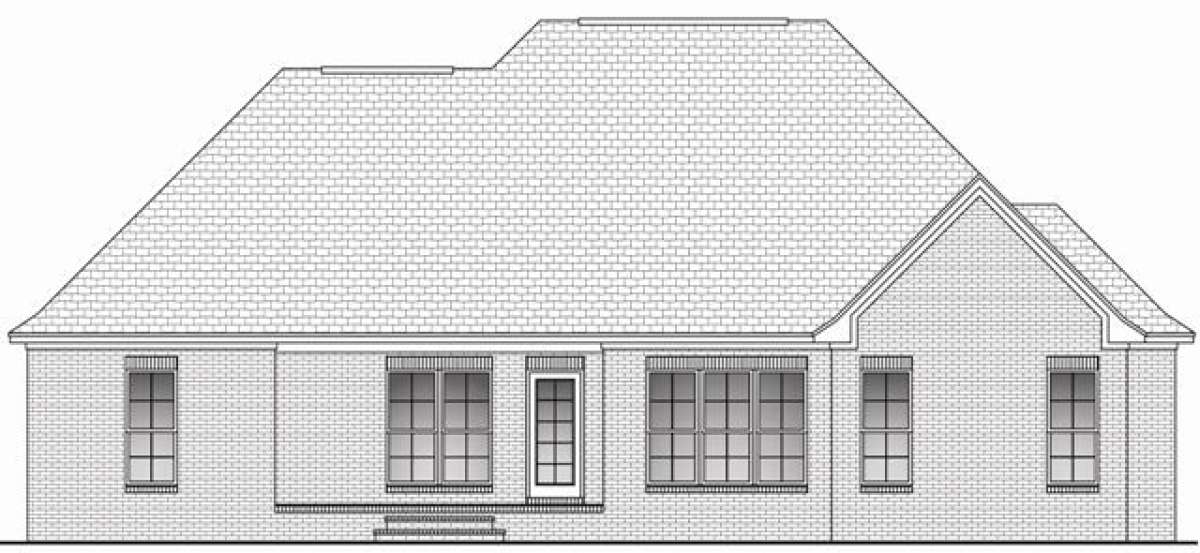

    The exterior elevations are used to depict the exterior finishes (brick, siding, stucco, etc.), roof styles (hip or gable) and slopes, ridge heights, and window styles, and overhang lengths. The exterior elevations include a front, right, rear, and left elevation.
  • Building Sections
    The building sections describe to the builder how a particular home is to be constructed.  Building sections typically show stud heights, the roof construction, whether stick built or pre engineered, direction of the ceiling joist members, overhang finishes, wall and ceiling finishes, and interior roof support members.
  • Roof Plan
    The roof plan depicts the roof type, plate heights and roof slope of each plane.
  • Interior Cabinet Views
    Cabinet views depict the overall design and layout of the kitchen cabinets.
  • Electrical Plan
    The electrical plan depicts the general location of all interior and exterior electrical devices. This generally includes light switches, electrical outlets, ceiling fixtures, and smoke detectors. The electrical plan will also generally locate the breaker box and power entry.

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This lovely French country home features an open concept floor plan. The great room is highlighted by a gas log fireplace and access to the rear porch. The formal dining room and informal breakfast area are anchored by the kitchen which includes a center island work top and separate pantry. An oversized utility room has a sink and room for a freezer. Two bedrooms share a hall bath with double linen closets while the master suite offers privacy with its location on the opposite side of the home. A trey ceiling bedroom and spacious master bath lead to the oversized walk-in closet. The bath includes dual vanities, a separate shower and jetted tub. The two car, side entry garage is oversized and includes two large storage areas. A 377 square foot bonus room with private full bath is located upstairs and would be ideal for a fourth bedroom, playroom or an office/study. This floor plan is versatile, comfortable and provides plenty of usable space for a large family.
