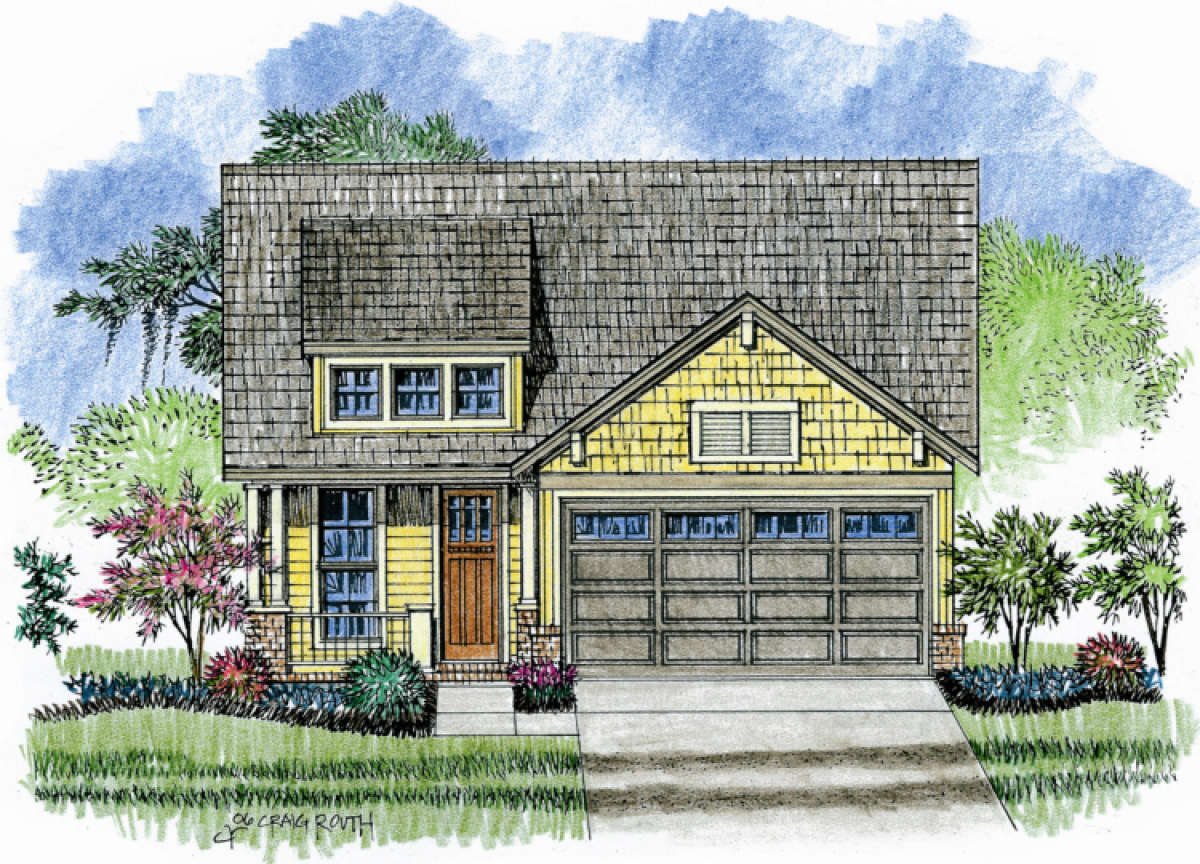

Cottage House Plan #041-00030 Elevation Photo

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

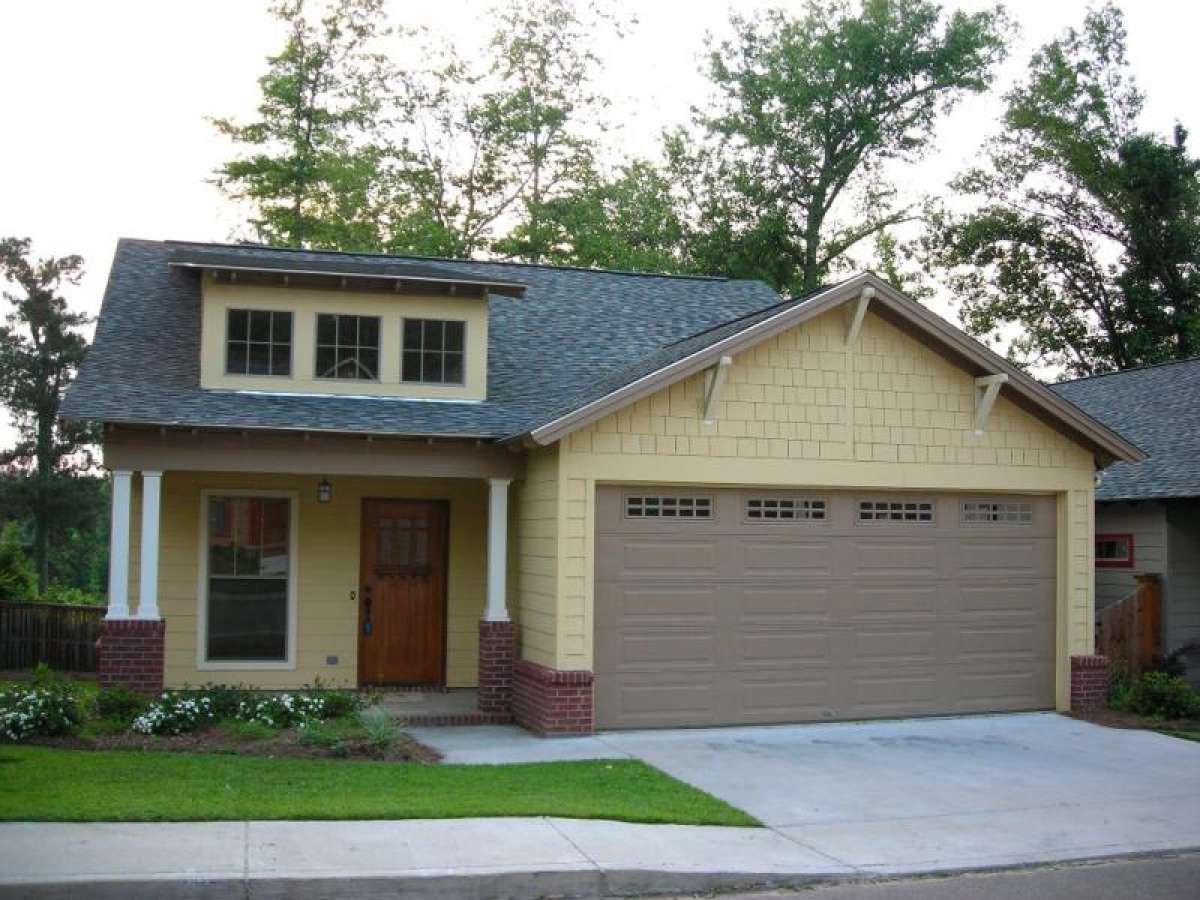

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 1,700

Beds 3

Bath 2

1/2 Baths 0

Car 2

Stories 1

Width 38'

Depth 74'

See What's Included

Return Policy, Building Code & Copyright Info

Floorplan Drawings

REVERSE PRINT DOWNLOAD

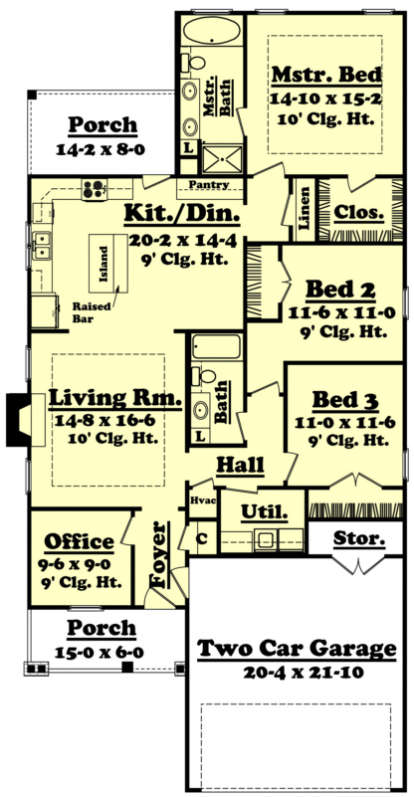

Main Floor

Images copyrighted by the designer.

What's Included in these plans?

Cover Sheet
Cover sheet typically includes a front view of the plan (may be in color), index of pages included, and other miscellaneous notes and details.
Foundation Plan & Details
Foundation plans describe to the builder, the type of foundation requested by the home owner or the type of foundation required by a certain geographic area. In most cases, the foundation plan will include footing sizes and locations, footing details and other important information needed to properly construct the home. In some specific areas, a structural engineer may be required to review and certify the house plans purchased. These reasons include, but are not limited to the following: seismic (earthquake) considerations, high wind (coastal , mountainous areas, etc.), snow loads, etc.
Floor Plans
The floor plans locate all walls, interior and exterior, of the entire building, denote ceiling heights and treatments, locate all plumbing fixtures, cabinets, door and window locations and sizes, gives square footage measurements, locate water heaters and hvac systems.
Exterior Elevations
The exterior elevations are used to depict the exterior finishes (brick, siding, stucco, etc.), roof styles (hip or gable) and slopes, ridge heights, and window styles, and overhang lengths. The exterior elevations include a front, right, rear, and left elevation.
Building Sections
The building sections describe to the builder how a particular home is to be constructed. Building sections typically show stud heights, the roof construction, whether stick built or pre engineered, direction of the ceiling joist members, overhang finishes, wall and ceiling finishes, and interior roof support members.
Roof Plan
The roof plan depicts the roof type, plate heights and roof slope of each plane.
Interior Cabinet Views
Cabinet views depict the overall design and layout of the kitchen cabinets.
Electrical Plan
The electrical plan depicts the general location of all interior and exterior electrical devices. This generally includes light switches, electrical outlets, ceiling fixtures, and smoke detectors. The electrical plan will also generally locate the breaker box and power entry.

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.

Ask Us A Question

About This Plan

This charming three bedroom, two bath home is ideal for a narrow lot. The covered front porch provides an ideal place for relaxing and greeting your family and guests. There is a flex space directly off the foyer which could be used as an office/study or playroom. The living room has 10’ ceilings, a gas log fireplace and is open to the dining room and kitchen. The kitchen has a center island with breakfast bar, a separate pantry, an abundance of additional counter and cabinet space and access to the rear porch. Two bedrooms with generous closets share a hall bath with linen closet. The master suite features a large trey ceiling bedroom, oversized walk-in closet, oversized hall linen closet and the master bath. The master bath is highlighted by dual vanities, a garden tub, separate shower and an additional linen closet. A large laundry room and two car garage with additional storage completes the home. This home may be compact but offers an abundance of charm and usable living space.
