Small Plan 041-00028


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,600
Beds 3
Bath 2
1/2 Baths 0
Car 2
Stories 1
Width 53' 6"
Depth 57' 6"

Floorplan Drawings

Main Floor

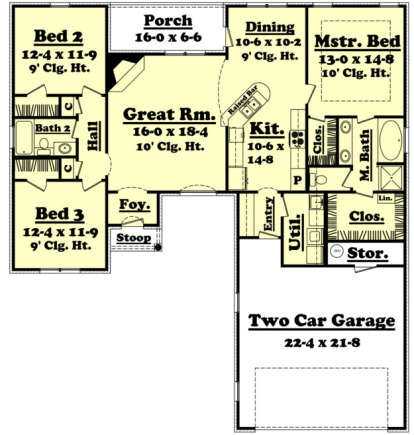

Main Floor for House Plan #041-00028

What's Included in these plans?

  • Cover Sheet
    Cover sheet typically includes a front view of the plan (may be in color), index of pages included, and other miscellaneous notes and details.
  • Foundation Plan & Details
    Foundation plans describe to the builder, the type of foundation requested by the home owner or the type of foundation required by a certain geographic area. In most cases, the foundation plan will include footing sizes and locations, footing details and other important information needed to properly construct the home. In some specific areas, a structural engineer may be required to review and certify the house plans purchased. These reasons include, but are not limited to the following: seismic (earthquake) considerations, high wind (coastal , mountainous areas, etc.), snow loads, etc.
  • Floor Plans
    The floor plans locate all walls, interior and exterior, of the entire building, denote ceiling heights and treatments, locate all plumbing fixtures, cabinets, door and window locations and sizes, gives square footage measurements, locate water heaters and hvac systems.
  • Exterior Elevations
    The exterior elevations are used to depict the exterior finishes (brick, siding, stucco, etc.), roof styles (hip or gable) and slopes, ridge heights, and window styles, and overhang lengths. The exterior elevations include a front, right, rear, and left elevation.
  • Building Sections
    The building sections describe to the builder how a particular home is to be constructed.  Building sections typically show stud heights, the roof construction, whether stick built or pre engineered, direction of the ceiling joist members, overhang finishes, wall and ceiling finishes, and interior roof support members.
  • Roof Plan
    The roof plan depicts the roof type, plate heights and roof slope of each plane.
  • Interior Cabinet Views
    Cabinet views depict the overall design and layout of the kitchen cabinets.
  • Electrical Plan
    The electrical plan depicts the general location of all interior and exterior electrical devices. This generally includes light switches, electrical outlets, ceiling fixtures, and smoke detectors. The electrical plan will also generally locate the breaker box and power entry.

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

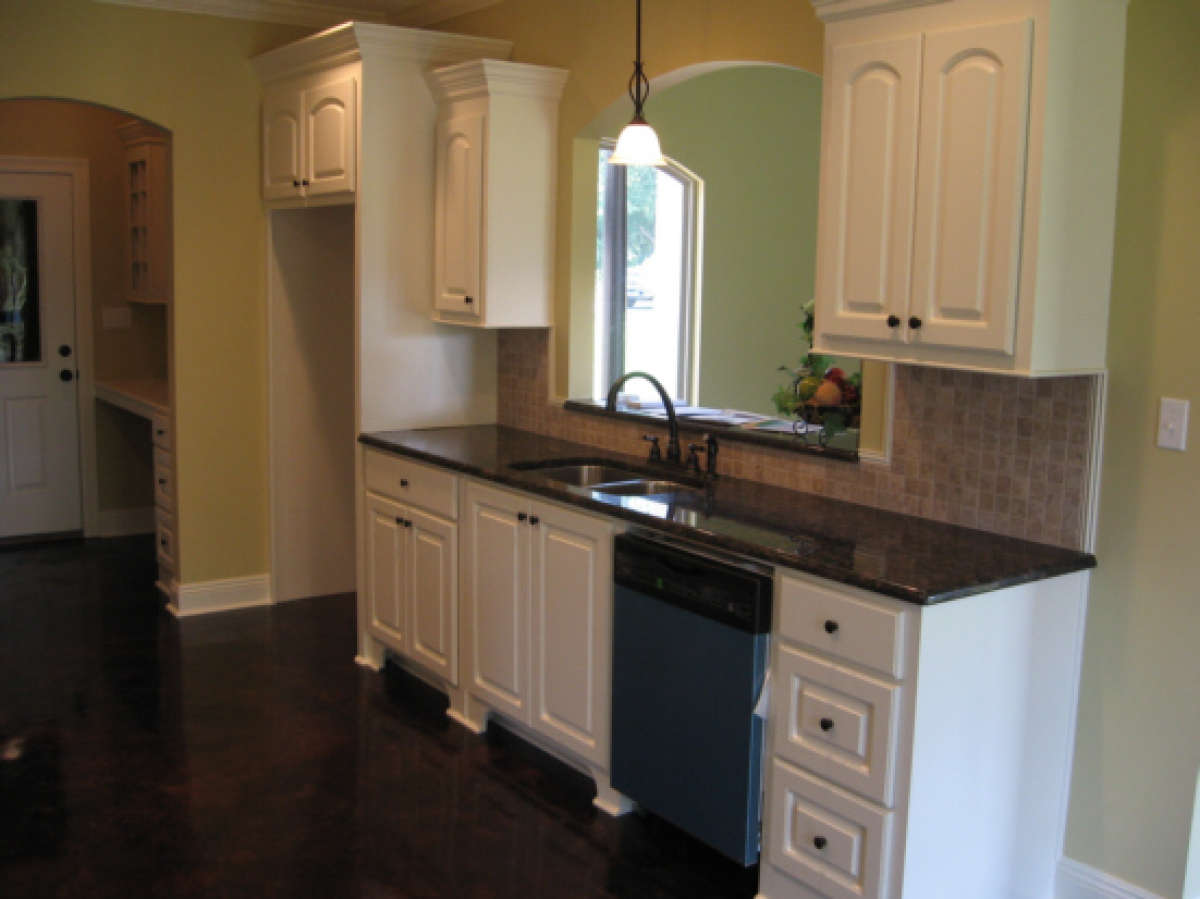

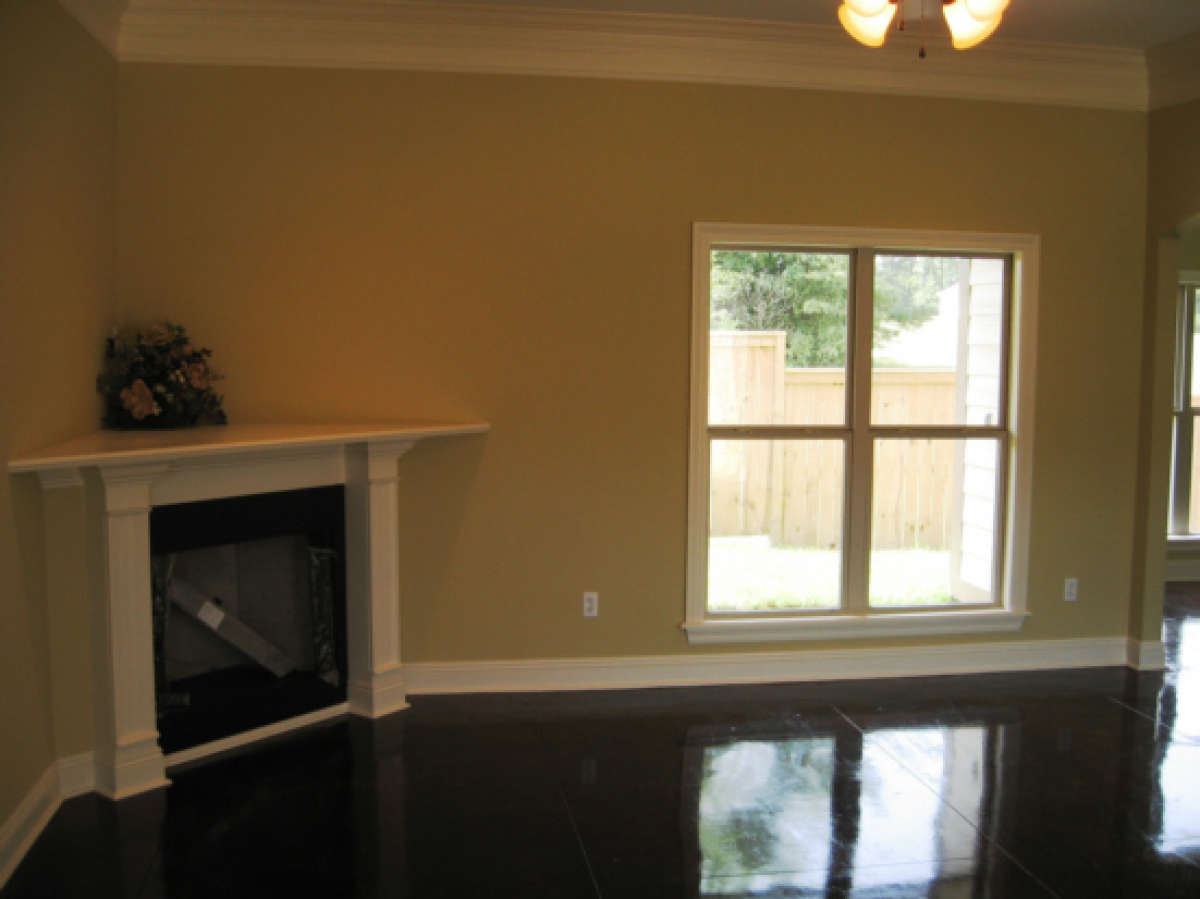

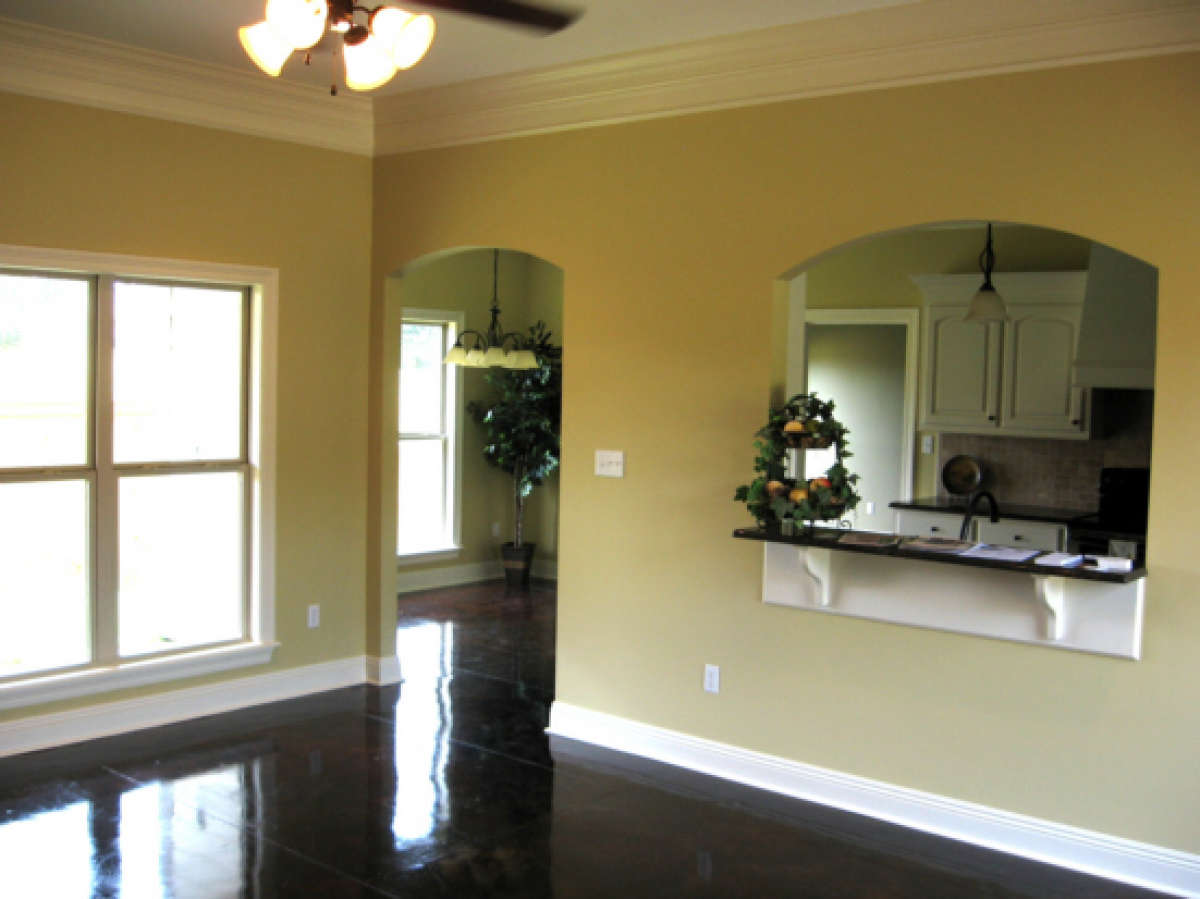

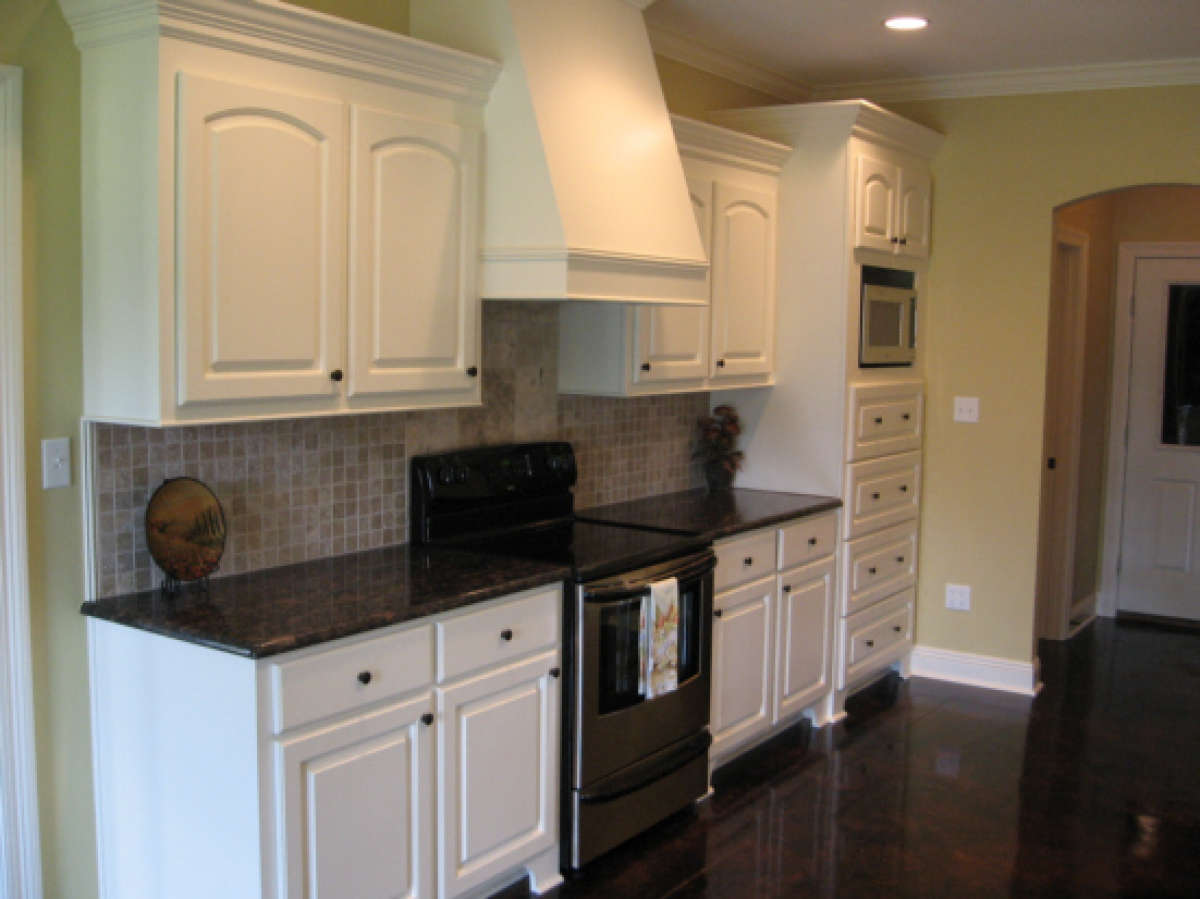

This charming 3 bedroom, 2 bath home has a functional floor plan and the amenities your family desires. The great room is spacious with 10’ ceilings, a corner fireplace and rear porch views and is open to the kitchen and dining room which offers rear porch access. The kitchen boasts of a corner angled bar, separate pantry and a plethora of additional counter and cabinet space. Two bedrooms with ample closet space share a hall bath on one side of the home while the master suite is located on the opposite for privacy. The master bedroom is highlighted by a trey ceiling and the master bath features dual vanities, a separate shower and garden tub. An oversized walk-in closet and linen closet is located at the rear of the bath. There is a large interior laundry room located off the two car garage and additional storage in the garage. This home offers true luxury in 1,600 square feet of space.
