Ranch House Plan 041-00022

Sq Ft2,500
1/2 Baths1
Width80' 8"
Depth51' 0"
Ranch House Plan #041-00022 Elevation Photo
Main Floor

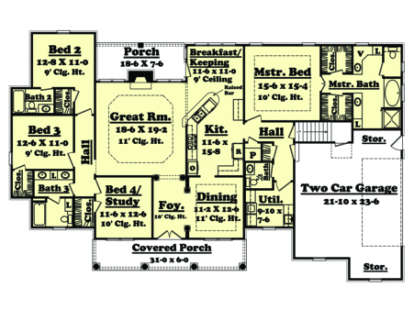

Main Floor for House Plan #041-00022
Second Floor

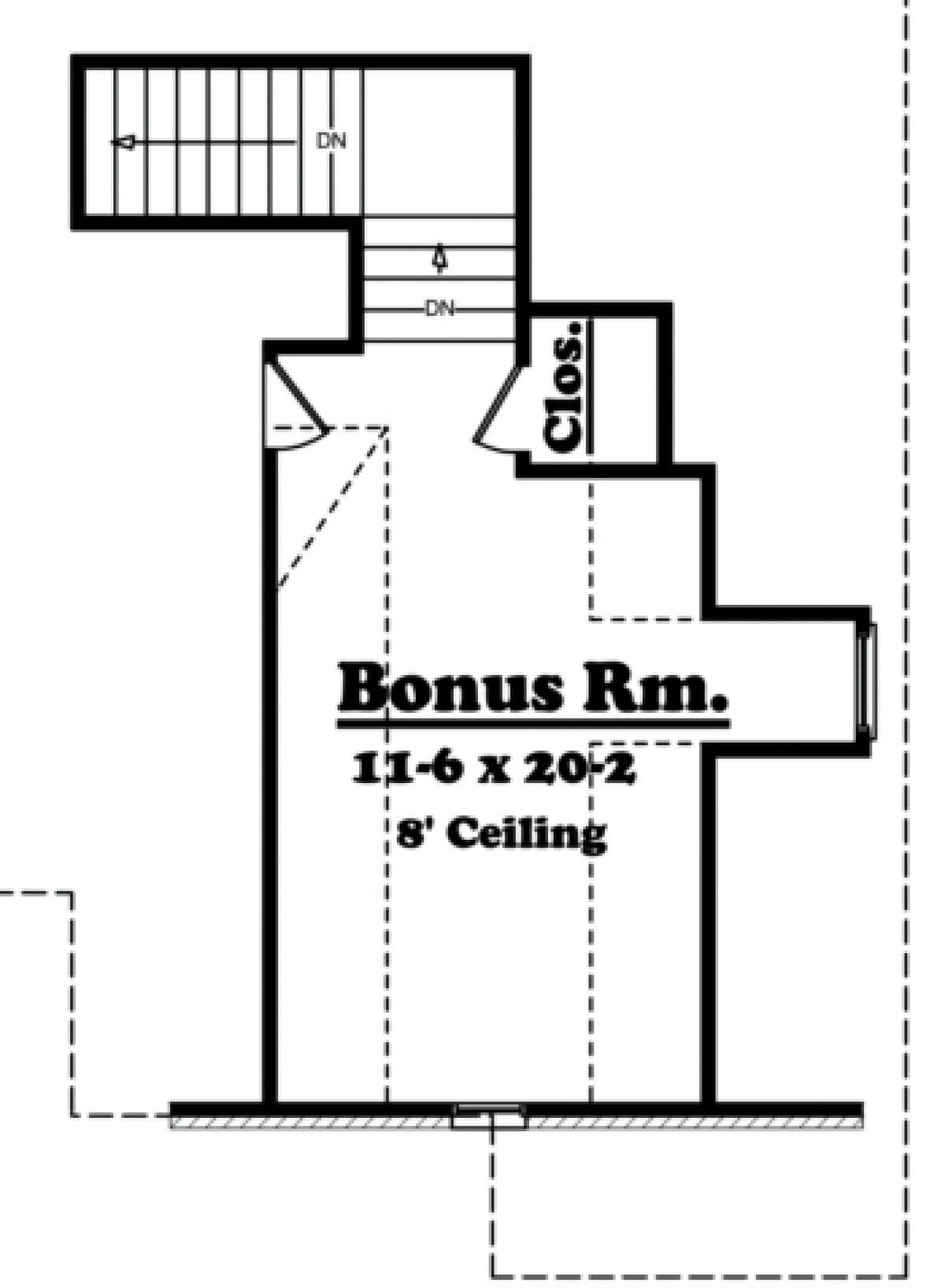

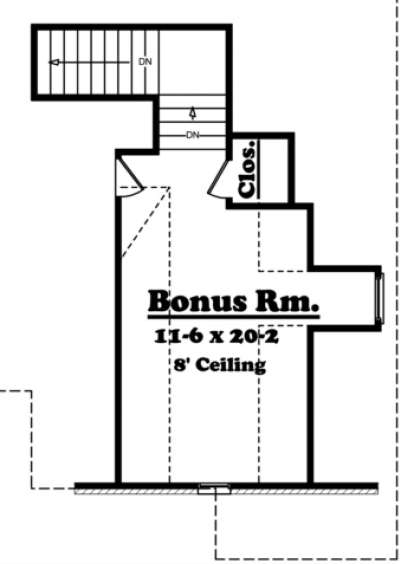

Second Floor for House Plan #041-00022
Ranch House Plan #041-00022 Elevation Photo
Ranch House Plan #041-00022 Elevation Photo
Main Floor for House Plan #041-00022
Second Floor for House Plan #041-00022
Ranch House Plan #041-00022 Elevation Photo
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Main Floor for House Plan #041-00022
Second Floor for House Plan #041-00022
Main Floor
Main Floor for House Plan #041-00022
Second Floor
Second Floor for House Plan #041-00022

Frequently Asked Questions


What's Included in these plans?

  • Cover Sheet
    Cover sheet typically includes a front view of the plan (may be in color), index of pages included, and other miscellaneous notes and details.
  • Foundation Plan & Details
    Foundation plans describe to the builder, the type of foundation requested by the home owner or the type of foundation required by a certain geographic area. In most cases, the foundation plan will include footing sizes and locations, footing details and other important information needed to properly construct the home. In some specific areas, a structural engineer may be required to review and certify the house plans purchased. These reasons include, but are not limited to the following: seismic (earthquake) considerations, high wind (coastal , mountainous areas, etc.), snow loads, etc.
  • Floor Plans
    The floor plans locate all walls, interior and exterior, of the entire building, denote ceiling heights and treatments, locate all plumbing fixtures, cabinets, door and window locations and sizes, gives square footage measurements, locate water heaters and hvac systems.
  • Exterior Elevations
    The exterior elevations are used to depict the exterior finishes (brick, siding, stucco, etc.), roof styles (hip or gable) and slopes, ridge heights, and window styles, and overhang lengths. The exterior elevations include a front, right, rear, and left elevation.
  • Building Sections
    The building sections describe to the builder how a particular home is to be constructed.  Building sections typically show stud heights, the roof construction, whether stick built or pre engineered, direction of the ceiling joist members, overhang finishes, wall and ceiling finishes, and interior roof support members.
  • Roof Plan
    The roof plan depicts the roof type, plate heights and roof slope of each plane.
  • Interior Cabinet Views
    Cabinet views depict the overall design and layout of the kitchen cabinets.
  • Electrical Plan
    The electrical plan depicts the general location of all interior and exterior electrical devices. This generally includes light switches, electrical outlets, ceiling fixtures, and smoke detectors. The electrical plan will also generally locate the breaker box and power entry.

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This one and half story home is both elegant and functional in its design. There are four bedrooms, three of which share a hallway. One bedroom features its own private bath while the other two share a bath with dual vanities. The master suite includes a large trey ceiling bedroom which opens onto the hallway to the bath with his and her oversized walk-in closets on either side. The master bath has separate dual vanities, a garden tub, separate shower and a compartmentalized toilet. The spacious front covered porch leads to the foyer which is open to the formal dining room. The large kitchen with corner raised bar anchors both the formal dining room the keeping/breakfast room which leads to the rear porch. The massive great room has beautiful rear porch views and a rear wall fireplace. There is a walk-in pantry, half bath and large utility room situated down the second hallway. Additionally, a two car, side entry garage with double storage areas complete the main level of the home. Upstairs, you will find a large bonus room with closet which could be used as a fifth bedroom or playroom/recreation room for the family. This home offers versatility and comfort for a large family.
