Southern Plan 041-00019


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,400
Beds 3
Bath 2
1/2 Baths 1
Car 2
Stories 1.5
Width 64' 2"
Depth 71' 4"

Floorplan Drawings

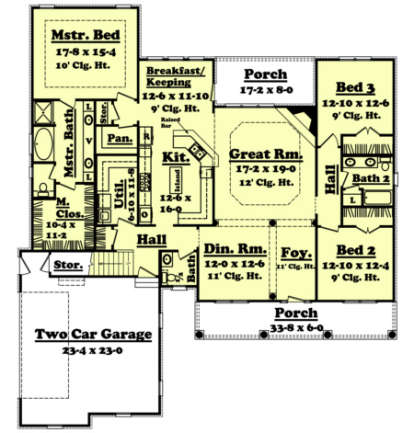

Main Floor
Main Floor for House Plan #041-00019

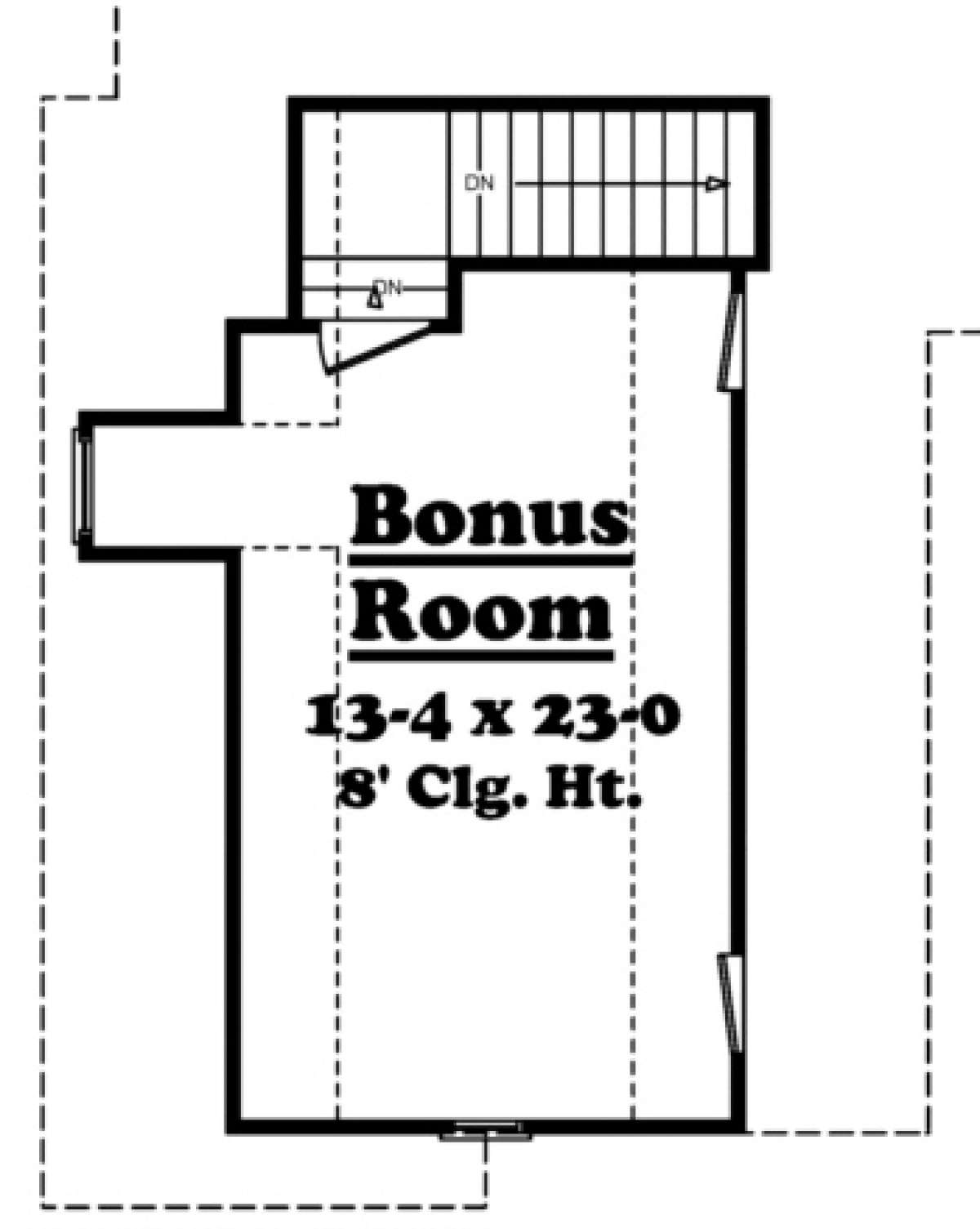

Second Floor
Second Floor for House Plan #041-00019

What's Included in these plans?

  • Cover Sheet
    Cover sheet typically includes a front view of the plan (may be in color), index of pages included, and other miscellaneous notes and details.
  • Foundation Plan & Details
    Foundation plans describe to the builder, the type of foundation requested by the home owner or the type of foundation required by a certain geographic area. In most cases, the foundation plan will include footing sizes and locations, footing details and other important information needed to properly construct the home. In some specific areas, a structural engineer may be required to review and certify the house plans purchased. These reasons include, but are not limited to the following: seismic (earthquake) considerations, high wind (coastal , mountainous areas, etc.), snow loads, etc.
  • Floor Plans
    The floor plans locate all walls, interior and exterior, of the entire building, denote ceiling heights and treatments, locate all plumbing fixtures, cabinets, door and window locations and sizes, gives square footage measurements, locate water heaters and hvac systems.

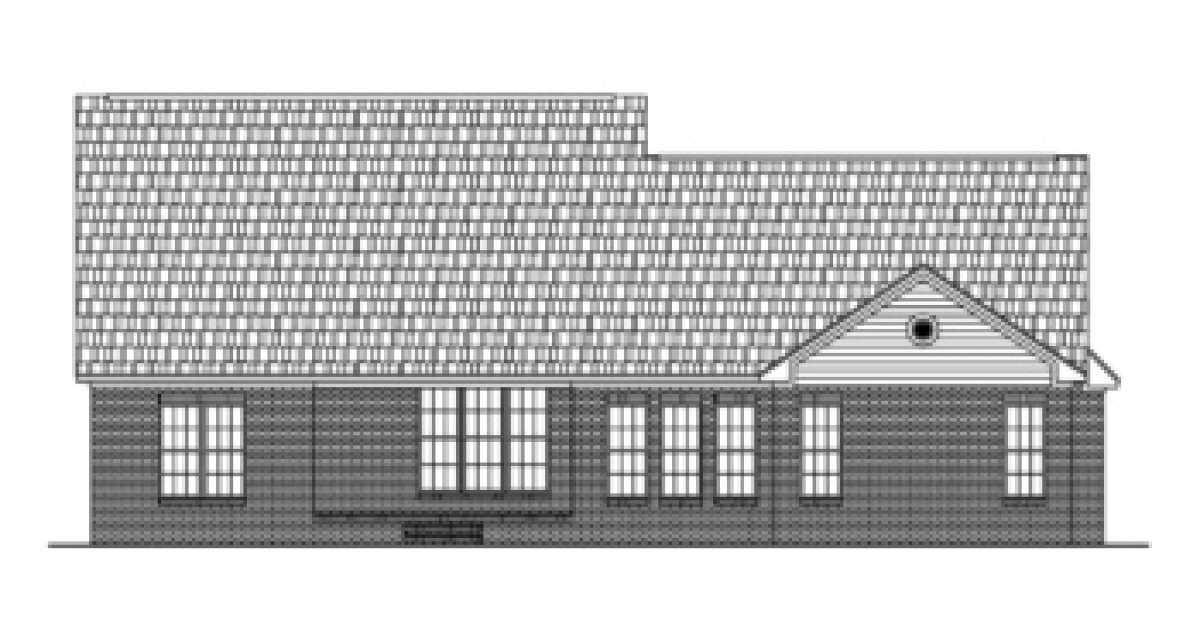

  • Exterior Elevations
    The exterior elevations are used to depict the exterior finishes (brick, siding, stucco, etc.), roof styles (hip or gable) and slopes, ridge heights, and window styles, and overhang lengths. The exterior elevations include a front, right, rear, and left elevation.
  • Building Sections
    The building sections describe to the builder how a particular home is to be constructed.  Building sections typically show stud heights, the roof construction, whether stick built or pre engineered, direction of the ceiling joist members, overhang finishes, wall and ceiling finishes, and interior roof support members.
  • Roof Plan
    The roof plan depicts the roof type, plate heights and roof slope of each plane.
  • Interior Cabinet Views
    Cabinet views depict the overall design and layout of the kitchen cabinets.
  • Electrical Plan
    The electrical plan depicts the general location of all interior and exterior electrical devices. This generally includes light switches, electrical outlets, ceiling fixtures, and smoke detectors. The electrical plan will also generally locate the breaker box and power entry.

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This one and half story floor plan offers space and versatility in 2,400 square feet. The open concept plan features a spacious foyer with 11’ ceilings that opens onto the formal dining room and great room. The great room is highlighted with a 12’foot ceiling, corner gas fireplace and a stunning wall of window view of the large rear porch. The keeping room is spacious and offers rear porch access while the kitchen is an amazing space. It features a center island in addition to a corner angled raised bar area and an abundance of additional counter space along with a plethora of cabinets. An oversized walk-in pantry and additional storage room is directly accessible from the kitchen. Two bedrooms with spacious closets share a hall bath which includes dual vanities and large linen closet. The master retreat is situated on the opposite side of the home for privacy and is highlighted by a large bedroom with trey ceiling and his and her walk-in closets situated at the rear of the master bath. The master bath is quite large and offers dual vanities, a linen closet, separate shower, garden tub and a compartmentalized toilet. An oversized laundry room with loads of counter space, a half bath and two car, side entry garage with additional storage complete the main level of the home. A 401 square foot bonus room is located upstairs and would make an ideal playroom, office or craft room. This home offers an abundance of space and a versatile floor plan perfect for your family.
