Ranch House Plan 041-00017

Sq Ft1,700
1/2 Baths1
Width61' 10"
Depth47' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

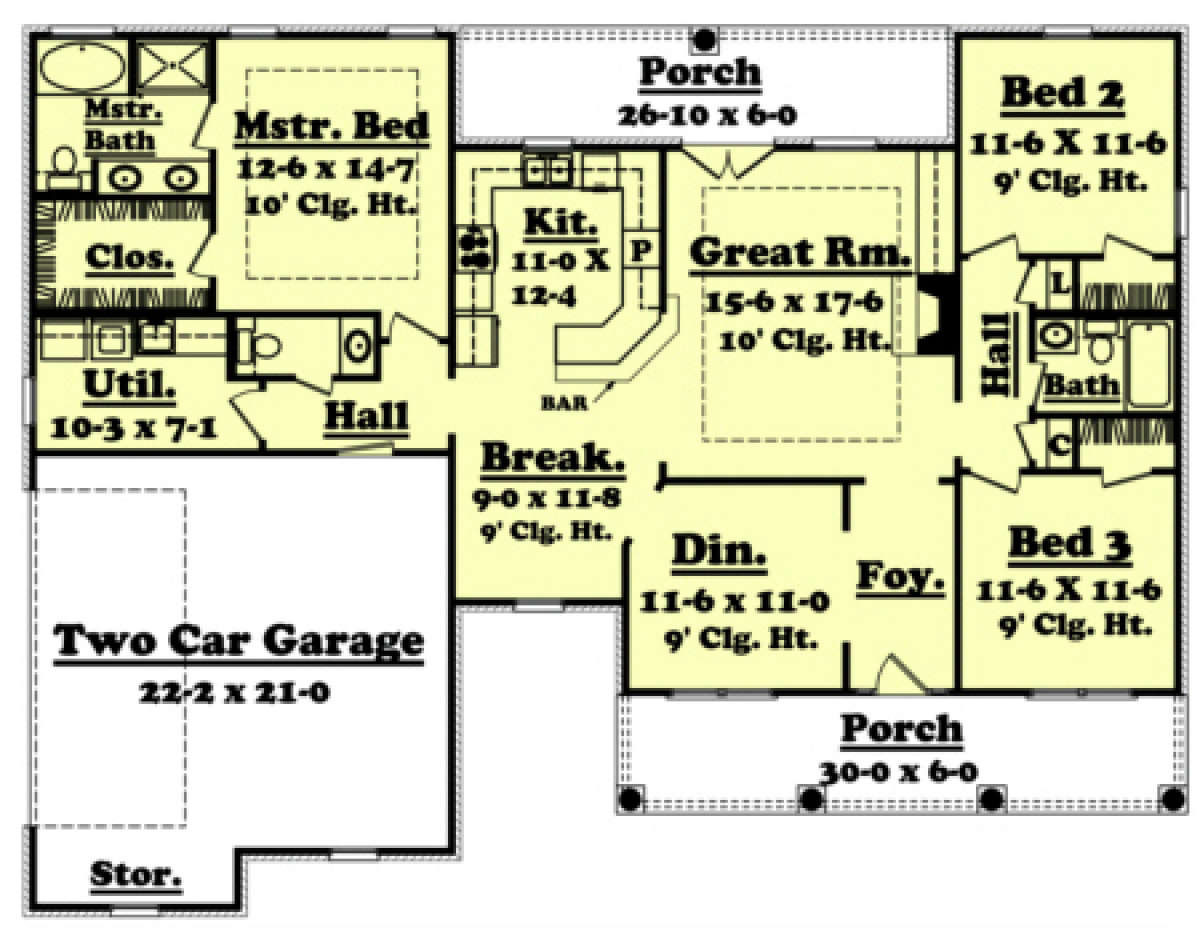

Main Floor for House Plan #041-00017

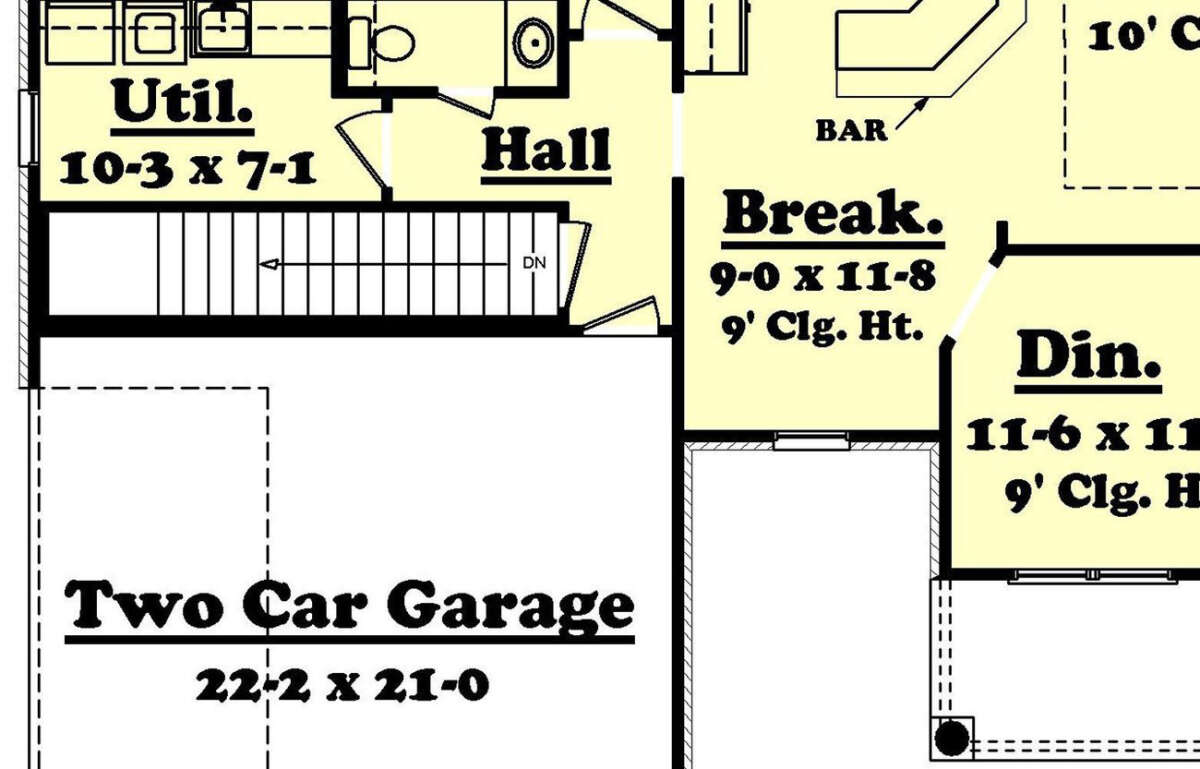

Basement Stairs Location for House Plan #041-00017
Main Floor
Main Floor for House Plan #041-00017
Basement Stairs Location
Basement Stairs Location for House Plan #041-00017

Frequently Asked Questions


What's Included in these plans?

  • Cover Sheet
    Cover sheet typically includes a front view of the plan (may be in color), index of pages included, and other miscellaneous notes and details.
  • Foundation Plan & Details
    Foundation plans describe to the builder, the type of foundation requested by the home owner or the type of foundation required by a certain geographic area. In most cases, the foundation plan will include footing sizes and locations, footing details and other important information needed to properly construct the home. In some specific areas, a structural engineer may be required to review and certify the house plans purchased. These reasons include, but are not limited to the following: seismic (earthquake) considerations, high wind (coastal , mountainous areas, etc.), snow loads, etc.
  • Floor Plans
    The floor plans locate all walls, interior and exterior, of the entire building, denote ceiling heights and treatments, locate all plumbing fixtures, cabinets, door and window locations and sizes, gives square footage measurements, locate water heaters and hvac systems.
  • Exterior Elevations

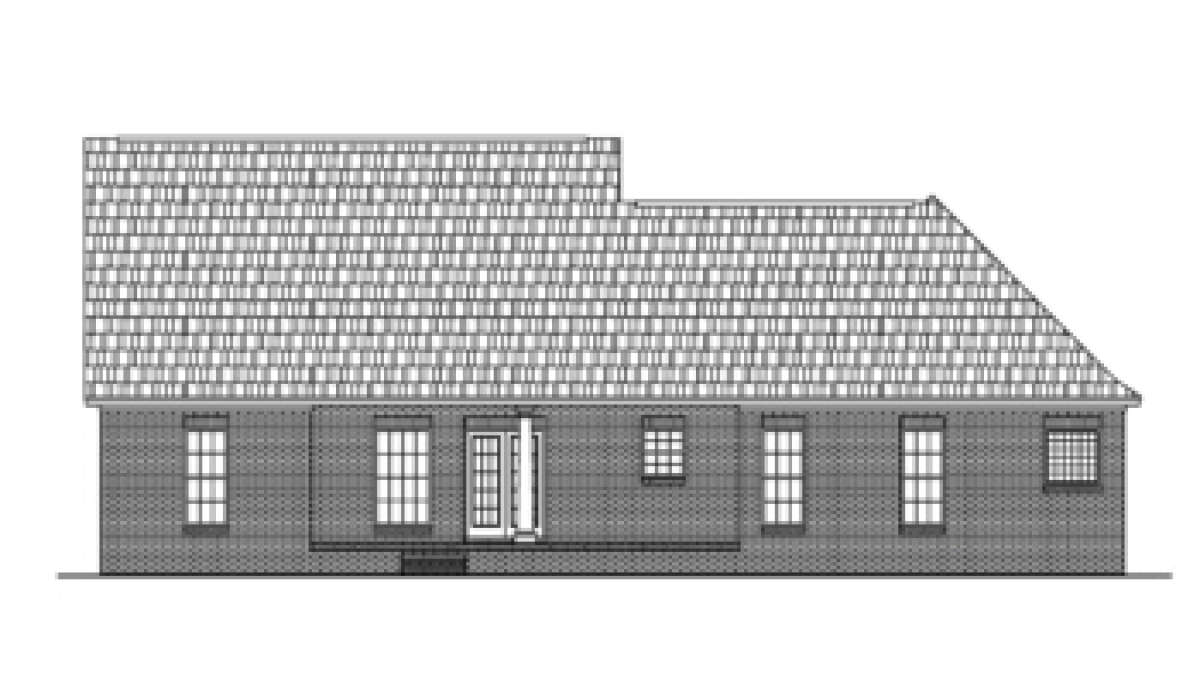

    The exterior elevations are used to depict the exterior finishes (brick, siding, stucco, etc.), roof styles (hip or gable) and slopes, ridge heights, and window styles, and overhang lengths. The exterior elevations include a front, right, rear, and left elevation.
  • Building Sections
    The building sections describe to the builder how a particular home is to be constructed.  Building sections typically show stud heights, the roof construction, whether stick built or pre engineered, direction of the ceiling joist members, overhang finishes, wall and ceiling finishes, and interior roof support members.
  • Roof Plan
    The roof plan depicts the roof type, plate heights and roof slope of each plane.
  • Interior Cabinet Views
    Cabinet views depict the overall design and layout of the kitchen cabinets.
  • Electrical Plan
    The electrical plan depicts the general location of all interior and exterior electrical devices. This generally includes light switches, electrical outlets, ceiling fixtures, and smoke detectors. The electrical plan will also generally locate the breaker box and power entry.

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This Country Cottage ranch house plan features a beautiful exterior that is highlighted with a split covered front porch, a triple set of window dormers and low maintenance brick work. Tremendous rounded column beams support the roofline while adding texture and substance to the covered porch. The interior floor plan includes an open concept and functional living spaces within approximately 1,700 square feet of living space that incorporates three bedrooms and two plus baths into the plan. The expansive front covered porch measures 30’x6’ and grants entrance into the home’s foyer which opens onto the side formal dining room. A large great room features a trey ceiling, a gas log fireplace, built-in cabinetry and French door access onto the rear covered porch. There is an angled breakfast bar, a separate pantry and loads of counter and cabinet space revealed in the spacious kitchen. The adjoining breakfast room features great casual dining space for enjoyable family meals. The two car side loading garage enjoys additional storage space and leads to a large interior laundry room and a half bath for guests.
The ubiquitous split bedroom plan places two family bedrooms on one side of the home where both enjoy good floor space, generous closet space and share a hall bath that is flanked on either side by a linen and coat closet. The master retreat is a private oasis of well-appointed rooms which include a trey ceiling bedroom, an oversized walk-in closet and a luxurious en suite bath. The master bath features modern amenities that homeowners have come to desire and expect; there are dual vanities, a separate shower and a garden tub. This home offers function and comfort while combining style for your family’s pleasure.
