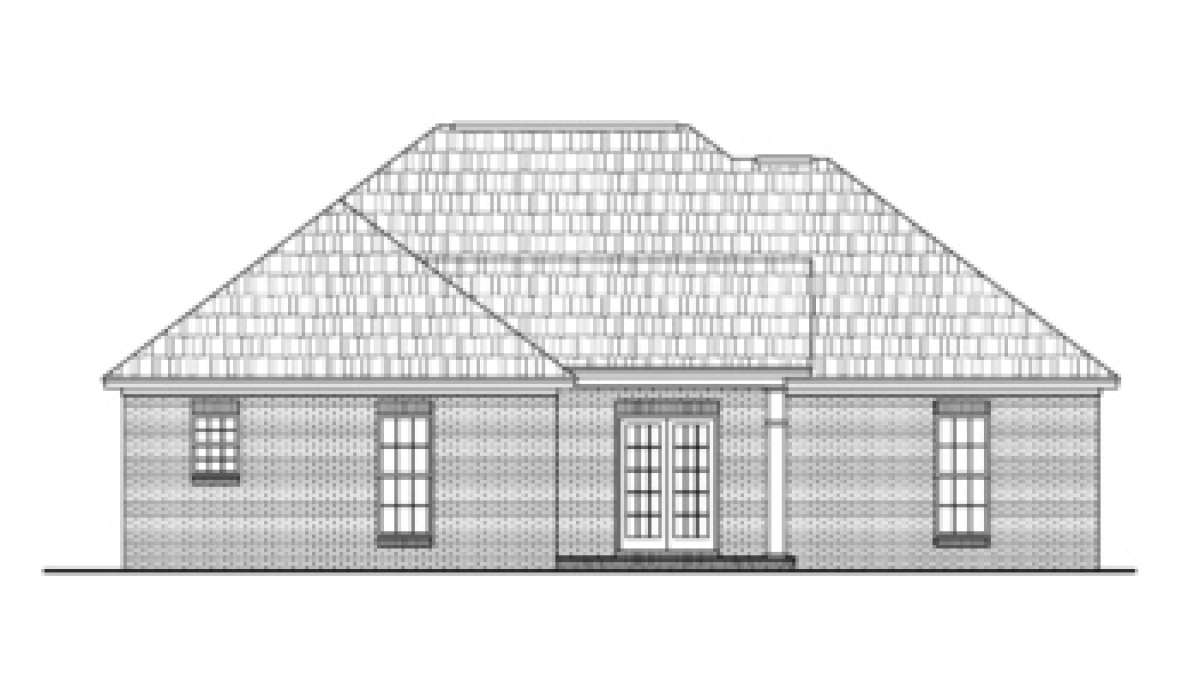

Traditional House Plan #041-00016 Elevation Photo

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 1,600

Beds 3

Bath 2

1/2 Baths 1

Car 2

Stories 1

Width 47'

Depth 65'

See What's Included

Return Policy, Building Code & Copyright Info

Floorplan Drawings

REVERSE PRINT DOWNLOAD

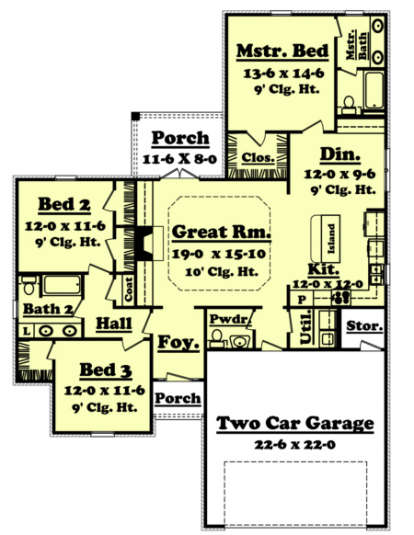

Main Floor

Images copyrighted by the designer.

What's Included in these plans?

Cover Sheet
Cover sheet typically includes a front view of the plan (may be in color), index of pages included, and other miscellaneous notes and details.
Foundation Plan & Details
Foundation plans describe to the builder, the type of foundation requested by the home owner or the type of foundation required by a certain geographic area. In most cases, the foundation plan will include footing sizes and locations, footing details and other important information needed to properly construct the home. In some specific areas, a structural engineer may be required to review and certify the house plans purchased. These reasons include, but are not limited to the following: seismic (earthquake) considerations, high wind (coastal , mountainous areas, etc.), snow loads, etc.
Floor Plans
The floor plans locate all walls, interior and exterior, of the entire building, denote ceiling heights and treatments, locate all plumbing fixtures, cabinets, door and window locations and sizes, gives square footage measurements, locate water heaters and hvac systems.
Exterior Elevations
The exterior elevations are used to depict the exterior finishes (brick, siding, stucco, etc.), roof styles (hip or gable) and slopes, ridge heights, and window styles, and overhang lengths. The exterior elevations include a front, right, rear, and left elevation.
Building Sections
The building sections describe to the builder how a particular home is to be constructed. Building sections typically show stud heights, the roof construction, whether stick built or pre engineered, direction of the ceiling joist members, overhang finishes, wall and ceiling finishes, and interior roof support members.
Roof Plan
The roof plan depicts the roof type, plate heights and roof slope of each plane.
Interior Cabinet Views
Cabinet views depict the overall design and layout of the kitchen cabinets.
Electrical Plan
The electrical plan depicts the general location of all interior and exterior electrical devices. This generally includes light switches, electrical outlets, ceiling fixtures, and smoke detectors. The electrical plan will also generally locate the breaker box and power entry.

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.

Ask Us A Question

About This Plan

This three bedroom, two and half bath split bedroom plan is both functional and practical and measures 1,600 square feet. Two bedrooms, one with a walk-in closet; the other with double closets, share a hall bath with dual vanities and a linen closet. The master retreat features a large bedroom, walk-in closet and master bath with dual vanities. The spacious foyer leads into the large great room with 10’ ceilings, a gas log fireplace, built-in cabinetry and rear porch access through French doors. The dining room and kitchen are large with a center island and breakfast bar area, a walk-in pantry and plenty of additional counter and cabinet space. A powder room, utility room and two car garage with additional storage space completes the home. This brick home offers minimal maintenance and a floor plan with usable living space.
