European Plan 041-00009


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,500
Beds 3
Bath 2
1/2 Baths 0
Car 2
Stories 1
Width 59'
Depth 41' 6"

Floorplan Drawings

Main Floor

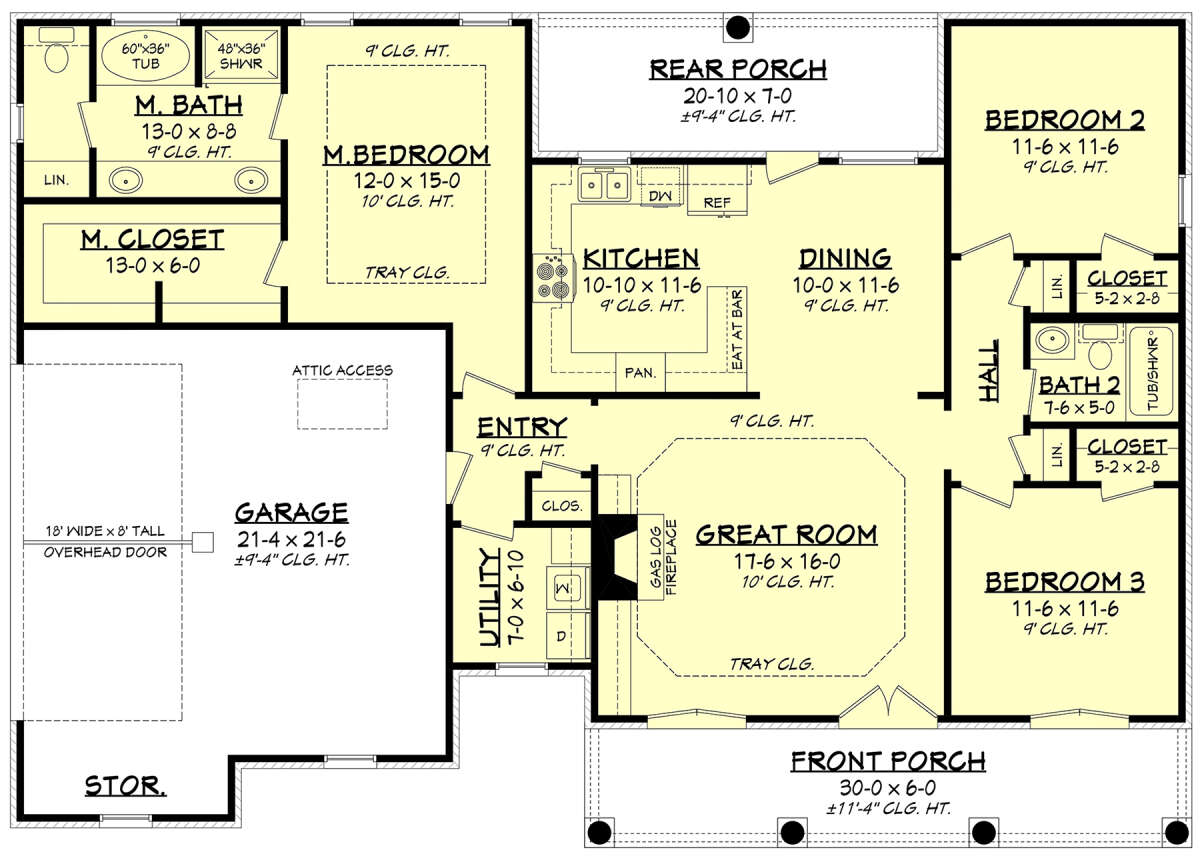

Main Floor for House Plan #041-00009

What's Included in these plans?

  • Cover Sheet
    Cover sheet typically includes a front view of the plan (may be in color), index of pages included, and other miscellaneous notes and details.
  • Foundation Plan & Details
    Foundation plans describe to the builder, the type of foundation requested by the home owner or the type of foundation required by a certain geographic area. In most cases, the foundation plan will include footing sizes and locations, footing details and other important information needed to properly construct the home. In some specific areas, a structural engineer may be required to review and certify the house plans purchased. These reasons include, but are not limited to the following: seismic (earthquake) considerations, high wind (coastal , mountainous areas, etc.), snow loads, etc.
  • Floor Plans
    The floor plans locate all walls, interior and exterior, of the entire building, denote ceiling heights and treatments, locate all plumbing fixtures, cabinets, door and window locations and sizes, gives square footage measurements, locate water heaters and hvac systems.
  • Exterior Elevations

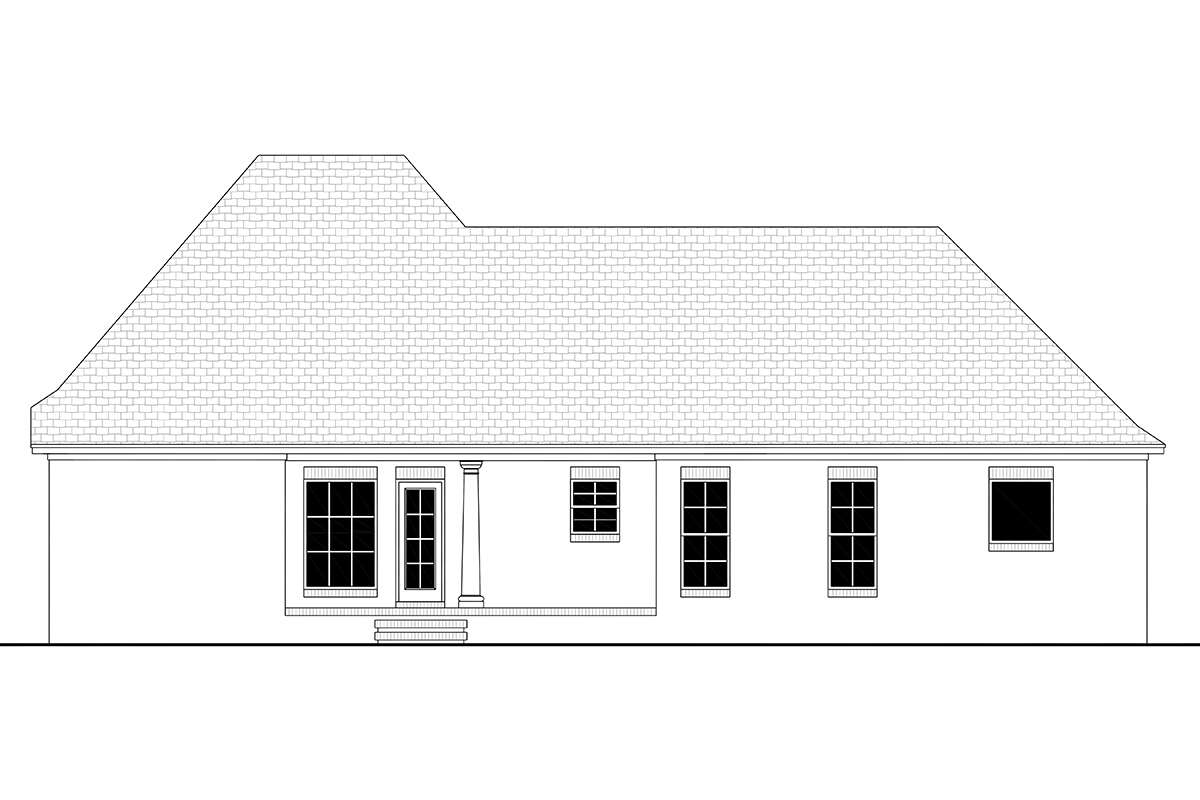

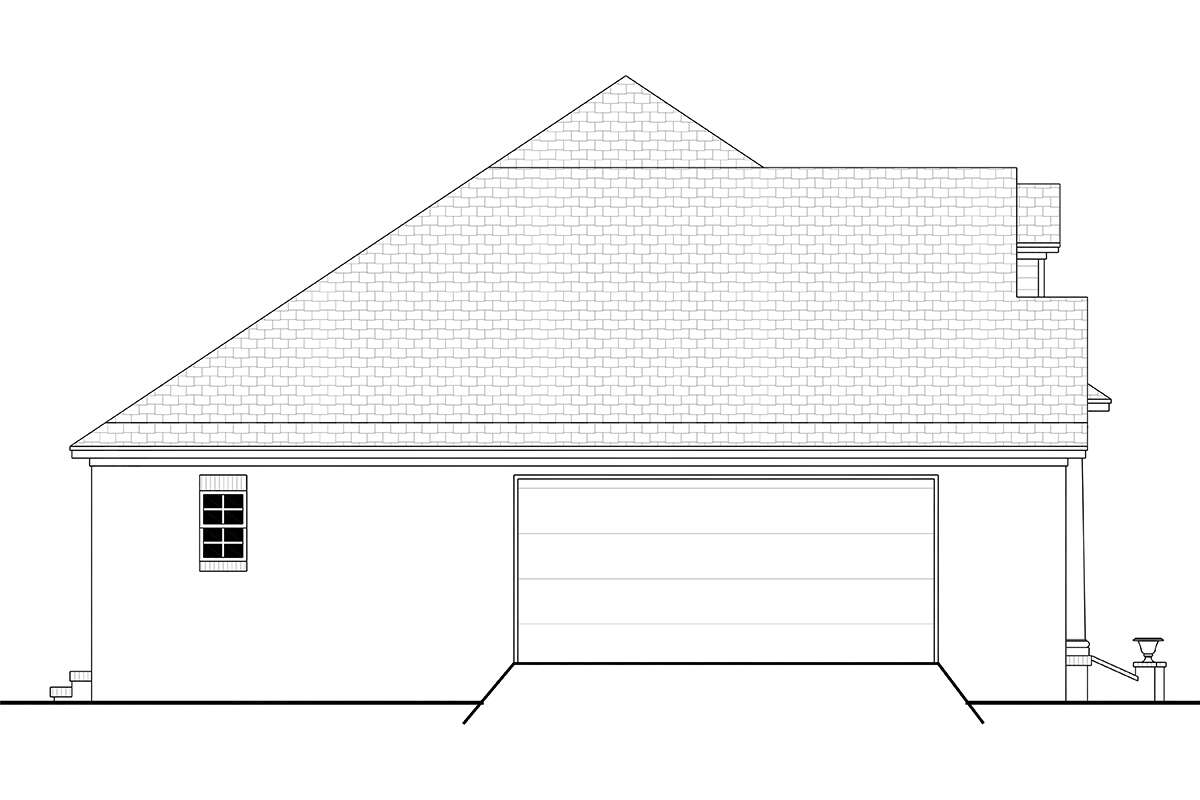

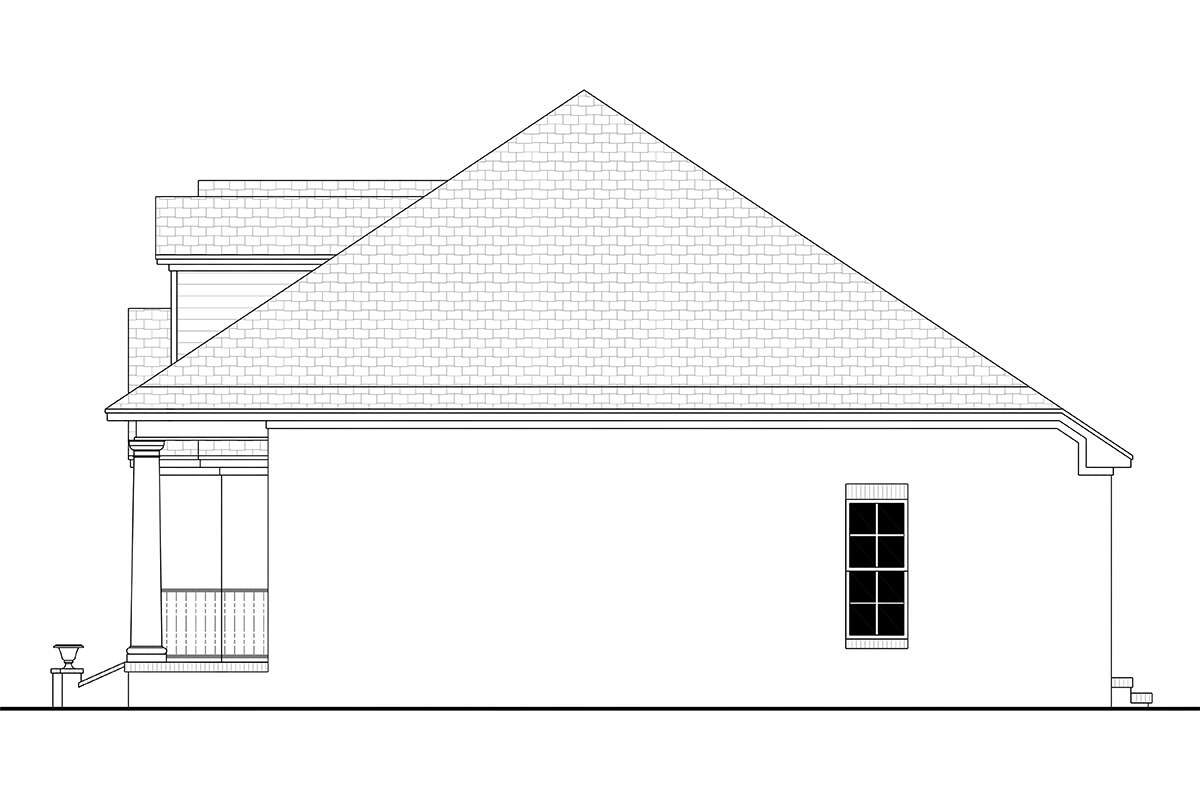

    The exterior elevations are used to depict the exterior finishes (brick, siding, stucco, etc.), roof styles (hip or gable) and slopes, ridge heights, and window styles, and overhang lengths. The exterior elevations include a front, right, rear, and left elevation.
  • Building Sections
    The building sections describe to the builder how a particular home is to be constructed.  Building sections typically show stud heights, the roof construction, whether stick built or pre engineered, direction of the ceiling joist members, overhang finishes, wall and ceiling finishes, and interior roof support members.
  • Roof Plan
    The roof plan depicts the roof type, plate heights and roof slope of each plane.
  • Interior Cabinet Views
    Cabinet views depict the overall design and layout of the kitchen cabinets.
  • Electrical Plan
    The electrical plan depicts the general location of all interior and exterior electrical devices. This generally includes light switches, electrical outlets, ceiling fixtures, and smoke detectors. The electrical plan will also generally locate the breaker box and power entry.

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

A spectacular open concept floor plan awaits you and your family in this home. The large covered front porch provides access into the oversized great room with a 10’ ceiling, gas log fireplace and built-in cabinetry. The dining room is spacious and provides access to the rear porch while the kitchen features a separate pantry, L-shaped counter and plenty of additional counter and cabinet space. Two bedrooms with spacious closets share a hall bath with double linen closets. The master retreat is situated on the opposite side of the home for privacy and convenience. The bedroom has a lovely trey ceiling and access to his and her walk-in closets. The master bath has all the amenities you have come to expect ~ dual vanities, a separate shower, garden tub and linen closet. A large laundry room and two car, side entry garage with additional storage space completes the home. This floor plan is ideal for your young family.
