Northwest Plan 039-00553

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,487
Beds 3
Bath 2
1/2 Baths 1
Car 0
Stories 2
Width 51'
Depth 36'

Floorplan Drawings

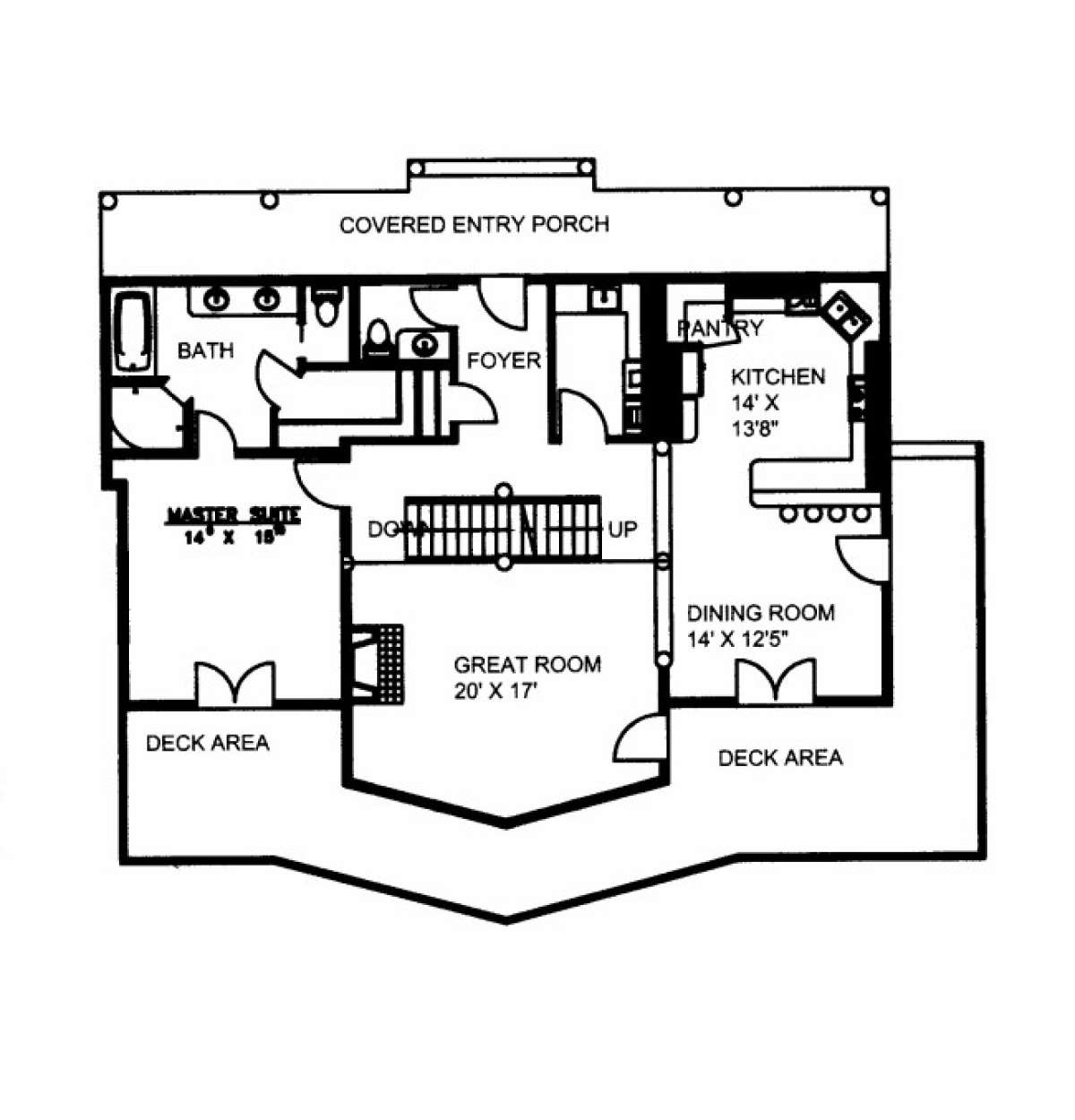

First Floor

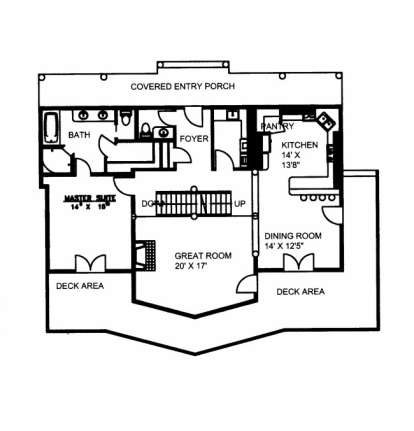

First Floor for House Plan #039-00553

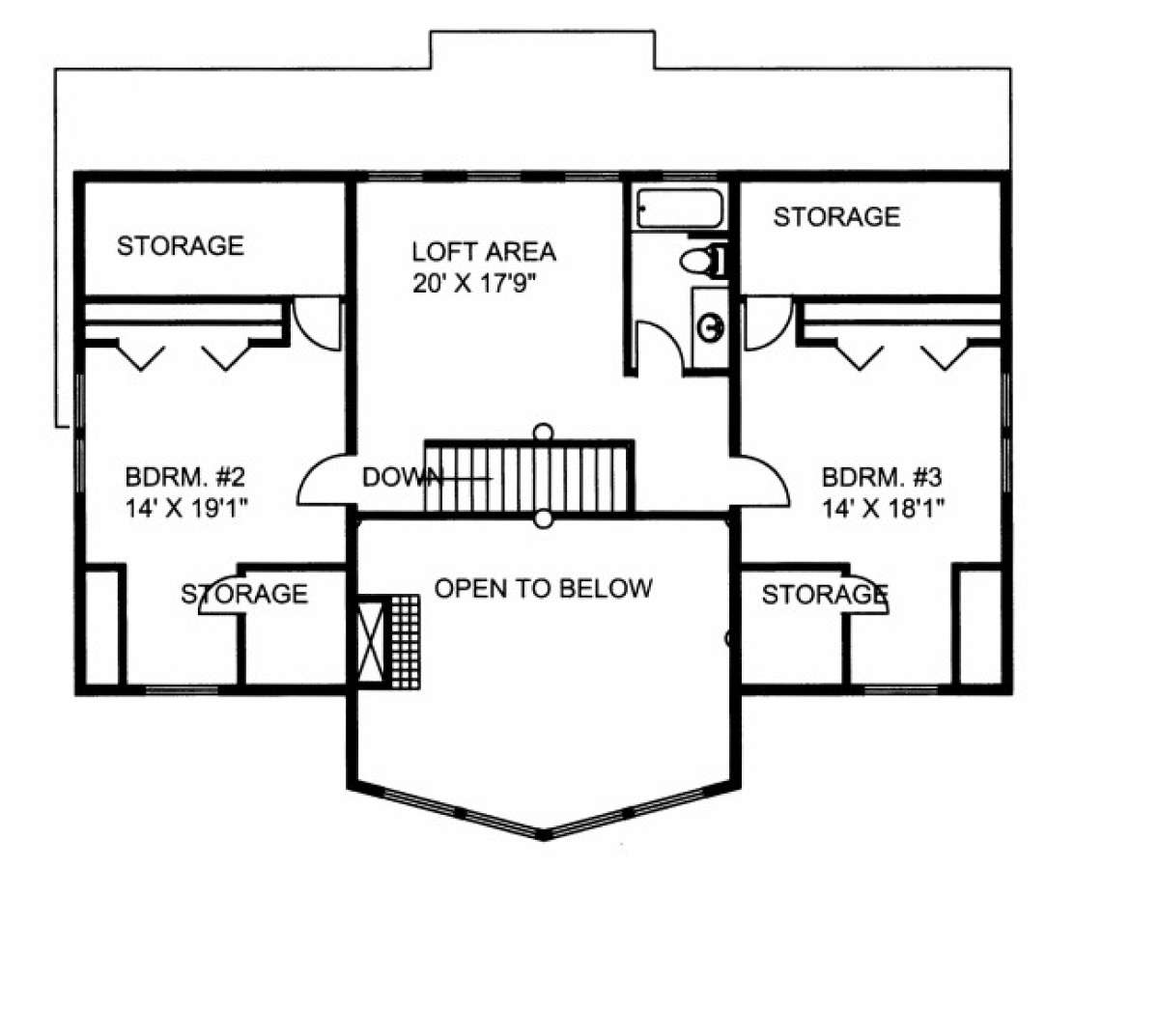

Second Floor
Second Floor for House Plan #039-00553

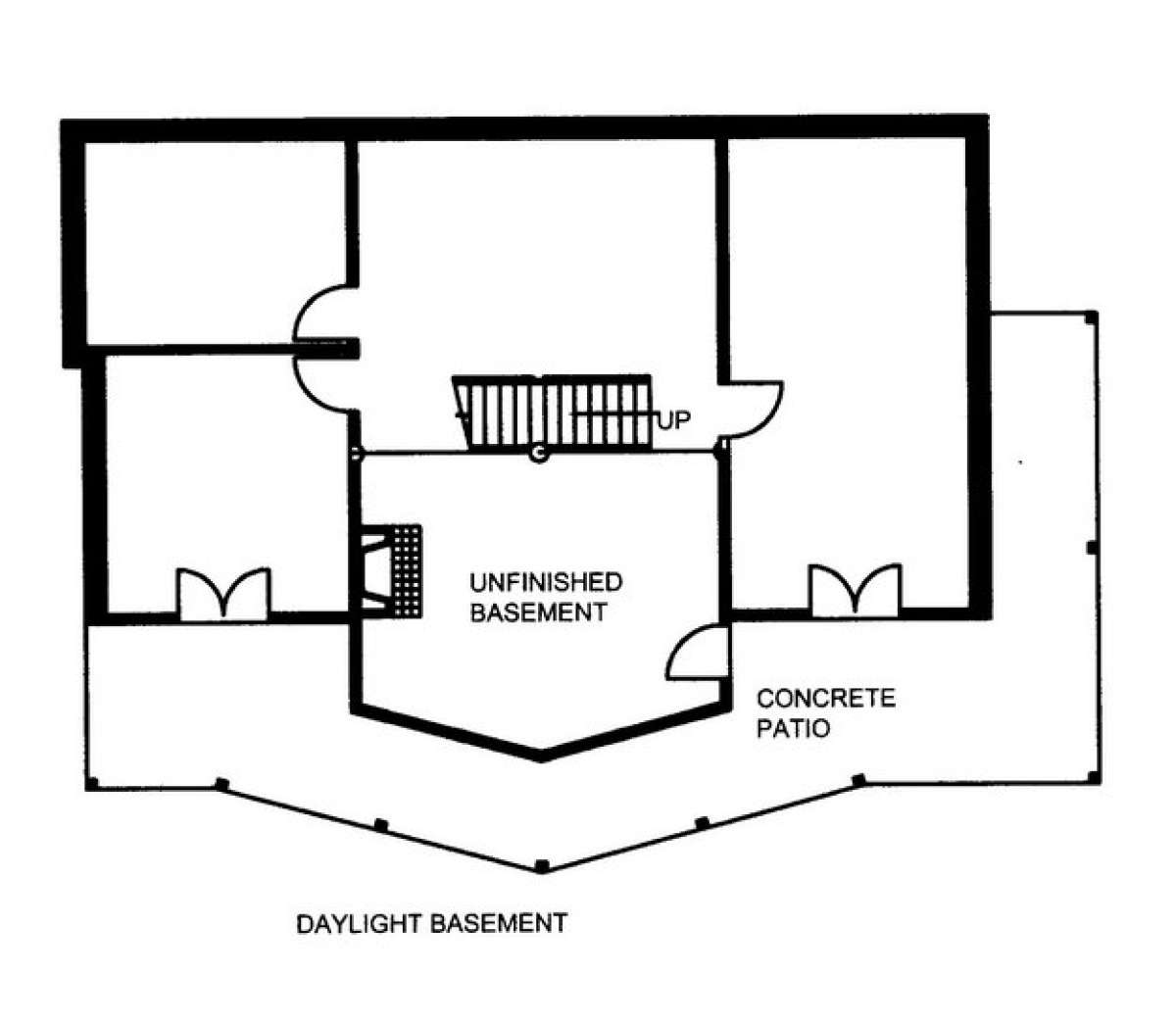

Basement Floor
Basement Floor for House Plan #039-00553


What's Included in these plans?

  • Exterior elevations: show the front, rear, and sides of the house to scale from a straight on perspective.
  • Detailed floor plans: show the placement and sizes of interior walls, rooms, doors, windows, and similar elements for each level of the house.
  • Foundation plans: include all necessary notations and dimensions to create the foundation of the house. If the plan you choose doesn't have the type of foundation you desire, we will create one for you at a reasonable fee.
  • Upper floor framing plans are included with two story homes or homes with lofts.
  • The roofing plan gives the layout of rafters, dormers, gables, and other roof elements, such as skylights.
  • Cross-sections: show details of the house as though it were cut in slices from the roof to the foundation. The cross sections give the construction, insulation, flooring, and roofing details.
  • Schematic electrical layouts: show the suggested locations for switches, fixtures, and outlets.
  • General specifications: provide instructions and information regarding excavation and grading, masonry and concrete work, carpentry and woodwork, thermal and moisture protection, drywall, tile, flooring, glazing, and caulking and sealants.




Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

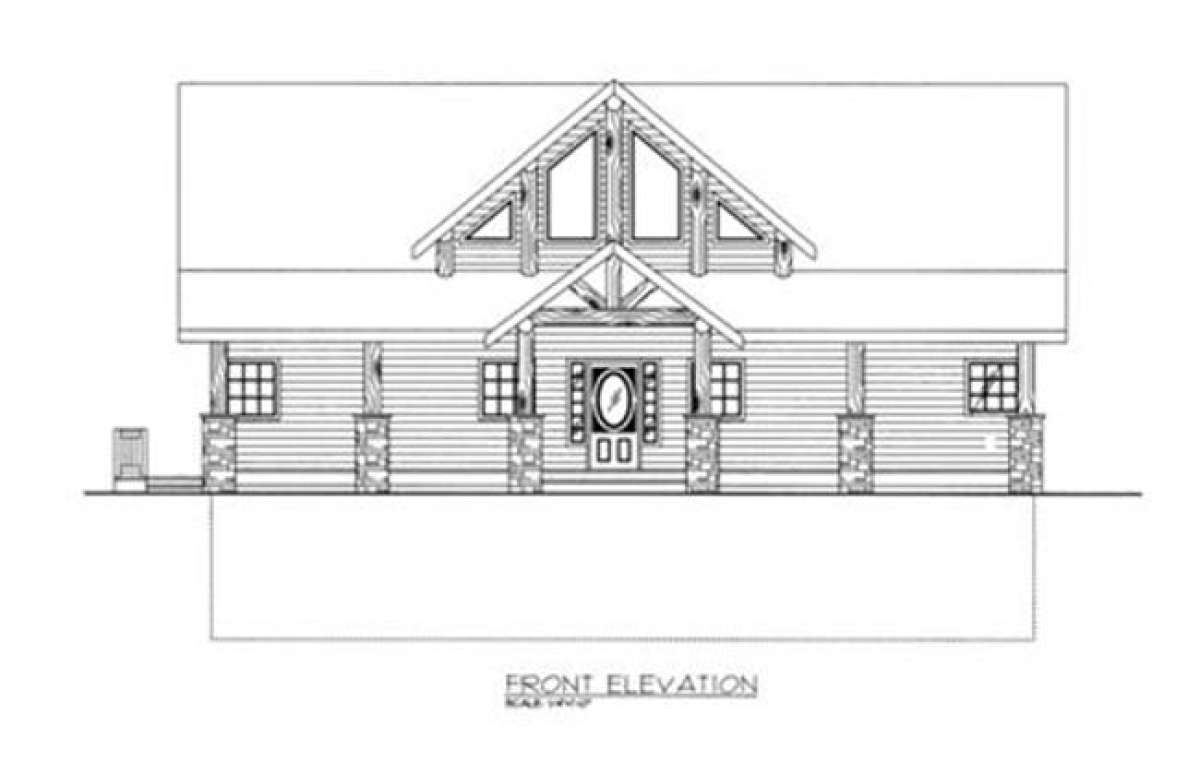

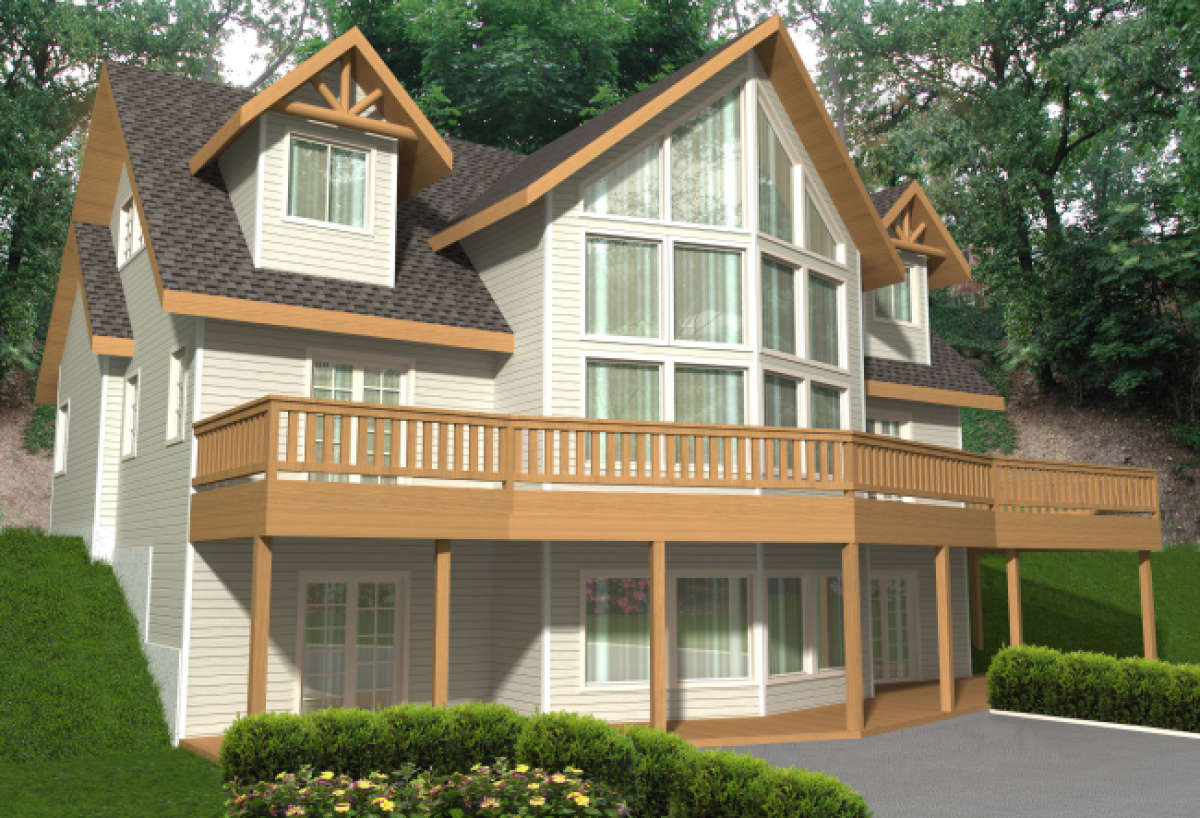

This bold house plan features amazing window views, a front covered porch and an enormous deck ideal for those who value their outdoor space. Double gable features, stone pillars and wood hewn beams decorate the expansive front covered porch that runs the width of the home. The rear deck wraps around the side of the home, features entry/exit points off the great room, dining room and master bedroom and also provides cover for the below terrace level. The home’s interior floor plan is highlighted with approximately 2,487 square feet of living space and there is an additional 1,548 square feet located in the unfinished basement foundation. Within the two main levels of the home are three bedrooms, two plus baths and an open floor plan. There is a large great room beyond the front foyer and centrally located double staircase. The great room features floor to ceiling split window views overlooking the deck, a warming fireplace and open transition to the dining room and kitchen. The dining room is spacious with French door access onto the deck as well as side access to the deck. The kitchen features a peninsula breakfast bar for additional seating, a corner pantry and plenty of counter and cabinet space. There is a guest powder room and large laundry room with sink and good counter space located on the main floor as well. The main level master suite features a spacious bedroom with wonderful window views and French door access onto the rear deck. The en suite master bath is highlighted with modern amenities such as dual vanities, a garden tub and a separate shower. The large walk-in master closet is located directly off the bath for convenience and privacy.

Dramatic overlooks onto the great room below are featured on the second story landing. There is a huge loft, measuring in excess of 20’ x 17’, perfect for a playroom for young children, a homework station for older children or it could be used as a casual family entertaining space adjacent to the staircase. Two oversized bedrooms flank the loft and they both have plentiful closet space and huge double storage rooms are located on each end of the bedroom. There is a shared hall bath with a vanity space, a toilet area and a tub/shower combination between the bedrooms. This attractive home features a grand floor plan, plenty of expansion space and a bold exterior.
