Mountain Plan 039-00499


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 3,304
Beds 2
Bath 3
1/2 Baths 0
Car 2
Stories 1
Width 65'
Depth 56' 6"

Floorplan Drawings

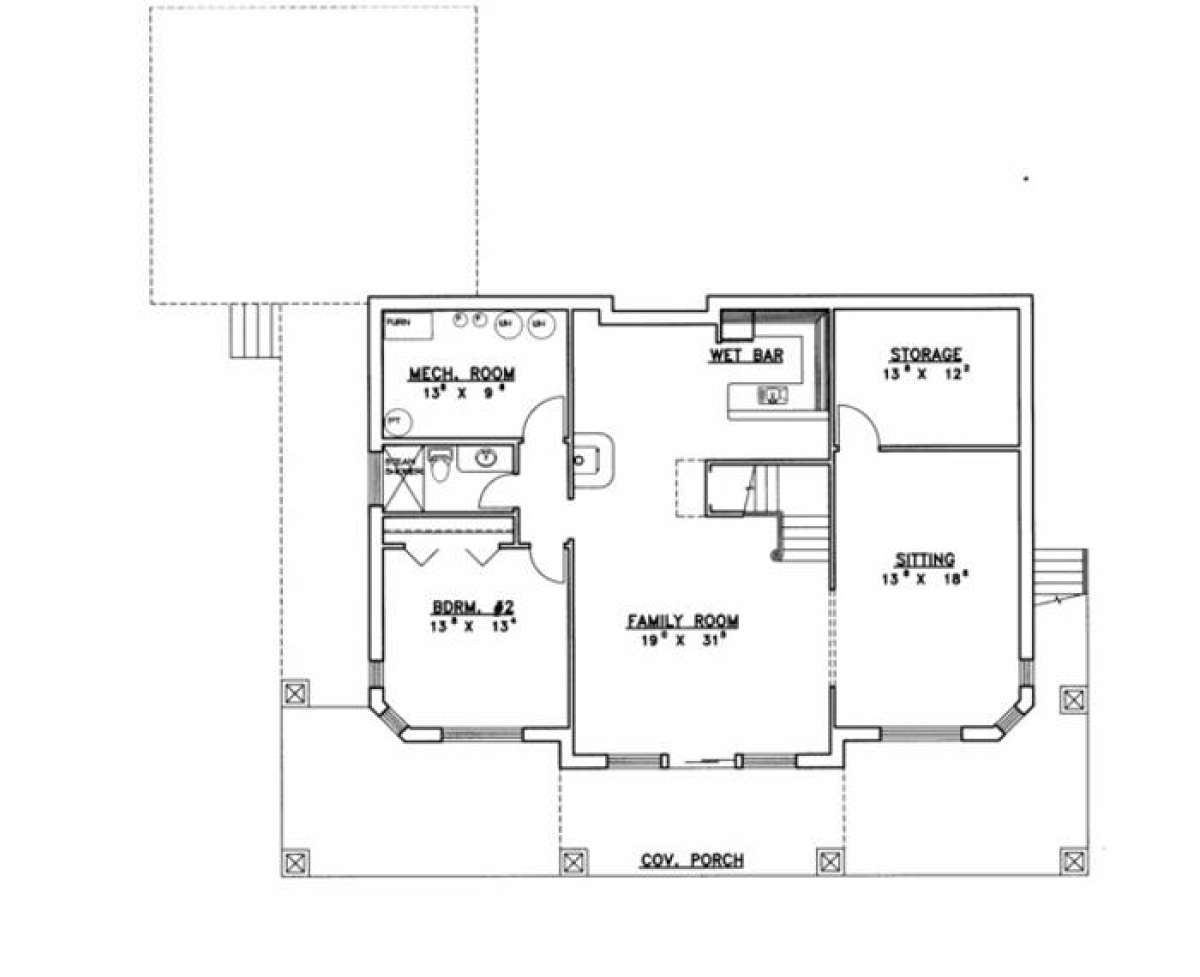

Basement Floor
Basement Floor for House Plan #039-00499

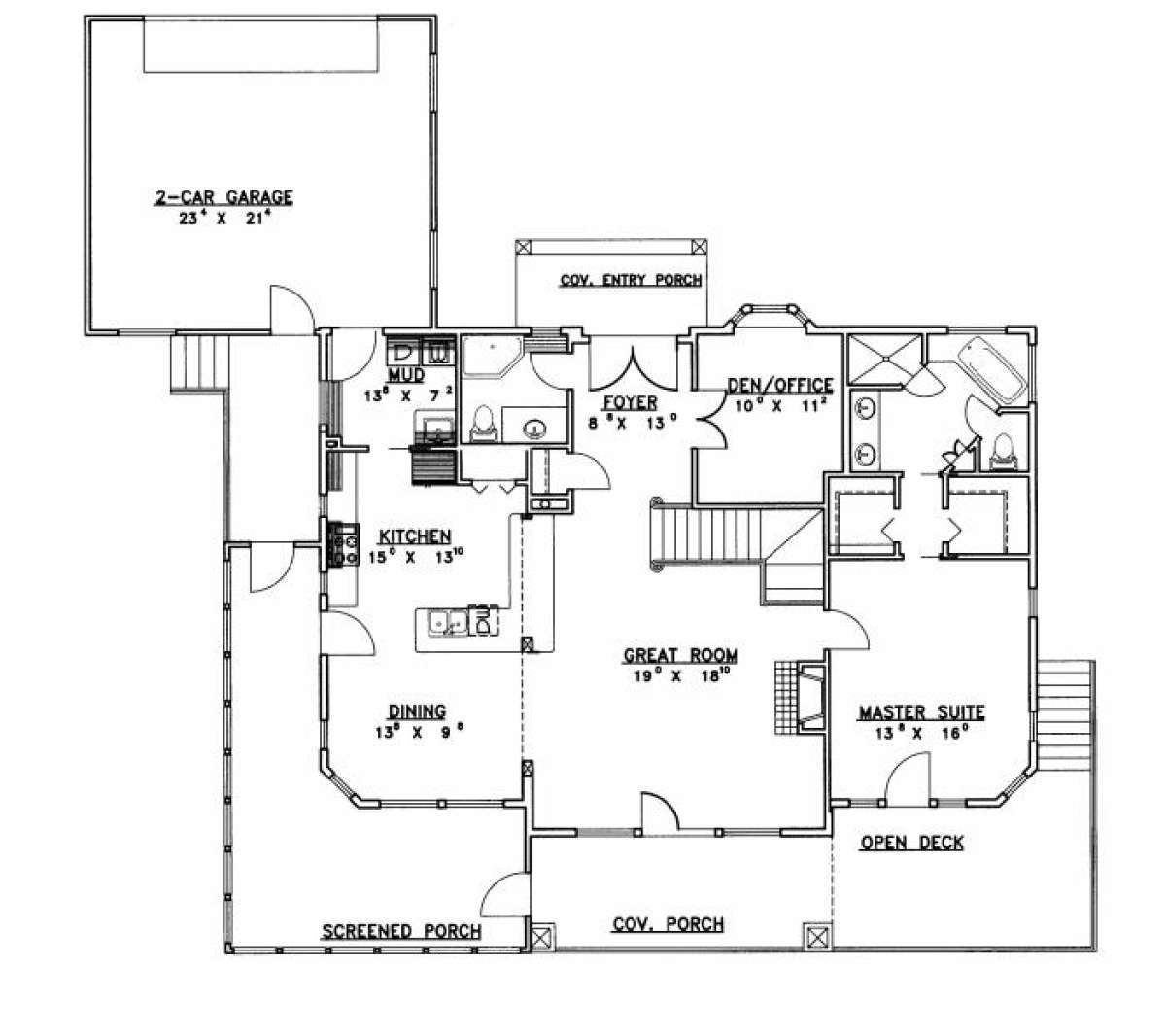

Main Floor
Main Floor for House Plan #039-00499

What's Included in these plans?

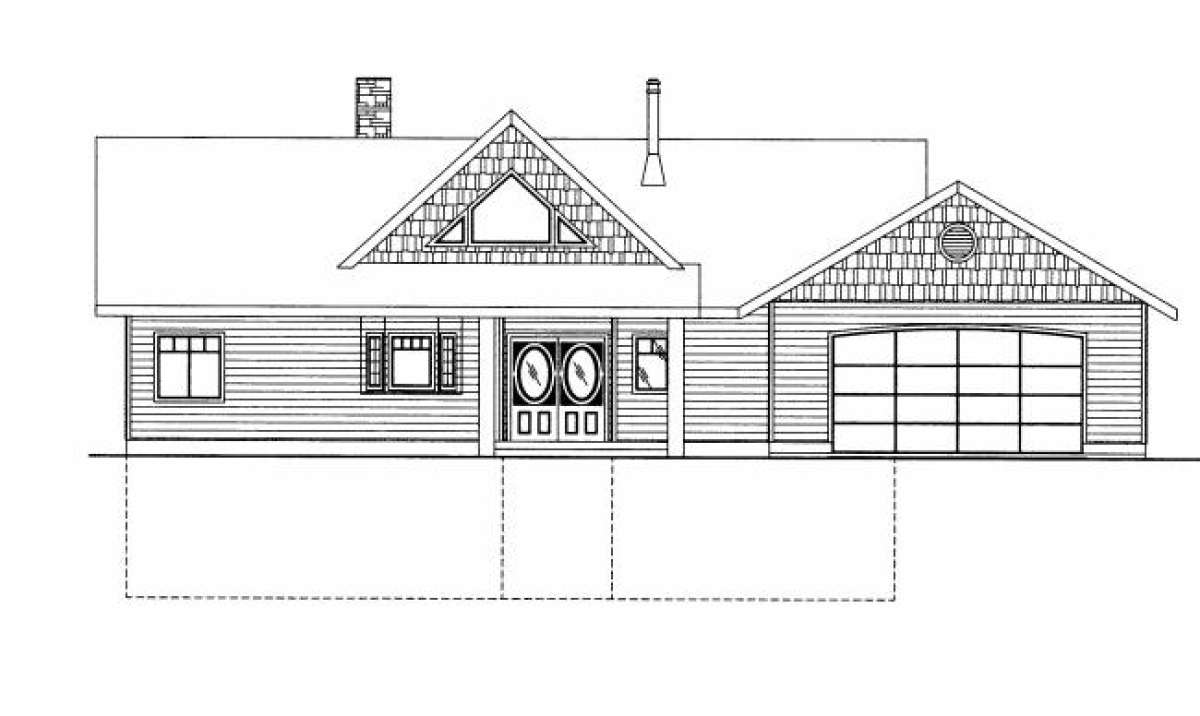

  • Exterior elevations: show the front, rear, and sides of the house to scale from a straight on perspective.
  • Detailed floor plans: show the placement and sizes of interior walls, rooms, doors, windows, and similar elements for each level of the house.
  • Foundation plans: include all necessary notations and dimensions to create the foundation of the house. If the plan you choose doesn't have the type of foundation you desire, we will create one for you at a reasonable fee.
  • Upper floor framing plans are included with two story homes or homes with lofts.
  • The roofing plan gives the layout of rafters, dormers, gables, and other roof elements, such as skylights.
  • Cross-sections: show details of the house as though it were cut in slices from the roof to the foundation. The cross sections give the construction, insulation, flooring, and roofing details.
  • Schematic electrical layouts: show the suggested locations for switches, fixtures, and outlets.
  • General specifications: provide instructions and information regarding excavation and grading, masonry and concrete work, carpentry and woodwork, thermal and moisture protection, drywall, tile, flooring, glazing, and caulking and sealants.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

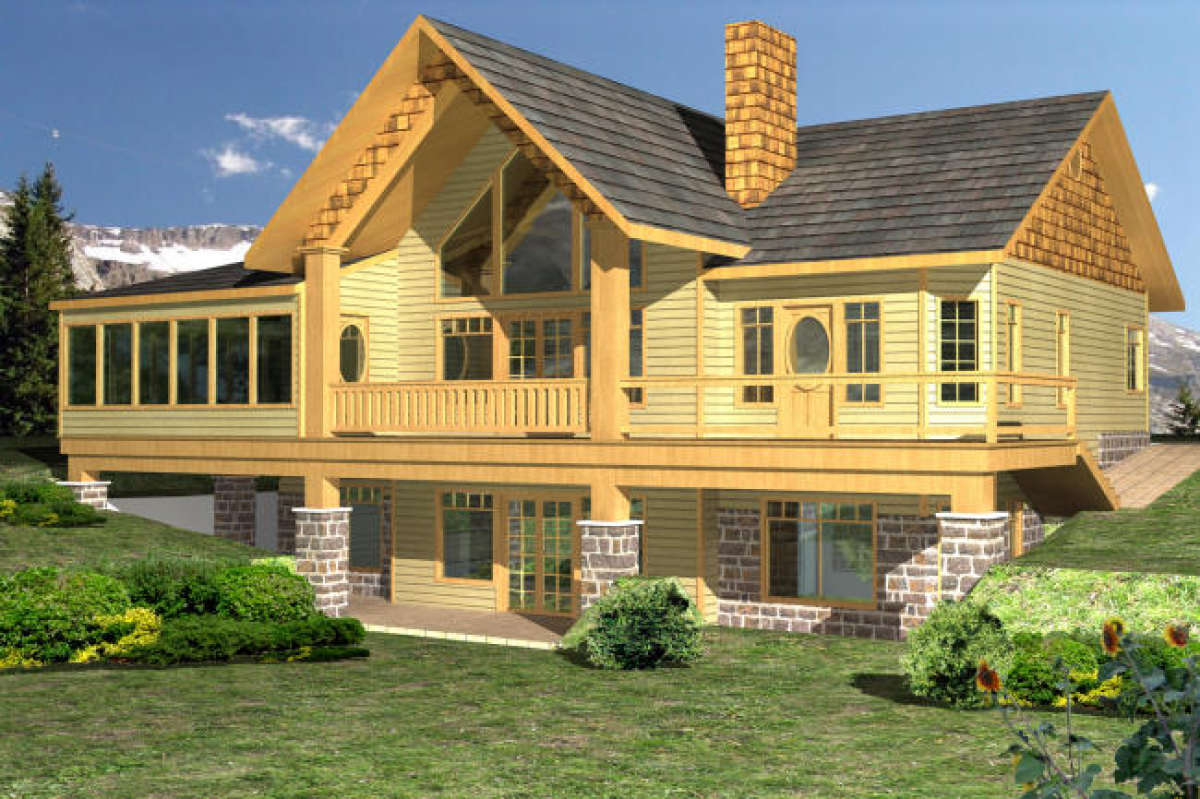

Nature lover’s paradise is found in this Mountain house plan whether situated on a mountain property lot or a serene lakefront lot. Magnificent outdoor space and panoramic window views are showcased in this home and offer tremendous opportunity to pursue quality time enjoying “Mother Nature” either indoors or out. This worthwhile pursuit can be accomplished on the covered rear porch, the rear deck, the screened porch or from the interior great room. Lovely honey-hued wood beams and railing highlight the exterior along with cedar shakes, plenty of window views and substantial brick pillars and a brick perimeter skirt. The peaked gable provides shelter and architectural interest to the plan while the screened porch features space to enjoy outdoor living at least three seasons of the year. The interior floor plan is highlighted with approximately 3,304 square feet of living with a finished basement that basically mirrors the first floor’s layout. The main floor features front covered entry from the porch through French doors into the home’s foyer. There is a nearby coat closet and a full bath with a vanity, toilet area and a shower; flanking the other side of the foyer is the den/office accessible through French doors and brightly lit from the bay window. The great room is situated at the rear of the space; it is large, measuring in excess of 19’ x 18’, with a warming fireplace, window views and access onto the rear covered porch. From the centrally located porch, an open deck is adjacent on one side and the screened porch on the other. The screened porch wraps around the home and culminates onto a second open space leading to either the garage or step-down staircase and side yard. Open to the great room is the dining space with beautiful window views overlooking the screen porch as well as an access point making dining al fresco effortless and enjoyable. The grand kitchen is highlighted with a peninsula island, plenty of counter and cabinet space as well as a pantry and mudroom access. The mudroom doubles as the laundry room and features garage access for a tidy home environment.

The main level master suite features generous floor space, picturesque window views and private access to the rear deck. His and hers walk-in closets line the hallway to the master bath where dual vanities, a corner garden tub, a separate shower and a private toilet room are found. The terrace level is highlighted with a huge family/recreation room that features slider access onto the covered porch, great window views and there is a walk-in wet bar at the far end of the layout. A spacious sitting room is located off the family room which could be utilized as a third bedroom and there is an attached huge storage room. Bedroom two is comfortably sized with window views and plentiful closet space. Nearby is the shared hall bath that offers vanity space, a toilet area and a shower. In lieu of a second storage room, the mechanical space is close by for the homeowner’s convenience. This Mountain house plan is a wonderful home to enjoy the great outdoors, there’s plenty of space to entertain and enjoy solitude and abundant storage and living space is found throughout.
