Ranch House Plan #039-00240 Elevation Photo

Basement Floor for House Plan #039-00240

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 1,982

Beds 3

Bath 2

1/2 Baths 1

Car 2

Stories 1

Width 58' 6"

Depth 66'

See What's Included

Select Package

PDF (Single Build)

$1,245.00

ELECTRONIC FORMAT Recommended
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a copyright release which allows for making copies locally and minor changes to the plan.

5 Sets (Single Build)

$1,145.00

PHYSICAL FORMAT
Five printed sets of working drawings mailed to you. This package comes with a license to construct one home.

5 Sets Plus PDF (Single Build)

$1,395.00

One Complete set of working drawings emailed to you in PDF format along with 5 physical sets printed and mailed to you. Most plans can be emailed same business day or the business day after your purchase. Comes with a copyright release which allows for making copies locally and minor changes to the plan. This package comes with a license to construct one home.

CAD Files (Single Build)

$1,245.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a copyright release so you can customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. Requires a CAD program to open the files by a design professional. This package comes with a license to construct one home.

CAD Files (Unlimited Build)

$1,945.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a copyright release so you can customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. This package comes with a multi-use license that allows for the home to be built more than once. Requires a CAD program to open the files by a design professional.

Select Foundation

Finished Basement $0.00

Need a different foundation?

Get a free modification quote

Additional Options

Additional Sets $50.00

Dont see the right plan package for you? Add additional sets to create the perfect plan package for your needs.

Right Reading Reverse $195.00

Reverses the entire plan including all text and dimensions so that they are reading correctly.

ABHP Material List $295.00

A complete material list for this plan plus purchased options excluding right reading reverse and any modifications. PDF or CAD purchase required. Product requires up to one week to prepare.

View Sample ABHP Material List

Return Policy, Building Code & Copyright Info

Floorplan Drawings

REVERSE PRINT DOWNLOAD

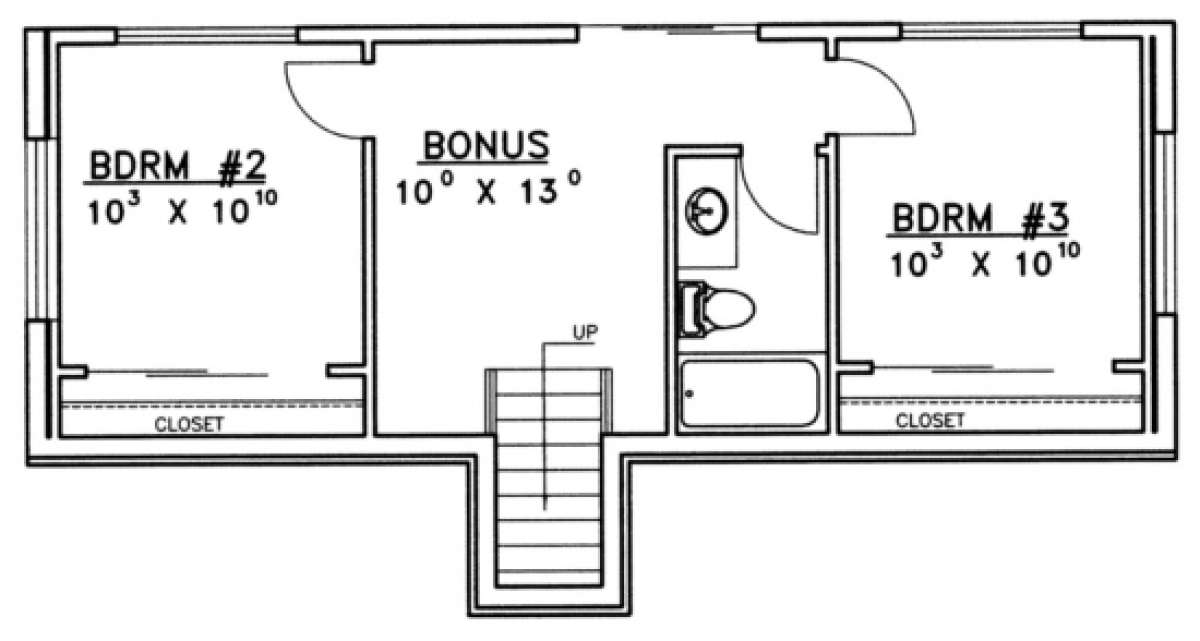

Basement Floor

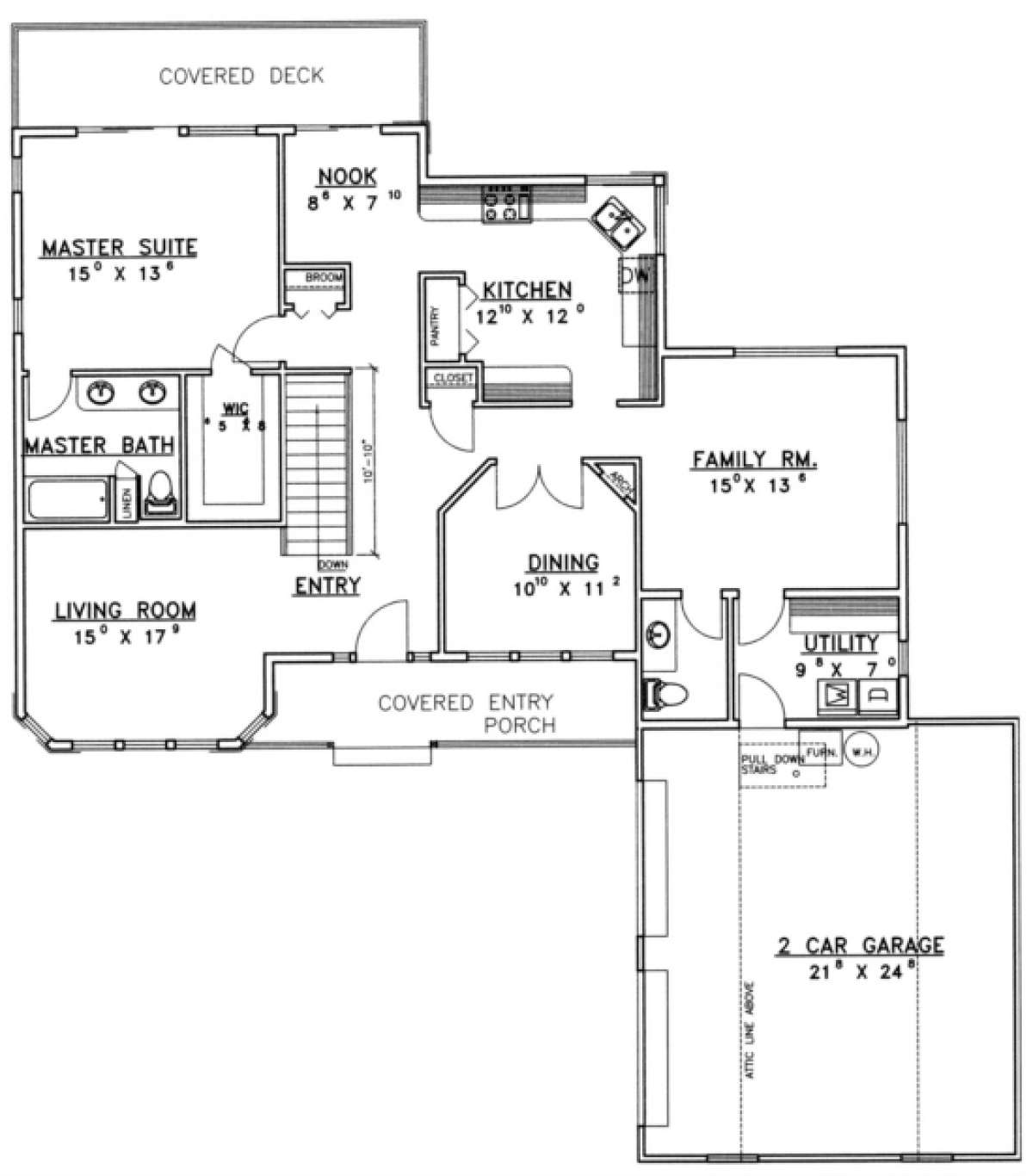

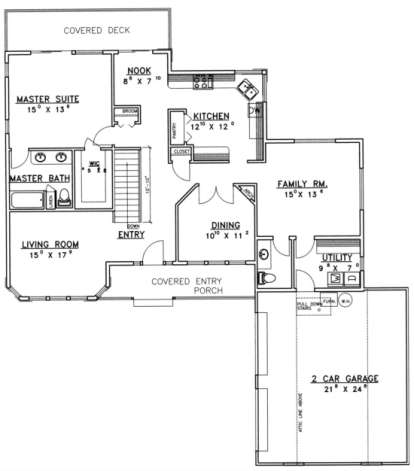

Main Floor

Images copyrighted by the designer.

What's Included in these plans?

Exterior elevations: show the front, rear, and sides of the house to scale from a straight on perspective.
Detailed floor plans: show the placement and sizes of interior walls, rooms, doors, windows, and similar elements for each level of the house.
Foundation plans: include all necessary notations and dimensions to create the foundation of the house. If the plan you choose doesn't have the type of foundation you desire, we will create one for you at a reasonable fee.
Upper floor framing plans are included with two story homes or homes with lofts.
The roofing plan gives the layout of rafters, dormers, gables, and other roof elements, such as skylights.
Cross-sections: show details of the house as though it were cut in slices from the roof to the foundation. The cross sections give the construction, insulation, flooring, and roofing details.
Schematic electrical layouts: show the suggested locations for switches, fixtures, and outlets.
General specifications: provide instructions and information regarding excavation and grading, masonry and concrete work, carpentry and woodwork, thermal and moisture protection, drywall, tile, flooring, glazing, and caulking and sealants.

Ask Us A Question

About This Plan

This Ranch house plan features simple construction on a basement foundation with charming exterior features. The façade is highlighted with multiple series of window views for a brightly lit interior, a front covered porch with open railing and columned beams and a two car courtyard entry garage. The interior floor plan offers three bedrooms, two plus baths and a nice arrangement of living/entertaining spaces in approximately 1,982 square feet. There is also an expandable bonus room with an additional 260 square feet of potential space. The two car garage features overhead attic space with a pull down staircase and plenty of room for vehicles and storage items. The interior layout opens onto the entry foyer with the terrace level staircase located nearby. Flanking the foyer is the large living room which is sunny and bright while situated in an expansive bay window. The formal dining room is located on the other side of the foyer and offers great space for special occasion and/or family meals as well as window views overlooking the front covered porch. Traveling the hallway are access points into the family room, kitchen and casual breakfast nook. The kitchen is highlighted with plenty of counter and cabinet space, a corner double sink window view and a large separate pantry. The dining nook features access onto the rear covered deck where dining outdoors will be easily enjoyed. The family room is spacious with great window views; there is a nearby powder room and the utility room features counter space and access to the garage.

The main level master suite is situated on the opposite side of the home for privacy and enjoys a large master bedroom with private access onto the rear covered deck. There is an attached walk-in closet and the master bath features dual vanities, a toilet area, linen closet and a tub/shower combination. The terrace level of the home contains the bonus room, two bedrooms and a bath. The bedrooms are of equivalent size with wall-to-wall closet space in each and grand window views as well. The shared hall bath features a large vanity space, a toilet area and a tub/shower combination. This Ranch house plan offers a lovely exterior, expandable bonus space and a versatile interior floor plan.
