Southern Plan 036-00195


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,666
Beds 3
Bath 2
1/2 Baths 1
Car 2
Stories 1.5
Width 40' 3"
Depth 42' 4"

Floorplan Drawings

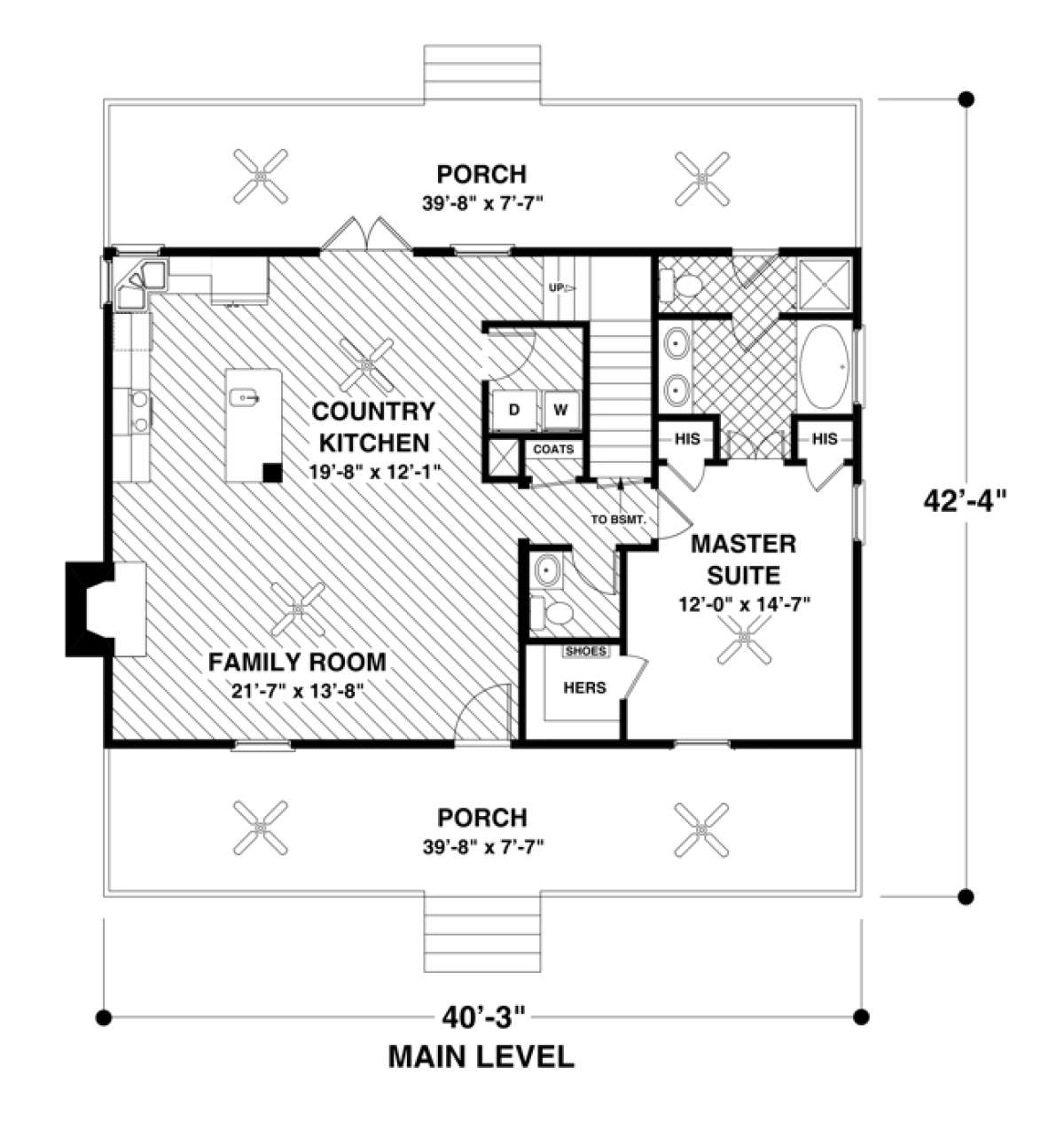

Main Floor Plan
Main Floor Plan for House Plan #036-00195

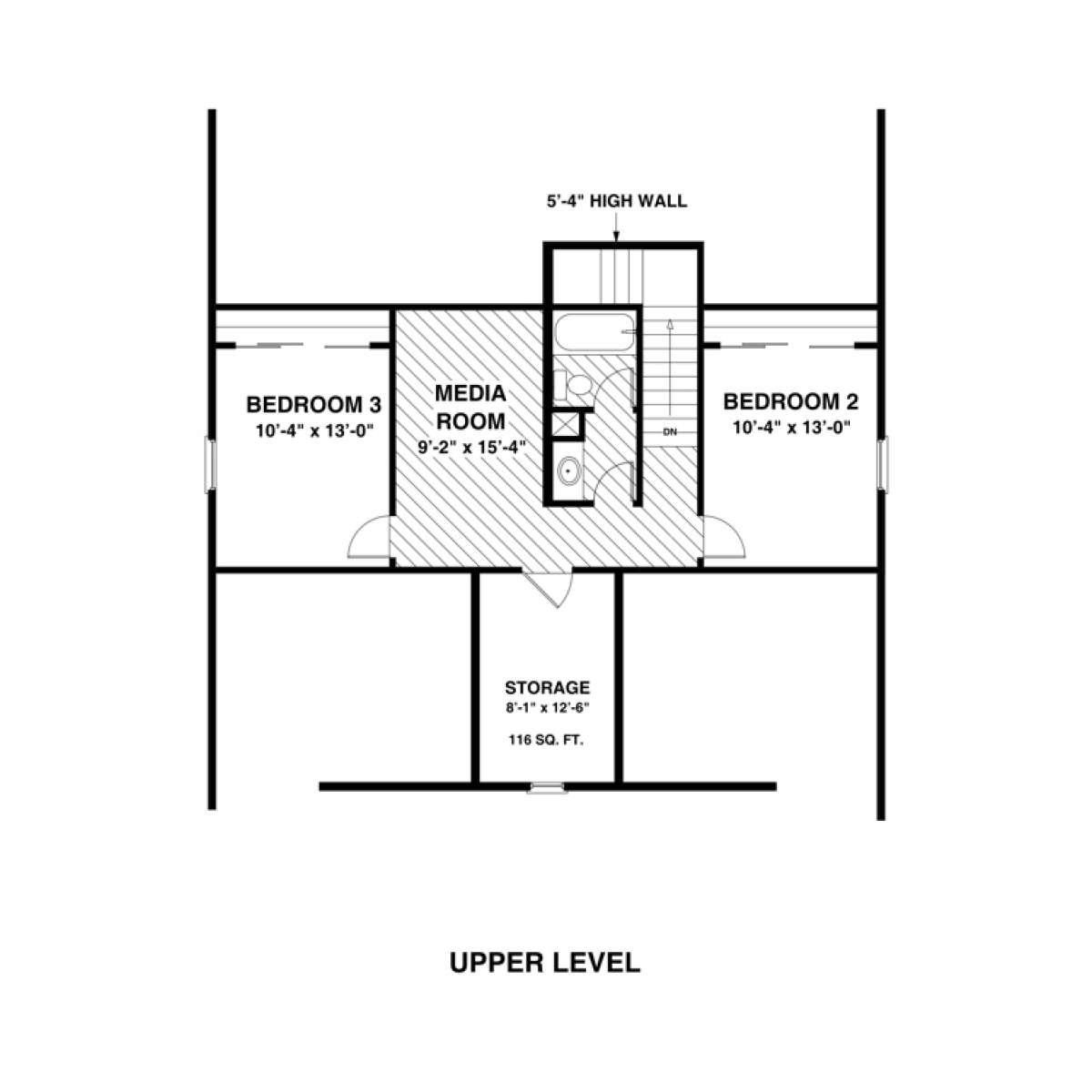

Upper Floor Plan
Upper Floor Plan for House Plan #036-00195

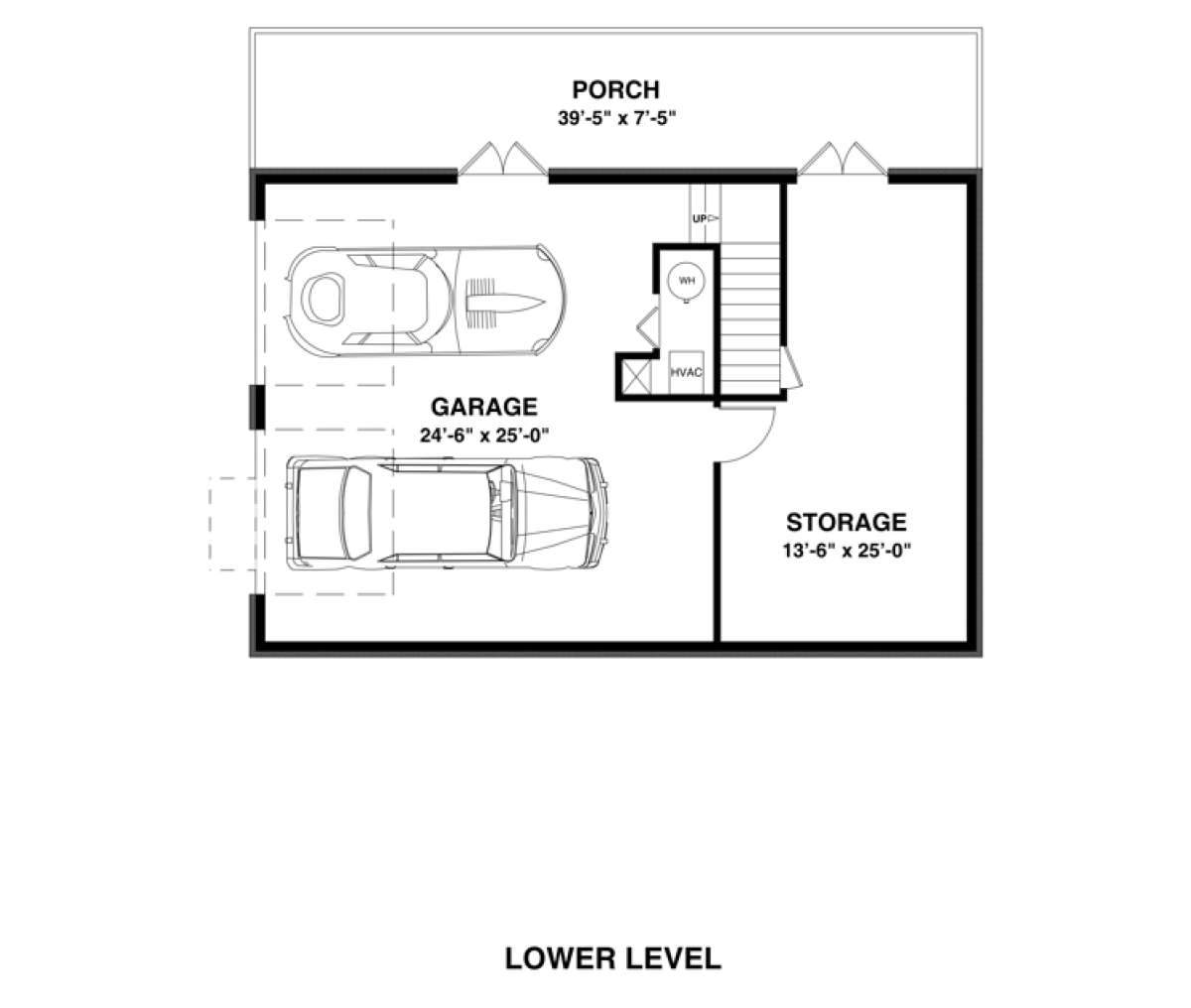

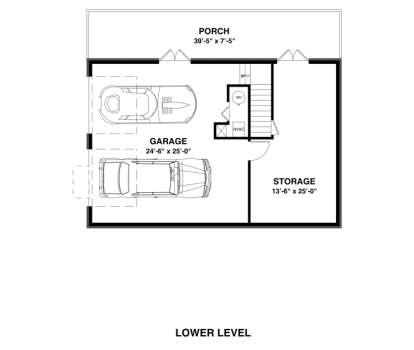

Lower Floor Plan
Lower Floor Plan for House Plan #036-00195

What's Included in these plans?

  • Artist Rendering
  • Exterior Elevation Views: Scale: 1/4"=1' Front and 1/4" or 1/8"=1' Sides and Rear
  • Floor Plans: Scale: 1/4"=1'
  • Foundations: Scale: 1/4"=1' (Though on occasion, Optional foundations may be 1/8"=1')
  • Electrical Layout: Most often shown on floor plan drawing, though sometimes on separate sheet
  • Roof Plan: Scale: Either 1/4" or 1/8"=1'
  • Building Sections: Included with most plan sets
  • Wall Sections: Included with all plans in Detail Sheet Package
  • General Notes and Details: Included with all plans in Detail Sheet Package

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This stylistic house plan features many design elements, both on the exterior and interior, representative of the charm and character of southern inspired homes. The exterior of the home is framed with a front and rear covered porch that extends the width of the home with both measuring equivalent in size at 39’ plus x 7’ plus providing amazing space to greet family and friends, relax and enjoy outdoor family fun. A centrally located walk-up to the porch, open railing and stone pillar supported tapered beams add to the charm and there is an overhead trimmed gable to tie the home’s exterior elements together. The rear covered porch also features a descending staircase and is situated atop the basement foundation’s outdoor space providing double covered outdoor spaces outlining the rear of the home. The interior of the home is highlighted with approximately 1,666 square feet of space containing three bedrooms, two plus baths and an open floor plan. The 1.5 storied home is highlighted with nine foot ceiling heights on the main floor and is perfect for a small and/or narrow property lot with its 40’plus width and 42’plus depth. The main floor of the home is accessed from the front porch and reveals a massive open floor plan; there is a front family room with a warming fireplace and the grand kitchen is situated at the rear of the space. The kitchen features a center island, plentiful counter and cabinet space, French door access onto the rear porch and enough room for a dining arrangement. There is a powder room for guests, a laundry room and coat closet before accessing the up/down staircase. Additionally, the master suite is located on the main floor for privacy and features a spacious master bedroom with diametrically opposed his and hers walk-in closets. The en suite bath is an elegant compilation of modern conveniences offering dual vanities, a garden tub, and separate toilet and shower area.

The upper level of the home features two additional bedrooms, both of which are of equal size with wall-to-wall closets. An open loft/media room features great space for a teen-age lounge or playroom for small children and a large storage room is available as well. There is a shared hall bath with vanity space, a toilet area and a tub/shower combination. The drive under two car garage is spacious with additional storage space and there is an enclosed storage room as well, measuring in excess of 13’ x 25’ where both the garage and storage room are accessible to the outdoor living space through French doors. This home epitomizes the character and charm of southern living with its amazing outdoor space, its efficient use of space and a well-designed floor plan.
