Country Plan 036-00187

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,600
Beds 3
Bath 2
1/2 Baths 0
Car 3
Stories 1
Width 67' 6"
Depth 46' 4"

Floorplan Drawings

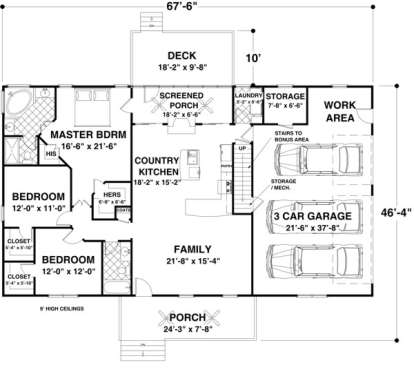

Main Floor Plan
Main Floor Plan for House Plan #036-00187

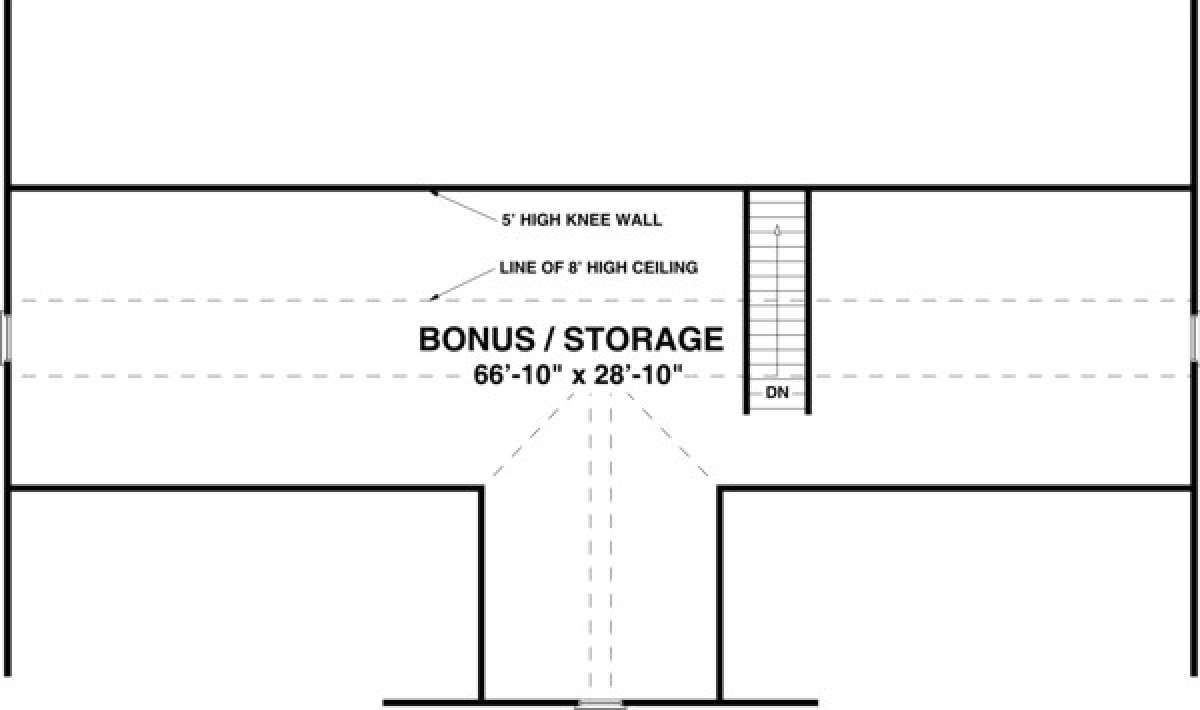

Bonus Floor Plan
Bonus Floor Plan for House Plan #036-00187


What's Included in these plans?

  • Artist Rendering
  • Exterior Elevation Views: Scale: 1/4"=1' Front and 1/4" or 1/8"=1' Sides and Rear
  • Floor Plans: Scale: 1/4"=1'
  • Foundations: Scale: 1/4"=1' (Though on occasion, Optional foundations may be 1/8"=1')
  • Electrical Layout: Most often shown on floor plan drawing, though sometimes on separate sheet
  • Roof Plan: Scale: Either 1/4" or 1/8"=1'
  • Building Sections: Included with most plan sets
  • Wall Sections: Included with all plans in Detail Sheet Package
  • General Notes and Details: Included with all plans in Detail Sheet Package

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

THIS PLAN IS A CONCEPTUAL PLAN. PLEASE ALLOW 2-3 WEEKS FOR COMPLETION AND SHIPMENT.
