Your Dream Home is Waiting! Save 15% Off & Free Ground Shipping

Limited plans not eligible for discounts

Craftsman House Plan 036-00171

Sq Ft2,953
Beds4
Baths4
1/2 Baths0
Stories2
Cars3
Width53' 2"
Depth60' 8"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Floorplan 1 for House Plan #036-00171
Floorplan 2 for House Plan #036-00171

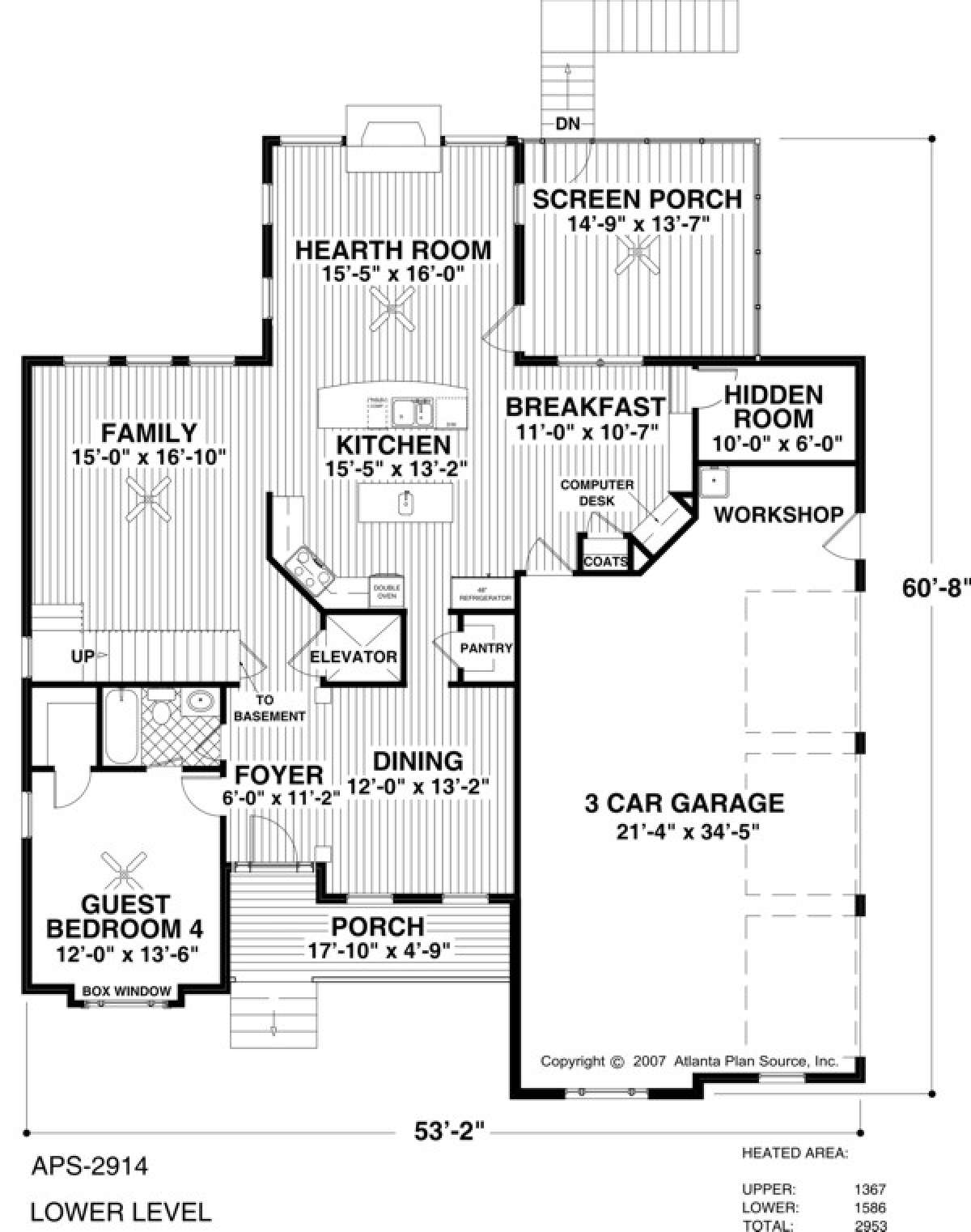

Floorplan 1
Floorplan 1 for House Plan #036-00171

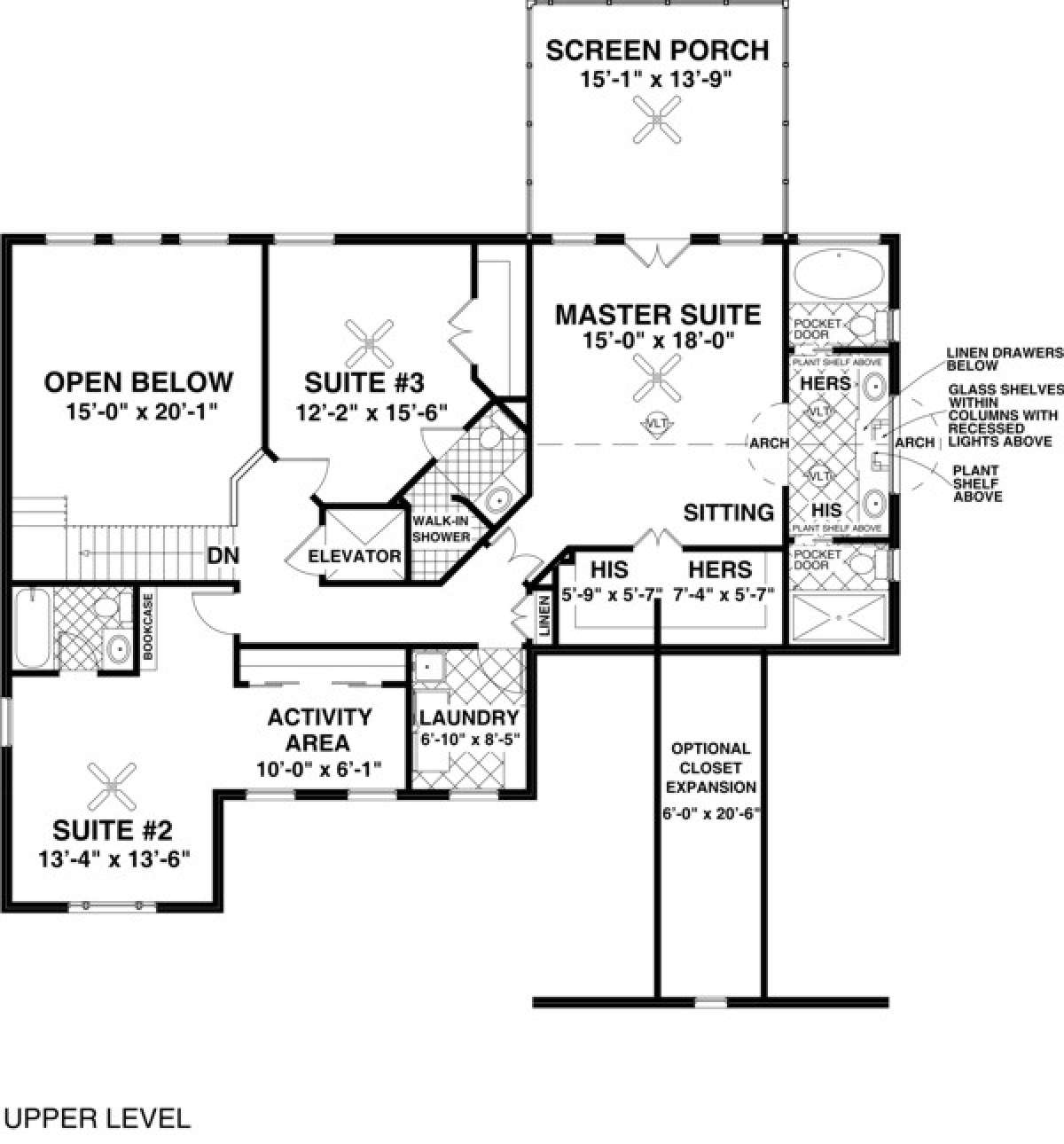

Floorplan 2
Floorplan 2 for House Plan #036-00171


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Artist Rendering
  • Exterior Elevation Views: Scale: 1/4"=1' Front and 1/4" or 1/8"=1' Sides and Rear
  • Floor Plans: Scale: 1/4"=1'
  • Foundations: Scale: 1/4"=1' (Though on occasion, Optional foundations may be 1/8"=1')
  • Electrical Layout: Most often shown on floor plan drawing, though sometimes on separate sheet
  • Roof Plan: Scale: Either 1/4" or 1/8"=1'
  • Building Sections: Included with most plan sets
  • Wall Sections: Included with all plans in Detail Sheet Package
  • General Notes and Details: Included with all plans in Detail Sheet Package

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This home’s beauty lies in the details; both the exterior with its old world charm and Craftsman details and the interior’s approximate 3,000 square feet. The covered front porch leads to a spacious foyer and the open dining room. The gourmet kitchen is large with a center island, separate pantry and anchors both the hearth room and breakfast area. The breakfast room has a desk area, window views of the screened porch and leads to the hidden room which measures 10’x6’ and can be used for storing family valuables. The hearth room has a rear wall fireplace, windows with a rear yard view and direct access to the screened porch. There is also a large family room off the kitchen as well which contains a staircase to the second floor or you may opt to take the elevator. There is a bedroom with a walk-in closet and private bath on the main level which could function as a guest bedroom or office/study. A three car, side entry garage with a workshop completes the main level. The upper level floor plan is stunning with two bedrooms, laundry room and master suite. The master suite is luxuriously designed with a vaulted bedroom, additional sitting area and French door access to a screened porch. Oversized his and her walk-in closets are offered as well as the option to expand the closet space. The master bath is outstanding in every way; from the oversized shower and toilet area enclosed by a pocket door to the accompanying garden tub and second toilet area enclosed by a pocket door. In between these two spaces, you have large his and her separate vanity areas. Bedroom two is oversized with an additional activity area, desk, large closet and private bath. Bedroom three is also oversized with a walk-in closet and a private walk-in shower bathroom. This home offers luxury and comfort in friendly design features perfect for your family.
