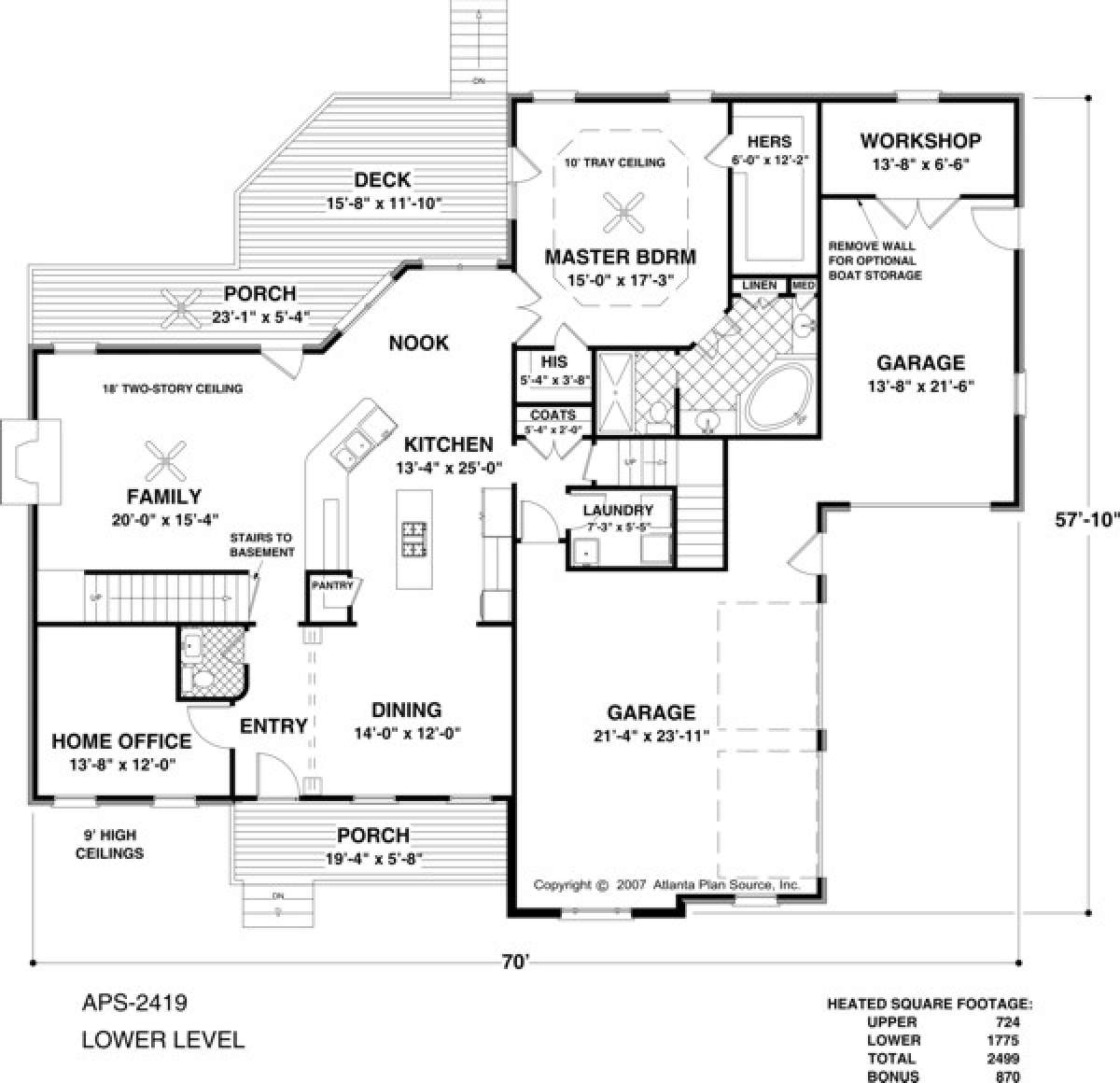

Floorplan 1 for House Plan #036-00170

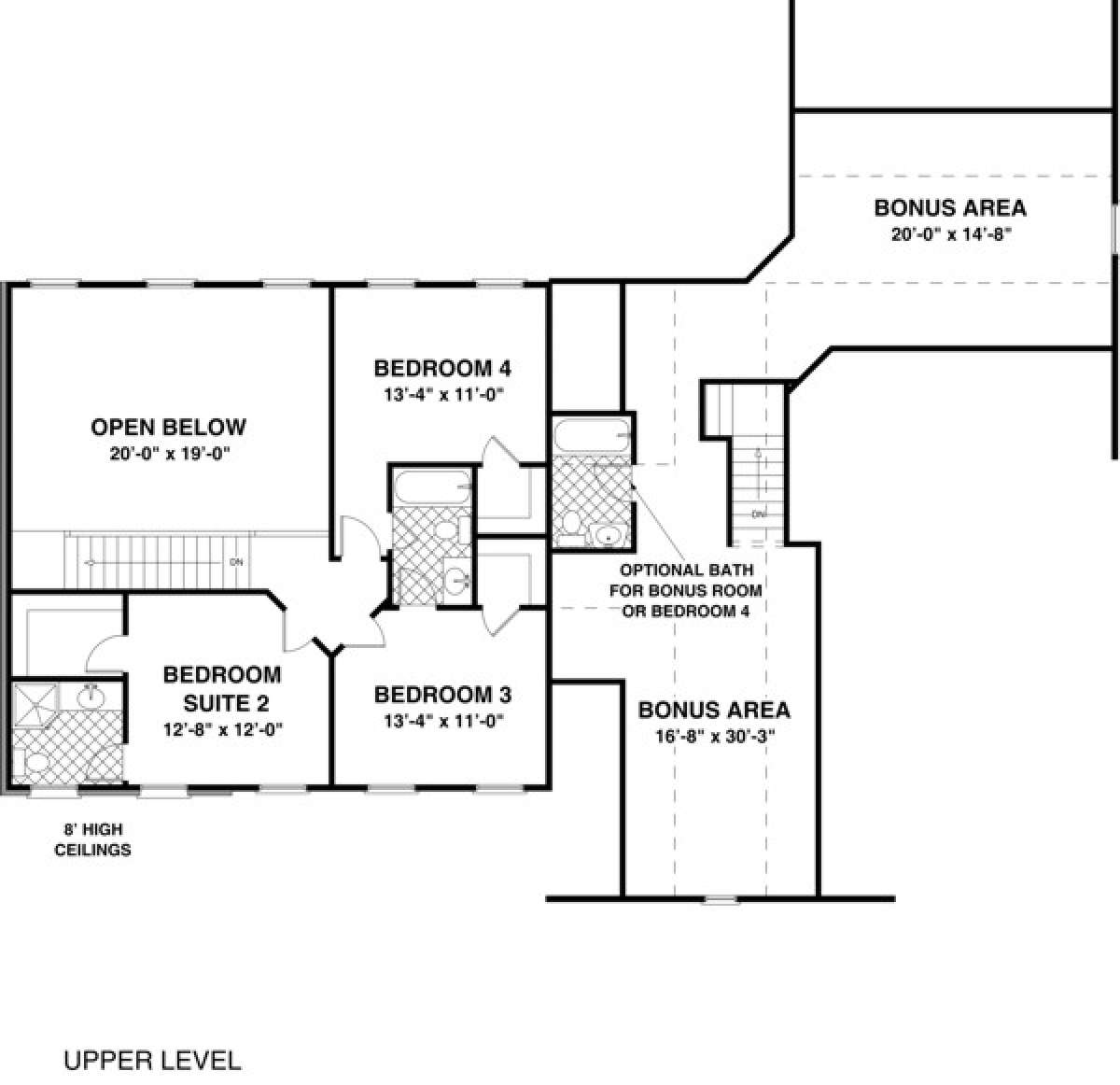

Floorplan 2 for House Plan #036-00170
Craftsman House Plan #036-00170 Elevation Photo
Craftsman House Plan #036-00170 Elevation Photo
Floorplan 1 for House Plan #036-00170
Floorplan 2 for House Plan #036-00170

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Images copyrighted by the designer. Photographs may reflect a homeowner modification.
Sq Ft 2,499
Beds 4
Bath 3
1/2 Baths 1
Car 3
Stories 2
Width 70'
Depth 57' 10"

Floorplan Drawings

 PRINT  DOWNLOAD
Floorplan 1 for House Plan #036-00170
Floorplan 2 for House Plan #036-00170
Floorplan 1
Floorplan 1 for House Plan #036-00170
Floorplan 2
Floorplan 2 for House Plan #036-00170
Images copyrighted by the designer.


What's Included in these plans?

  • Artist Rendering
  • Exterior Elevation Views: Scale: 1/4"=1' Front and 1/4" or 1/8"=1' Sides and Rear
  • Floor Plans: Scale: 1/4"=1'
  • Foundations: Scale: 1/4"=1' (Though on occasion, Optional foundations may be 1/8"=1')
  • Electrical Layout: Most often shown on floor plan drawing, though sometimes on separate sheet
  • Roof Plan: Scale: Either 1/4" or 1/8"=1'
  • Building Sections: Included with most plan sets
  • Wall Sections: Included with all plans in Detail Sheet Package
  • General Notes and Details: Included with all plans in Detail Sheet Package

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This charming 2,493 square foot home features a split 3-car garage with a workshop, a spacious front porch and a brick, stone and siding exterior with shake accents and Craftsman-inspired details. The entry unfolds to a columned dining room which is open to the kitchen, a home office and powder room. The large gourmet kitchen has an angled breakfast nook and a snack bar to provide additional seating and food prep space. Cabinets and shelves in the breakfast area offer a sizeable pantry. The center island holds a cook-top. A welcoming fireplace warms the cozy two-story family room.

The elegant master suite, with a dramatic tray ceiling, is located on the main level. Closet space abounds with his and hers walk-in closets. The master bath features separate vanities, a linen closet, a luxurious spa tub and a private toilet room with an oversized shower.

Upstairs are three generous bedrooms, all with walk-in closets. Suite #2 has a private bath with a corner shower. Bedrooms #3 and #4 share a bath. The biggest surprise of the upper level is the expansive dual bonus areas with an optional bathroom. The possibilities are limitless as to the use of this delightfully unexpected space!

Outdoor living is enjoyed to the fullest with front and back porches and a roomy deck. We have featured a small pool in our rendering to spark the creative possibilities for your recreational space.
