Traditional House Plan 036-00146

Sq Ft3,135
1/2 Baths0
Width53' 0"
Depth57' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

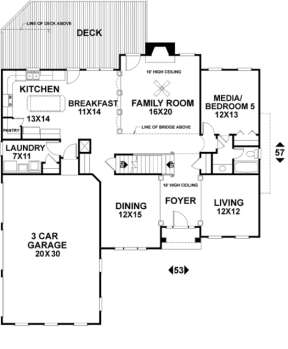

First Floor for House Plan #036-00146

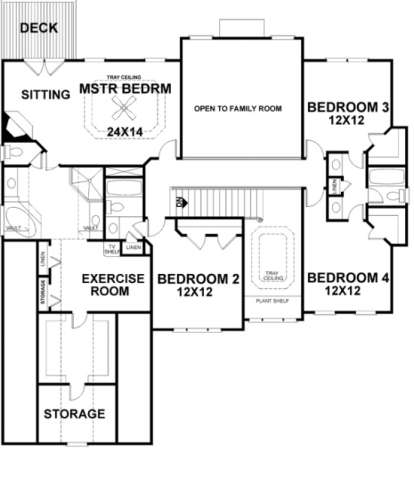

Second Floor for House Plan #036-00146

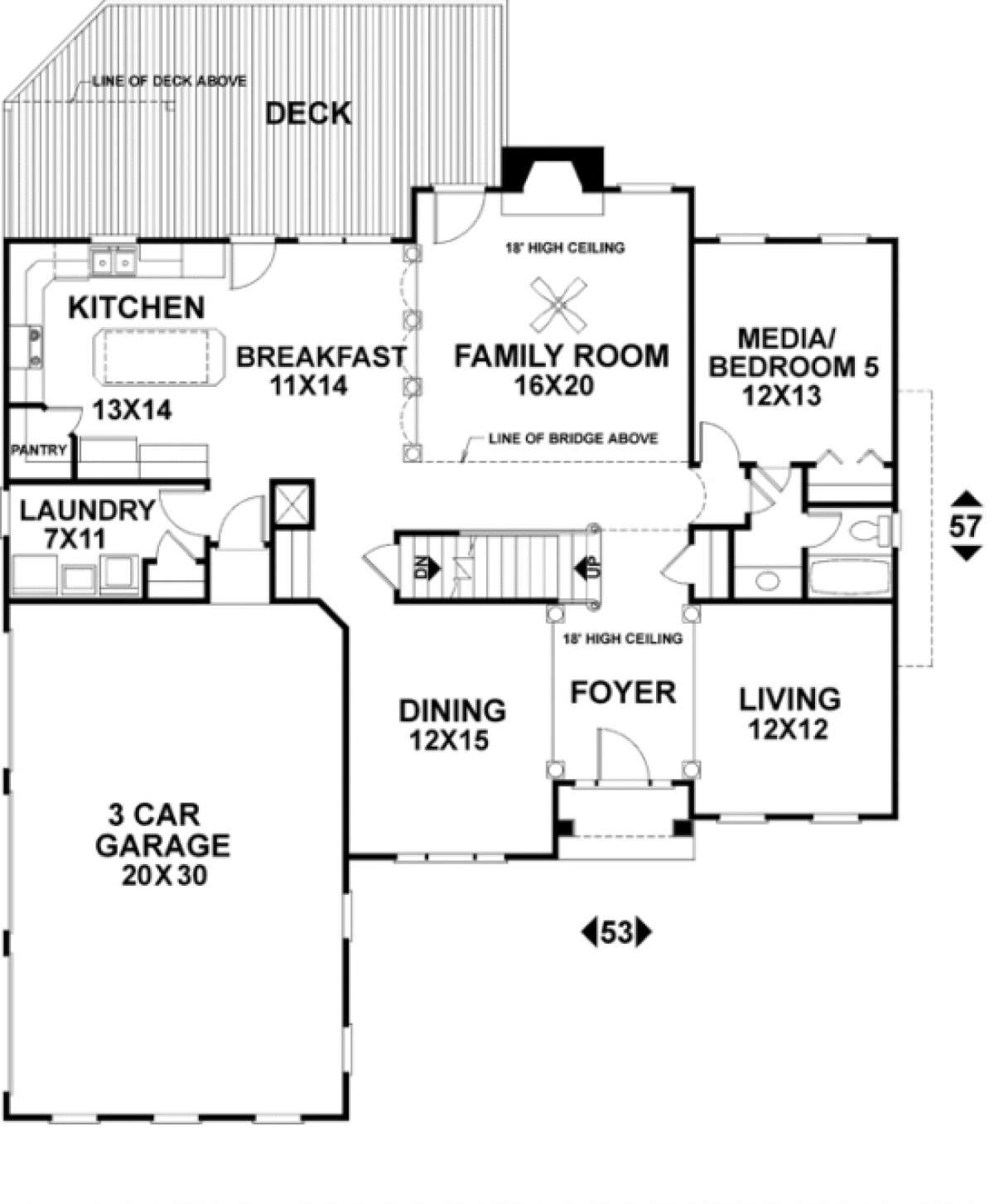

First Floor
First Floor for House Plan #036-00146

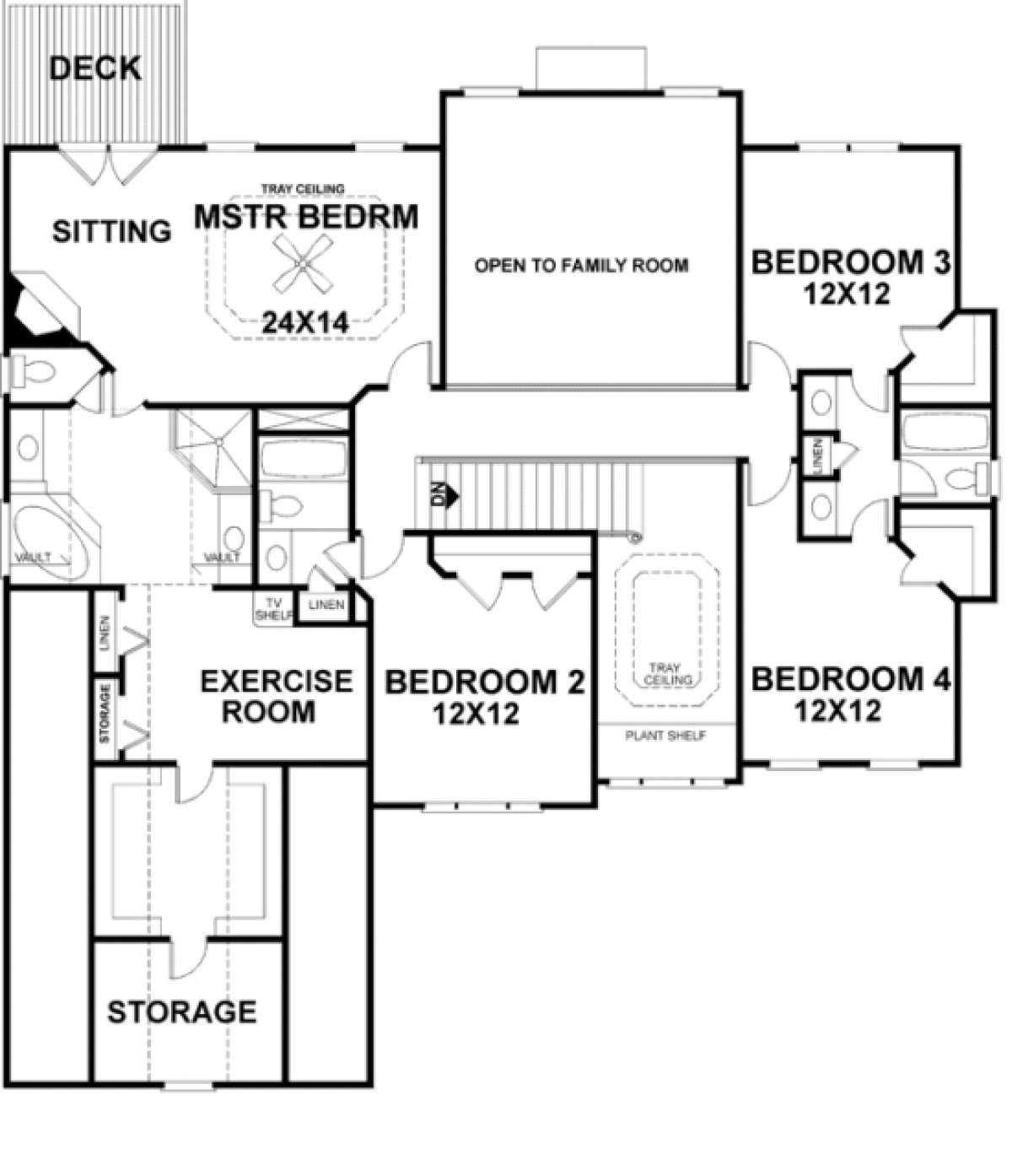

Second Floor
Second Floor for House Plan #036-00146

Frequently Asked Questions


What's Included in these plans?

  • Artist Rendering
  • Exterior Elevation Views: Scale: 1/4"=1' Front and 1/4" or 1/8"=1' Sides and Rear
  • Floor Plans: Scale: 1/4"=1'
  • Foundations: Scale: 1/4"=1' (Though on occasion, Optional foundations may be 1/8"=1')
  • Electrical Layout: Most often shown on floor plan drawing, though sometimes on separate sheet
  • Roof Plan: Scale: Either 1/4" or 1/8"=1'
  • Building Sections: Included with most plan sets
  • Wall Sections: Included with all plans in Detail Sheet Package
  • General Notes and Details: Included with all plans in Detail Sheet Package


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

The aesthetically pleasing exterior includes stucco quoins and trim, copper roofing returns and transom windows in this spectacular home. The grand foyer is 18’ high and is highlighted with a trey ceiling and is open to both the formal living and dining room. A “bridge” leads to the stunning family room with a rear wall fireplace, access to the deck and beautiful columns separating the family room and breakfast area. The kitchen offers an oversized center island, walk-in pantry, plenty of additional counter and cabinet space and rear deck access. The media room can also be used as a fifth bedroom, has ample closet space and access to a full bath. The large utility room includes a laundry tub and closet and is directly accessible off the three car, side entry garage. Bedroom two has ample closet space and private bath access while bedrooms three and four each have a walk-in closet and jack and Jill bath access. The master suite defines luxury and offers an oversized master bedroom with trey ceiling, an additional sitting area, corner fireplace and French door access to the private deck. The vaulted master bath includes dual vanities, a garden tub, separate shower and compartmentalized toilet. An exercise room with a television shelf, storage and linen space highlight the rear of the master suite along with an oversized walk closet with culminates in more storage space at the rear of the closet. This home offers versatility, comfort and useful living spaces which allow your family luxury and design features usually found in much larger homes.
