Craftsman Plan 036-00138

Craftsman House Plan #036-00138 Elevation Photo
Craftsman House Plan #036-00138 Elevation Photo
First Floor for House Plan #036-00138
Second Floor for House Plan #036-00138
4 Images

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Square Footage Icon Sq Ft 2,964
Beds Icon Beds 4
Baths Icon Baths 4
Half Baths Icon 1/2 Baths 0
Cars Icon Cars 3
Stories Icon Stories 2
Width Icon Width 53' 2"
Depth Icon Depth 60' 8"

Floorplan Drawings

 PRINT  DOWNLOAD
First Floor for House Plan #036-00138
Second Floor for House Plan #036-00138

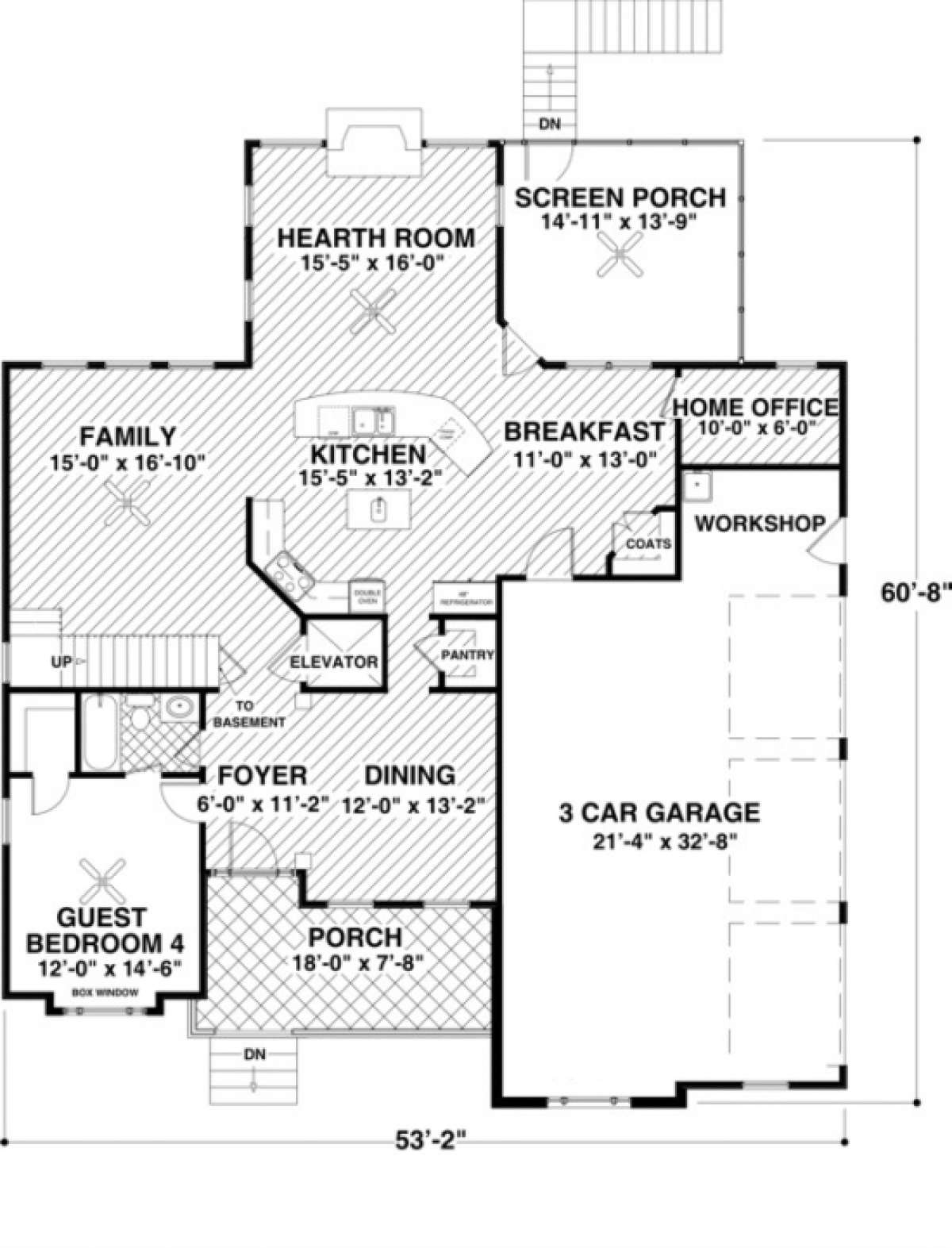

First Floor
First Floor for House Plan #036-00138

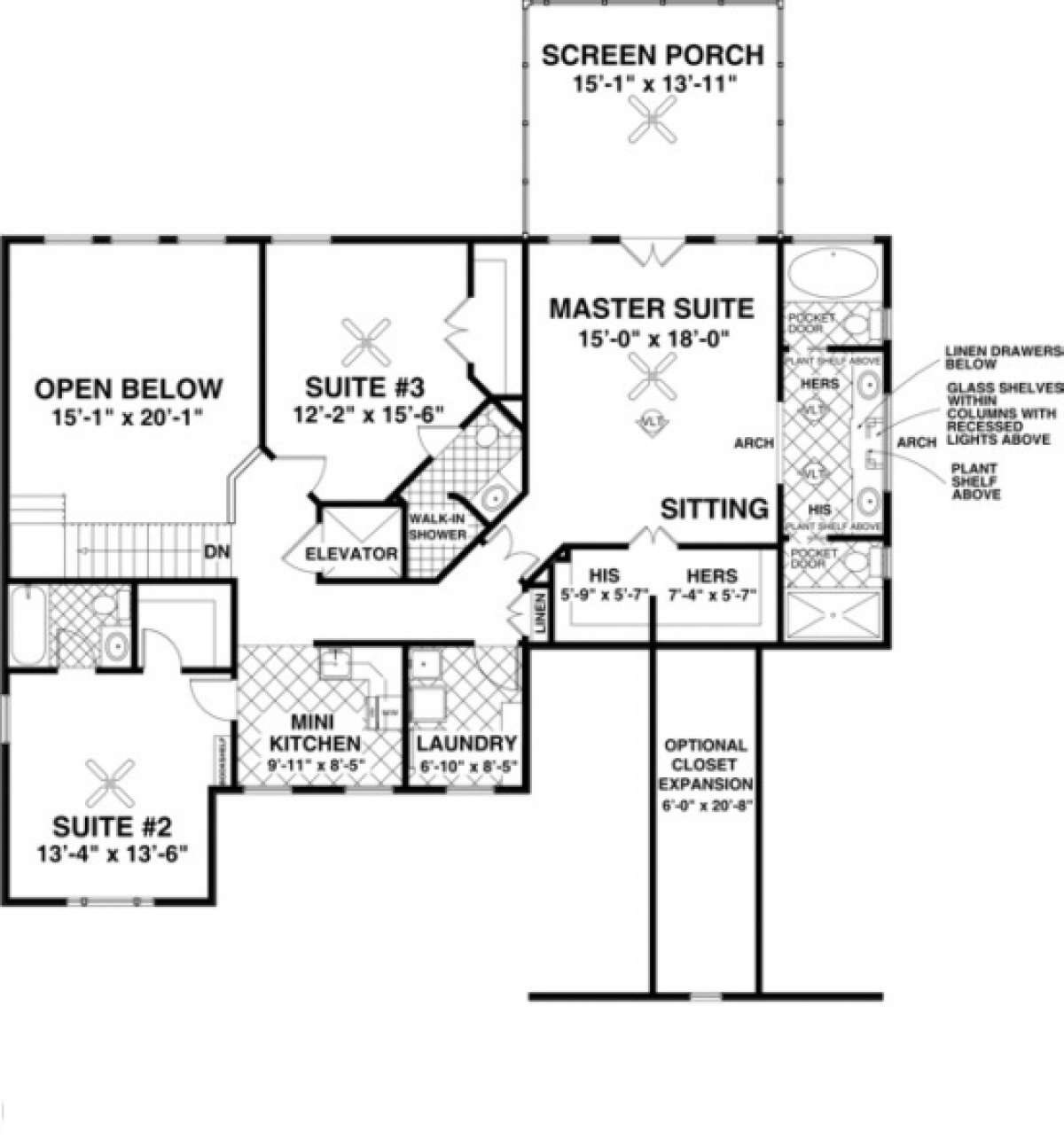

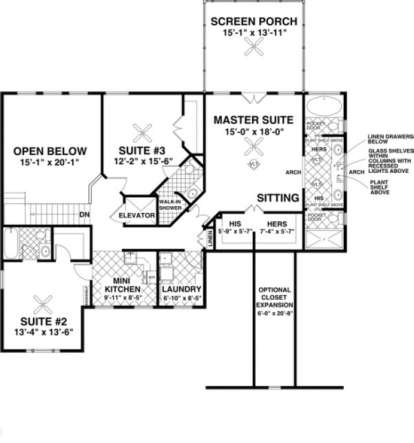

Second Floor
Second Floor for House Plan #036-00138
Images copyrighted by the designer.


What's Included in these plans?

  • Artist Rendering
  • Exterior Elevation Views: Scale: 1/4"=1' Front and 1/4" or 1/8"=1' Sides and Rear
  • Floor Plans: Scale: 1/4"=1'
  • Foundations: Scale: 1/4"=1' (Though on occasion, Optional foundations may be 1/8"=1')
  • Electrical Layout: Most often shown on floor plan drawing, though sometimes on separate sheet
  • Roof Plan: Scale: Either 1/4" or 1/8"=1'
  • Building Sections: Included with most plan sets
  • Wall Sections: Included with all plans in Detail Sheet Package
  • General Notes and Details: Included with all plans in Detail Sheet Package

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

A spacious front porch bids you welcome to this 4 bedroom craftsman gem. This 2,964 sq. ft. home offers a remarkable collection of features. The foyer provides direct access to an exquisite dining area and a sizeable quest suite. The grand two-story family room is open to the gourmet kitchen/breakfast area as well as the dramatic hearth room. A home office is conveniently located off the breakfast nook. Also accessible from this area is a screened porch. In addition to the stairs, an elevator provides access to the upper level with its 2 bedrooms with en-suite baths plus a grand master suite. A convenient mini-kitchen services this floor. The laundry room is also located on this bedroom level. The master suite features a vaulted ceiling and a his-and-hers walk-in closet with an expansion area available to virtually triple its size. With its soaking tub and separate shower, the luxurious master bath is the perfect place to unwind. Then relax with a cup of coffee on the private screened porch! Completing this plan is a 3-car garage with a side entry. A workshop featuring a utility sink is a handyman’s delight!
