Traditional Plan 036-00132

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,760
Beds 4
Bath 4
1/2 Baths 0
Car 4
Stories 2
Width 53' 2"
Depth 51' 8"

Floorplan Drawings

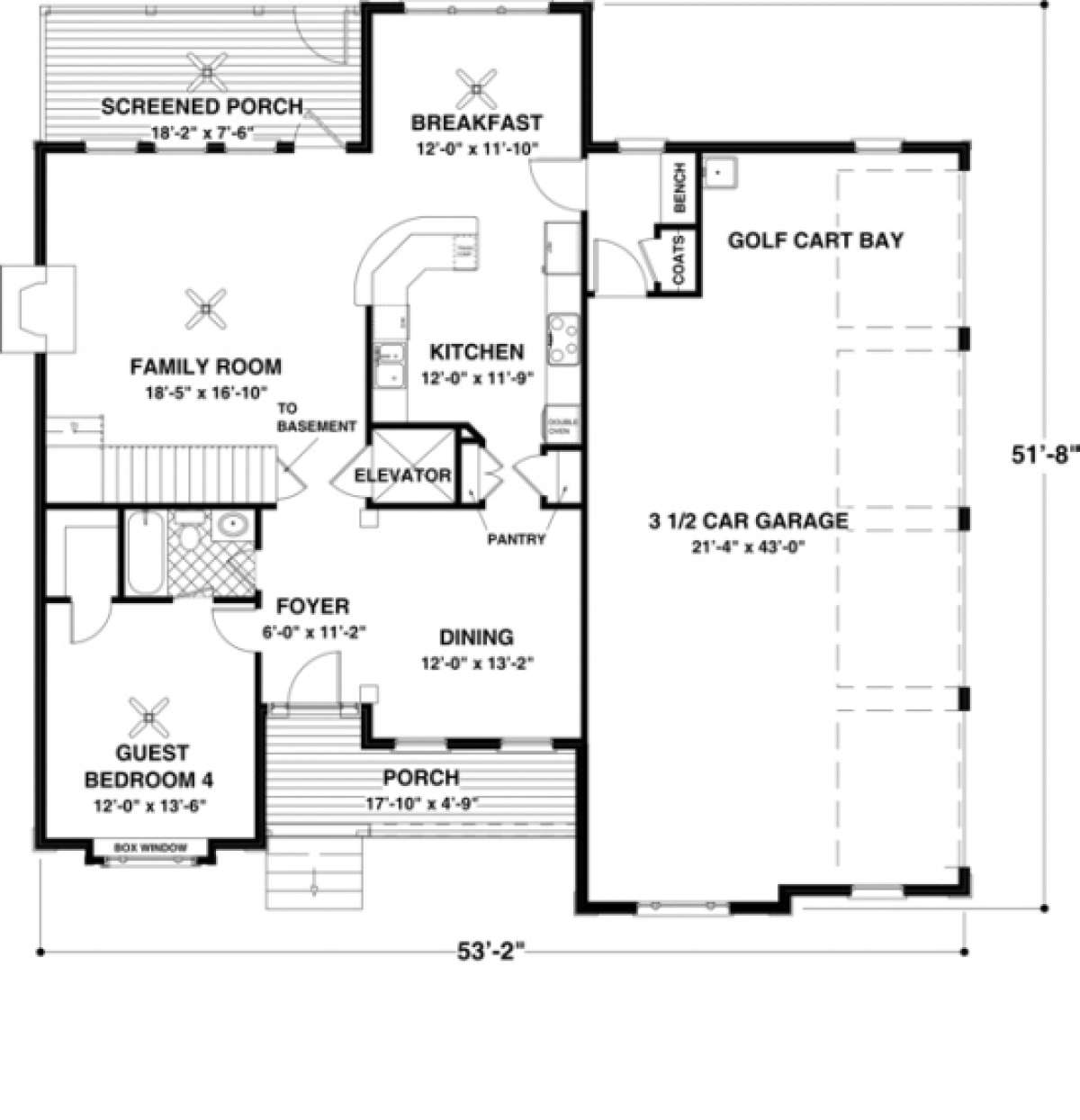

First Floor
First Floor for House Plan #036-00132

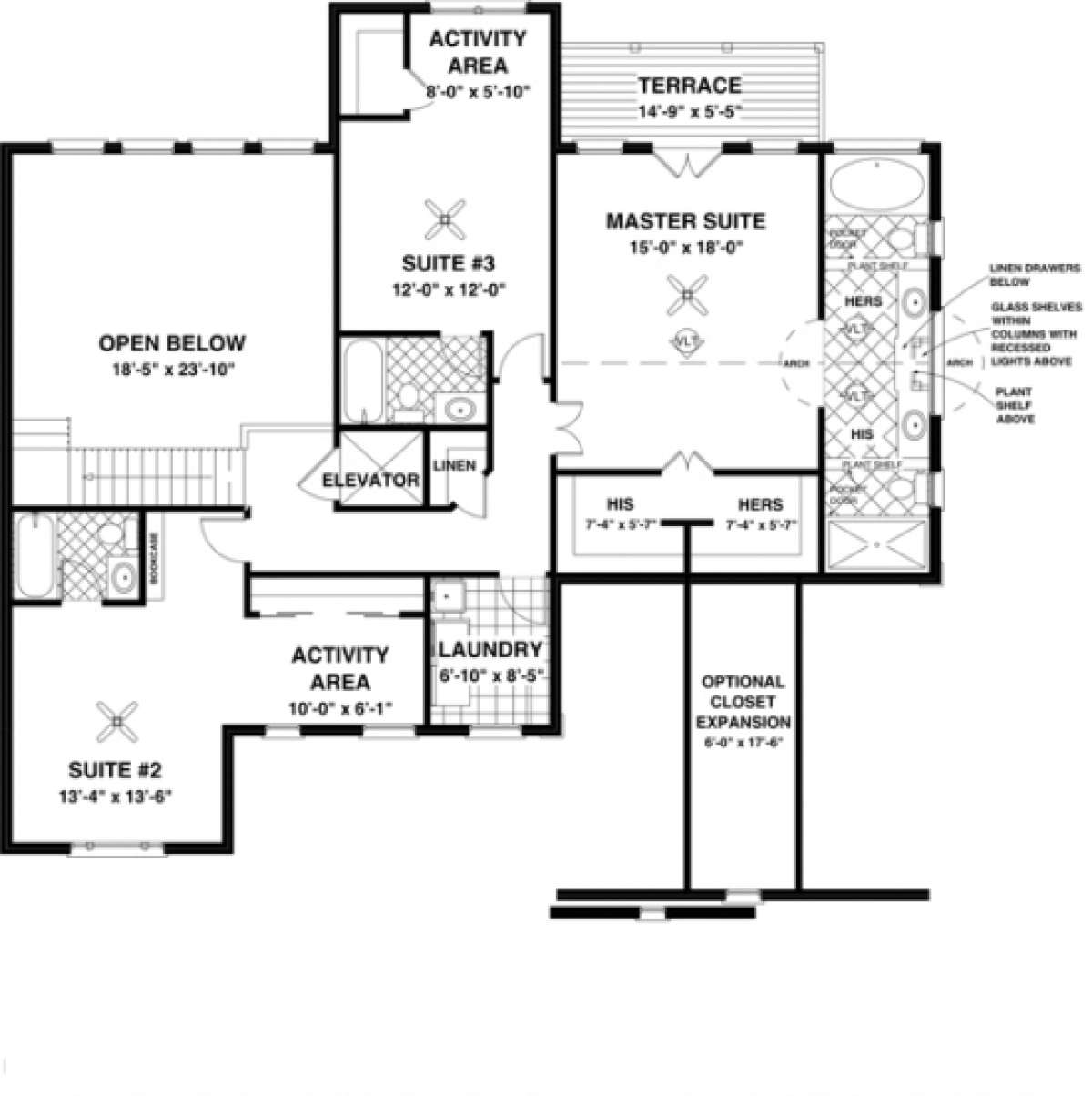

Second Floor
Second Floor for House Plan #036-00132


What's Included in these plans?

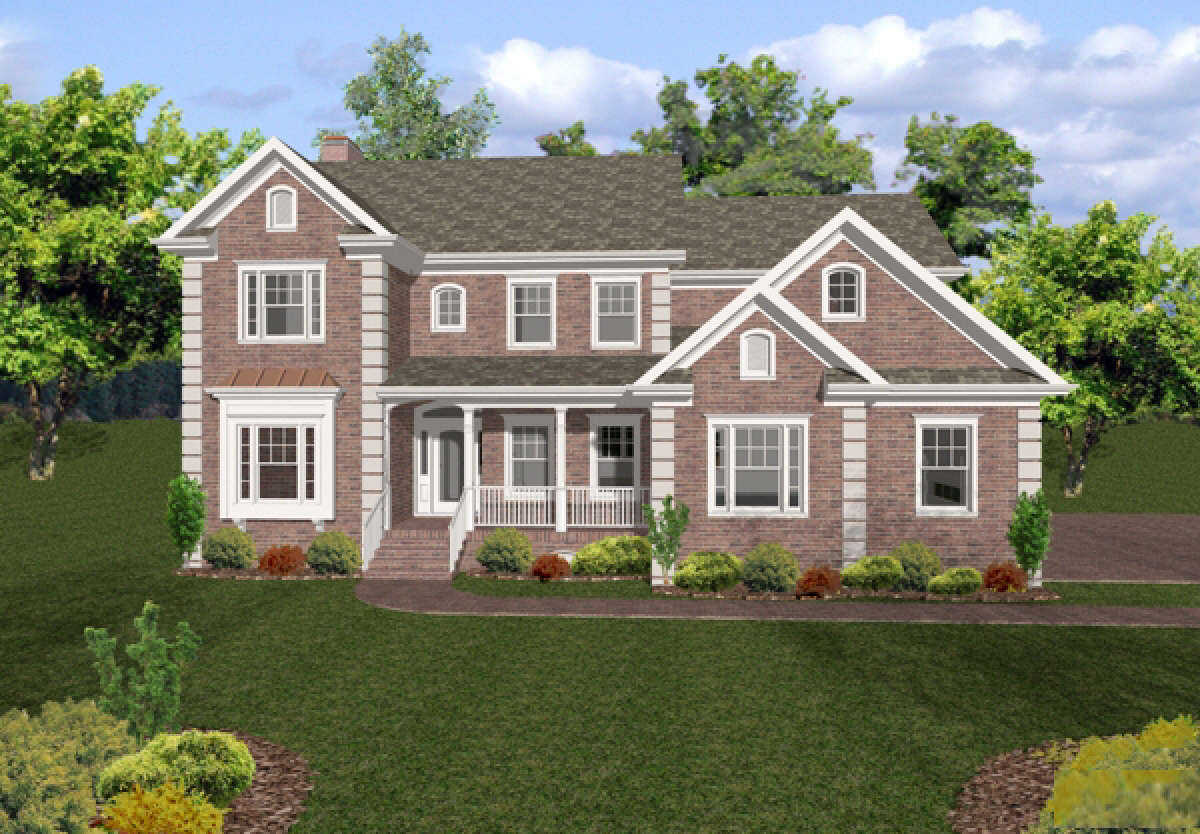

  • Artist Rendering
  • Exterior Elevation Views: Scale: 1/4"=1' Front and 1/4" or 1/8"=1' Sides and Rear
  • Floor Plans: Scale: 1/4"=1'
  • Foundations: Scale: 1/4"=1' (Though on occasion, Optional foundations may be 1/8"=1')
  • Electrical Layout: Most often shown on floor plan drawing, though sometimes on separate sheet
  • Roof Plan: Scale: Either 1/4" or 1/8"=1'
  • Building Sections: Included with most plan sets
  • Wall Sections: Included with all plans in Detail Sheet Package
  • General Notes and Details: Included with all plans in Detail Sheet Package

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

An alluring front porch welcomes you to this spacious and sophisticated two story home with 4 bedrooms and 4 baths. We think you will find that this efficient 2760 square foot home offers a remarkable collection of features. The foyer provides direct access to an exquisite dining area and a sizeable guest suite. The grand two story family room is open to the kitchen and breakfast area. We have also provided an enormous 3.5 car garage for today’s “mobile” families…allowing plenty of room for the family’s recreational “toys”. Upstairs you will find 2 bedrooms, each with a private bath and abundant closet space, plus a grand master suite. The master features a vaulted ceiling and a his and hers walk-in closet with an expansion area available to virtually triple its size. The his and hers baths feature a vaulted ceiling with a radiused window above to provide plenty of light. Lower level ceiling heights are 9’, except for the family room which is 18’. The upper level ceilings are 8’ high except for the vaulted master areas.
