Craftsman House Plan 036-00119

Sq Ft2,493
1/2 Baths0
Width70' 0"
Depth56' 10"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
First Floor for House Plan #036-00119
Second Floor for House Plan #036-00119

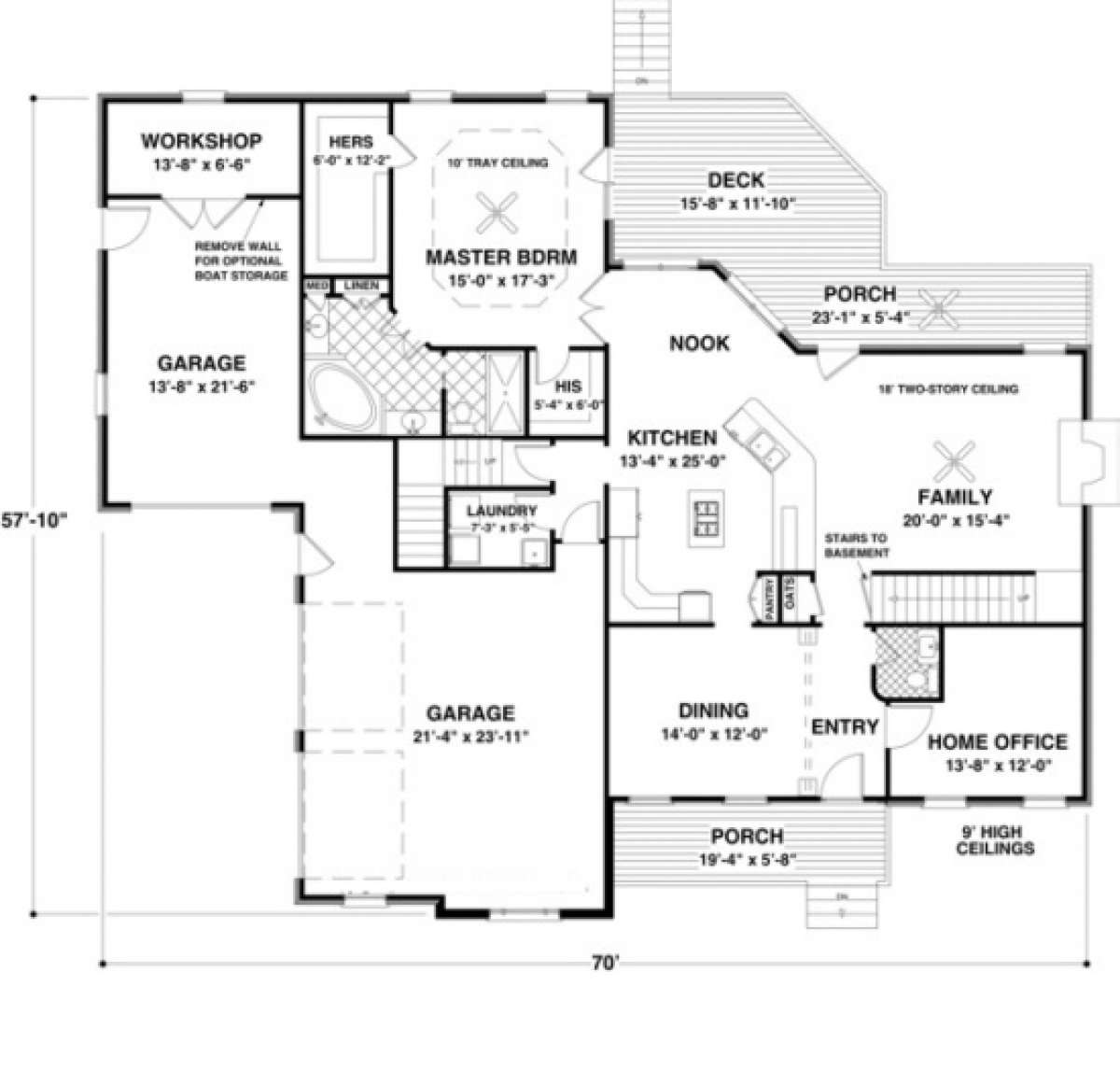

First Floor
First Floor for House Plan #036-00119

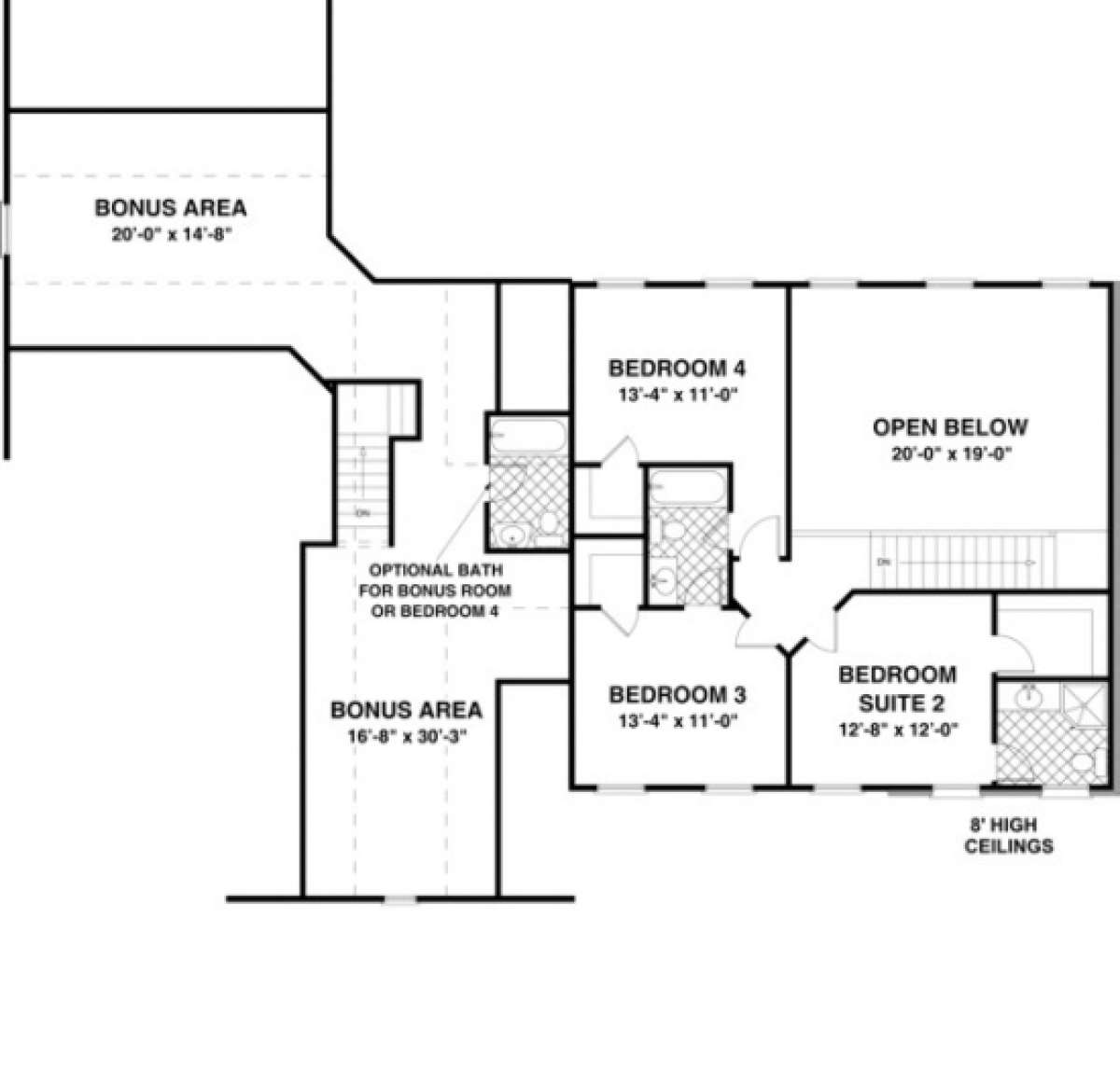

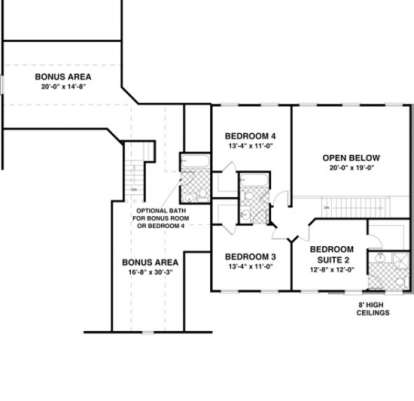

Second Floor
Second Floor for House Plan #036-00119

Frequently Asked Questions


What's Included in these plans?

  • Artist Rendering
  • Exterior Elevation Views: Scale: 1/4"=1' Front and 1/4" or 1/8"=1' Sides and Rear
  • Floor Plans: Scale: 1/4"=1'
  • Foundations: Scale: 1/4"=1' (Though on occasion, Optional foundations may be 1/8"=1')
  • Electrical Layout: Most often shown on floor plan drawing, though sometimes on separate sheet
  • Roof Plan: Scale: Either 1/4" or 1/8"=1'
  • Building Sections: Included with most plan sets
  • Wall Sections: Included with all plans in Detail Sheet Package
  • General Notes and Details: Included with all plans in Detail Sheet Package


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This lovely two story offers four bedrooms, four baths and an abundance of additional living space. The covered front porch leads into the spacious foyer which anchors the formal dining room and office. The dramatic, two story family room has a fireplace, is open to the kitchen and breakfast nook and has direct access to the rear porch and deck. The kitchen has a center cook top, separate pantry and an abundance of counter and cabinet space. The master suite has a lovely trey ceiling bedroom with private deck access, his and her walk-in closets and master bath which includes dual vanities, a separate shower and garden tub. There is a half bath for guests and a large laundry room off the three car garage. The garage is split with a two/one bay and offers an additional workshop space. Upstairs, you will find three bedrooms, each with a walk-in closet. Bedroom two offers a full shower bathroom and there is a shared hall bath for the other two bedrooms. Additionally, there is a dual, split bonus area with an optional full bath providing this home with endless possibilities for family living.
