Traditional House Plan 036-00062

Sq Ft1,800
1/2 Baths0
Width63' 0"
Depth73' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

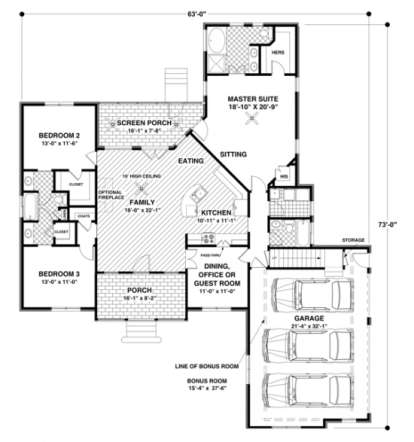

Floorplan for House Plan #036-00062
Floorplan for House Plan #036-00062

Frequently Asked Questions


What's Included in these plans?

  • Artist Rendering
  • Exterior Elevation Views: Scale: 1/4"=1' Front and 1/4" or 1/8"=1' Sides and Rear
  • Floor Plans: Scale: 1/4"=1'
  • Foundations: Scale: 1/4"=1' (Though on occasion, Optional foundations may be 1/8"=1')
  • Electrical Layout: Most often shown on floor plan drawing, though sometimes on separate sheet
  • Roof Plan: Scale: Either 1/4" or 1/8"=1'
  • Building Sections: Included with most plan sets
  • Wall Sections: Included with all plans in Detail Sheet Package
  • General Notes and Details: Included with all plans in Detail Sheet Package


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This Ranch house plan is a veritable showcase for traditional exterior design features with compelling architectural elements that define American craftsmanship and design products. There are two different elevations; one is a siding version reminiscent of the Arts and Crafts movement while the other is a more traditional style with brick and siding. The interior floor plan has a lovely open concept layout, the ubiquitous split bedroom plan and a rear screened porch perfect for relaxing or outdoor dining. Three to four bedrooms and three baths are incorporated into the approximate 1,800 square feet of living space and a three car side loading garage features an additional 503 square feet of vehicle and other storage items space. The front covered porch grants access into the home’s interior which features a French door entrance into the flex space; this is great space and could be utilized as a formal dining room, home office/study or a playroom for the children. There is a pass-thru to the kitchen where an enormous amount of cabinet and counter space is located along with a center island with plenty of work/prep space. The centrally located family room is the feature focus of the interior layout and features soaring ceiling heights, a massive amount of floor space and an optional fireplace. French door access onto the screened porch is available through the family room and there is a breakfast nook with views onto the screened porch as well. There is a full bath with a tub/shower combination and the family laundry room is located directly off the garage for ease of clean-up and a tidy home environment.
The split bedroom plan features two bedrooms on one side of the home; both bedrooms are spacious and bedroom two is highlighted by an enormous walk-in closet while the third bedroom features a walk-in closet as well. There is a shared jack and jill bath with private vanities, a shared linen closet, toilet area and a tub/shower combination. The master retreat’s location provides abundant privacy and is positioned at the far rear of the home. There is a large master bedroom with adjoining sitting room and private access onto the screened porch. His and her walk-in closets are conveniently attached off the bedroom and the en suite bath is highlighted with modern amenities and French door access into the space. This family friendly home features a striking exterior that conveys traditional design features and an interior floor plan that is versatile and functional.
