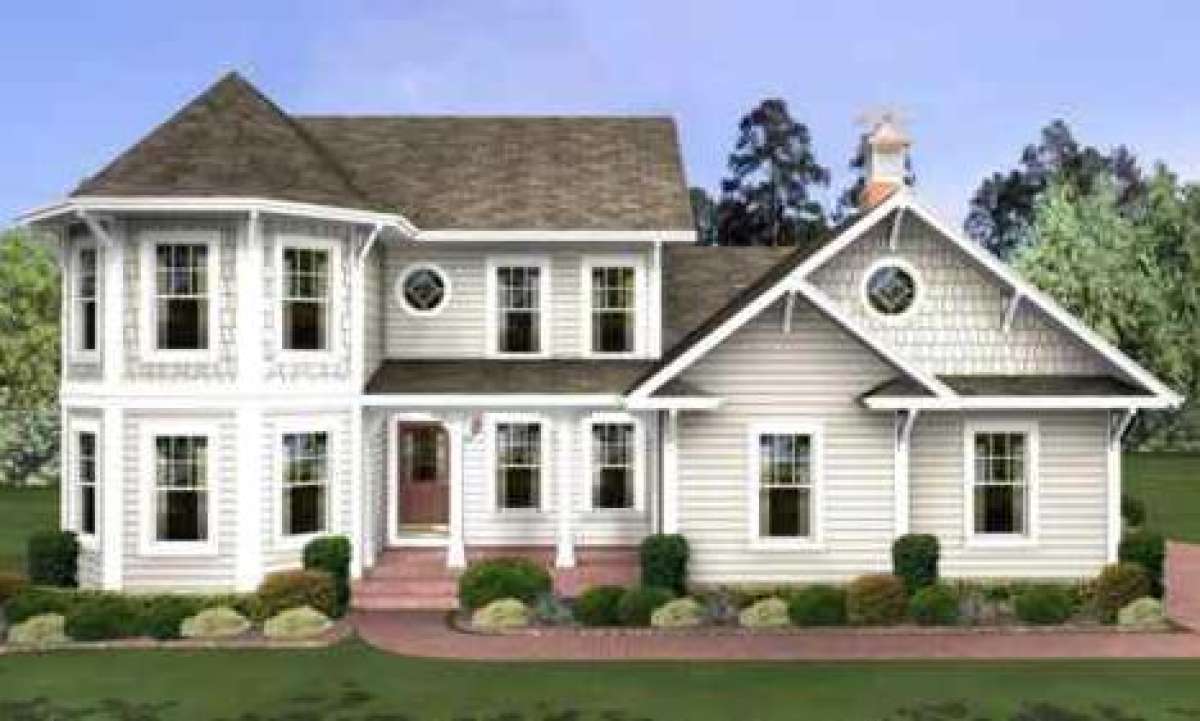

Craftsman House Plan 036-00054

Sq Ft1,897
1/2 Baths0
Width52' 0"
Depth40' 4"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
First Floor for House Plan #036-00054
Second Floor for House Plan #036-00054

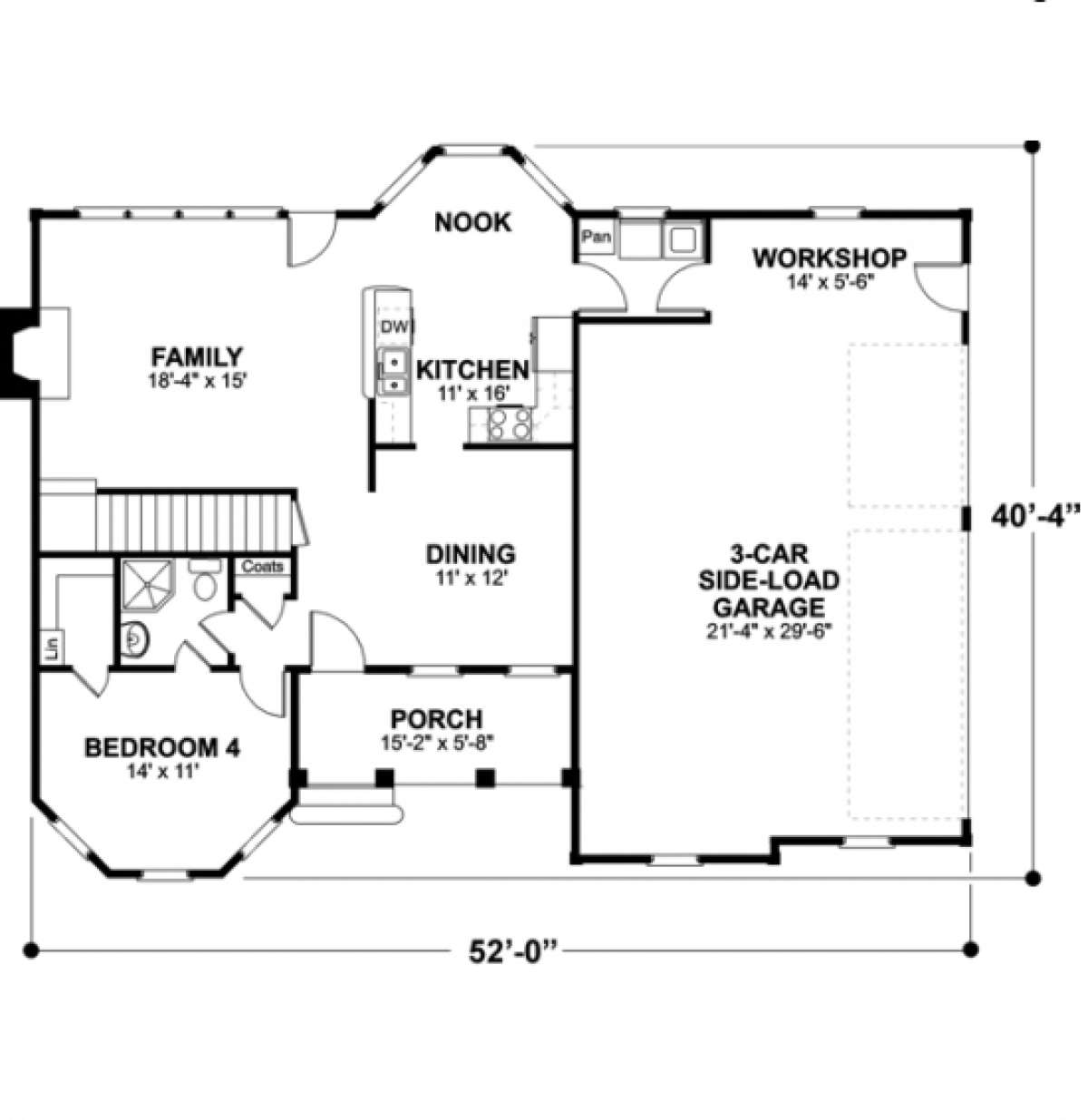

First Floor
First Floor for House Plan #036-00054

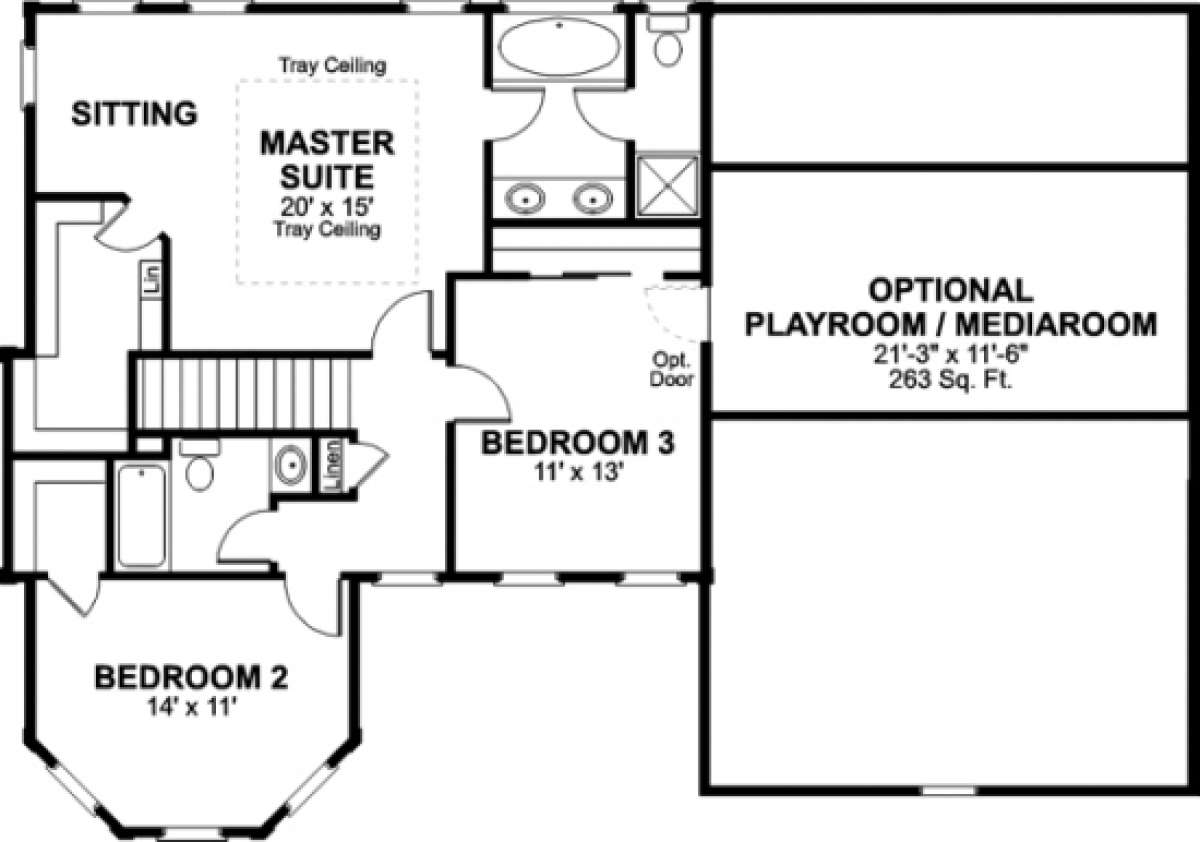

Second Floor
Second Floor for House Plan #036-00054

Frequently Asked Questions


What's Included in these plans?

  • Artist Rendering
  • Exterior Elevation Views: Scale: 1/4"=1' Front and 1/4" or 1/8"=1' Sides and Rear
  • Floor Plans: Scale: 1/4"=1'
  • Foundations: Scale: 1/4"=1' (Though on occasion, Optional foundations may be 1/8"=1')
  • Electrical Layout: Most often shown on floor plan drawing, though sometimes on separate sheet
  • Roof Plan: Scale: Either 1/4" or 1/8"=1'
  • Building Sections: Included with most plan sets
  • Wall Sections: Included with all plans in Detail Sheet Package
  • General Notes and Details: Included with all plans in Detail Sheet Package


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This house plan offers an inviting and aesthetically pleasing dramatic exterior which bodes well for the innovative interior. The covered front porch opens into the dining room and the open concept floor plan which then leads into the family room with fireplace, a wall of windows and rear access. The breakfast room and kitchen are highlighted by the triple bay window and offers an abundance of counter and cabinet space along with a separate pantry and laundry area with access to the workshop area of the garage. The garage is a three car, side entry which is ideal for large vehicles or storage for lawn or sports equipment. A fourth bedroom with bay window, a walk-in closet and full bath complete the main level of the home. Upstairs, you have two bedrooms, one with a triple bay window, that offer ample closet space and a shared hall bath along with the master suite. The master suite includes an impressive 20’x15’ trey ceiling bedroom with an additional sitting area, an oversized walk-in closet and master bath. The bath contains dual vanities, a garden tub and separate shower. Additionally, there is an optional 263 square foot playroom or media room available making this home ideal for your family’s needs.
