Traditional Plan 036-00049


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,798
Beds 3
Bath 2
1/2 Baths 1
Car 2
Stories 1
Width 54'
Depth 56' 2"

Floorplan Drawings

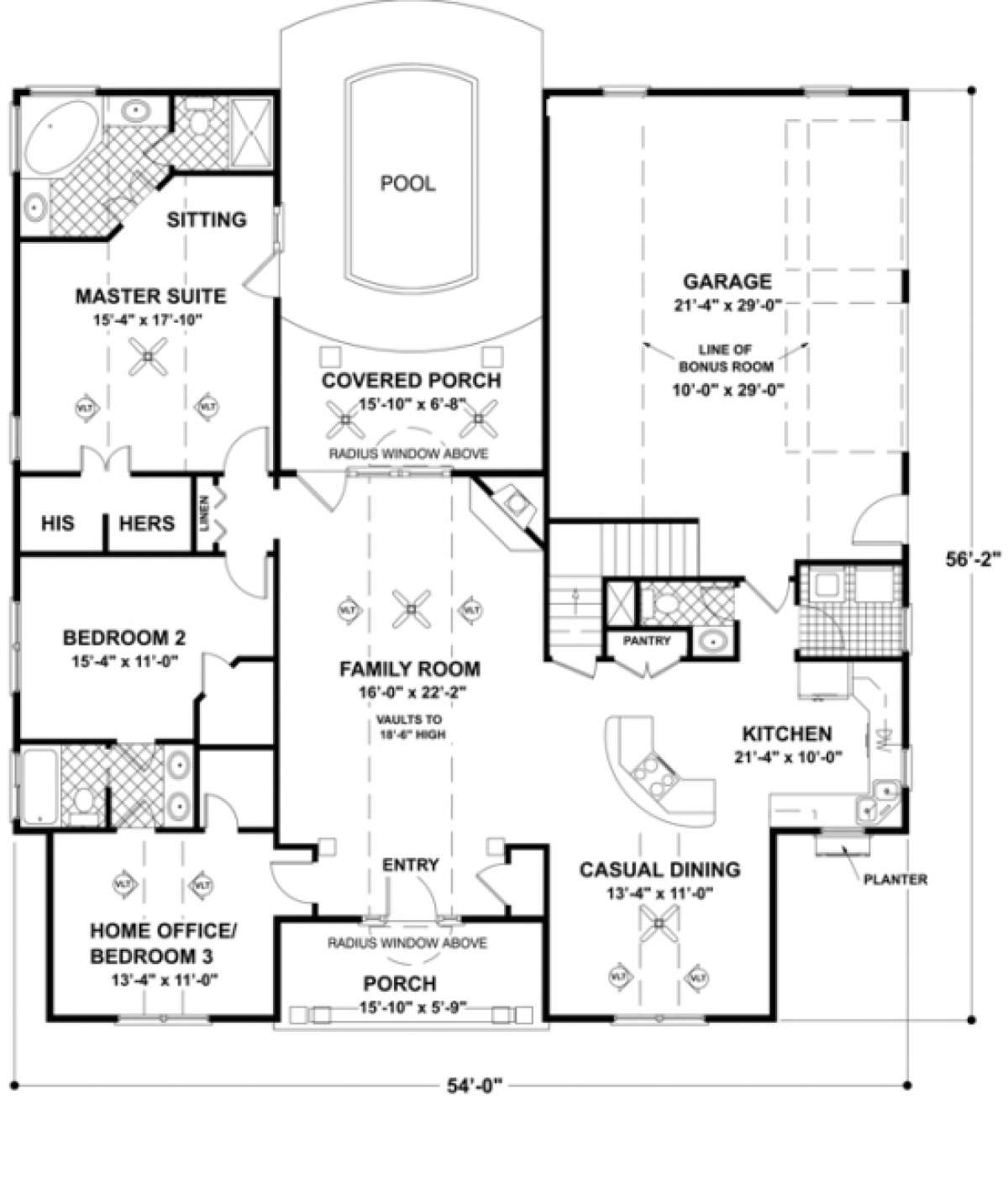

Floorplan for House Plan #036-00049

What's Included in these plans?

  • Artist Rendering
  • Exterior Elevation Views: Scale: 1/4"=1' Front and 1/4" or 1/8"=1' Sides and Rear
  • Floor Plans: Scale: 1/4"=1'
  • Foundations: Scale: 1/4"=1' (Though on occasion, Optional foundations may be 1/8"=1')
  • Electrical Layout: Most often shown on floor plan drawing, though sometimes on separate sheet
  • Roof Plan: Scale: Either 1/4" or 1/8"=1'
  • Building Sections: Included with most plan sets
  • Wall Sections: Included with all plans in Detail Sheet Package
  • General Notes and Details: Included with all plans in Detail Sheet Package

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

Distinctive Cottage styling is abundantly evident in this single story Traditional house plan which consists of open entertaining space and three bedrooms with two plus baths. Along with abundant open living spaces is a 328 square foot bonus room atop the two car garage. The bonus room offers a back staircase entrance and the space could function as a multi-purpose room, playroom for the children or an artist’s or writer’s studio. The interior floor plan features 1,798 square feet of living space and while compact, the rooms and layout of the home are well organized and an efficient use of space. A striking exterior façade makes use of Palladian style windows and stacked stone supported beams highlight the front covered porch. Entrance into the home reveals radius windows highlighting the front and rear of the family room. The family room, itself, features soaring ceiling heights, a corner fireplace and access to the rear covered porch. Outstanding outdoor space provides comprehensive entertaining options designed to maximize family and friend gatherings. A casual dining space and gourmet kitchen is situated off the family room and is highlighted by an angled breakfast bar, a separate pantry and a punctuated window planter. There is a guest powder room and the interior laundry room is conveniently located off the garage for ease of clean up and tidiness.

Two spacious family bedrooms, one of which is vaulted, features good floor space, generous storage space in terms of walk-in closets and each contains double window views. There is a shared jack and jill bathroom which offers double vanities as well. The owner's suite is situated at the rear of the home for privacy and includes a large  bedroom with vaulted ceilings, an adjoining sitting room and private access to the rear covered porch. His and her walk-in closets line the wall of the bedroom and the en suite bath is accessible through French doors on the opposite wall. The owner's bath incorporates a large garden tub with surrounding window views into the design and also includes dual vanities and an enclosed shower and toilet area. This well laid out house design features a comfortable and fully functional floor plan under the roof of a charming Cottage exterior.
