Traditional House Plan 036-00040

Sq Ft1,681
1/2 Baths0
Width55' 8"
Depth53' 2"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

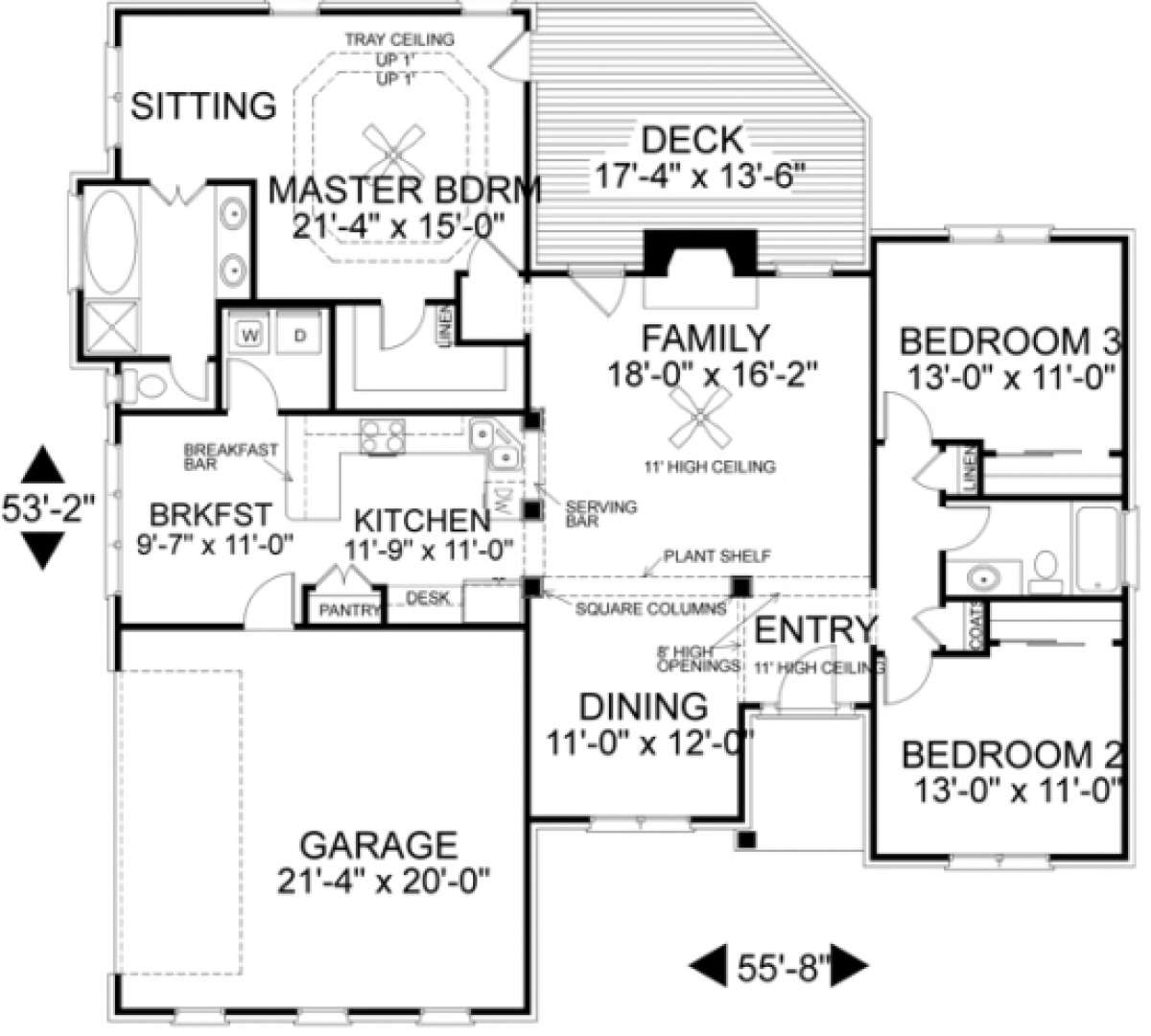

Floorplan for House Plan #036-00040
Floorplan for House Plan #036-00040

Frequently Asked Questions


What's Included in these plans?

  • Artist Rendering
  • Exterior Elevation Views: Scale: 1/4"=1' Front and 1/4" or 1/8"=1' Sides and Rear
  • Floor Plans: Scale: 1/4"=1'
  • Foundations: Scale: 1/4"=1' (Though on occasion, Optional foundations may be 1/8"=1')
  • Electrical Layout: Most often shown on floor plan drawing, though sometimes on separate sheet
  • Roof Plan: Scale: Either 1/4" or 1/8"=1'
  • Building Sections: Included with most plan sets
  • Wall Sections: Included with all plans in Detail Sheet Package
  • General Notes and Details: Included with all plans in Detail Sheet Package


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This brick, traditional ranch style home is classic in design and is highlighted by wood shingles in the gable ends. The entrance to the home is dramatic with an 11’ high ceiling and is open to both the dining and family room which include columns, plant shelves, a serving bar, a back wall fireplace and high ceilings as well. The great room also has access to the oversized rear deck and yard. The kitchen and breakfast area are well appointed and includes an abundance of amenities found in larger, more expensive homes. These include a desk area, separate pantry, a breakfast bar area and a triple window to allow for plenty of sunshine. The master suite is simply luxurious and contains a large bedroom with trey ceiling and additional sitting room, an oversized walk-in closet and master bath. The bath offers dual vanities, a garden tub, separate shower and compartmentalized toilet. There are two additional bedrooms located on the other side of the home which are quite spacious, contain plenty of closet space and share a hall bath. The side entry, two car garage and large laundry room complete the home making this home ideal for a family that values its space and design options.
