Ranch Plan 036-00033

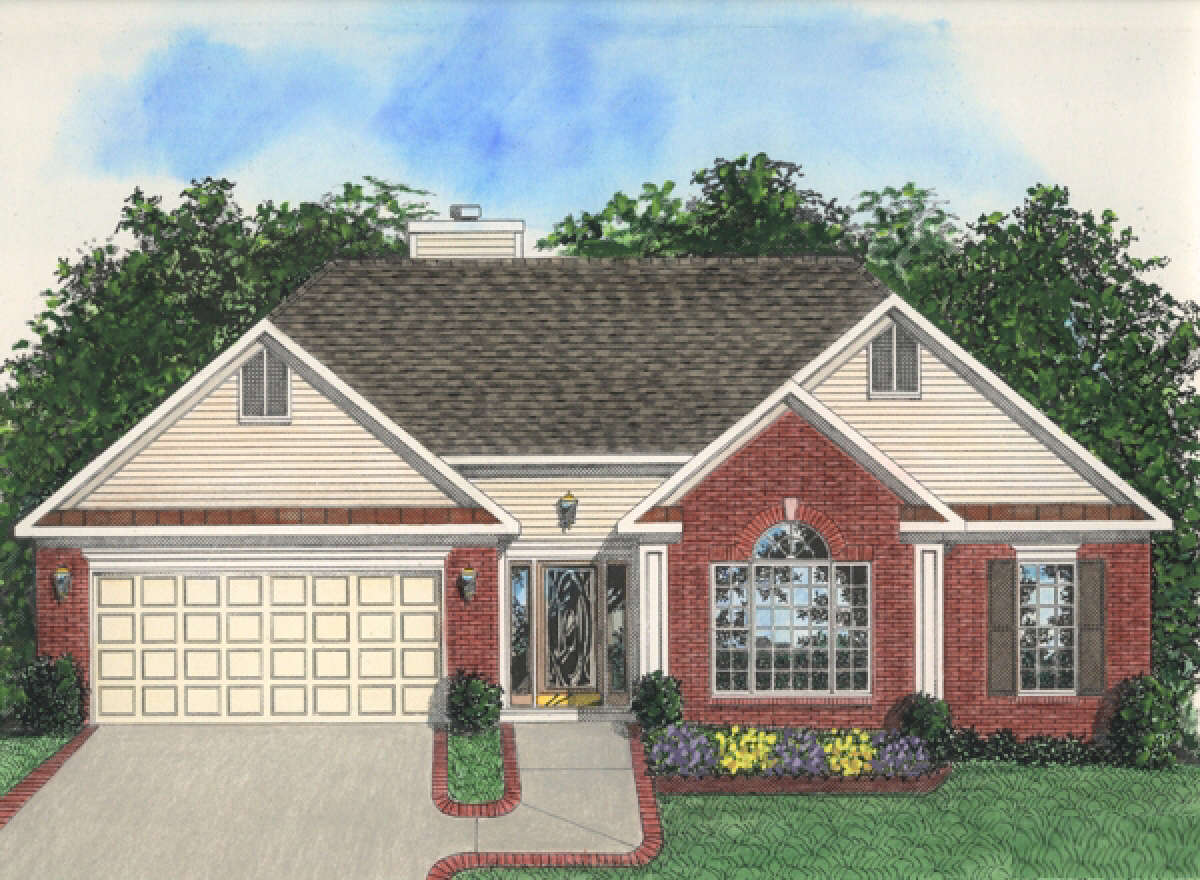

Ranch House Plan #036-00033 Elevation Photo

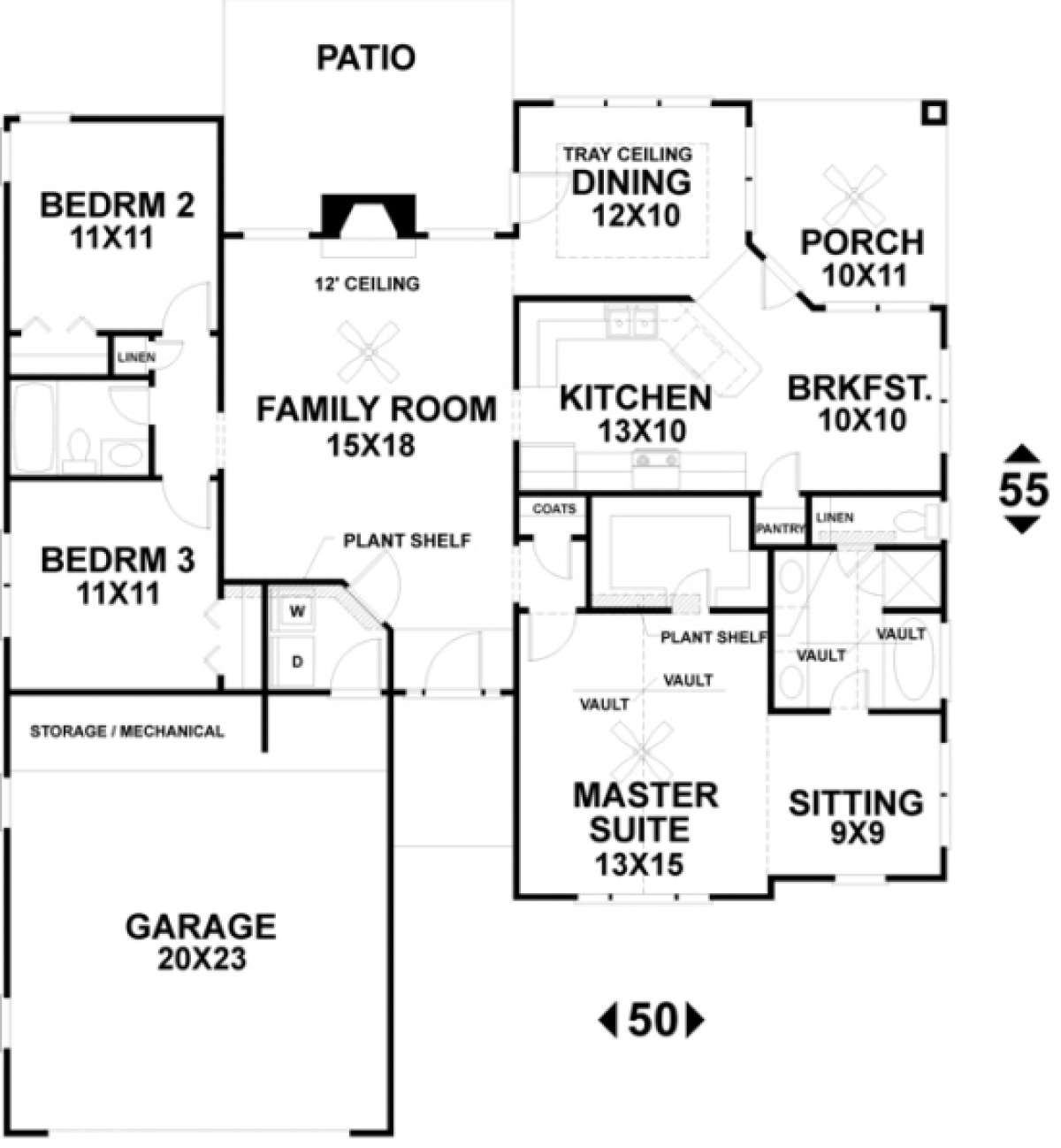

Floorplan for House Plan #036-00033
Ranch House Plan #036-00033 Elevation Photo
Floorplan for House Plan #036-00033

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Images copyrighted by the designer. Photographs may reflect a homeowner modification.
Sq Ft 1,593
Beds 3
Bath 2
1/2 Baths 0
Car 2
Stories 1
Width 50'
Depth 54' 10"

Floorplan Drawings

 PRINT  DOWNLOAD
Floorplan for House Plan #036-00033
Floorplan
Floorplan for House Plan #036-00033
Images copyrighted by the designer.


What's Included in these plans?

  • Artist Rendering
  • Exterior Elevation Views: Scale: 1/4"=1' Front and 1/4" or 1/8"=1' Sides and Rear
  • Floor Plans: Scale: 1/4"=1'
  • Foundations: Scale: 1/4"=1' (Though on occasion, Optional foundations may be 1/8"=1')
  • Electrical Layout: Most often shown on floor plan drawing, though sometimes on separate sheet
  • Roof Plan: Scale: Either 1/4" or 1/8"=1'
  • Building Sections: Included with most plan sets
  • Wall Sections: Included with all plans in Detail Sheet Package
  • General Notes and Details: Included with all plans in Detail Sheet Package

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This charming ranch style home is innovative in style and offers many opportunities for sunlight from the glass front door and abundance of windows to the rear covered porch. Upon entering the home, you step into the large family room which showcases a rear wall fireplace surrounded on both sides by windows. The spectacular dining room has a trey ceiling, windows on two sides and conveniently links to the breakfast area and kitchen. The breakfast area also is bright and airy with plenty of windows and there is a rear covered porch anchored between the dining room and breakfast area making this an ideal spot for relaxing and entertaining family and friends. The kitchen is large, contains an angled bar area and separate pantry and offers a plethora of cabinet and counter space. Two bedrooms with ample closet space and a shared hall bath are on one side of the home while the master suite is located on the opposite side for privacy. The master suite includes a large vaulted bedroom, an additional sitting room and an oversized walk-in closet. The master bath is also vaulted and offers dual vanities, a large garden tub and a separate shower. The two car garage has additional storage space and leads directly into the home’s large utility room for convenience. This home has many design features which will allow you and your family to be comfortable for years to come.
